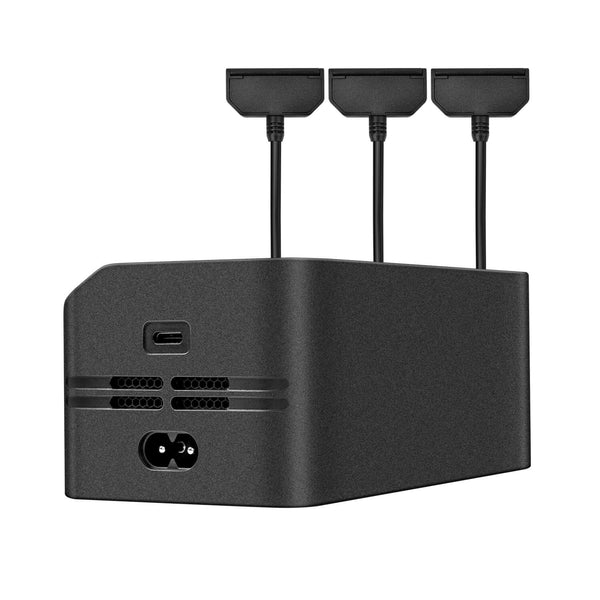

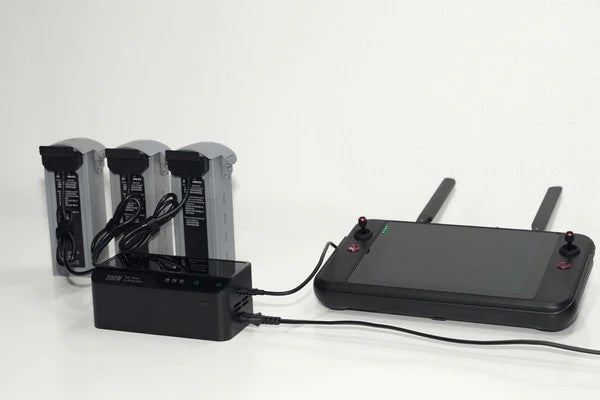

Autel EVO MAX series accessories launch a new charging center, the EVO Max multi-function charger can charge 3 Autel Evo Max 4T batteries and the Autel V3 remote control at the same time. Here, we will explain the Autel EVO Max Series Multi-charger in detail.
Autel EVO Max Series Multi-charger has three interfaces, including a power cord interface, a battery charging cable interface, and a remote control charging interface. The maximum charging power of EVO Max Series Multi-charger can reach 200w. Press the power button to start.
EVO Max Series Multi-charger has safe power management, providing overcharging, overheating and short circuit protection. Only applicable to EVO MAX series batteries, EVO MAX battery is 8070mAh. It takes 60-70 minutes to fully charge one battery, and 100-110 minutes to charge three batteries. Charge according to the remaining battery power from high to low.
Autel EVO Max series multi-charger specification
| Product Name | Multi-charger For EVO Max Series |
| Compatible Model | EVO Max Series Battery |
| Operating Temperature | 0-40℃ |
| AC Input Voltage | 100V-240V～2.5A 50Hz/60Hz 230W |
| USB Type-C Input | 9V～3A; 12V～3A; 15V～3A; 20V～5A |
| USB Type-C Output | 5V⎓2A; 9V⎓3A; 12V⎓3A; 15V⎓3A; 20V⎓5A |
| Charging Power | Max. 120W (One Battery) Max. 200W (Multi-battery) |
| Product Dimension | 151×75×60 mm (Product) |
| Package Dimension | 175×98×88mm |
| Product Weight | 560g ±10%（excluding cables） |
| Charging Time | One battery: 60-70 mins Two batteries: 100-110 mins Three batteries: 100-110 mins |
