Autel Robotics EVO II Pro V3 Camera Drone (Grey)
Autel Robotics EVO II Pro V3 Camera Drone (Grey)
- Remote ID Updated
- Free Landing Pad and a pair of propeller guards
- No Autel Logo | suitable for DIYers
- 6.4" Smart Controller SE
- 15km(9.3 miles) Image Transmission
- Moonlight Algorithm 2.0
- SkyLink 2.0
- 12-bit DNG
- 360° Obstacle Avoidance
- Dynamic Track 2.1
- 40 Mins Flight Time
- Overview
- SPECS
- In the box
- Downloads
- Faqs
-
EVO II Pro V3
Autel Robotics EVO II Pro V3 comes with Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, higher frame rates. The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.[Autel EVO II Pro V3 drone returns to home automatically without GPS signal at high altitude.]
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Moonlight
Algorithm 2.0 -
15km
Transmission Range -
360°
Obstacle Avoidance -
Dynamic Track
2.1 -
40 Minutes
Flight Time -
6.4"
Smart Controller SE
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Moonlight
Algorithm 2.0 -
15km
Transmission Range -
360°
Obstacle Avoidance -
Dynamic Track
2.1 -
40 Minutes
Flight Time -
6.4"
Smart Controller SE
Excel in Low Light
-
Moonlight Algorithm 2.0 EVO II Pro V3 brings you Autel's Moonlight Algorithm 2.0 for additional noise reduction. Paired with its upgraded CMOS, pilots can provide support in operations with minimal lighting or at night.
-
Moonlight Algorithm 2.0 EVO II Pro V3 brings you Autel's Moonlight Algorithm 2.0 for additional noise reduction. Paired with its upgraded CMOS, pilots can provide support in operations with minimal lighting or at night.
EVO II Pro V3 brings you Autel's Moonlight Algorithm 2.0 for additional noise reduction. Paired with its upgraded CMOS, pilots can provide support in operations with minimal lighting or at night.
All New 6K 1" CMOS
Autel Robotics EVO II Pro V3 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
f/2.8-f/11
Adjustable Aperture
12-bit DNG
Post-production Flexibility
100-44000
ISO range
Professional Videos
‹›-
4K HDR 4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
-
12-bit DNG The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.
-
4K HDR
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
-
12-bit DNG
The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
EVO II - AI Enhanced Dynamic Track
EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO II Pro V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro V3's images and upload them to your 3D mapping
-
Rectangular Mission
-
Polygon Mission
-
Flight Route Options -
Demo Screen
-
Rectangular Mission
-
Polygon Mission
-
Flight Route Options -
Demo Screen
Failsafe & Automatically Return Home
EVO 2 Pro V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
-
ATH(Auto Reture Home) -
Hover -
Land Off
-
ATH(Auto Reture Home) -
Hover -
Land Off
40 Minutes & 9 Miles HD Transmission
Autel EVO 2 Pro V3 comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 15km (9.3miles) away and 35min at a hover. And top speed up to 45MPH.
-
40minutes
Maximum Flight Time
-
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight Speed
-
40minutes
Maximum Flight Time
-
9.3miles (15km)
Maximum Transmission Range
-
27mph (12m/s)
Maximum Wind Resistance
-
45mph (20m/s)
Maximum Flight Speed
Autel Smart Controller SE
Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.
-
-
- 6.4-Inch OLED Screen
-
- Removable Battery
-
- 9.3 Miles Transmission Range
-
- 14°F to 104°F Operating Temperature
-
- 3rd Party Apps
-
-
- 6.4-Inch OLED Screen
-
- Removable Battery
-
- 9.3 Miles Transmission Range
-
- 14°F to 104°F Operating Temperature
-
- 3rd Party Apps
Live Deck 2: Stream Anywhere
EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
-
-
1080P/60FPS Video Stream
-
-
Three Auto-Switch Bands
-
-
Transmission Range
-
-
5-Hour Battery Life
-
-
IP43 Resistance
-
-
1080P/60FPS Video Stream
-
-
Three Auto-Switch Bands
-
-
Transmission Range
-
-
5-Hour Battery Life
-
-
IP43 Resistance
Max. ISO 440000(Night Mode) Max. ISO 6400 GPS/GLONASS/Galileo/BeiDou Four systems
to search satellite simultaneouslyGPS/GLONASS/Galileo/BeiDou Two systems
to search satellite simultaneouslyAutel Skylink 2.0 Autel SkyLink 6.4-inch Smart Controller SE Traditional RC 15KM Tansmission(FCC) 9KM Transmission (FCC) 2.4GHz/5.8GHz/900MHz 2.4GHz/5.8GHz -
- Max. ISO 440000(Night Mode)
- GPS/GLONASS/Galileo/BeiDou Four systems to search satellite simultaneously
- Autel Skylink 2.0
- 6.4-inch Smart Controller SE
- 15KM Tansmission (FCC)
- 2.4GHz/5.8GHz/900MHz
-
- Max. ISO 6400
- GPS/GLONASS/Galileo/BeiDou Two system to search satellite simultaneously
- Autel SkyLink
- Traditional RC
- 9KM Transmission
- 2.4GHz/5.8GHz
-
-
Camera(Thermal & Visual light) Gimbal Aircraft Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Camera(Thermal & Visual light) Gimbal Aircraft Obstacle Avoidance Remote Controller Battery Charger Multi-Charger Camera
Sensor 1" CMOS
Effective Pixels: 20 MPLens FOV: 82°
Equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinityISO Range Video: 100-44000
Photo: 100-6400Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1 ~ 16x (Max. 3x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / DNG / JPG+DNG Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Max bitrate 120Mbps Supported file system FAT32/exFAT Gimbal
Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° Aircraft
Takeoff Weight 2.62 lbs (1187 g) Max takeoff weight 4.41 lbs (1999 g) Wheelbase 15.63 inches (397 mm) Size(L*W*H) 9.1*5.1*4.3 inches (folded);
18*22*4.3 inches (unfolded)
Maximum Takeoff Altitude 7000 m Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 25 km Max tilt angle 33° (Ludicrous) Max angular velocity 120°/s Max flight time (no wind) 40 min Max hovering time (no wind) 35 min Operating temperature range 14°F to 104°F (-10℃ ~ 40℃) Maximum resistance to wind 27mph, 12 m/s (Take-off and landing) Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power 900M FCC/ ISED：≤31dBm 2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBmHovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)GNSS GPS/Beidou/Glonass/Gallieo Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) Sensing System (Obstacle Avoidance)
Sensing System Omnidirectional Obstacle Sensing Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
Downward: Surface with clear pattern and adequate lighting (lux > 20)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)Remote Controller and Transmission
Operating Frequency - 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
Max Transmission Distance FCC: 15 km
CE: 8 kmOperating Temperature Range 14°F to 104°F (-10°C to 40°C) Transmission Power (EIRP) - FCC：≤33dBm
- CE：≤20dBm@2.4G，≤14dBm@5.8G
- SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Real-Time Transmission Quality 2340x1080 60fps Max Bitrate of Real-time Transmission 40Mbps Remote Controller Battery 1900mAh Operating Current/Voltage 1.7A @ 3.7V Charging Temperature Range 32°F to 104°F (0 to 40°C) Supported USB Port Types Lightning, Micro USB (Type-B), USB-C Operating Hours ~2 hours (Max. Brightness)
~4 hours (50% Brightness)OLED Brightness 800 nit Charging time 90 minutes Internal Storage ROM 128GB + expandable storage via micro-SD card Battery
Capacity 7100 mAh Battery Type LiPo 3S Battery Energy 82 Wh Voltage 11.55 V Max Charging Voltage 13.2 V Charging Temperature Range 41°F to 104°F (5°C to 40°C) Max Charging Power 92 W Net Weight 0.81 lbs (365g)
Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A Voltage 13.2±0.1V Rated power 66W Multi-Charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃ -

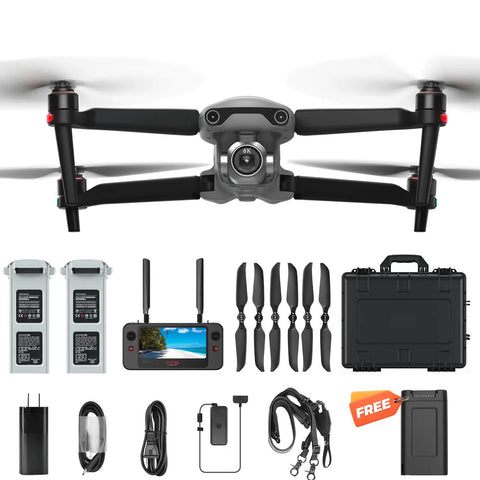

Autel EVO II Pro V3 Rugged Bundle Package List
Autel EVO II Pro V3 Advanced Rugged Bundle Package List
Autel EVO II Hard Case
-
Autel Robotics EVO II PRO Quick Questions & Quick Answers
Q: What is the maximum wind resistance of the EVO II Pro?
Q: Can the aircraft be connected to a TF card?
Q: Are the gimbal camera of the EVO II V3 series interchangeable?
Q: Can EVO II V3 series cameras be used with EVO II V2 drones?
Q: How many ports does the remote controller have?
Q: Does the remote controller have custom buttons?
Q: What is the effective image transmission distance?
Q: What types of shooting formats does the camera support?
Q: What is the zoom range of the camera?
Q: What camera modes are available?
Q: Can the battery be used in a low temperature environment?
Q: Can the downward fill light be switched on manually?
Q: How to upgrade the firmware?
