Dragonfish Lite
Up to 81 minutes with payload.
Description

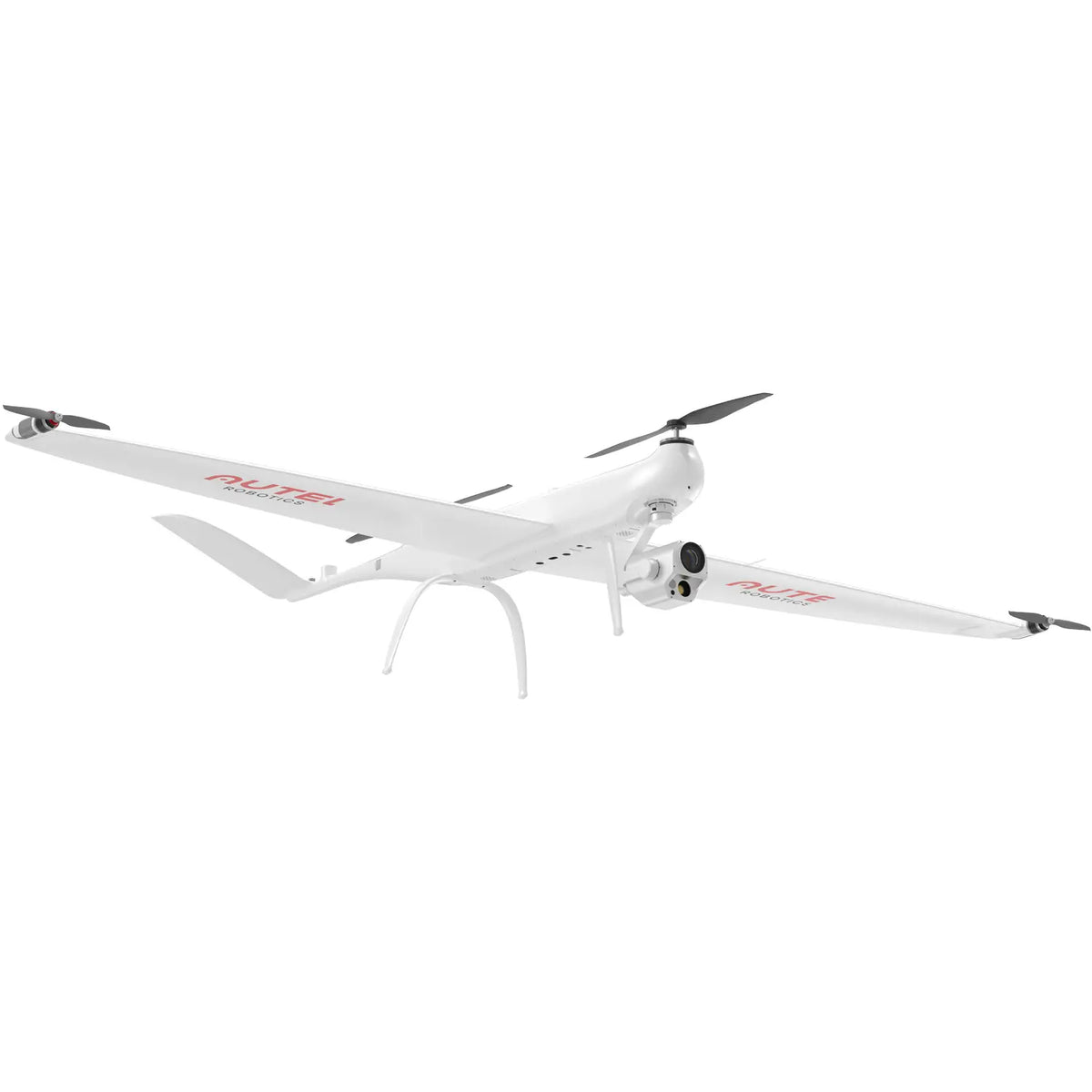

AUTEL DRAGONFISH SERIES
Move Beyond Convention, Command the Future
The Dragonfish Series combines tilt-rotor VTOL flight, long endurance, intelligent autonomy and interchangeable payloads for professional missions.
158 minMaximum endurance with payload
4K 50×Optical zoom (supported payload)
3 minQuick assembly
108 km/hMaximum speed
30 kmMaximum video transmission range
5 secSystem boot and self-check
Longer Endurance, Better Efficiency
Three Dragonfish models designed for different mission requirements.
Dragonfish Standard
Up to 126 minutes with payload.
Dragonfish Pro
Up to 158 minutes with payload.
Safety and Redundancy
Designed for reliable operation in complex environments.
Built for demanding missions
IP43 weather resistance, level 6 wind resistance, redundant battery, IMU, barometer, compass and positioning modules, AI self-checks, and automatic transition to multirotor mode when needed.
Redundant systemsFlight-critical module backups
Dual CAN busReal-time monitoring and interference protection
AI self-checkContinuous system monitoring
Automatic transitionFixed-wing to multirotor
Intelligence and Autonomy
Automated flight features simplify mission planning and execution.
One-Button Takeoff & Landing
Simplified takeoff and landing operations.
AI High-Speed Tracking
Intelligent tracking of moving subjects.
Point of Interest
Automated flight around a selected subject.
Adaptive Tracking
Autonomous flight with terrain awareness.
Advanced Mission Planning
Create and execute mission routes.
ADS-B Receiver
Improved situational awareness around manned aircraft.
Awareness of nearby aircraft
An integrated ADS-B receiver informs operators of incoming manned aircraft positions, altitude and speed to support safer flight operations.
Interchangeable Payload System
Rapidly switch between imaging payloads to meet mission needs.
DG-Z2
4K 20× optical zoom · 12 MP wide-angle · 3-axis stabilized gimbal
DG-T3
4K 20× optical zoom · 12 MP wide-angle · 640 × 512 infrared · 3-axis gimbal
DG-T3H
12 MP wide-angle · 1280 × 1024 infrared · laser range sensor · 3-axis gimbal
.png)
DG-L20T
4K 20× optical zoom · 12 MP wide-angle · 640 × 512 infrared · laser range sensor
DG-L50T
4K 50× optical zoom · 12 MP wide-angle · 1280 × 1024 infrared · laser range sensor
Payload compatibility varies by aircraft model. Confirm the selected configuration before ordering.
Applications
A flexible aerial platform for a wide range of professional missions.
Public Safety
Law enforcement and public safety operations.
Fire Fighting and Prevention
Fire detection and monitoring.
Energy
Powerline and infrastructure inspections.
Traffic Monitoring and Management
Road traffic monitoring and response.
Coastal Surveillance and Security
Coastal patrol and maritime observation.
Agriculture
Field observation and multispectral applications.
RTK Module
Precise positioning for demanding professional workflows.
Dual RTK positioning
Two RTK modules provide redundancy. When used with a compatible GNSS base station, the system supports centimeter-level positioning, precise headings and improved image metadata for photogrammetry.
Ground Control Station
High-visibility control for field operations.
9.7-inch, 1000-nit touchscreen
The 2048 × 1536 high-resolution display is designed for visibility in bright conditions. The controller supports up to 4.5 hours of battery operation and a transmission range of up to 30 km in the supported base-station configuration.
Professional Software Solutions
Autel Voyager provides an integrated workflow for professional Dragonfish missions.
Autel Voyager
Plan missions, track targets, manage flight history and execute autonomous operations through software designed for the Dragonfish platform.
Mission PlanningWaypoint and area missions
Intelligent TrackingAI-assisted operations
Flight HistoryReview past missions
Quick MissionAdapt missions in flight
Compact and Portable
A modular design simplifies transportation and setup.
Tool-free assembly
The Dragonfish can be disassembled by one person and transported in a typical vehicle trunk. Quick-release propellers and modular components enable assembly in less than five minutes, with a five-second system self-check.
Technical Specifications
Compare the Dragonfish Lite, Standard and Pro.
| Specification | Dragonfish Lite | Dragonfish Standard | Dragonfish Pro |
|---|---|---|---|
| Dimensions (mm) | 1600 × 950 × 350 | 2300 × 1290 × 460 | 3040 × 1650 × 460 |
| Endurance with payload | 81 min | 126 min | 158 min |
| Aircraft weight without payload | 4.5 kg | 7.5 kg | 14.5 kg |
| Maximum payload | 1.0 kg | 1.5 kg | 2.5 kg |
| IP rating | IP43 | IP43 | IP43 |
| Transmission range | 30 km | 30 km | 30 km |
| Wind resistance | Level 6 / Level 7 | Level 6 / Level 7 | Level 6 / Level 7 |
| Maximum height | 4000 m | 6000 m | 6000 m |
| Flying speed | 0–17 m/s multirotor; 17–30 m/s fixed-wing | 0–17 m/s multirotor; 17–30 m/s fixed-wing | 0–17 m/s multirotor; 17–30 m/s fixed-wing |
| Working temperature | −20 to 50°C | −20 to 50°C | −20 to 50°C |
| GNSS | GPS, GLONASS, BeiDou, Galileo | GPS, GLONASS, BeiDou, Galileo | GPS, GLONASS, BeiDou, Galileo |
| Supported payloads | DG-Z2, DG-T3, DG-T3H, DG-L20T | DG-Z2, DG-T3, DG-T3H, DG-L20T | DG-Z2, DG-T3, DG-T3H, DG-L20T, DG-L50T |
Based on the supplied Dragonfish Series brochure. Confirm model-specific specifications and payload compatibility before publishing.
