Skyfend Blader | Anti drone jammer
Skyfend Blader | Anti drone jammer
- Jamming Range up to 1,500m
- Jmming Frequency:868MHz / 915MHz / 1.2GHz / 1.4GHz / 1.6GHz / 2.4GHz / 4.95GHz / 5.2GHz / 5.35GHz / 5.6GHz / 5.8GHz
- Jamming Time:30 min
- Support User Logs
- IP65
- Efficient Jamming
- Consociate Spoofing
- Low SWaP-C
Contact Us For A Quote
- Overview
- Specs
- Videos
- Brochure
-
Skyfend Blader

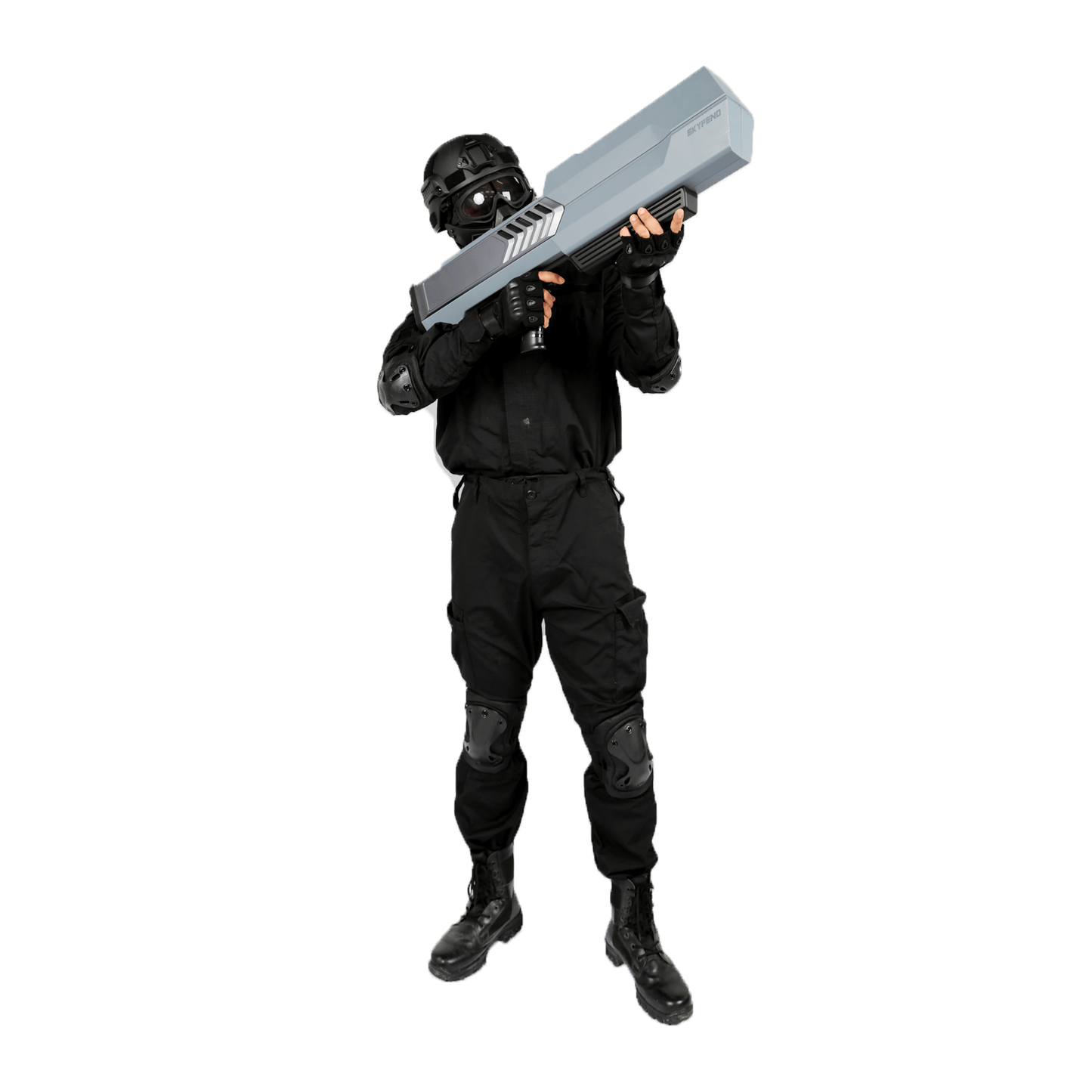

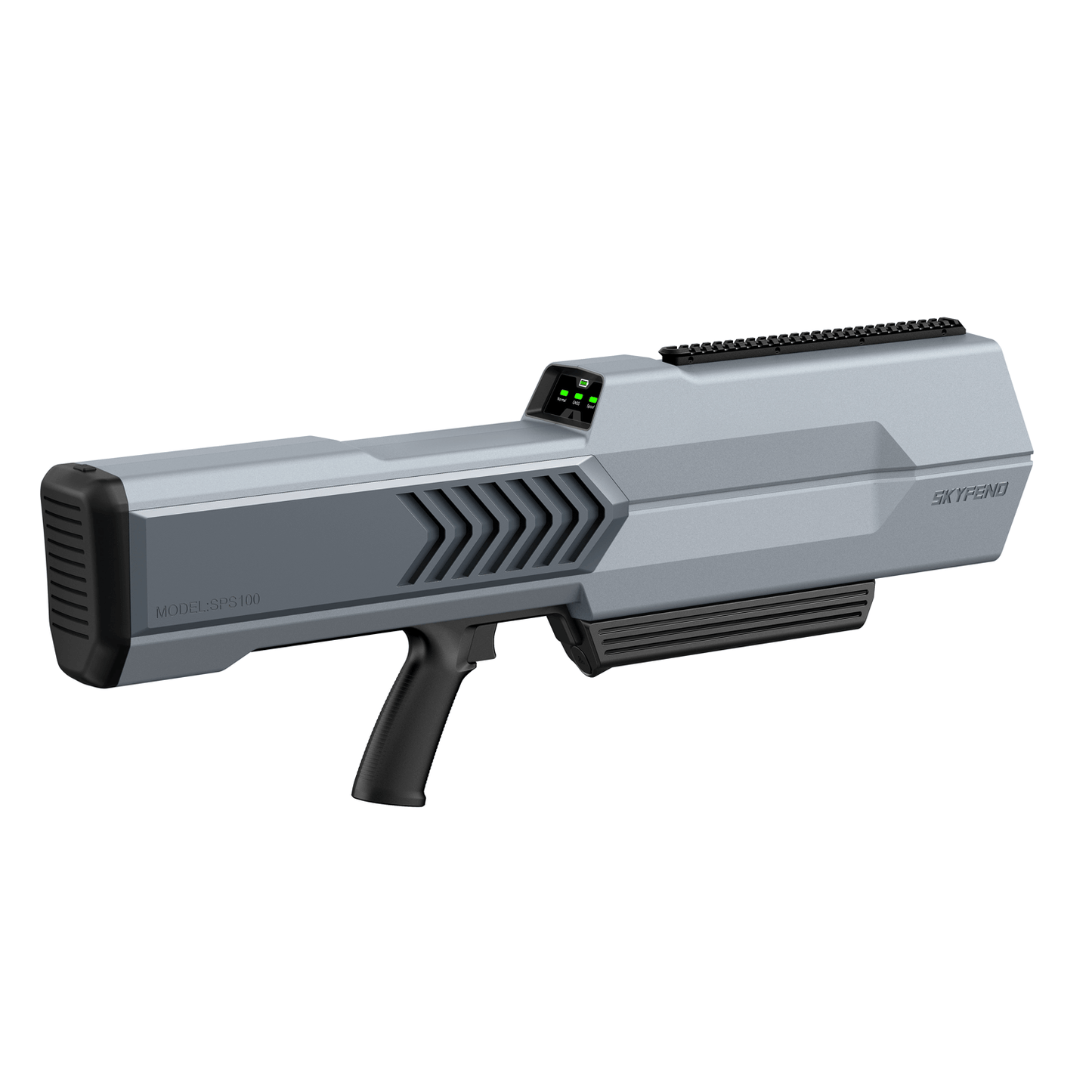

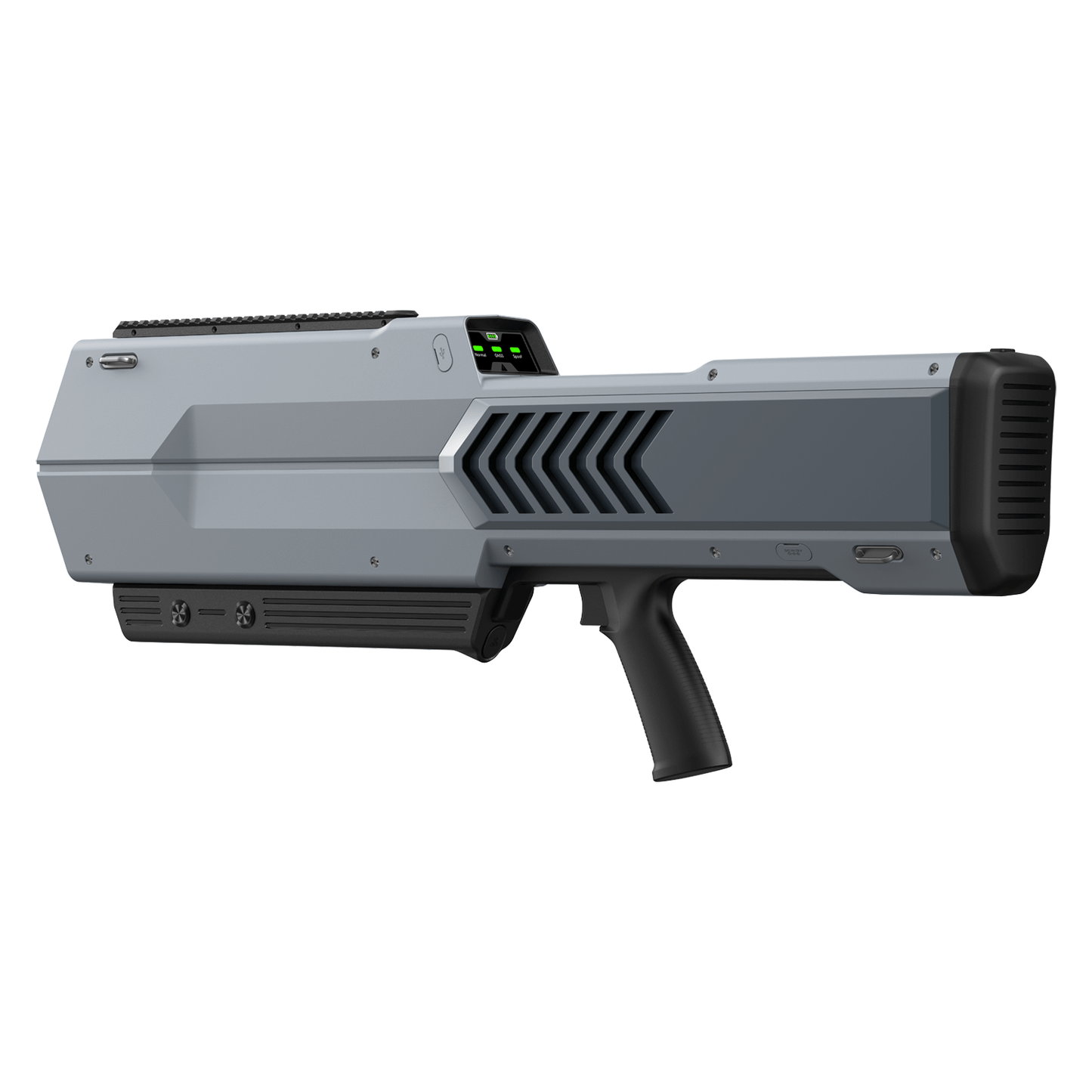

Blader is a portable jammer for SUAVs. Featuring countermeasures for UAV flight control, map transmission, and GNSS bands, it can repel drones or force them to crash to solve the threat of rogue SUAVs.
Efficient Jamming
Capable of jamming UAV flight control and video transmission frequency bands | Capable of disrupting GNSS frequency bands | Covers a wide range of UAVs | Simultaneously neutralizes all frequency bands | Jamming range is up to 1.5km. Upon successful interference, the UAV loses communication with the pilot, resulting in a repel or crash.
Consociate Spoofing
Blader can connect to GPS spoofing equipment via a Type-C interface, enabling the user to control the UAV to either land at a specific location or cause it to lose control and crash.
Low SWaP-C
Compact and portable | Weight below 4kg | High maneuverability
User Logs
Blader records every jamming offline. If any malfunction occurs, users can export the event log to us and there will be analysis and feedback from professional after-sale engineers promptly
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
Specifications
HardWare Dimensions(mm) 795*100*304 Weight(kg) 4 Jamming Time (min) 30 Jamming Range(km) 1.5 FoV Azimuth: ±15° Pitch: ±10° Frequency: 868MHz / 915MHz / 1.2GHz / 1.4GHz / 1.6GHz / 2.4GHz / 4.95GHz / 5.2GHz / 5.35GHz / 5.6GHz / 5.8GHz
*The expansion module enables the expansion of arbitrary frequency bandsOthers Temperature Range: Operating temperature(℃): -20 ~ +55
Storage temperature(℃): -20 ~ +60User Logs supported IP Rating IP65 -
