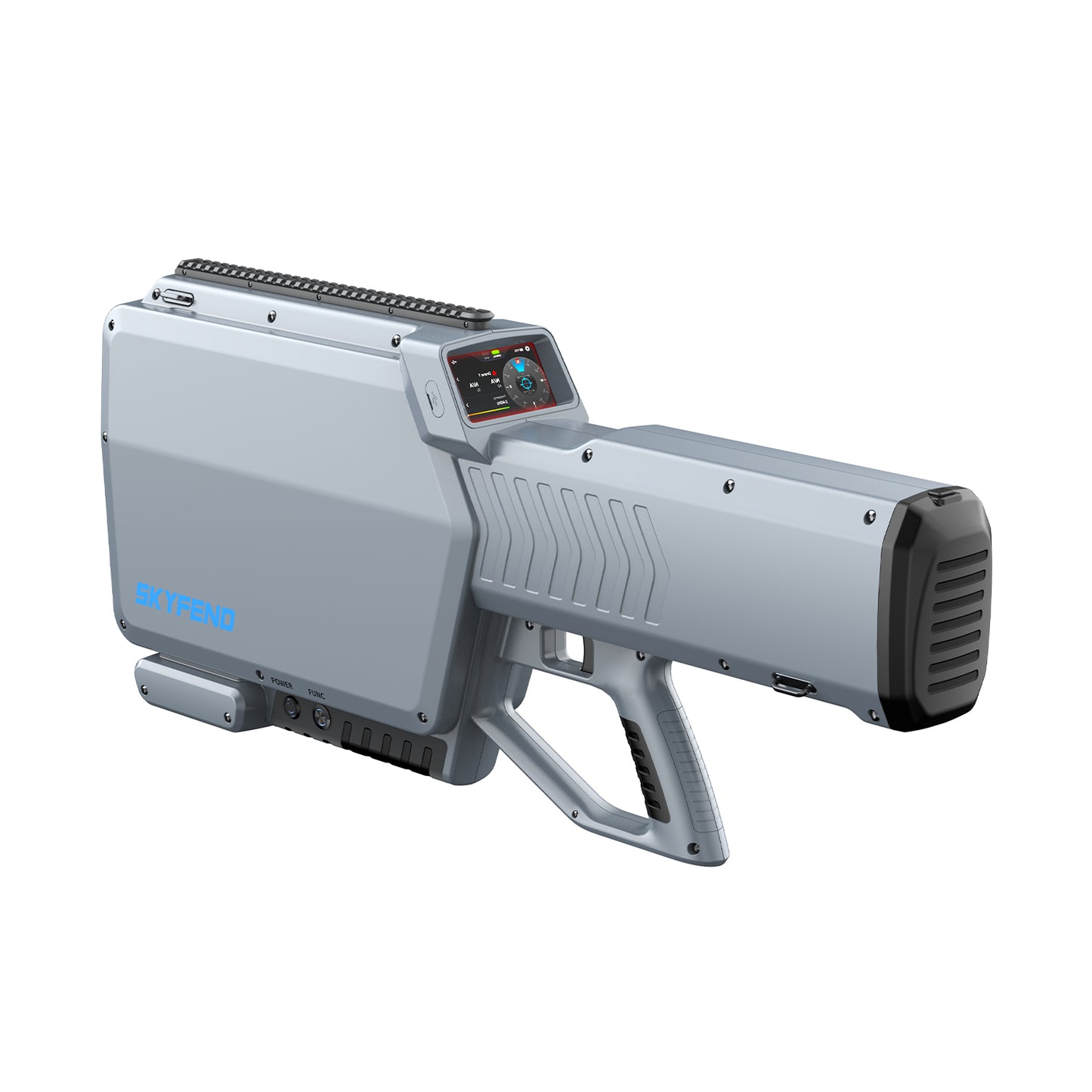

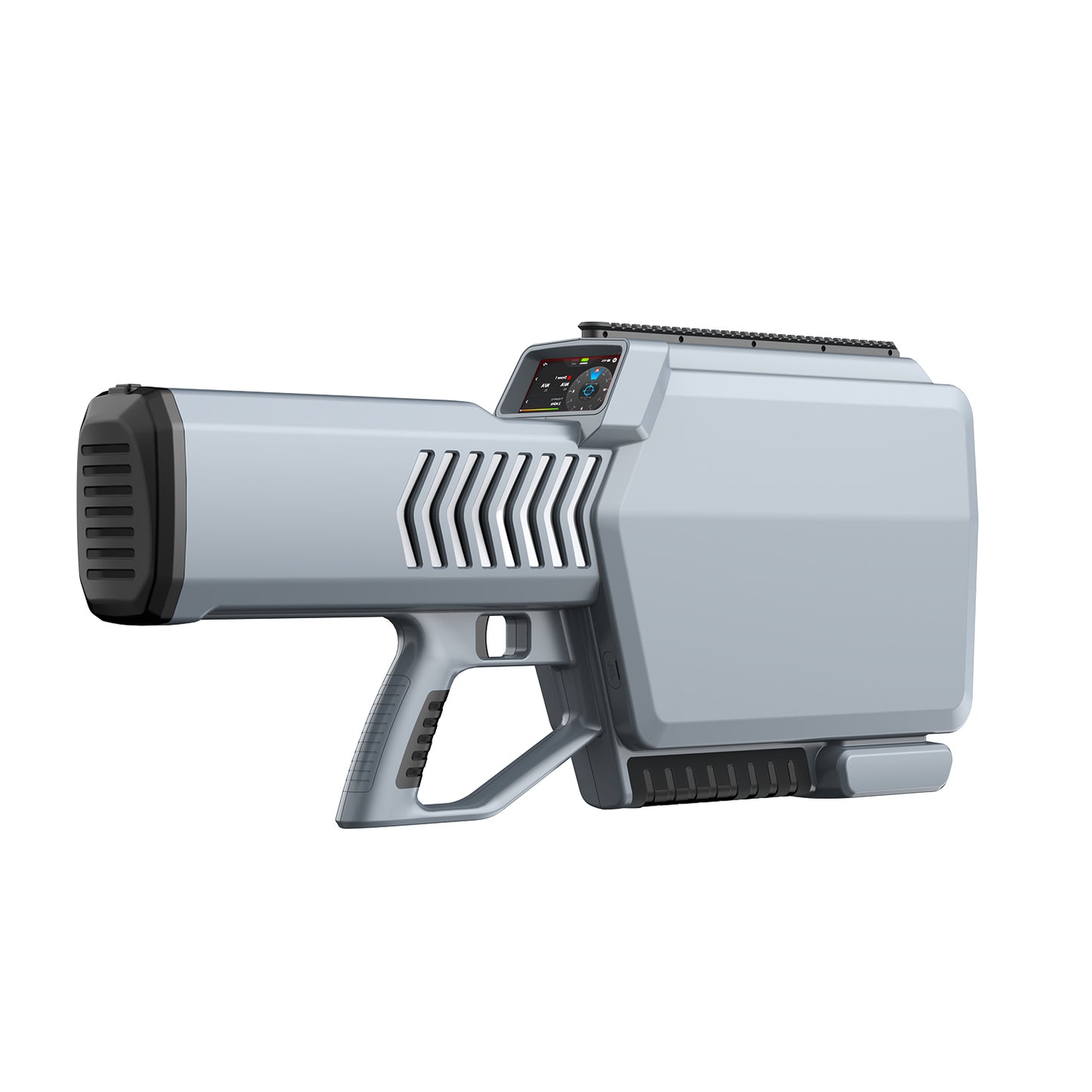

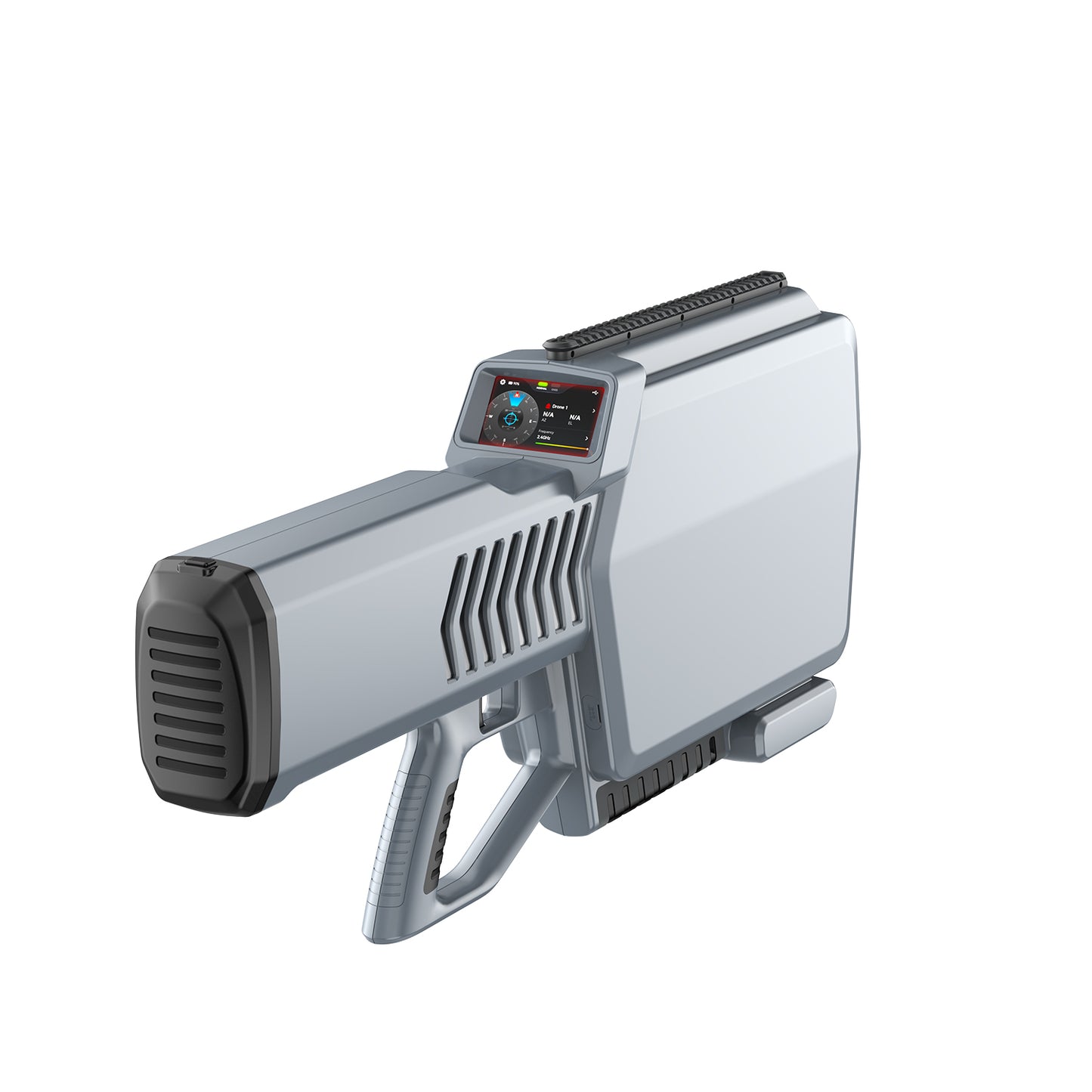

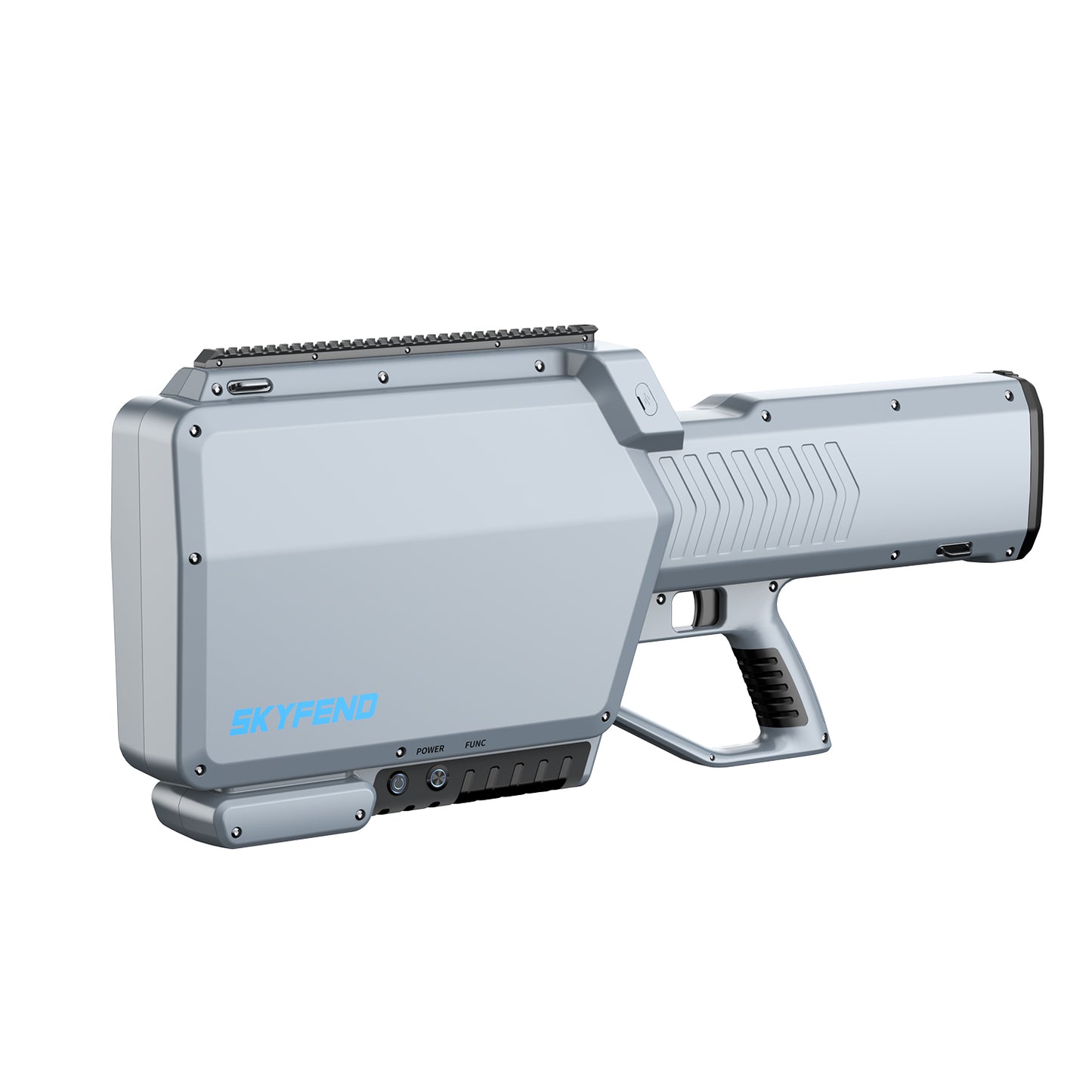

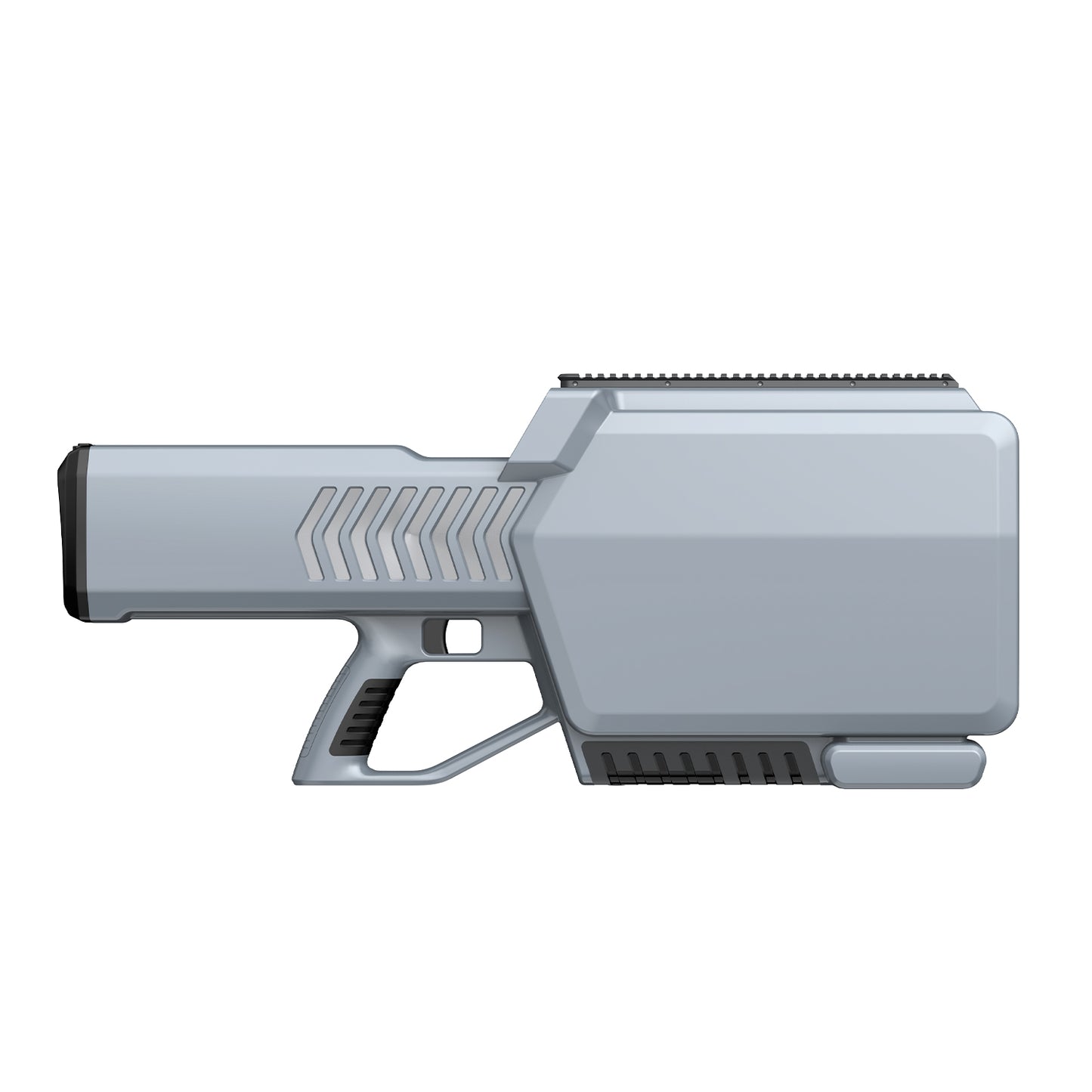

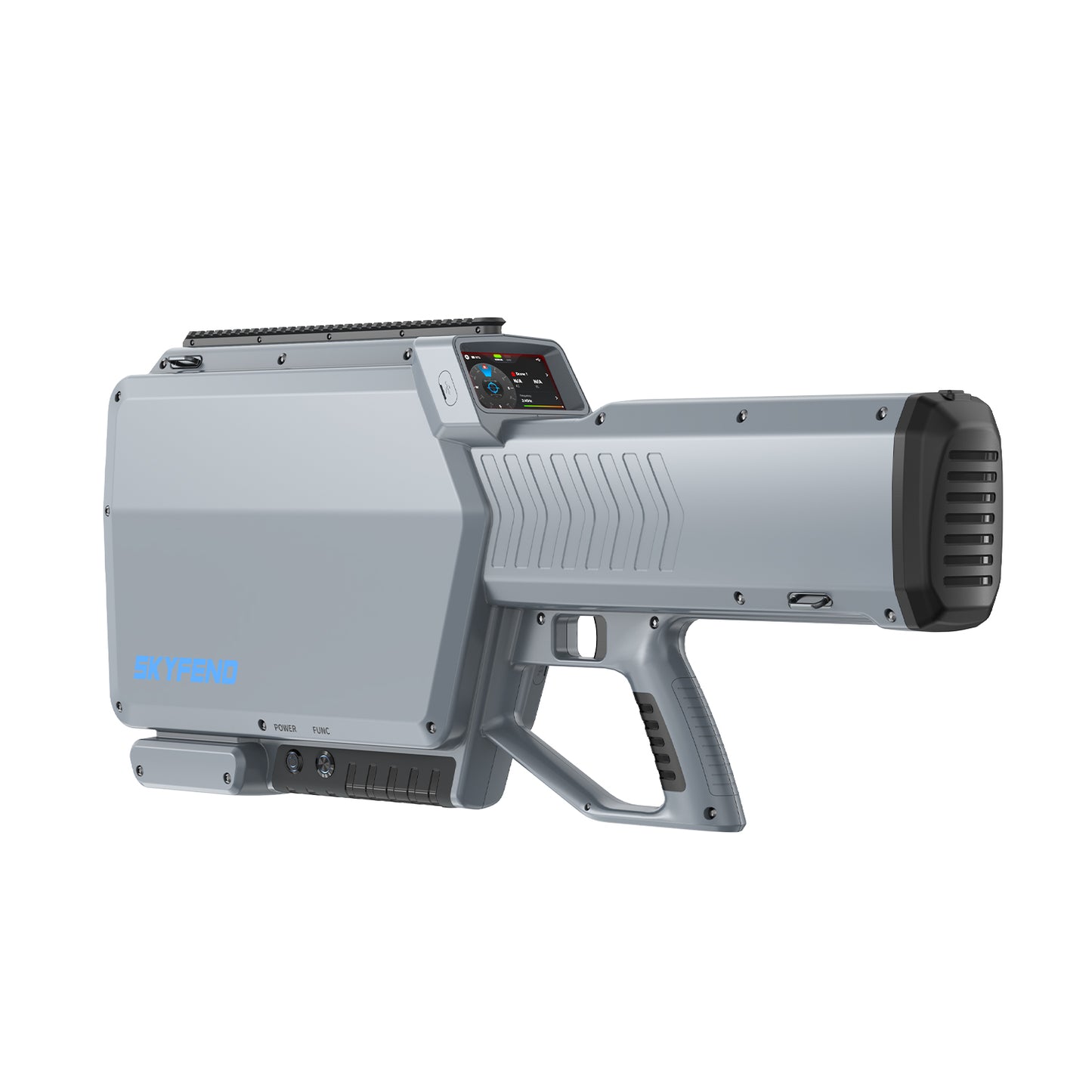

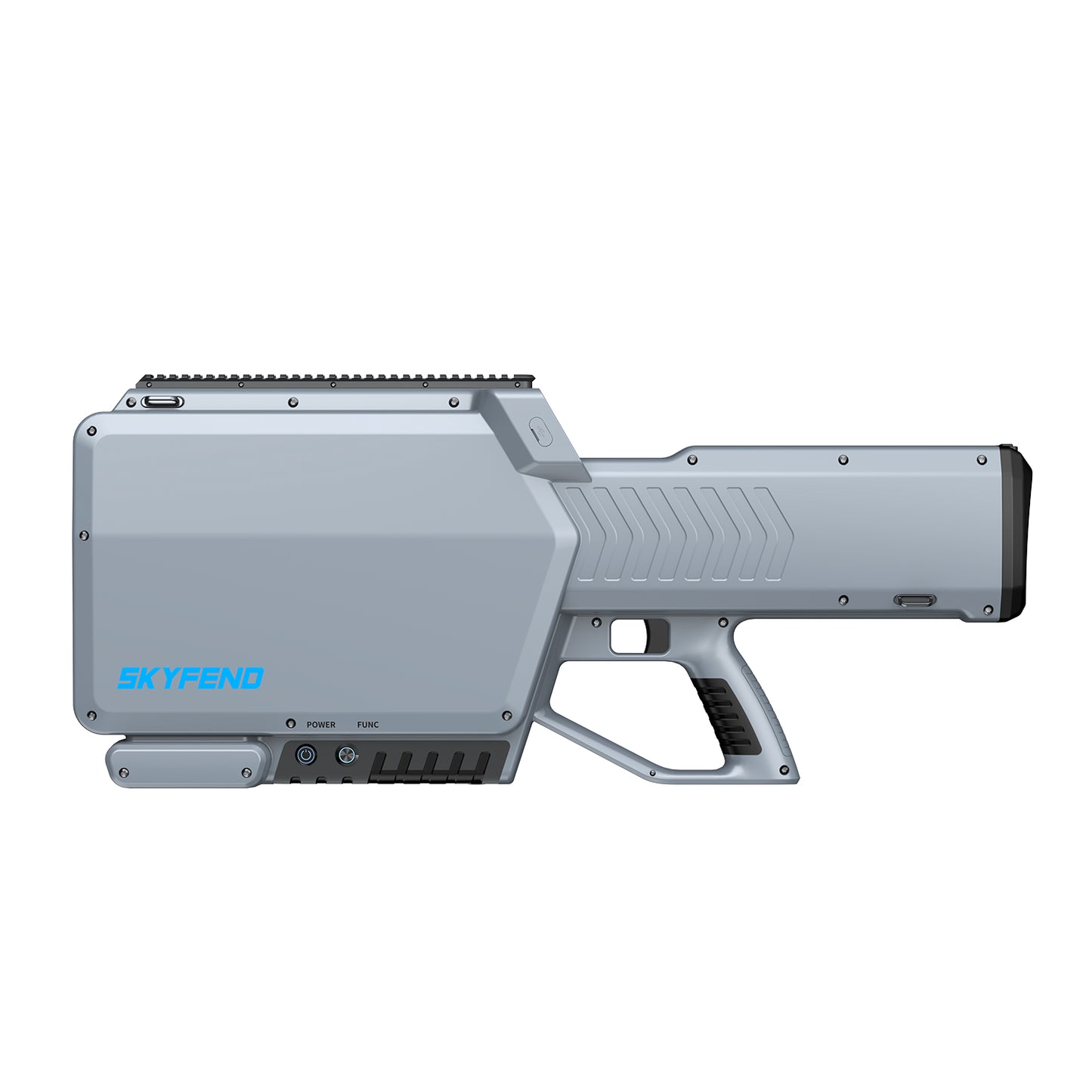

Skyfend Hunter Detection and Jamming in One Anti-drone Jammer
Skyfend Hunter Detection and Jamming in One Anti-drone Jammer
- Detection and Jamming In One
- 3km Jamming Range
- 2km Dectection Range
- 400MHz-6GHz Full-Bnad Coverage
- Frequency Band Adaptation
- Upgradable System
Contact Us For A Quote
- Overview
- Video
- Specs
- In The Box
- Download
-
Skyfend Hunter
-
Compact Anti-Drone Jammer
Skyfend AFA100 drone jammer is a compact, cost effective, all-in-one anti-drone jammer that can detect and jam the signals of all advanced small unmanned aerial vehicle (SUAV) threats. The device detects drone signals in all directions and provides users with preemptive warnings.
Skyfend AFA100 jamming gun will find the drone direction using directional antennae and automatically adapt to the correct jamming frequency to counter drones promptly.
Skyfend AFA100drone signal jammer is equipped with a touch panel so that users can easily access useful information.
The Skyfend AFA100 Counter drone jammer can also be equipped with a scope payload, allowing users to clearly observe the position of potential drones with the naked eye and respond quickly.
-
All-in-One
Detection and JammingWith a monitoring function, AFA100 provides real-time warnings of the surrounding environment. After drones detected, SkyfendHunter can quickly obtain the type, frequency band and direction of the drone and strike it. The maximum monitoring and jamming distance is up to 3,000 metres.
The Skyfend AFA100 Counter drone jammer can keep detecting drones continuously for eight hours on standby. And when using it for Jamming, it can work for up to an hour.
-
-
Detection
Supported
-
-
Range
3,000m
-
-
Full-Band Coverage
The omnidirectional detection and directional jamming with the 400MHz~6GHz band can cover most of the drones.
Common drone RF signal frequency bands: 433Mhz, 900Mhz, 1.2Ghz, 2.4Ghz, 5.8Ghz.
Skyfend AFA100 UAV signal jammer not only supports jamming drone communication image transmission signals, but also jams GNSS signals, including GPS, GLONASS, BeiDou, Galileo.
-
Automatic Frequency Adaptation
Skyfend anti drone gun detects a specific frequency band of the drone and switches to that frequency band for jamming immediately and automatically. The SkyfendHunter is much more responsive than conventional countermeasures that require manual switching of the jamming band. If the drone has a frequency hopping function, SkyfendHunter can also follow the drone frequency band.
Data Visualization
The 3.5-inch touchscreen with a resolution of 1280 x 720 offers a range of directional guidance operations to assist users in quickly aligning the drone's direction. When used in conjunction with radar, it provides a more intuitive view of the status of the targeted drone and feedback on successful jamming within the C2 system. Users can utilize the touchscreen to adjust basic settings such as alarm modes, device connectivity, and software updates.
-
Intelligent Jamming
SkyfendHunter drone jammer can be networked with each other. The control system intelligently integrates feedback from all devices and analyses the threat level to give the best jamming strategy. Data is interoperable across devices, enabling truly intelligent jamming.
-
User Logs
Skyfend AFA100 records every jamming offline. In case of problems, users can export the event log to us and there will be analysis and feedback from professional after-sale engineers promptly.
Firmware Upgrades
The database will be updated according to the new drone models to ensure detection and jamming effectiveness. The upgrade can be completed by connecting the PC via the USB interface.
-
Compact Anti-Drone Jammer
Skyfend AFA100 drone jammer is a compact, cost effective, all-in-one anti-drone jammer that can detect and jam the signals of all advanced small unmanned aerial vehicle (SUAV) threats. The device detects drone signals in all directions and provides users with preemptive warnings.
AFA100 jamming gun will find the drone direction using directional antennae and automatically adapt to the correct jamming frequency to counter drones promptly.
Skyfend AFA100 anti drone gundrone signal jammer is equipped with a touch panel so that users can easily access useful information.
The Skyfend AFA100 Counter drone jammer can also be equipped with a scope payload, allowing users to clearly observe the position of potential drones with the naked eye and respond quickly.
-
All-in-One
Detection and JammingWith a monitoring function, SkyfendHunter provides real-time warnings of the surrounding environment. After drones detected, SkyfendHunter can quickly obtain the type, frequency band and direction of the drone and strike it. The maximum monitoring and jamming distance is up to 3,000 metres.
The Skyfend AFA100 Counter drone jammer can keep detecting drones continuously for eight hours on standby. And when using it for Jamming, it can work for up to an hour.
-
-
Detection
Supported
-
-
Range
3,000m
-
-
Full-Band Coverage
The omnidirectional detection and directional jamming with the 400MHz~6GHz band can cover most of the drones.
Common drone RF signal frequency bands: 433Mhz, 900Mhz, 1.2Ghz, 2.4Ghz, 5.8Ghz.
Skyfend AFA100 UAV signal jammer not only supports jamming drone communication image transmission signals, but also jams GNSS signals, including GPS, GLONASS, BeiDou, Galileo.
-
Automatic Frequency Adaptation
SkyfendHunter AFA100 detects a specific frequency band of the drone and switches to that frequency band for jamming immediately and automatically. The SkyfendHunter is much more responsive than conventional countermeasures that require manual switching of the jamming band. If the drone has a frequency hopping function, SkyfendHunter can also follow the drone frequency band.
Data Visualization
The 3.5-inch touchscreen with a resolution of 1280 x 720 offers a range of directional guidance operations to assist users in quickly aligning the drone's direction. When used in conjunction with radar, it provides a more intuitive view of the status of the targeted drone and feedback on successful jamming within the C2 system. Users can utilize the touchscreen to adjust basic settings such as alarm modes, device connectivity, and software updates.
-
Intelligent Jamming
Skyfend AFA100 can be networked with each other. The control system intelligently integrates feedback from all devices and analyses the threat level to give the best jamming strategy. Data is interoperable across devices, enabling truly intelligent jamming.
-
User Logs
AFA100 records every jamming offline. In case of problems, users can export the event log to us and there will be analysis and feedback from professional after-sale engineers promptly.
Firmware Upgrades
The database will be updated according to the new drone models to ensure detection and jamming effectiveness. The upgrade can be completed by connecting the PC via the USB interface.
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
Anti-drone System Solutions
Peter He
Sales Manager
- Shenzhen Skyfend Technology Co., Ltd
-
-
I am committed to providing effective and cutting-edge solutions to address the evolving challenges posed by unmanned aerial systems.
-
-
Skyfend Hunter AFA100 Specification
Basic Specification Size (LxWxH) 778*337*113mm Weight 6.5kg Interaction Trigger, Touch Screen, Buzzer, Vibration Color Starry gray Jamming Mode Signals Jammed Flight Control and Image Transmission Signals, GNSS Signals GNSS Signal Interference Covers the global satellite positioning signal types,e.g. GPS, GLONASS,BeiDou, Galileo. Frequencies 400MHz-6GHz (Full Band) FoV Azimuth: ±15° / Pitch: ±7° Jamming Power 20W@400 MHz~2GHz / 20W@2GHz~4GHz / 40W@4GHz~6GHz Jamming Range ≥3km Operation Time(Jamming) 1 hour Automatic Frequency Adaptation Supported Detection Mode Signals Detected UAV Signals Frequencies 400MHz-6GHz (Full Band) Direction Omnidirectional Detection Range ≥2 km Operation Time(Detection) 8hours Alignment Mode UAV Direction Finding(azimuth/pitch angle alignment) Supported Direction Finding Precision Azimuth：10° / Pitch：10° Other UAV Model Identification Supported
(Identify and classify mainstream UAV models, intelligently configure jamming strategies)System Integration Supported
(SkyfendHunter can be integrated with C2 system and radars, forming a system-level intelligent solution.)Screen Size 3.5inch Resolution 1280 × 720 Color Stripe RGB Touch 2 points touch Information Displayed Operational status, user prompt messages, detected drone information Physical Buttons Trigger To turn on/off radio interference FUNC Button For certain functions. Please follow the screen prompts to use Connectivity Wireless Connection Wi-Fi/Bluetooth: Only used for connecting to C2 systems 778mm Interface Type-C x 1: Only used for connecting to a computer (client workstation) for software upgrades and log retrieval Reliability Operating Temperature -20 to 55°C Storage Temperature -20 to 60°C IP Rating IP65 Upgrade Software version can be updated via client app or C2 system Product Log Product logs can be read via client app or C2 system APP Client app that can be used for software updates and product log reading -
Carry Case Contents
- Battery x 2 (21.8V, 152.6WH)
- Charging Base x 1
- Adapter x 1 (100V ~ 240V, 50Hz ~ 60Hz)
- Power Cable x 1
- Shoulder Strap x 1
- Type-C Cable x 1
Optional Accessories
Scope (Installed on the Picatinny rail) Tripod
-
