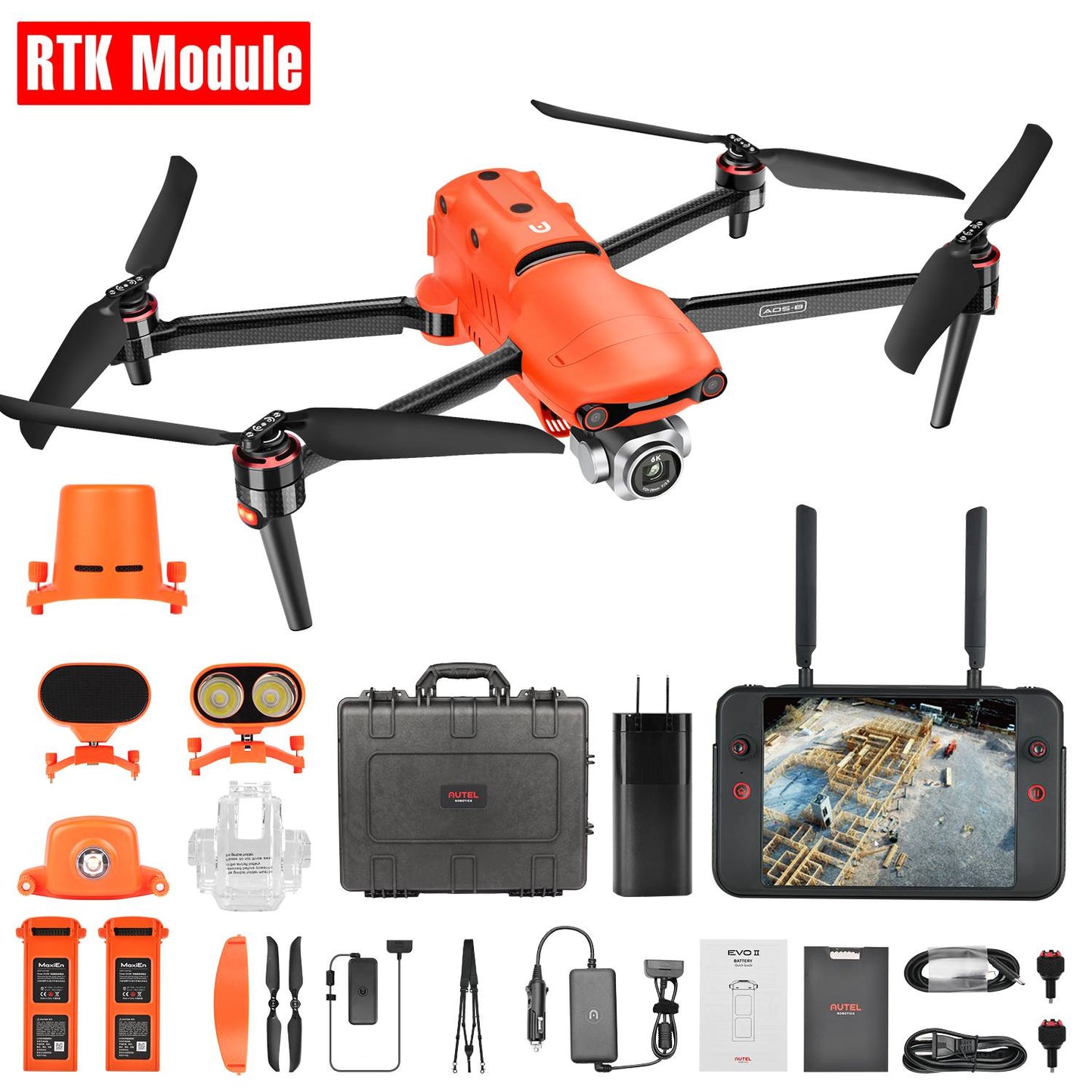

Autel Robotics EVO II Pro V2 6K Enterprise [RTK Module Optional]
Autel Robotics EVO II Pro V2 6K Enterprise [RTK Module Optional]
- No Geofencing
- 7.9" Smart Controller
- Include Speaker/Spotlight/Stobe
- 1" CMOS Sensor Gimbal Camera
- 10-bit DNG A-Log
- 20MP Photo& 6K/30fps Video
- 360° Obstacle Avoidance
- Dynamic Track 2.0
- 40 Minutes Flight Time
- 5.5 Miles Video Transmission Range
Fast Delivered by Fri, Oct 11 - Sun, Oct 13 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Description
- Applications
- SPECS
- In the box
- Videos
-

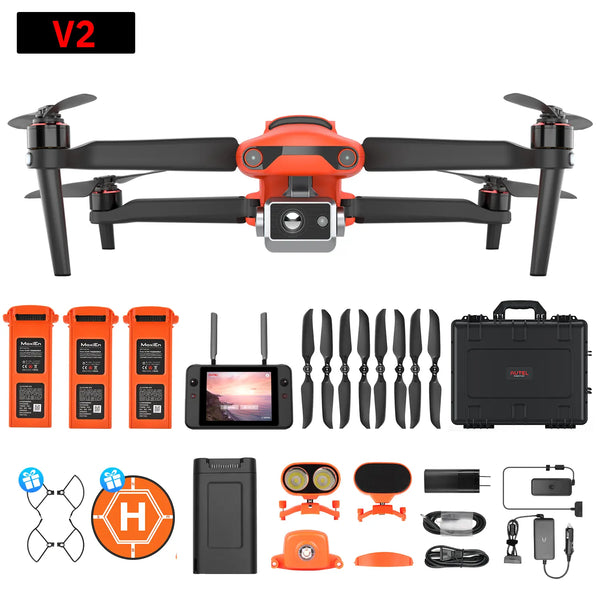

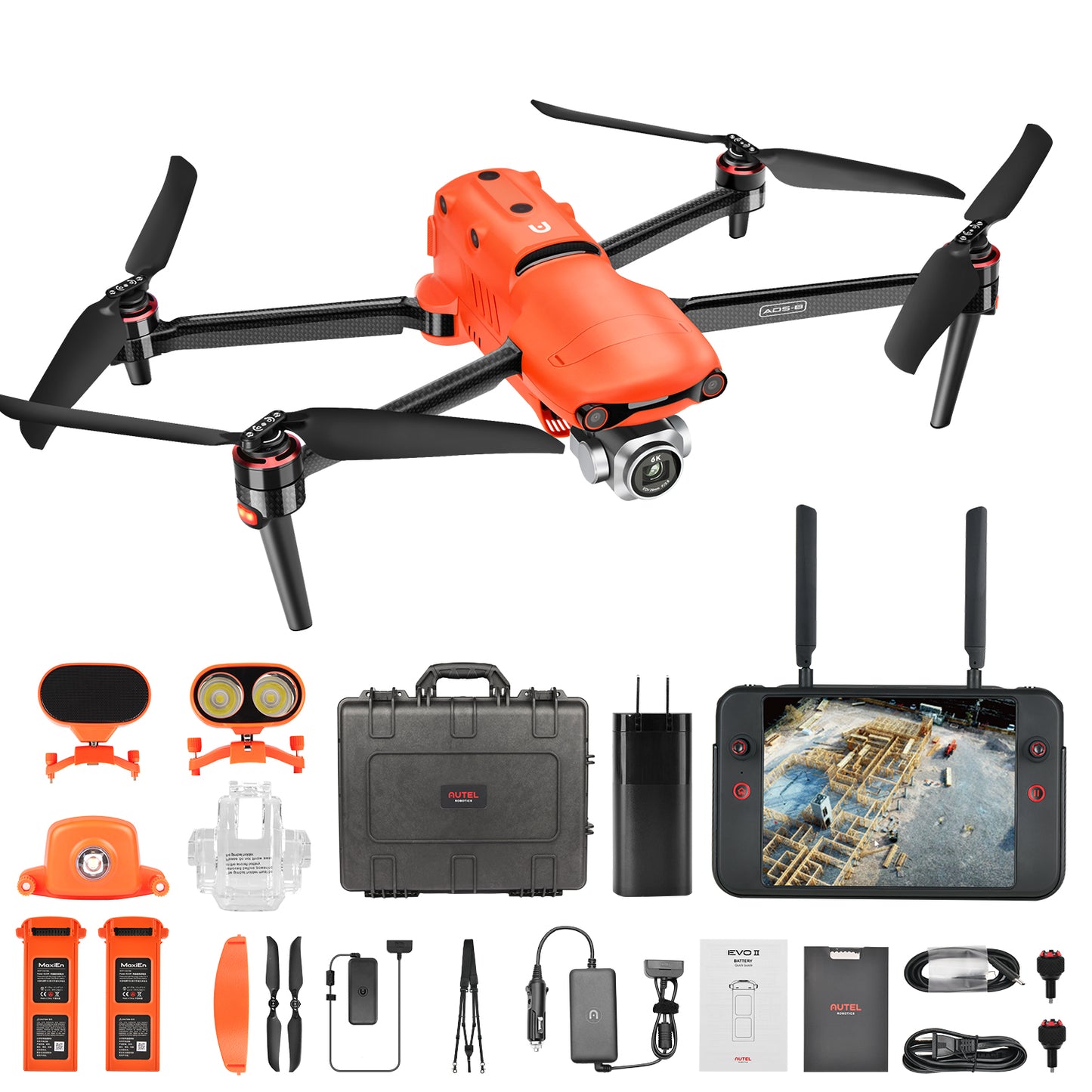

EVO II Pro (6K) Enterprise Rugged Bundle
Autel Robotics EVO II Pro 6K Enterprise Bundle is the newest model in the EVO II lineup. The 6K Pro Model features a 6K 1" CMOS sensor capable of shooting up to 20MP stills. The Enterprise version features larger carbon fiber arms with bigger, more powerful motors and larger propellers which yield an additional 5-7 minutes of flight time bringing the maximum flight time to 42 minutes. The EVO II Enterprise also has an ADS-B receiver for enhanced awareness of the operators' airspace in addition to encrypted internal and external storage. All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.
The EVO II Pro Enterprise boasts a maximum flight time of 42 minutes and allows for the installation of add-on modules onto the hood of the aircraft. These add-on modules include the speaker, spotlight, and beacon, there is also an RTK add-on module for separate purchase. The EVO II Pro Enterprise comes with the Autel Smart Controller, three flight batteries, a wall charger, and a wheeled carrying case (see "In the Box" for full kit contents).
The EVO II Enterprise is a slightly different airframe from the regular EVO II models. The Enterprise model features carbon fiber arms, larger motors and larger propellers. These three characteristics yield an additional 5-7 minutes of flight time for the Enterprise model. The EVO II Enterprise also has a built-in ADS-B receiver so that you can ensure you are operating safely with knowledge of manned aircraft in your operational environment. In addition, the EVO II Enterprise features AES-256 encryption, called "Autel DataSecure Encryption".
The 20MP 1" 6K CMOS sensor features 3X lossless and 16X digital zoom capability along with an adjustable aperture range of f/2.8 to f/11. The EVO II Pro camera sensor as an electronic rolling/linear shutter.
6K Camera & Dual 640T Camera
-
EVO II Pro Enterprise - 20MP 1"CMOS Sensor
- 3x Optical 16x Digital Zoom Capability
- Adjustable Aperture Range of f2.8 to f11
-
EVO II Dual 640T Enterprise - 640*512 Thermal Imaging Sensor
- 48MP Visual Camera
- Multiple Display Modes: Visual, Thermal, Picture-in-Picture
-
EVO II Pro Enterprise - 20MP 1"CMOS Sensor
- 3x Optical 16x Digital Zoom Capability
- Adjustable Aperture Range of f2.8 to f11
-
EVO II Dual 640T Enterprise - 640*512 Thermal Imaging Sensor
- 48MP Visual Camera
- Multiple Display Modes: Visual, Thermal, Picture-in-Picture

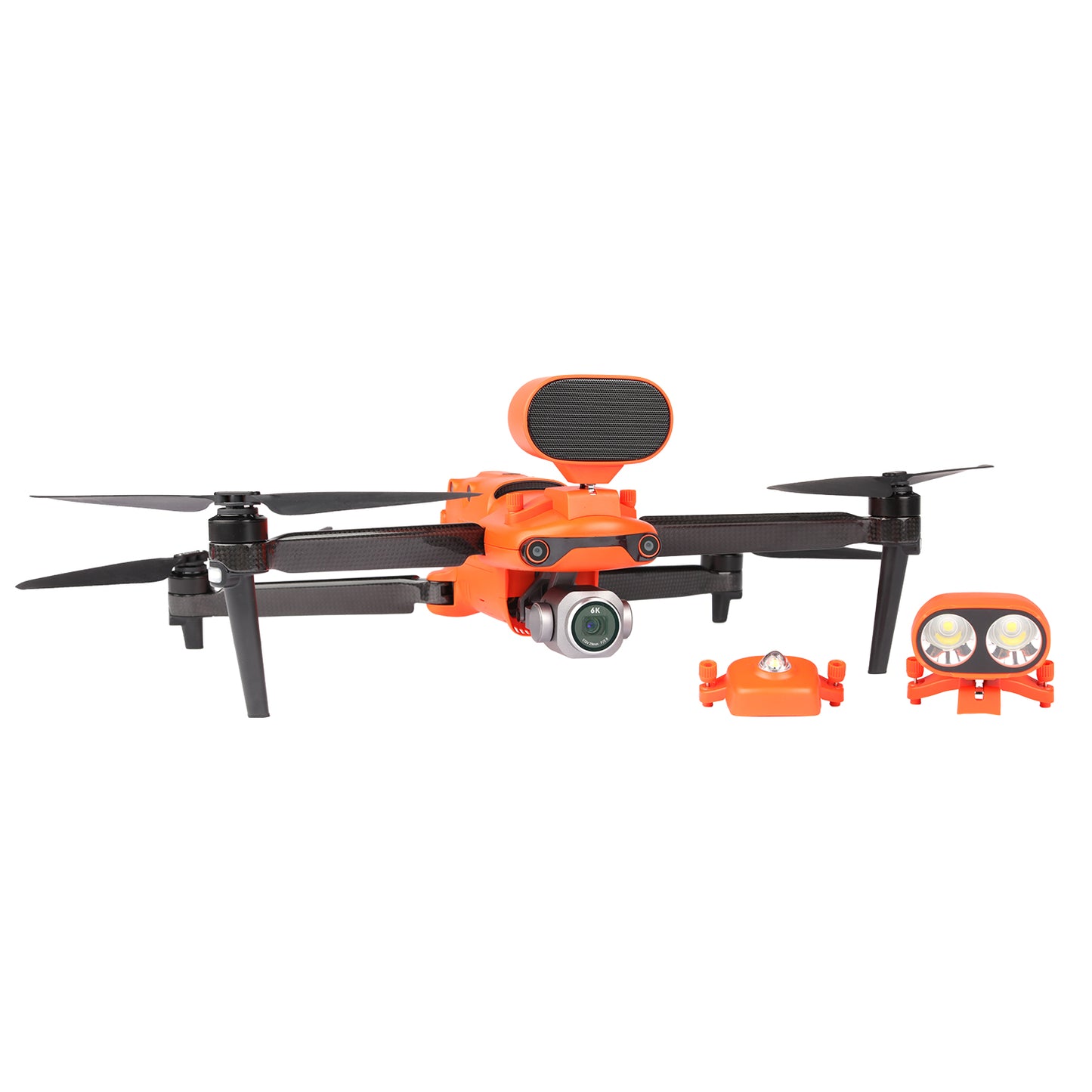

Enterprise Accessories

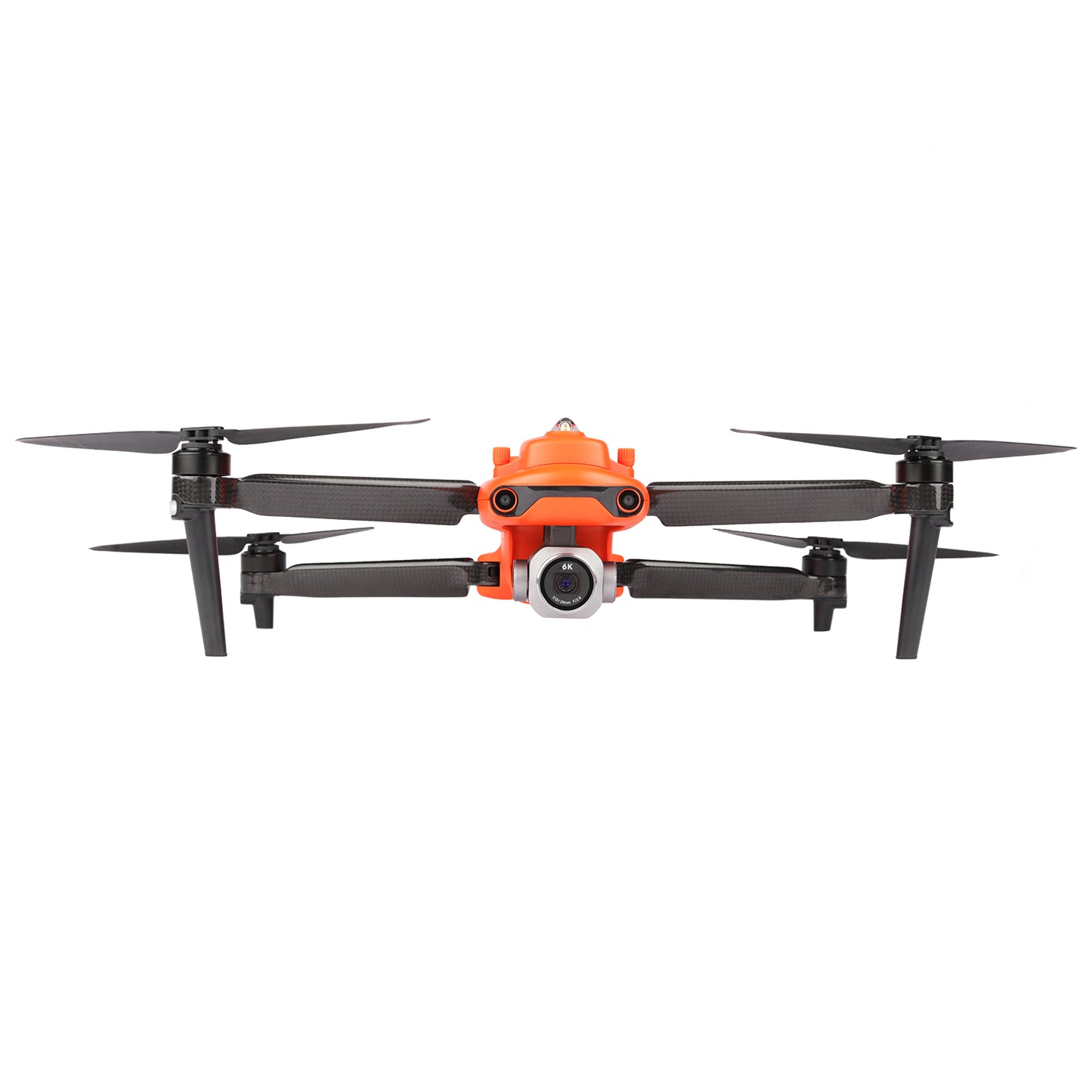

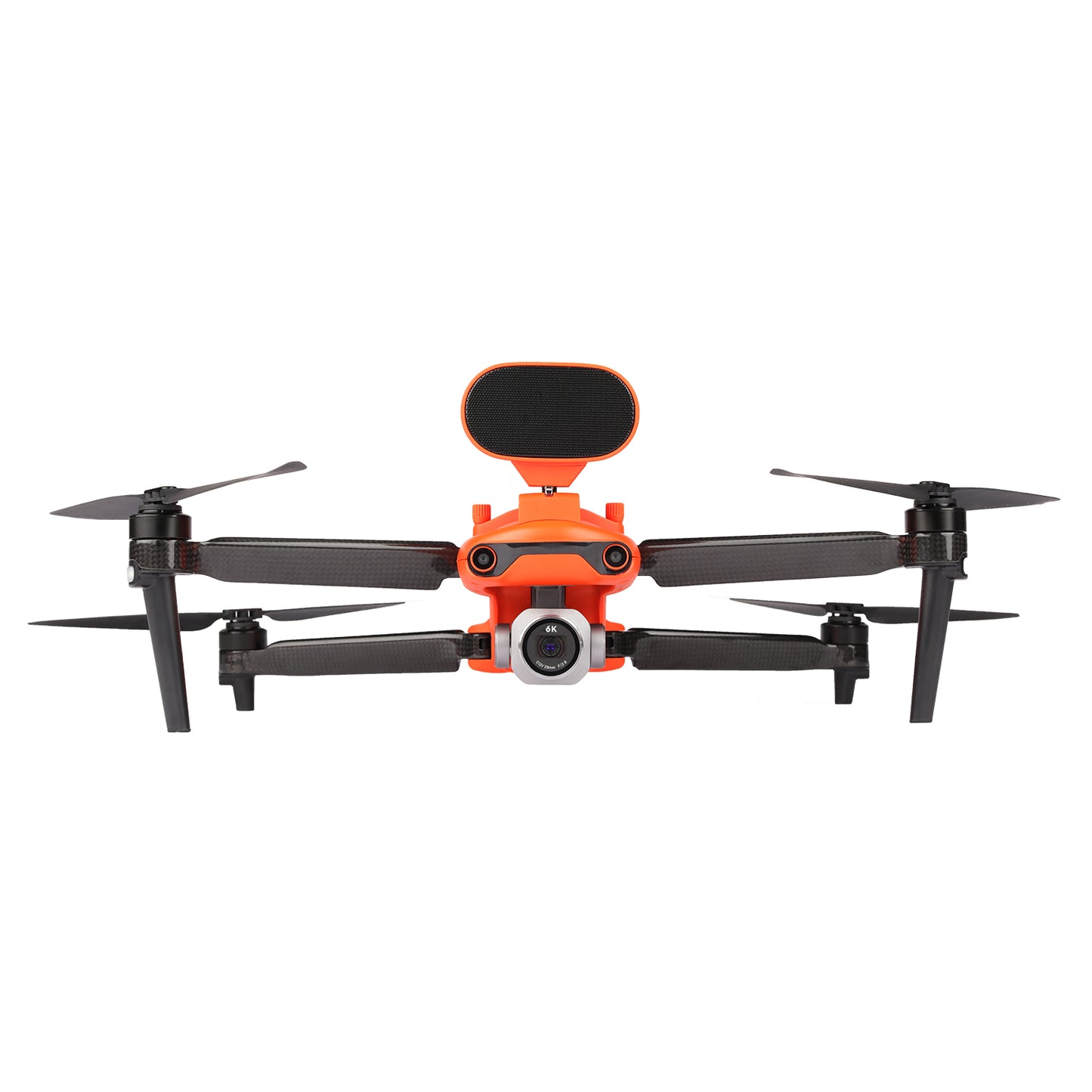

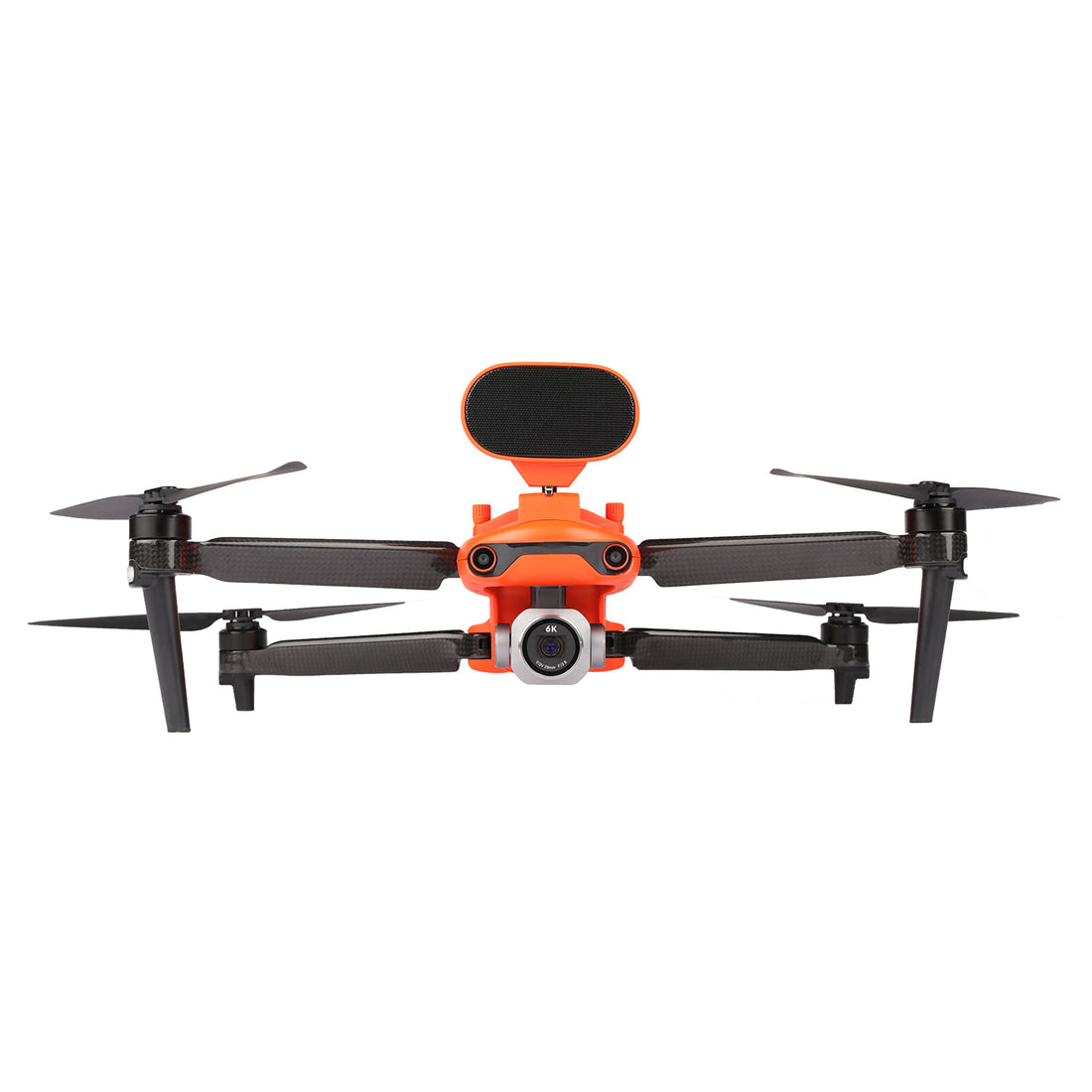

Modular accessories give users the ability to hotswap between a loudspeaker, spotlight, strobe, and RTK module for ultimate mission versatility.
Intelligent Software Features
16x Digital Zoom; Robust Mission Planner: Allows for autonomous flights and mapping-related missions in Orbit, Waypoint, Rectangular, and Polygon; Data Security, and Prerecord.

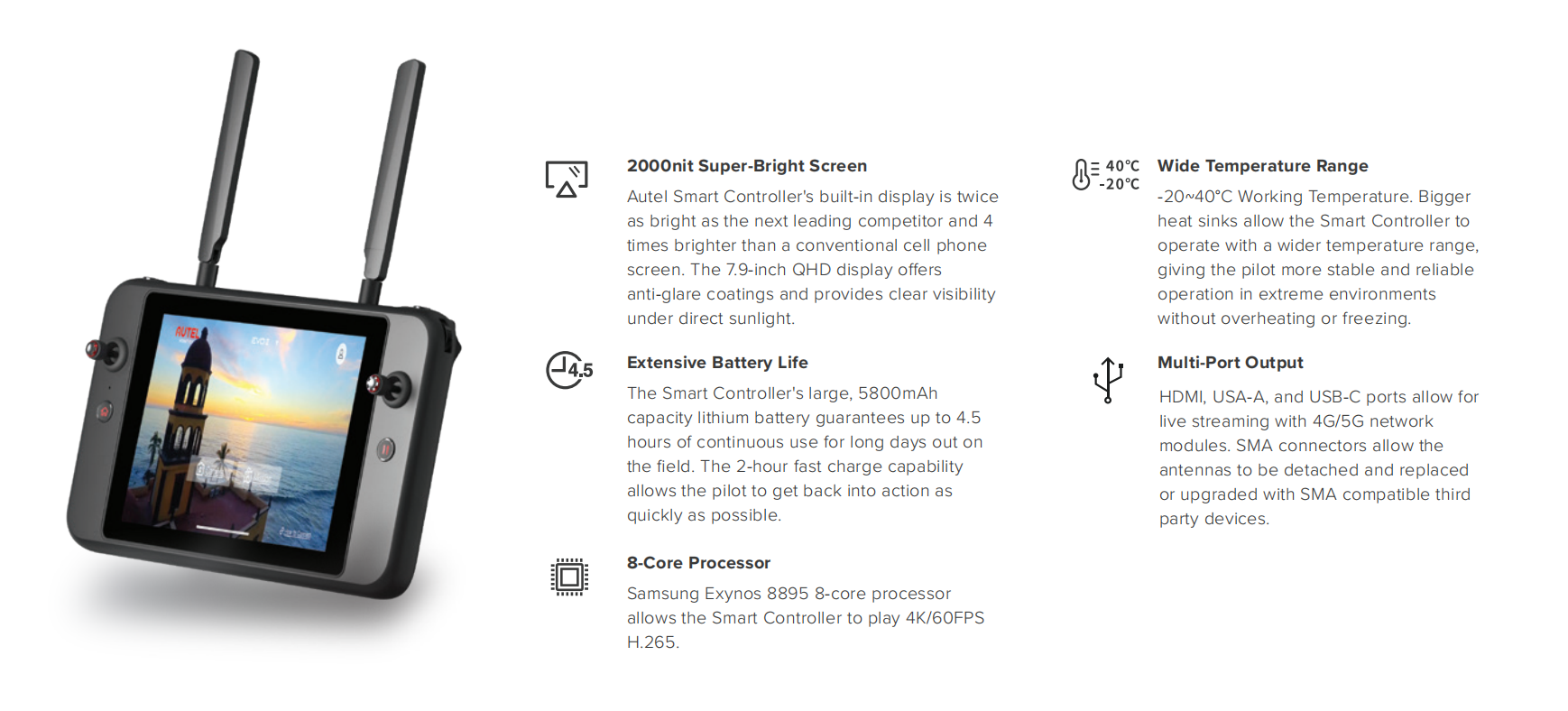

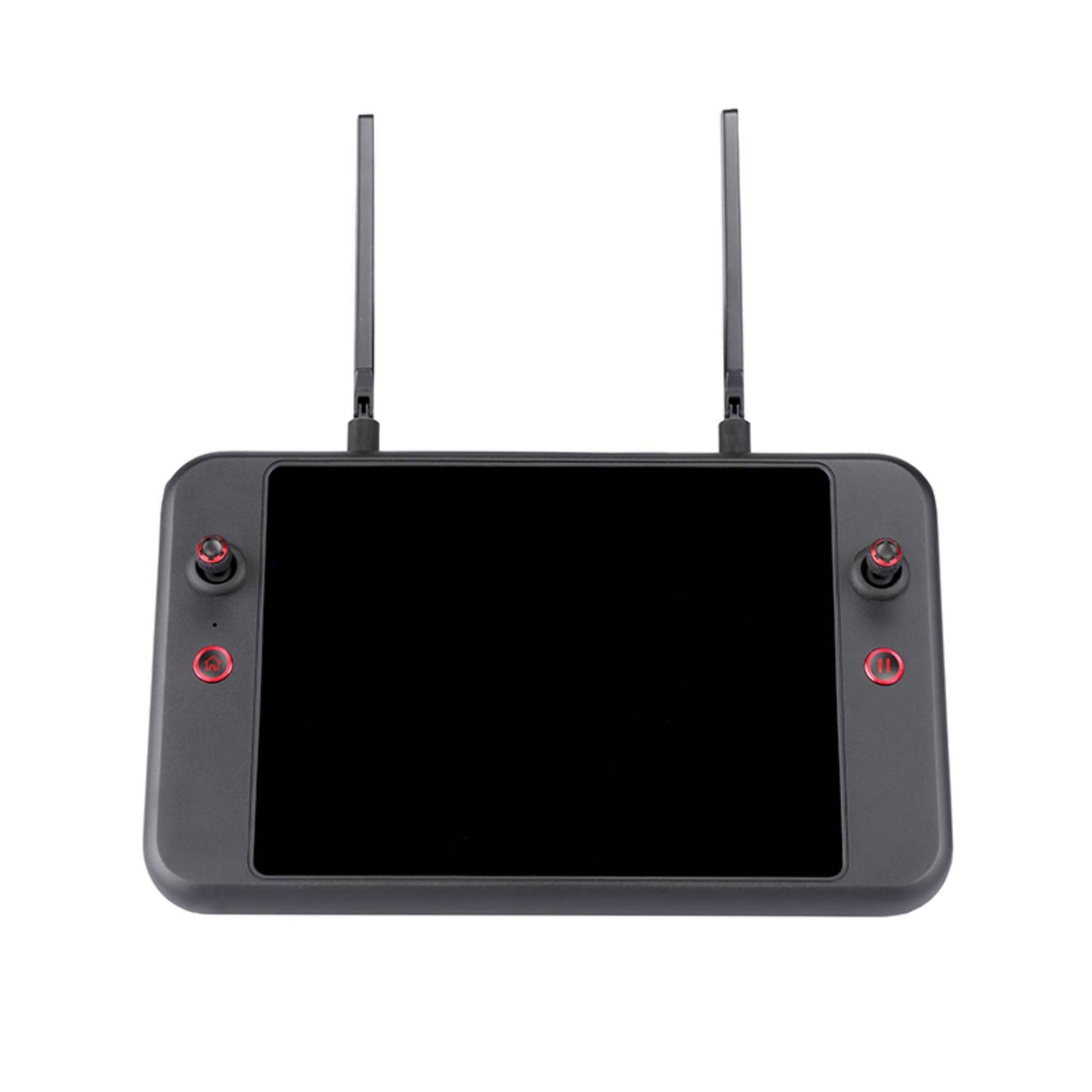

Enterprise Smart Controller
All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.
ADS-B Receiver
Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

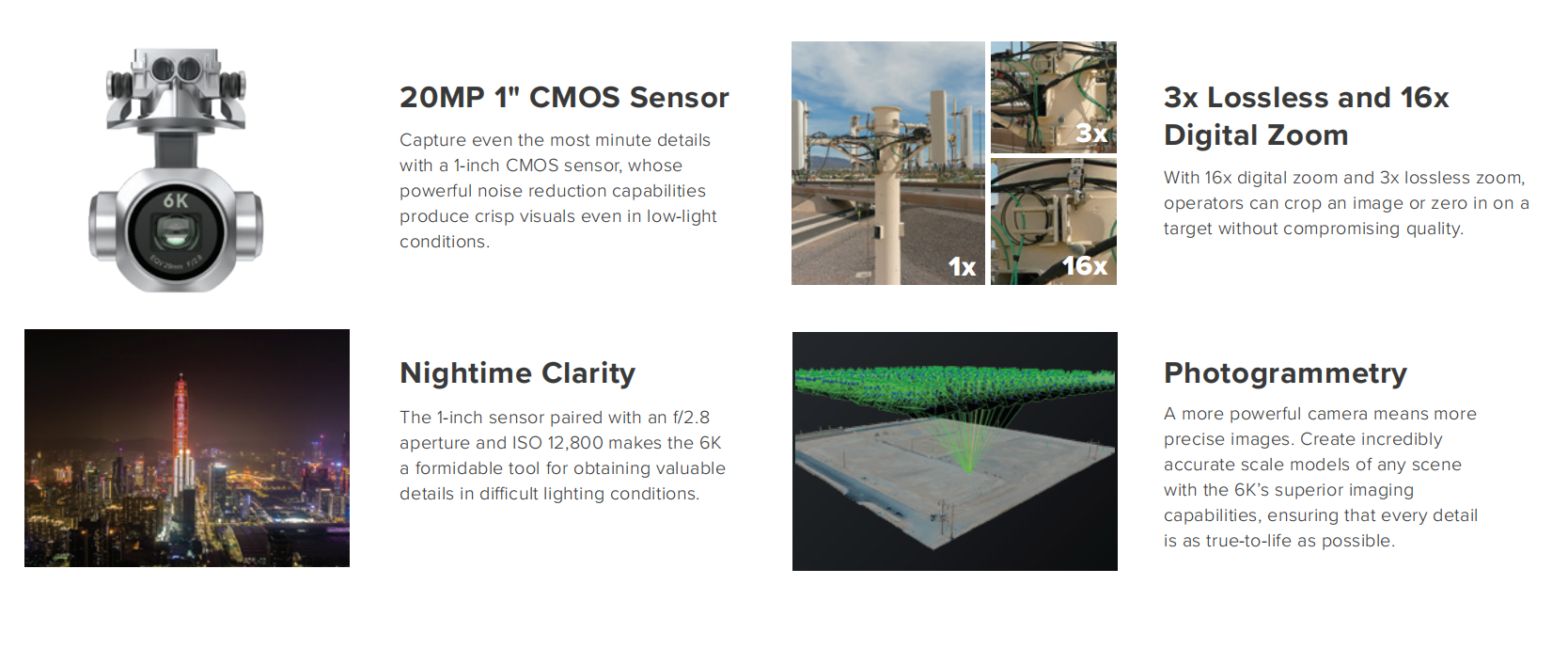

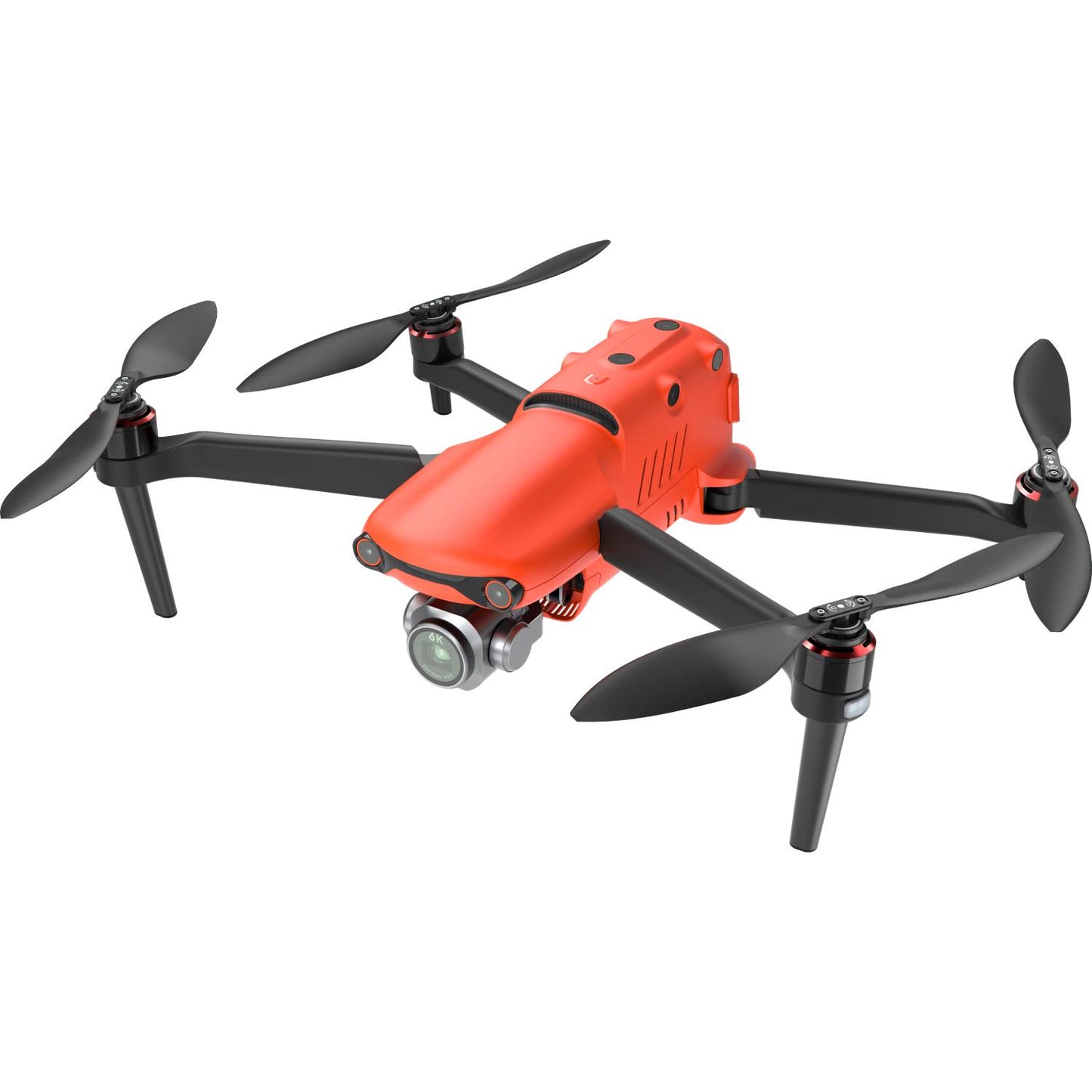

Autel EVO II Pro 6K Camera
- 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture
Autel Robotics EVO II Pro 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
- 6K Hyper-lapse photography and More Shooting Modes
The EVO II Pro camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure
- Capture the night time world
The EVO II Pro camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.
- 10-bit A-Log Color Recording
This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.
- Connect Autel Live Deck to display live video from EVO II on any device
The live video from EVO 2 drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.
- Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Pro Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
- Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
EVO II - AI Enhanced Dynamic Track
EVO II Pro can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Multiple Intelligent Flight Modes
Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.
Failsafe & Automatically Return Home
EVO 2 Pro will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
40 Minutes & 5.5 Miles HD Transmission
Autel EVO 2 Pro comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.

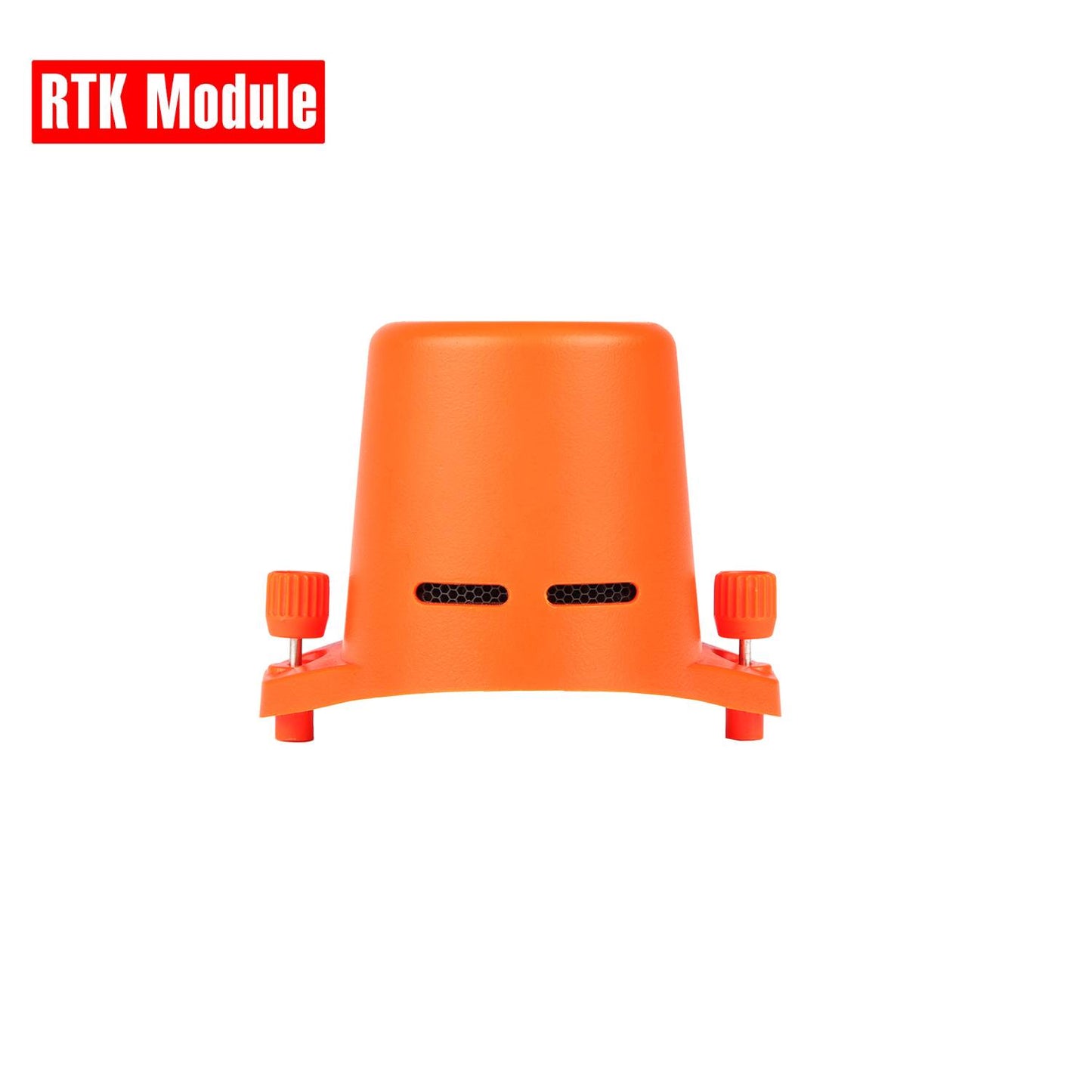

RTK Moudle Introduction
Centimeter-Level Positioning System
The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Mission Execution With Advanced Intelligence
EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.
Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.
No Need for Ground Control Points
The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.
-
RTK / PPK
The Evo II RTK Series supports third party base stations with NTRIP capability
-
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
-
RTK / PPK
The Evo II RTK Series supports third party base stations with NTRIP capability
-
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
Photo Replication
For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
-
Autel EVO II Pro 6K Enterprise Drone Specification
Aircraft Gimbal Camera Remote Controller Accesories Battery Charger Storage Aircraft Gimbal Camera Remote Controller Accesories Battery Charger Storage Aircraft Takeoff Weight (Without Accessories) EVO II Pro Enterprise:2.45lbs (1110g)
EVO II Dual 640T Enterprise:2.51lbs (1136.5g)
Diagonal Length 16.8in (427mm) Max Flight Time (no wind) 42min(without accessories) Hovering Time (no wind) 38min(with strobe)
29min(with spotlight)
34min(with loudspeaker)
36min(with RTK module)Max Level Flight Speed 45 mph (20 m/s) (Ludicrous) Max Ascent Speed 18 mph (8 m/s (Ludicrous) Max Descent Speed 9 mph (4 m/s) (Ludicrous) Max Service Ceiling Altitude 4.3 miles (7000 m) MSL Operating Temperature 14℉ to 104℉ (-10℃ to 40℃) Max Wind Speed Resistance 39mph (17m/s) Operating Frequency 2.400GHz - 2.4835GHz;5.725GHz - 5.850GHz Hovering Accuracy Range Vertical:
± 0.3ft (0.1m) (with RTK)
± 0.3ft (0.1m) (with Vision Positioning)
± 1.6ft (0.5m) (with GPS Positioning)
Horizontal:
± 0.3ft (0.1m) (with RTK)
± 0.9ft (0.3m) (with Vision Positioning)
± 4.9ft (1.5m) (with GPS Positioning)
Gimbal Operation Range Pitch: -135° to +45°
Yaw: -100° to +100°Operation Range Pitch: -90° to +30°
Yaw: -90° to +90°Stability More Stable with 3 Axies Max Control Speed (Tilt) 300°/s Angular Vibration Range ±0.005° Enterprise Camera Sensor 1-inch CMOS; 20 million effective pixels FOV 82°
Aperture f/2.8 - f/11 f/2.8 - f/11 1m to ∞ Equivalent Focal Length 28.6mm ISO Range Video: 100-6400 (auto)
Photo: 100-3200 (auto)Zoom 1-16x (up to 3x lossless zoom) Still Photography Modes Single Shot
Burst shooing: 3/5 frames
Automatic Exposure Bracketing (AEB):
3/5 bracketed frames at 0.7 EV Bias
Timelapse:
JPG:2s/5s/7s/10s/20s/30s/60s
DNG:5s/7s/10s/20s/30s/60s
HyperLight:support (under 4K JPEG format)
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)Still Photography Resolution 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Video Resolution 6K 5472*3076 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24Max Bitrate 120Mbps Dual 640T Enterprise Thermal Camera Sensor Vanadium oxide uncooled infrared focal plane detector Viewing Angle H33°V26° Sensor resolution 640x512 Pixel Pitch 12μm Focal Length 13mm Wavelength range 8~14μm Accurate temperature measurement distance 2-20 meters Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@ambient temperature -20℃~60℃Temperature range High gain mode: -20° to +150°C
Low gain mode: 0° to +550°CZoom 1-16x Photo shooting mode Single shooting, continuous shooting,time-lapse shooting Camera resolution Infrared mode: 640*512
Picture in Picture: 1920*1080, 1280*720Video Resolution 640*512 30fps Video format MOV / MP4 (support H.264/H.265) Dual 640T Enterprise Visual Camera Sensor
1/2 inch CMOS; 48M effective pixels
FOV FOV:79° Aperture f/1.8 Focus range
0.5m to ∞ Equivalent Focal Length 25.6mm ISO Range Video: 100-6400 (auto)
Photo: 100-3200 (auto)Zoom 1-16x (up to 4x lossless zoom) Still Photography Modes Single Shot
Burst shooing: 3/5 frames
Automatic Exposure Bracketing (AEB):
3/5 bracketed frames at 0.7 EV Bias
Timelapse:
JPG:2s/5s/7s/10s/20s/30s/60s
DNG:5s/7s/10s/20s/30s/60s
HyperLight:support (under 4K JPEG format)
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)Still Photography Resolution 8000*6000 (4:3)
7680*4320 (16:9)
4000*3000 (4:3)
3840*2160 (16:9)Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Video Resolution 8K 7680*4320 p25/p24
6K 5760*3240 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24Max Bitrate 120Mbps Remote Controller *Operating Frequency 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz Max Transmission Distance(unobstructed, free of interference) FCC: 13km
CE: 7kmTransmitter Power (EIRP) 902-928 MHz
FCC:≤30dBm
2.400-2.4835 GHz
FCC:≤30dBm
CE:≤20dBm
5.725-5.850 GHz
CE:≤14dBmInternal Storage 128GB Video Output Port HDMI Built-in Battery Name: Intelligent Li-ion battery
Capacity:5800mAh
Voltage:11.55V
Battery Type:Li-ion
Battery Energy:67 Wh
Charging time:120 minBattery Life 3hr (Max. intensity)
4.5hr (50% intensity)Operating Temperature -20℃ - 40℃ RC Size 303×190×87mm(Ant. folded)
303 x 273 x 87 mm (Ant. unfolded)Weight 1150g (Without protective case)
1250g (With protective case)Satellite Positioning Module GPS + GLONASS + Galileo Accessories Strobe Dimensions: 39*72*34 mm
Weight: 19.5g
Connections: Floating Connectors
Power:Avg. 1.6W
Controllable Range:5000m
Light intensity:Min 50cd;Max 486cd;Avg. 290cdLoudspeaker Dimensions:46*80*77 mm
Weight: 98.5g
Connections: Floating Connectors
Power:Max 18W
Decibel:120dB @ 1m;88dB @ 60m;70dB @ 110m;
Max Bitrate:36kbps
Adjustable Angle Range:0°~45°

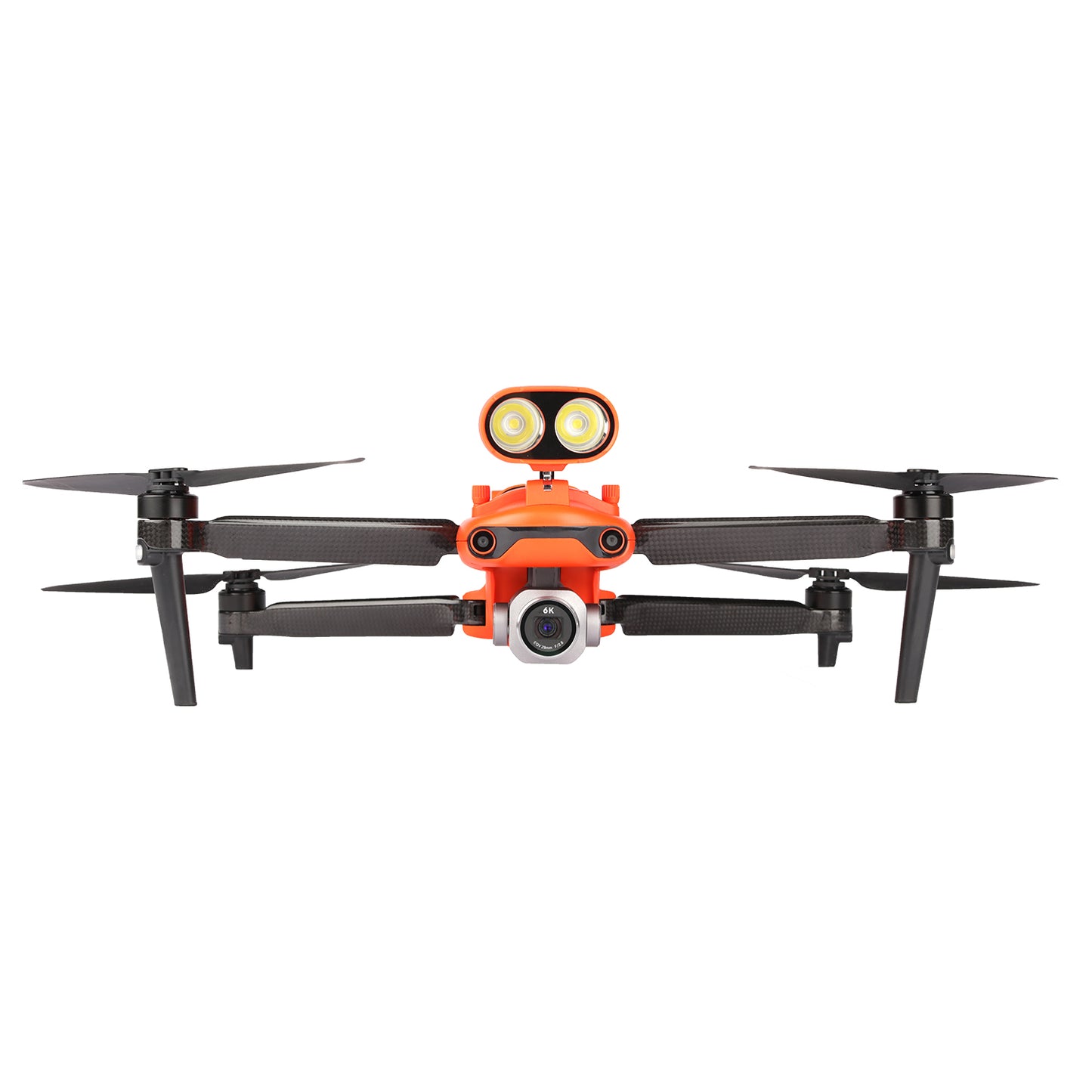

Spotlight Dimensions: 48.5*72*63 mm
Weight: 77g
Connections: Floating Connectors
Power:Max 35W
Controllable Range:30m
Adjustable Angle Range:0°~90°
Illuminance:FOV14°, Max:11lux @ 30m Straight
RTK Module(sold separately) Dimensions:55.5*72.5*57 mm
Weight:59.5 g
Connections:Floating Connectors
Power:~ 3W
RTK Positioning Precision:
1.5 cm + 1 ppm((Vertical)
1 cm + 1 ppm(Horizontal)Battery Capacity 7100 mAh Voltage 11.55 V Battery Type LiPo 3S Energy 82Wh Net Weight 365g Charging Temperature 5~45℃ Storage Temperature & Humidity -10~30℃,65±20%RH Recommended Storage Temperature 22~28℃ Max Charging Power 93 W Charging Time 90 mins Charger Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AVoltage 13.2 ± 0.1 V Rated Power 66 W Storage Internal Storage 8 G SD Storage Standard: 32 GB
Max. support 256GB ( UHS-3 rating required )Note: *The operating frequency band varies according to different countries and areas.
Note: *Operating frequency varies by countries and regions, please refer to local laws and regulations.
-
