Unveiling the UAV Drone Payload Drop System: Principles, Advantages, and Selection Guide

In drone industry applications, drone transportation is becoming increasingly mature. By equipping drones with UAV Drone Payload Drop Systems, drones have successfully transformed from "eyes in the sky" into "aerial robotic arms" with aerial transportation and intervention capabilities.

Whether it's delivering first-aid kits in emergency rescues, threading tow ropes during power line inspections, or precisely deploying lifebuoys in maritime search and rescue operations, drop systems have demonstrated immense practical value. This article will provide an in-depth analysis of the working principles, core advantages, key selection points, and typical application scenarios of drone drop systems.

What is a Drone Drop System?

A drone drop system is an airdrop mounting device installed under the fuselage of a drone. It can firmly lock the payload during drone flight and quickly and precisely release the lock when the pilot issues a command or program reaches the designated coordinates, completing the targeted drop of the aerial item.

Working Principle: How does a drone drop system release precisely?

The core of a drone drop system lies in the coordination between the command transmission mechanism and the physical release structure. To understand the working principle of a drone drop system, we must first understand the mainstream types of drop devices and how to trigger the drop mechanism.

1. Physical Trigger Mechanism (Hardware Actuator)

Servo-Based Latch: The most common and reliable technology. The thrower has a built-in small servo motor. When a signal is received, the servo motor rotates, causing the metal latch to disengage, the hook opens, and the item falls naturally under gravity.

Electromagnetic Release: This type uses an electromagnet to maintain the attraction. The item is released the instant power is cut off, as the magnetic force is lost. This system has an extremely fast response time (milliseconds) and is often used in high-speed tasks where precise timing of the release is crucial.

2. Signal Triggering and Remote Control Methods

Optical Sensor Trigger: No additional complex circuitry is required; the drone's built-in auxiliary light or LED indicator light is used directly. The pilot presses the light on/off button on the remote controller, and the light sensor on the launcher detects the change in light and immediately initiates the release.

PWM (Flight Controller PWM Channel): The launcher wiring is plugged into the PWM channel of an open-source or industrial flight controller (such as Autel SDK expansion interface). Millisecond-level precise control is achieved via the remote controller's independent joystick or ground station software.

Automatic Waypoint Drop: This feature combines GPS/RTK positioning with a pre-set flight path and drop point at the ground station. The drone automatically triggers the drop when it reaches the target waypoint, requiring no manual intervention.

In the Autel EVO drone, the EVO Max Drop System-H is installed via straps. The item is dropped by clicking the release button on the remote controller.

Drone Drop System Release Procedure

1. Aircraft Installation

The system is installed on the drone in an approved location, such as a dedicated payload interface, landing gear location, bottom mounting point, or custom bracket. The installation method must be stable and reliable, and compatible with the specific drone model. Improper installation may affect the drone's balance, flight control, sensor clearance, landing gear, or propeller safety.

2. Payload Attachments

The payload is attached via hooks, clips, loops, or release channels. It must be securely fastened to prevent excessive swinging, detachment during takeoff, or interference with the aircraft. Operators should consider the total payload weight, including packaging, ropes, connecting hardware, and any other accessories.

3. Remote Release Command

The release operation can be controlled via the drone's remote controller, back-end terminal control system, or other approved command methods. Some release systems provide independent channels, allowing operators to precisely decide whether to release from one side or simultaneously, and which payload to release.

4. Controlled Payload Deployment

Once the operator confirms that the release area is unoccupied, the release procedure can be initiated. The drone should maintain a safe and stable position, keeping a sufficient safety distance from people, buildings, trees, power lines, and moving vehicles. While specialized drone release mechanisms are designed to make this process more repeatable, safe operating procedures remain crucial.

Safety Regulations Regarding Drone Drops

Most professional drones have a certain payload capacity, and dropping payloads represents a significant advancement in aerial logistics. However, in most countries, drops are regulated separately. Standard drone certification does not automatically permit payload drops.

In the United States, Section 107.23 of the Federal Aviation Administration (FAA) prohibits the dropping of objects from small drones in a manner that could unduly endanger people or property. This means that object drops are only permitted if it is safe and does not pose such a danger.

In the European Union, the entry-level framework is more stringent: in the "Open" category, any material drop operation is strictly prohibited. Therefore, operations involving payload drops typically fall into the "Specific" category and require authorization, usually through a SORA risk assessment or standard scenario testing.

Because requirements vary from country to country, it is essential to confirm the applicable regulations for your operation before planning a drop operation.

Core Advantages of Using Drone Drop Systems

Compared to traditional ground transportation or manual delivery, drones equipped with drop systems offer irreplaceable tactical and commercial advantages:

Extremely high response speed and spatial penetration: They can traverse mountains, rivers, steep terrain, or traffic congestion, reaching the target location at the fastest possible straight-line speed.

Reduced safety risks for personnel: In dangerous environments such as fires, toxic gas leaks, high-voltage power grids, or post-disaster landslide areas, they can replace personnel to deliver supplies on the front lines.

Centimeter-level precision delivery: Combined with visual confirmation via a gimbal camera or high-precision RTK positioning, relief supplies or equipment can be precisely delivered to confined spaces (such as high-rise balconies or sea reefs).

High modularity and versatility: Most droppers are lightweight and support plug-and-play, allowing for quick installation on various consumer-grade or industrial-grade drone platforms.

How to choose the right drone drop system?

The key to a successful drone drop system lies in controlled deployment. Therefore, when selecting a drone drop system, it's essential to confirm load capacity and weight limitations, installation compatibility and center of gravity balance, anti-accidental activation and safety mechanisms, as well as trigger response speed and stability.

The Autel EVO Max series is a flagship autonomous drone platform suitable for public safety, firefighting, search and rescue, and surveying applications. The Autel EVO Max drop system-H itself weighs only 98g and has a maximum payload capacity of 0.77 lbs.

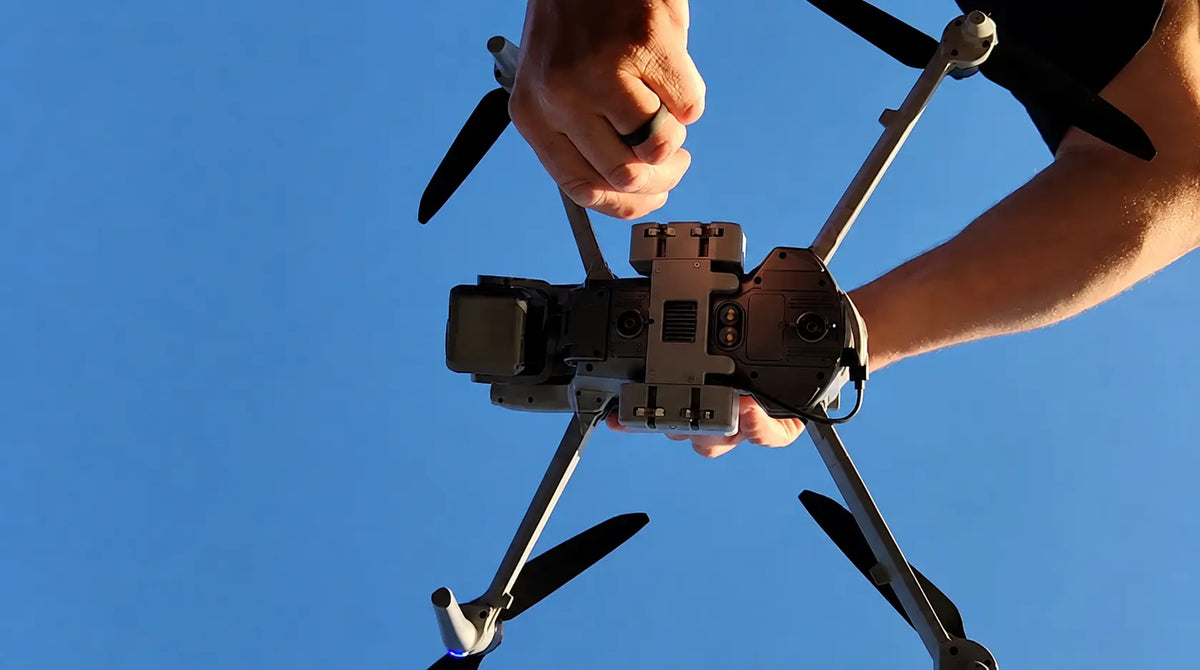

The new generation EVO Max Payload Drop System-XDR has a maximum payload capacity of 250g, secured to the drone with screws for enhanced stability. It uses a USB Type-C digital interface for data communication and power connection with compatible aircraft. After correct installation and recognition, the operator can release the system from one side or both sides via the remote control.

Drone delivery systems can be sourced from official stores or third-party suppliers. The key is that the drone remains safe throughout the flight and delivery process, only being released upon receiving instructions and reaching an open, suitable area.

Typical Application Scenarios for Drone Delivery Systems

Drone payload delivery systems enable drones to transport small items and deliver them remotely. Most quadcopter drone delivery systems have a payload capacity of no more than 500g, while large fixed-wing drones / octocopter drone have payload capacities ranging from 1kg to tens of kg, capable of delivering a variety of items for various scenarios.

Emergency Rescue and Public Safety: Delivering first-aid kits, walkie-talkies, and gas masks to people trapped in floods or fires, or accurately throwing self-inflating lifebuoys to drowning victims at sea.

Power and Infrastructure Inspection: Pioneer lines are deployed across canyons or rivers to assist in the tensioning and laying of high-voltage transmission lines.

Firefighting: Fire extinguishing bombs or explosion-proof fireballs are launched and dropped at windows of high-rise buildings or localized wildfire hotspots for targeted firefighting.

Delivery: Targeted delivery of urgently needed parts, medical samples, and supplies to remote islands, mountainous areas, or construction sites.

Environmental Monitoring and Research: Water sampling containers are dropped into water bodies, or trackers and contraceptive vaccine bait are delivered to forest reserves.

Summary

the UAV Drone Payload Drop System is not just a small mechanical hook, but a key piece of equipment for expanding the application boundaries of drones. With the integration of automated flight paths and high-precision sensor technology, future drop systems will be more intelligent, playing an irreplaceable role in disaster prevention and mitigation, industrial construction, and special operations.

When selecting a drop system, safety and load-bearing capacity must be prioritized to ensure that every airdrop mission is completed efficiently and smoothly.

Drone Payload Systems FAQs

What are the uses of drone payload systems in emergency response?

Emergency response drones equipped with drone payload systems can carry and drop small emergency items, such as first-aid kits, radio communication equipment, rescue ropes, markers, flotation aids, or lightweight supplies.

How much weight can a drone payload delivery system carry?

This depends on the payload system and the drone itself. It is recommended not to carry items exceeding the standard payload weight. The weight of the carried items will also be affected by the external environment and the flight mission.

Does the drone release mechanism affect flight performance?

Yes. During flight, additional weight, poor balance, a loose payload, or an improper mounting position can affect flight endurance, flight stability, and safe landing. Always complete compatibility checks and pre-flight checks before operation.

Does a drone payload delivery system require special permits?

Generally, yes. Specific requirements depend on the country, aircraft model, operating environment, payload, and mission type. Operators must strictly comply with local aviation regulations and operate legally.

Does the payload system's rated payload equal the drone's permissible payload?

No. Typically, a drone's actual permissible payload weight is greater than its rated payload weight, but doing so sacrifices the drone's motor performance.
