After two years of development, the EVO MAX series has become a hot aerial tool in many industries. In order to continuously improve product performance and market competitiveness, the EVO Max series of products has completed technical iterations and updated the product name EVO MAX V2 accordingly. Let's take a look at the performance of EVO MAX V2.
EVO MAX V2 upgrade change instructions
- EVO MAX V2 firmware upgrade;

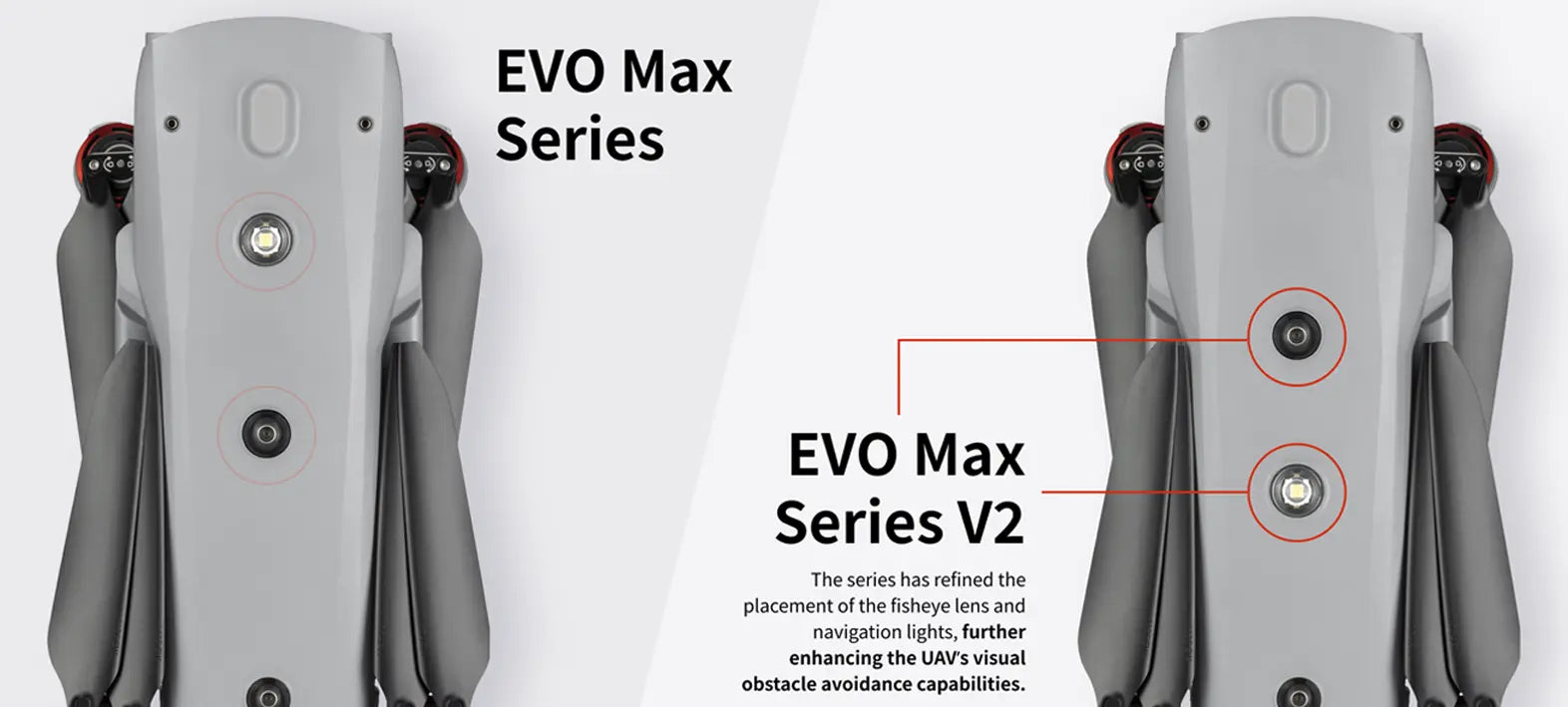

- The EVOMax series V2 drone structure has adjusted the position of the fisheye lens and night navigation lights on the basis of maintaining the original advantages, further improving the visual obstacle avoidance performance of the drone;
- Multiple heat dissipation slots are added to the side of the fuselage body to effectively improve the heat dissipation effect of the equipment.
- The [EVOMax Series V2] version is an optimized version of the [EVOMax Series] products, and the names will also be changed:
[EVO Max 4T], [EVO Max 4T XE] upgraded products are officially renamed [EVO Max 4T V2];
[EV0 Max 4N] upgraded products are officially renamed [EVO Max 4N V2];
[EVO Max 4TV2] matches the original [Fusion 4T XE] gimbal officially renamed [Fusion4T V2],
[EVO Max 4N V2] matches the original [Fusion 4N] gimbal officially renamed [Fusion 4N V2].
EVO MAX 4T camera vs. EVO MAX 4T V2 camera
| EVO Max 4T |
Fusion 4T XE / Fusion 4T V2 | |
| Zoom Camera | 48MP 10x Optical Zoom 160x Max. Hybrid Zoom Aperture: f/2.8-f/4.8 Video Resolution: 4000x3000 30P |
48MP 10x Optical Zoom 160x Max. Hybrid Zoom Aperture: f/2.8-f/4.8 Video Resolution: 4000x3000 30P |
| Wide-Angle Camera | 50MP 1/1.28" CMOS Aperture: f/1.9 DFOV:85° Equivalent: 23 mm |
48MP 1/2"CMOS Aperture: f/2.8 DFOV:83.4° Equivalent: 24 mm |
| Thermal Camera | 640x512 Focal Length: 13 mm 16x Digital Zoom Range: -4 °F to 1022 °F |
640x512 Focal Length: 9.1 mm 16x Digital Zoom Range: -4 °F to 1022 °F |
| Laser Rangefinder | Measuring Range: 5-1200m (16.4-3737 ft) Measurement Accuracy: + (1 m + DX0.15%) *where D is the distance to a vertical reflecting plane |
Measuring Range: 5-1200m (16.4-3737 ft) Measurement Accuracy: + (1 m + DX0.15%) *where D is the distance to a vertical reflecting plane |
In the upgrade of the EVO MAX 4T V2 camera, there are subtle changes to the wide-angle camera and thermal imaging camera, with almost no difference in image quality.
EVO MAX 4N camera vs. EVO MAX 4N V2 camera
| EVO Max 4N |
Fusion 4N V2 | |
| Night Vision Camera | 2.3MP 1 ~ 8x digital zoom DFOV：52°±2° Effective Focal Length: 11.2 mm Aperture: F1.4 AF Motor: FF ISO: ISO100 ~ ISO440000 Video Resolution: 1920×1200 30P |
1.69" CMOS,2.3MP 1 ~ 8x digital zoom DFOV: 52°±2° Effective Focal Length: 11.2 mm Aperture: f/1.4 ISO: ISO100 ~ ISO440000 Video Resolution: 1920×1200 30P |
| Wide-Angle Camera | 50MP 1/1.28" CMOS Aperture: f/1.9 DFOV:85° Equivalent: 23 mm |
50MP 1/0.98"CMOS Aperture: f/1.85 DFOV:85.01° Equivalent: 23.52 mm |
| Thermal Camera |
640x512 |
640x512 |
| Laser Rangefinder | Measuring Range: 5-1200m (16.4-3737 ft) Measurement Accuracy: + (1 m + DX0.15%) *where D is the distance to a vertical reflecting plane |
Measuring Range: 5-1200m (16.4-3737 ft) Measurement Accuracy: + (1 m + DX0.15%) *where D is the distance to a vertical reflecting plane |
EVO MAX Series Drone Replacement Instructions
Replacement of old and new products: According to Autel Robotics product life cycle management, the original [EVO Max Series] products are now officially discontinued. From April 3, 2025, [EVO Max Series V2] will be fully available in China, and then expanded to the United States, Britain, and Europe.
The FCC certification, OE certification, and remote ID tag of the EVO Max Series V2 are being further applied for.
Please note: Autel EVO MAX 4T V2 pre-sale has started, and it will be officially launched soon!
