Autel Robotics EVO Max Series Speaker and Spotlight Combo New Launch
As Autel Robotics' leading industrial drone series, the Autel MAX Series has powerful flight performance, can perform a variety of drone missions, and is suitable for multiple scenarios.
Autel MAX Series is divided into EVO MAX 4T and EVO MAX 4N. The two drones are only different in gimbal and camera, but other parameters are consistent. Both loads are replaceable.
The EVO MAX series has now been upgraded to the EVO Max V2 series, including the EVO MAX 4T V2 and EVO Max 4N V2 drones. — Updated September 2024.

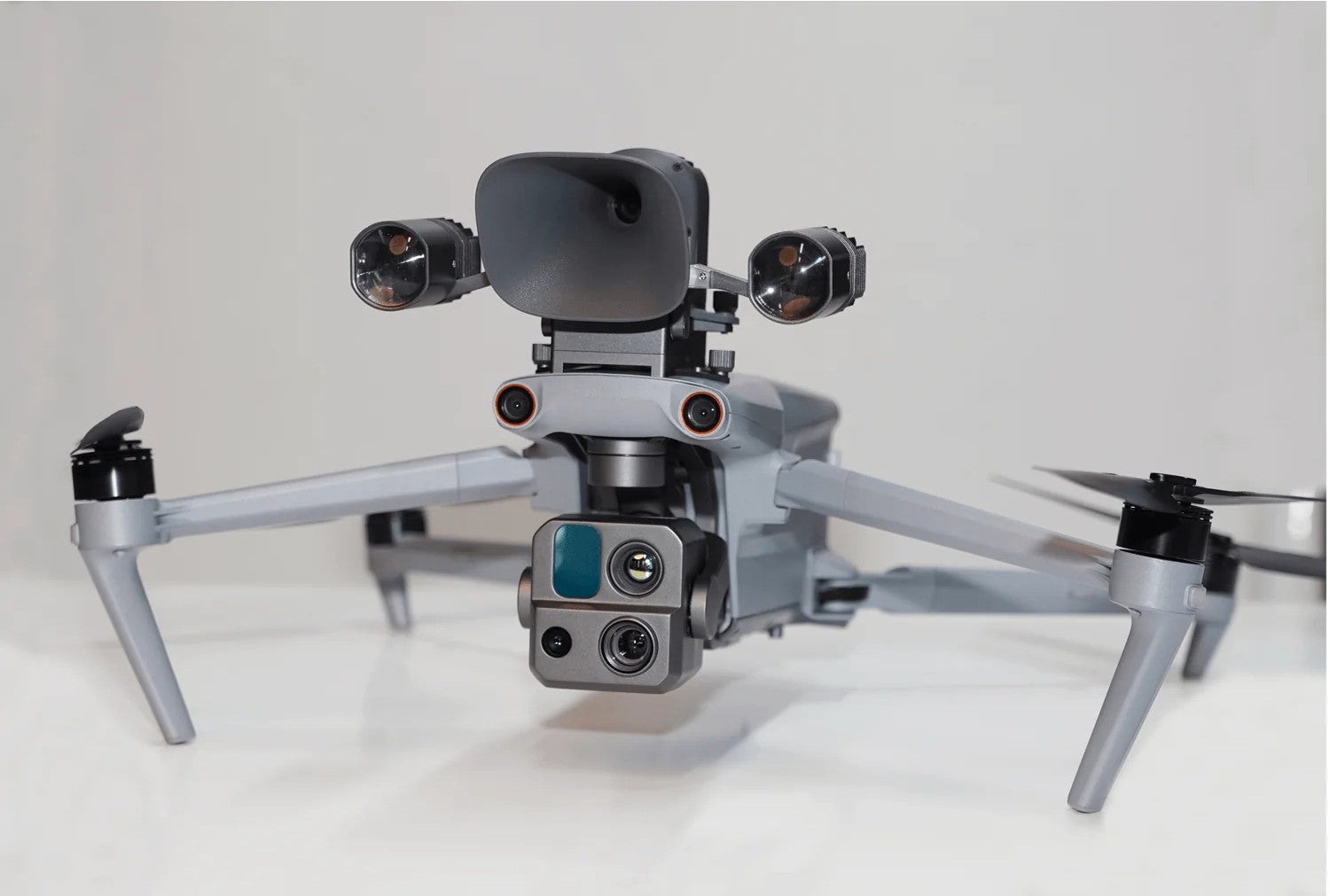

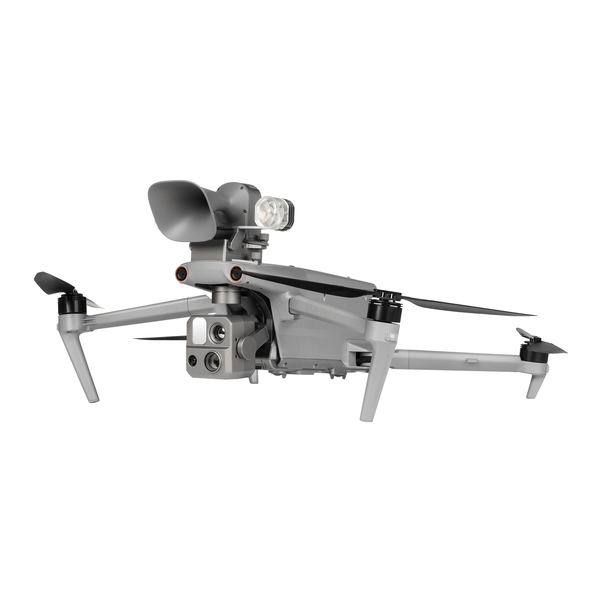

Powerful drones are taken to the next level with the help of add-on accessories, and here we explain the Autel Robotics EVO Max Series Speaker and Spotlight Combo.
The Autel Robotics EVO Max Series Speaker and Spotlight Combo combines drone lights and drone speakers. The drone flash is no longer a replaceable accessory but a fixed accessory. The drone payload interface is located above the top of the drone and can support third-party loads.
The EVO Max Series Speaker and Spotlight Combo has a new design. The two sets of searchlights will support a larger lighting space, the decibel volume of the speakers will be larger, and the sound amplification effect will be better. This combination is still in production and has not been released yet!
The EVO Max series speaker and spotlight combo is available now for $979. — Updated March 2024.
The EVO Max series speaker and spotlight combo features a single-axis gimbal stabilization system, supporting camera gimbal linkage for stable shooting and lighting effects. The spotlight component also features a five-color (Red, Green, Blue, Yellow and Whites) witch for emergency warnings. The speaker component has a maximum decibel level of 114dB and an effective broadcast distance exceeding 300m, enabling long-distance speech broadcasting.
Autel EVO Max Loudspeaker and spotlight combo specification
| Electrical Interface | PSDK Interface | ||
| Dimension | 145×116×83mm | ||
| Installation Method | Standard quick release mount | ||
| Compatible Model | EVO Max Series | ||
| Spotlight Power | 60W | ||
| Spotlight Function | Follow gimbal pitch Brightness level adjustment | ||
| Lighting Angle | 14° | ||
| Lighting Distance | 50m | 100m | 150m |
| Lighting Area | 113m² | 471m² | 1063m² |
| Central Illuminance | 30Lux | 7Lux | 3Lux |
| Adjustable Angle | 30 to -90° controllable gimbal | ||
| Speaker Power | 10W | ||
| Sound pressure at 1 meter | 114db | ||
| Broadcasting Distance | ≥300 m | ||
| Working Temperature | -10 ℃ to 50 ℃ | ||
| Storage Temperature | -20 ℃ to 60 ℃ | ||
Autel Robotics EVO Max Series Speaker and Spotlight Combo Upgrade Instructions
The EVO MAX series Loudspeaker And Spotlight Combo is only applicable to the EVO MAX series, not to the Autel Alpha. When the EVO MAX series drone version is upgraded, the Loudspeaker And Spotlight Combo also needs to be upgraded synchronously, otherwise it will affect the normal use of accessories. Upgrading the speaker and spotlight combo requires separate upgrades to two parts, but they must be used together.
Speaker and Spotlight Combo Features
Instant shout: play the audio recorded by the remote controller microphone in real time.
Adjust the volume: set the loudspeaker volume.
Adjust brightness: quickly set spotlight brightness.
Adjust angle: adjust the spotlight irradiation (gimbal) angle.
