EVO Max GNSS Anti-jamming Module: How to Enhance Drone Positioning Capabilities in Complex RF Environments?
Sep 17, 2026
Modern enterprise-grade drones are increasingly used in power line inspection, critical infrastructure monitoring, industrial operations, public safety, and emergency response. In these demanding environments, reliable positioning is crucial for maintaining predictable and controllable flight operations.
The Autel EVO III and EVO Max series XAJ GNSS anti-jamming receiver modules add extra GNSS protection to your drones. It integrates a four-element adaptive anti-jamming antenna array, baseband anti-spoofing technology, and real-time GNSS signal monitoring into a compact add-on module.
Let's learn more about drone GNSS and anti-jamming!
What is GNSS Jamming?
Global Navigation Satellite System (GNSS) refers to satellite-based positioning systems used by drones and other navigation devices.
GPS is one of the most well-known GNSS systems; other satellite navigation systems include BeiDou, Galileo, and GLONASS. The Autel EVO drone typically uses a GPS+Galileo+BeiDou+GLONASS global navigation satellite system.
GNSS interference occurs when intentional or unintentional radio frequency interference disrupts the reception of legitimate satellite navigation signals.
Because satellite signals reaching the ground are relatively weak, interference makes it more difficult for the receiver to maintain reliable positioning information, which further affects the drone's hovering accuracy, return-to-home capability, and manual control.
If you are a professional drone surveyor, even if you are using an RTK drone, poor GPS signal and inaccurate positioning will affect the surveying results.
GNSS Interference vs. GNSS Spoofing
Interference and spoofing are related but different issues.
GNSS Interference
Interference refers to attempts to interfere with legitimate satellite signals, making them difficult for the receiver to use.
GNSS Spoofing
Spoofing refers to abnormal or tampered GNSS signals, which may cause the receiver to calculate incorrect position or navigation results.
In the operation and maintenance of enterprise drones, drone operators need to be aware of environmental influences and minimize the possibility of GNSS signal interference and deception.
The XAJ module combines adaptive anti-jamming technology and baseband anti-spoofing technology to detect and suppress anomalous GNSS signals, thereby helping to reduce navigation risks associated with interference and spoofing.
Why is GNSS reliability critical for enterprise-level drone operations?
As discussed earlier, the impact of GNSS interference and GNSS spoofing is crucial. Whether for recreational drone photography or enterprise drone aerial operations, the reliability and accuracy of GNSS positioning are paramount.
Enterprise drone operations typically involve valuable equipment, complex environments, and time-sensitive tasks. These scenarios often include: power line inspections, industrial site inspections, critical infrastructure monitoring, public safety patrols, port and facility operations, emergency response, and precision aerial inspections.
Losing GNSS connectivity poses a significant risk to drone control in the air and could even damage critical infrastructure.
This is why we chose to add the XAJ module to the EVO Max series.

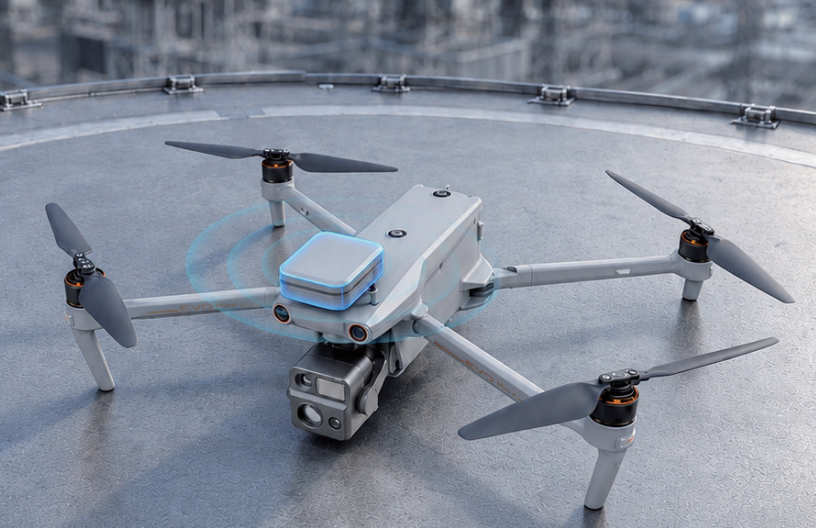

Introducing the EVO Max GNSS Anti-jamming Module
The XAJ GNSS Anti-jamming receiver module is a compact add-on designed for compatible Autel EVO III and EVO Max series drones.
This module features a plug-and-play design, allowing for easy integration without any modifications to the drone's structure.
Its key technologies include:
- Four-element adaptive anti-jamming antenna array
- Multi-directional interference protection
- Baseband anti-spoofing
- Real-time GNSS signal monitoring
- Real-time anomalous signal alerts
- Lightweight, low-power design
These features collectively aim to provide additional GNSS signal protection for demanding UAV operations.
Four-element adaptive anti-jamming antenna
One of the key technologies of the XAJ module is its four-element adaptive anti-jamming antenna array.
According to the product specifications, the system provides interference protection from three directions and supports common interference types.
The module's ratings are:
- Single-band interference suppression: ≥102 dB
- Tri-band interference suppression: ≥92 dB
These specifications are designed to help receivers maintain access to available satellite navigation signals in complex RF environments.
Built-in GNSS anti-spoofing protection
GNSS interference is not limited to signal jamming. Spoofing presents another challenge, as anomalous signals may attempt to influence positioning results.
Therefore, the XAJ module combines adaptive anti-jamming technology with baseband anti-spoofing technology. This approach aims to detect and mitigate anomalous GNSS signals, not just suppress interference. For enterprise operators, this provides a more comprehensive method for GNSS positioning protection.
Real-time GNSS Signal Monitoring
Another important function is continuous GNSS signal monitoring.
The XAJ module monitors the GNSS signal status during operation and provides real-time alerts when abnormal signals are detected.
This improves operator awareness during missions and helps teams identify potential GNSS-related issues more quickly. For professional inspection operations, understanding detected abnormal GNSS conditions is a crucial component of maintaining operational awareness.
Lightweight Payload Design
Industrial drones have a certain payload capacity, and adding additional payloads requires considering the balance between payload capacity and flight endurance. For example, the EVO Max series has a payload capacity of approximately 300g. Adding a evo max payload drop system can increase the payload capacity to approximately 500g, but this will affect flight time.
The XAJ module weighs approximately 120g, has a rated power consumption of ≤9 watts, and a compact structure, minimizing the impact on payload capacity and flight endurance while providing enhanced GNSS protection. For enterprise operators, this balance is crucial when configuring drones for inspection missions, which may require thermal imaging cameras, zoom cameras, lighting systems, or other payloads.
Plug & Play — No Airframe Modification
The EVO Max series features a pre-installed PSDK interface on the top for quick payload integration with the drone. The XAJ module is compact and can be installed without modifying the aircraft structure.
This simplifies integration for operators who need to add GNSS protection but do not want to make permanent changes to compatible drones.
However, enterprise operators should confirm compatibility with specific models and configurations before purchasing.
GNSS Protection for Enterprise Drones in Industrial Operations
Enterprise drones are most vulnerable to interference from complex electromagnetic environments during routine inspections and maintenance of power lines, industrial facilities, and critical infrastructure.
Drones navigate power lines, substations, towers, industrial facilities, transportation infrastructure, and ports, collecting close-up aerial imagery and maintaining continuous navigational awareness throughout the mission.
The XAJ GNSS anti-jamming receiver module is designed for professional applications, and adding an extra layer of GNSS protection can be part of your inspection team's extensive risk management strategy.
A More Comprehensive Drone Navigation Protection Solution
Professional drone systems are more than just aircraft and cameras.
Reliable operation often involves multiple layers of protection, including: flight control systems, communication links, GNSS positioning, obstacle avoidance, operator situational awareness, mission planning, sensor redundancy, and data management.
The XAJ GNSS Anti-jamming Receiver Module targets one component of this broader system: GNSS positioning protection.
It is designed to assist professional drone operation, not replace other flight safety or navigation systems.
Conclusion
Reliable GNSS positioning is crucial for professional drone operators performing missions in complex RF environments.
The XAJ GNSS Anti-jamming Receiver Module for the Autel EVO III and EVO Max series integrates a four-element adaptive anti-jamming antenna array, baseband anti-spoofing, real-time GNSS monitoring, and a lightweight add-on design.
This module supports compatible EVO III and EVO Max series drones and is suitable for applications such as power line inspection, critical infrastructure inspection, industrial operations, public safety, emergency response, and facility monitoring.
For teams operating Autel-compatible drones in harsh RF environments, an additional layer of GNSS protection is crucial when building a professional inspection and operations platform.
Learn about the EVO Max and EVO III GNSS jamming immunity receiver modules and check their compatibility with your drone configuration.
More FAQs about GNSS Jamming Immunization Modules
Who can benefit from the EVO Max GNSS Jamming Immunization Module?
This module is designed for professional operators who may require additional GNSS protection during missions. It is suitable for power line inspection teams, critical infrastructure operators, industrial inspection teams, public safety and emergency response teams, and port and facility operations teams.
Is additional GNSS protection needed for every drone mission?
Not necessarily. Whether additional GNSS protection is needed depends on the operating environment, mission requirements, local RF conditions, and the required level of positioning reliability.
For simple operations in open environments, an additional GNSS module may not be necessary. For professional operations involving critical infrastructure, industrial facilities, or complex RF environments, operators may have different needs.
