Border protection is one of the main challenges facing modern countries in dealing with smuggling and illegal immigration. In large-scale border patrols, thermal imaging drones are one of the most advanced tools used in this field, which can effectively detect illegal immigration and illegal actions in all light conditions.
Drone thermal imaging technology is used both for ground patrols and in border area monitoring systems. Due to its ability to detect temperature differences, multiple temperature measurement methods, and display different thermal maps, thermal imaging drones can easily identify people and vehicles hidden in hard-to-reach places.
The use of drone thermal imaging technology has greatly improved the efficiency of border services and helped to reduce illegal activities in border areas.
Application of infrared thermal imaging technology in border monitoring
Infrared thermal imaging technology works by recording the thermal radiation emitted by objects within the field of view of the camera. Any object with a temperature above absolute zero will emit infrared radiation, which can be detected with specialized equipment.
In the case of border drone monitoring, thermal imaging drones can detect and identify people, vehicles and animals at a certain distance without disturbing the target and are not affected by weather conditions and light levels.
The best thermal imaging drones on the market now have a thermal image resolution of up to 640*512, combined with visible light camera images, to achieve ultra-high accuracy and perfect surveillance integration capabilities. Thermal imaging drones have become a rare tool in border protection activities.
Advantages of thermal imaging drones in adverse weather conditions and at night
One of the biggest advantages of drone thermal imaging technology is that it is still effective when traditional optical cameras fail. At night, traditional optical camera drones are almost impossible to detect people or objects hidden in the dark without sufficient light source lighting.
The maneuverability and risk resistance of thermal imaging drones are much higher than other equipment. Drone thermal imaging images can also resist the influence of fog, smoke, rain and snow, making them very useful in difficult field conditions. High-quality thermal imaging drones have certain dust and rainproof capabilities, omnidirectional obstacle avoidance functions, multi-channel signal image transmission, and can adapt to harsh outdoor environments, greatly improving the detection rate of people trying to cross the border illegally.
Application of thermal imaging drones in border protection
Autel Robotics is a well-known drone manufacturer that produces a variety of drone models for different fields, with popular consumer drones and enterprise drones. In the Autel thermal imaging drone series, Autel EVO Lite 640T Enterprise, EVO II Dual 640T series, EVO MAX series, Autel Alpha and Autel Titan, and evtol Autel Dragonfish can all be equipped with thermal imaging cameras to detect different temperature differences and find heat targets, which is an irreplaceable tool for monitoring border areas.
Autel EVO Lite 640T Enterprise
The Autel EVO Lite 640T Enterprise is lightweight and portable, weighing about 866 grams, and folded to 210×123×95 mm, making it easy for one person to carry and quickly deploy, and can quickly carry out mission planning in border patrol missions.
EVO Lite 640T has a dual-camera system, with a visible light camera equipped with a 1/2-inch CMOS sensor, 48 million pixels, f/2.8 aperture, and supports 16x digital zoom. It can shoot up to 8000×6000 resolution photos and 4K 30-frame videos.
The thermal image captured by the thermal imaging camera can reach a resolution of 640×512, a focal length of 9.1mm, and a 16x digital zoom. The temperature measurement range of the drone thermal camera is -20°C to 150°C or 0°C to 550°C, and the temperature measurement accuracy is ±3°C or ±3% of the reading.
The unique AI target recognition and positioning of Autel EVO Lite 640T is particularly suitable for border patrol missions. Combining wide-angle or infrared lenses with intelligent AI algorithms, it can automatically identify and locate targets such as people, vehicles, and ships, and mark their locations on the map.
This drone has excellent flight performance, a maximum flight time of 40 minutes, a transmission distance of up to 12 kilometers, and is equipped with a three-way binocular visual obstacle avoidance system to ensure flight safety.
Autel Robotics EVO Lite 640T Enterprise
$3859.00 USD
Autel EVO II 640T Series
The Autel EVO II 640T series is a high-quality thermal imaging drone equipped with dual lenses that can perform important tasks such as patrols, firefighting, search and rescue, and thermal detection.
The 640T drone thermal imaging camera is equipped with a 640×512 resolution thermal imaging sensor, 13mm focal length, and supports 16x digital zoom, which can provide clear thermal imaging images in a variety of environments. The 640T V3 drone visible light camera is equipped with a 50-megapixel 1/1.28-inch CMOS sensor, supports 8K video recording, and provides high-resolution visible light images.
The Autel EVO II 640T V3 drone supports multiple temperature measurement modes: center point temperature measurement, spot temperature measurement, and regional temperature measurement, with 10 thermal imaging palettes to meet the needs of different scenarios.
The Autel Robotics EVO II 640T series supports a maximum flight time of 38 minutes, a wind resistance of 12 meters/second, a maximum flight speed of 45 miles/hour, and provides a stable flight experience.
Autel Robotics EVO II Dual 640T V3 Thermal Drone Rugged Bundle
$4799.00 USD
Autel EVO Max Series
The Autel EVO Max series is divided into EVO MAX 4T, EVO MAX 4TXE, EVO MAX 4N, and the upcoming EVO MAX V2 upgraded version. The EVO MAX series is a multi-sensor camera drone with top flight performance and drone imaging capabilities.
The EVO Max series combines dual fisheye vision and millimeter wave radar to achieve 720° omnidirectional perception and obstacle avoidance, support all-weather operations, and adapt to complex environments. Independent autonomous flight planning tasks are very effective in border monitoring.
The drone uses Autel Autonomy autonomous flight technology and high-precision visual navigation capabilities to perform global path planning, 3D scene reconstruction and autonomous obstacle avoidance in complex environments, achieving high-precision, low-latency positioning and navigation.
Autel Robotics EVO MAX series self-developed A-Mesh networking technology is second to none. This drone technology supports the free networking of multiple EVO MAX series drones, realizing collaborative operations between drones and ground terminals, and is suitable for beyond-line-of-sight applications and complex terrain.
Autel Robotics EVO MAX Series Mission Payloads:
EVO Max 4T: Equipped with 48MP zoom camera, 50MP wide-angle camera, 640×512 thermal imaging camera and laser rangefinder, supports 8K 10x optical zoom and 160x hybrid zoom.
EVO Max 4N: Equipped with super starlight-level night vision camera, super-sensitive wide-angle camera, thermal imaging camera and laser rangefinder, it has excellent night imaging capabilities.
The superior drone capabilities of the EVO MAX series can become an advanced tool designed for professional border protection purposes. It can accurately monitor large areas day or night.
Border Guards Use Thermal Imaging Drones
Thermal imaging drones play a key role in the activities of border guards, ensuring the effectiveness and accuracy of border area monitoring. Faced with the growing threat of smuggling and illegal immigration, modern technology is an important tool for quickly identifying and eliminating threats.
Border Guards use thermal imaging drones to not only detect illegal border crossing attempts, but also track smuggling routes and identify vehicles used for criminal activities. Cooperation and technical support with other uniformed services can increase operational efficiency and minimize losses associated with illegal activities.
The role of border guards in the fight against smuggling and illegal immigration
Border guards are one of the important forces responsible for defending the national territory, especially in the fight against illegal immigration and goods smuggling. Contemporary challenges, such as the development of organized crime groups or the increase in illegal border crossings, require the use of modern high-tech tools such as thermal imaging drones. By using thermal imaging drones, people hidden in vehicles, forests or tunnels can be found, which greatly facilitates arrest operations. The technology can also monitor areas that are particularly vulnerable to smuggling activities, such as waterside or mountain ports.
Thermal imaging drone technology and its application in the fight against illegal activities
Thermal imaging is a valuable tool in the fight against illegal activities in border areas. It is able to detect heat emitted by people, vehicles and other objects, allowing for the rapid identification of potential threats. The real-time perception capabilities of thermal imaging drones are used for static and dynamic observation, allowing for flexible adjustment of activities according to changing operational situations.
This technology, combined with data analysis, can effectively combat smuggling and illegal border crossings. Modern thermal imaging drone surveillance also offers automatic object detection and integration with other technologies, which greatly increases its effectiveness.
Detecting people and goods smuggling using thermal imaging drones

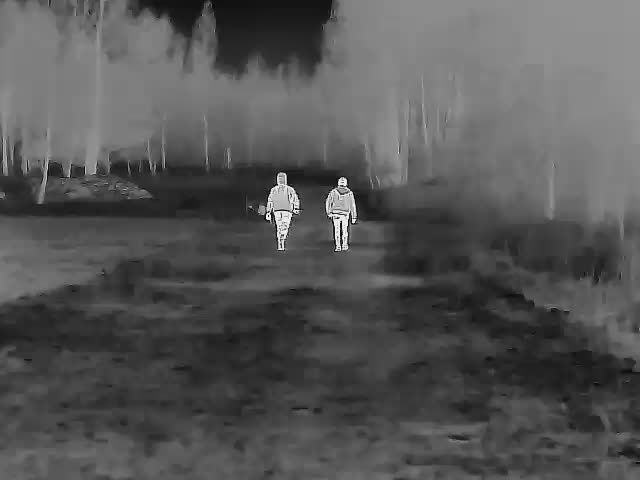

A key application of thermal imaging cameras in border protection is the detection of people trying to cross the border illegally. Due to the ability to record temperature differences, people can be detected even in dense forests, under the cover of night, or in the hidden spaces of vehicles. The technology is also effective in identifying smuggling attempts, such as detecting hidden compartments of illegal goods in vehicles. Thermal imaging is one of the most effective tools in the fight against border crime.
Border monitoring: the effectiveness of thermal imaging in identifying threats
Modern thermal imaging systems used in border protection allow for continuous monitoring of areas at risk of illegal activity. Thanks to the use of advanced image analysis algorithms, suspicious objects can be automatically detected and their movement tracked in real time. These systems can be integrated with databases and other security technologies, allowing for rapid operational decisions.
Thermal imaging drones used in border systems are highly resistant to weather conditions and are able to operate in extreme temperatures. Their use greatly increases the effectiveness of border protection and enables a quick response to any attempts at illegal activity.
The Future of Thermal Imaging Drones in Border Protection
Thermal imaging technology is constantly evolving and its future in the field of border protection is very promising. As the threats related to illegal immigration and smuggling become more serious, there is a growing need to implement modern solutions to improve the efficiency of border services. In the coming years, thermal imaging sensors are expected to further develop, providing higher image resolution, better object detection, and greater integration with artificial intelligence systems.
The growing importance of autonomous surveillance systems such as drones and patrol robots equipped with thermal imaging cameras will help to more effectively police border areas. These innovations will have the potential to reduce illegal activities and increase the level of security at national borders.
Summary
Thermal imaging drones have become an integral part of modern border protection systems, providing unparalleled effectiveness in detecting people and illegal activities regardless of weather conditions and time of day. Modern thermal imaging drones are able to effectively detect threats and combat smuggling and illegal immigration, greatly improving border security.
