Autel has announced the release of the EVO 2 Dual 640T. This is the radiometric version of the Evo 2 Dual. Better yet, they announced a price reduction to $6900. For a high resolution thermal imaging system with radiometric capabilities, this is amazing! Autel Evo 2 Pro RTK and Dual RTK is coming. Here is an introduction to this product.

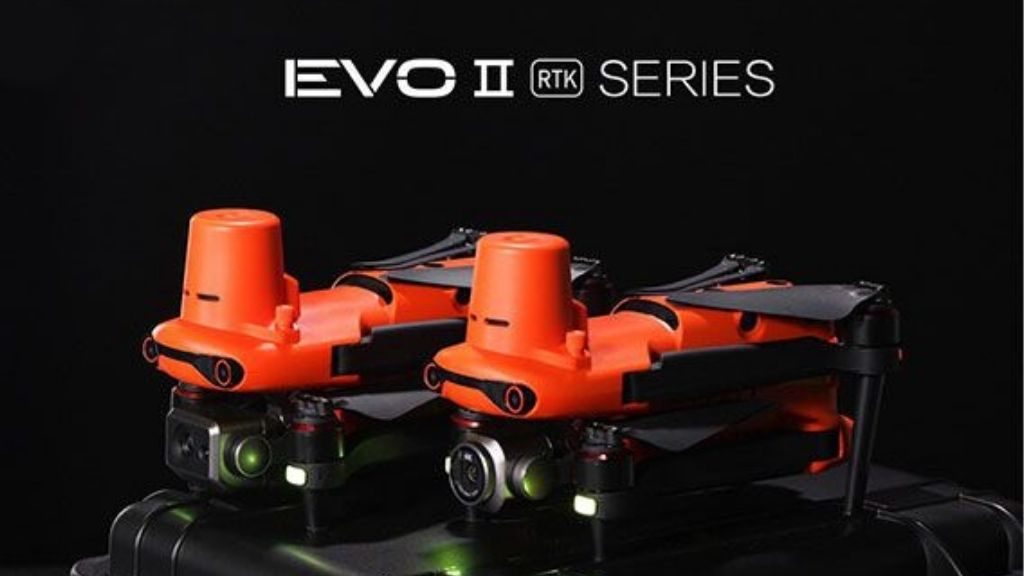

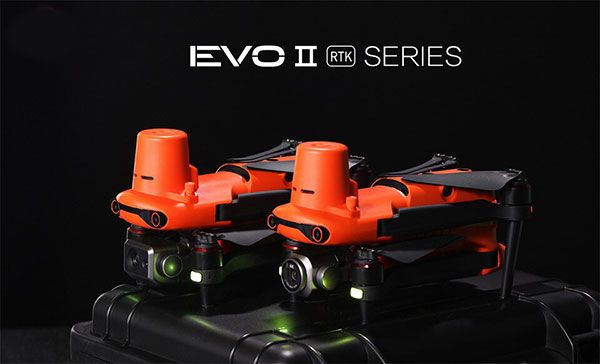

The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
EVO II RTK Specs
Aircraft
| Weight (with propeller and battery) | 1250g±0.5g（EVO II Dual 640T RTK） 1237g±0.5g（EVO II Pro RTK) |
| Wheelbase | 397 mm |
| Maximum Service Ceiling Altitude | 3.7miles (6000 m) MSL |
| Max ascent speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max descent speed | 4 m/s |
| Max horizontal flight speed | 72 km/h（positioning mode） |
| Max tilt angle | 33°（positioning mode） |
| Max angular velocity | 120°/s |
| Max flight time | 36 min |
| Operating temperature range | -10℃ to 40℃ |
| Maximum resistance to wind | Level 8 |
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Hovering accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image position compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
EVO II RTK Camera
| Gimbal | Three-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Heading: -100° to +100° |
| Controllable rotation range | Tilt: -120° to +30°; Heading: -90° to +90° |
| Maximum control speed (Tilt) | 300°/s |
| Angle jitter | ±0.005° |
Remote controller and image transmission
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Maximum effective distance of signal | FCC：5.5 miles (9 km)（without interference or obstruction） CE：3.1 miles (5 km)（without interference or obstruction） |
| Real-time image transmission quality | 720p@30fps / 1080p@30fps |
| Maximum bit rate of real-time image transmission | 40Mbps |
| Display screen | 3.26'' OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote controller battery | 5000mAh |
| Run time | 3 hours |
| Charging time | 2 hours fast charge |
| Working current/voltage | 1.7A@3.7V |
Sensing system
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-20 m Detection range: 0.5-40 m Effective sensing speed: < 15m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measuring range: 0.5-16 m Detection range: 0.5-32 m Effective sensing speed: < 12m/s Viewing angle: Horizontal: 60°, Vertical: 80 |
| Upward | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: < 6m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Downward | Accurate measurement range: 0.5-11 m Detection range: 0.5-22 m Effective sensing speed: < 6m/s Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-12 m Detection range: 0.5-24 m Effective sensing speed: < 10m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Effective use environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
EVO II Pro RTK camera specifications
| Image sensor | 1 inch CMOS; 20 million effective pixels |
| Lens | FOV 82° Aperture f/2.8 - f/11 Focus range: 1m to infinity (with auto focus) |
| ISO range | Video: 100-6400 Photos: 100-12800" |
| Electronic shutter | 8 - 1/8000 s |
| Zoom | 1 - 8 times |
| Photo mode | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Photo resolution | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Video resolution | 6K 5472*3076 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Effective frame | 5472×3648 |
| Maximum video stream | 120 Mbps |
| Photo format | JPG（default）;DNG |
| Video format | MOV（default）；MP4 |
| Support file system | FAT32（≤ 32 GB）； exFAT（> 32 GB） |
| Support memory card type | Class4 / Class10 / U3 Capacity：4G / 8G / 16G / 32G / 128G |
EVO II Dual 640T RTK infrared camera specifications
| Image sensor | Vanadium oxide uncooled infrared focal plane detector |
| Lens | Viewing angle H33°V26° Focal length 13mm |
| Zoom | 1-8x |
| Sensor resolution | 640x512 |
| Pixel size | 12μm |
| Wavelength range | 8 - 14μm |
| Temperature range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature measurement accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Video resolution | 640x512@30fps |
| Bit rate | 6Mbps |
| Video format | MOV / MP4 (Support H.264/H.265) |
| Camera resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
| Photo format | TIFF+JPG (with irg file) |
EVO II Dual 640T RTK visible light camera specifications
| Image sensor | 1/2 inch CMOS; 48M effective pixels |
| Lens | FOV：79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Zoom | 1-8x (up to 4x lossless zoom) |
| ISO range | Video: 100-6400 Photos: 100-3200 |
| Maximum photo size | 8000x6000（4:3） 7680x4320（16:9） 4000*3000 (4:3) 3840*2160 (16:9) |
| Photo mode | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Image Format | JPG (default); DNG |
| Video format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Maximum video bit rate | 120Mbps |
Intelligent Flight Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Battery type | LiPo 3S |
| Energy | 82 Wh |
| Weight | 365 g |
| Charging temperature range | 5℃ to 45℃ |
| Storage temperature and humidity | -10~30℃，65±20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 93W |
| Charging time | 90 minutes |
Battery Charging Hub
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2±0.1V |
| Rated power | 66W |
With thermal resolution up to 640×512 and an 8k sensor, EVO II becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.
The Autel EVO II RTK Series is not yet ready for purchase, if you are interested please contact us at sales@autelpilot.com
