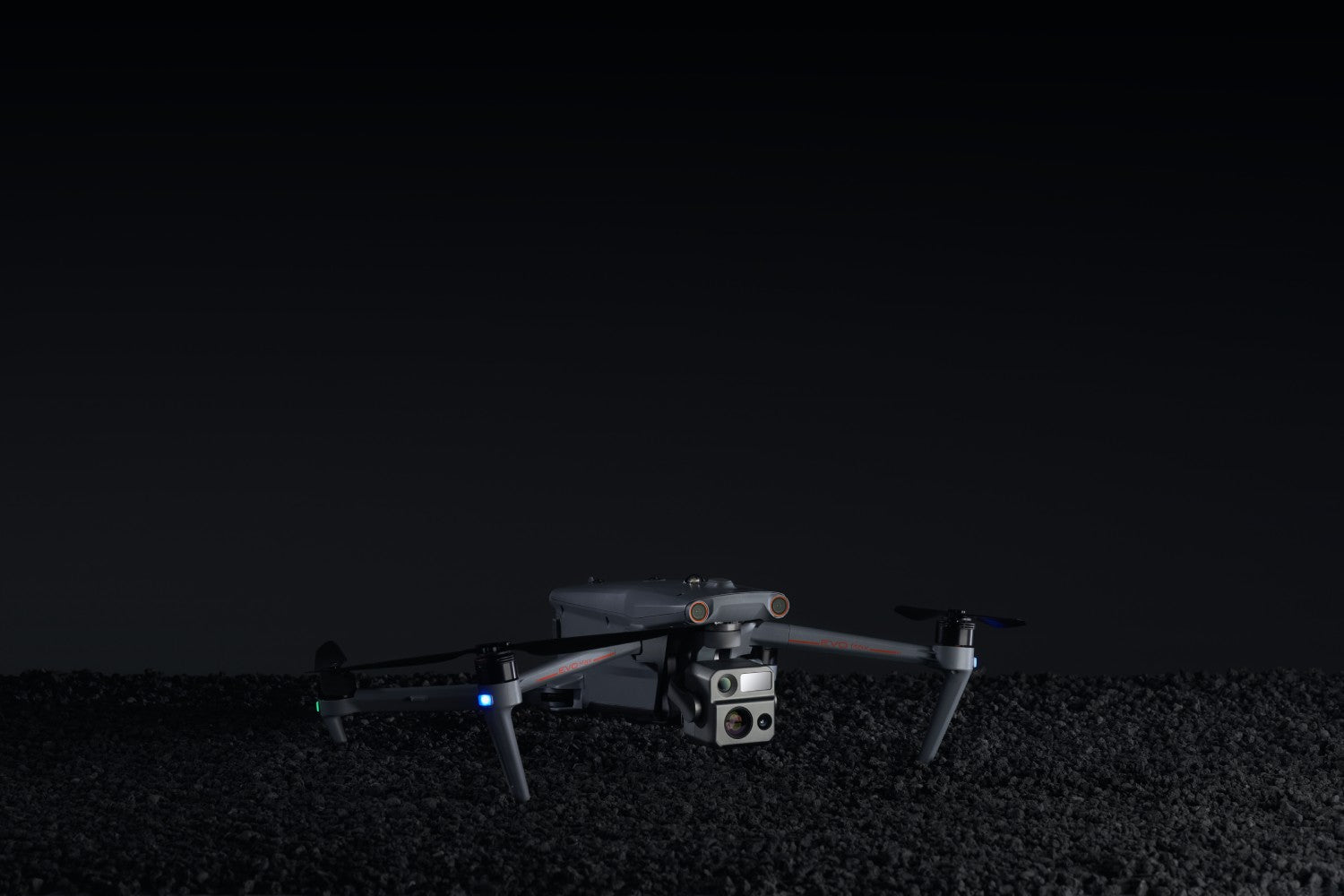

The top night vision infrared imaging drone EVO MAX 4N has a new beginning. The EVO MAX 4N V2 will replace the EVO MAX 4N and, along with the EVO MAX 4NZ V2, will usher in the future of nighttime drone missions. This article will detail the differences between the Autel EVO MAX 4N vs. Autel EVO MAX 4N V2 vs. Autel EVO MAX 4NZ V2.
What are the changes in the Autel EVO MAX V2 series?
The Autel EVO MAX V2 series still retains the multi-rotor drone design, strengthens the drone performance and autonomy, and further supports the drone's mission capabilities.
The EVO Max V2 series has improved the layout of the fisheye lens and navigation lights, improving the drone's visual obstacle avoidance ability; the side slot heat dissipation port design improves heat dissipation performance; installing ABX41-D batteries can support the battery in place detection function.
The EVO MAX 4N drone series supports the Fusion 4N gimbal camera, Fusion 4N V2 gimbal camera, and Fusion 4NZ-L camera. These interchangeable gimbal cameras provide enhanced support for drone data collection.
| EVO Max Series | EVO Max Series V2 | |||
| Gimbal[1] |
Fusion 4T | Fusion 4N | Fusion 4T V2 | Fusion 4N V2 |
| Fusion 4T XE | - | - | Fusion 4NZ V2 | |
| Other Mounting |
RTK Module | Loudspeaker & Searchlight Combo |
RTK Module | Loudspeaker & Searchlight Combo |
| Battery[2] | ABX40 or ABX41 | ABX41-D | ||
| 4G Transmission | Not Supported | Supported, with external 4G module[3] | ||
| Remote Controller |
Autel Smart Remote Controller V3 | Autel Smart Remote Controller V3 | ||
| App | Autel Enterprise | Autel Enterprise | ||
Notes:
[1] The Fusion 4T/4N Gimbal is only compatible with EVO Max Series drones.
[2] The EVO Max Series comes standard with the ABX40 or ABX41 model battery (specific model based on actual purchase), while the EVO Max Series V2 comes standard with the ABX41-D model battery. The batteries for the EVO Max Series and EVO Max Series V2 are compatible and both support hot swapping.
[3] Contact sales for more information.
Key Specifications Comparison: EVO Max 4N vs. EVO Max 4N V2
We mainly explain the differences between EVO MAX 4N V2 in drone specifications, camera specifications and battery specifications.
| EVO MAX 4N | EVO MAX 4N V2 | EVO MAX 4NZ V2 | ||
| UAV | Weight | 1665 g (including ABX40 battery, Fusion 4N gimbal, propellers) | 1700 g (including ABX41-D battery, Fusion 4N gimbal, propellers) | 1700 g (including ABX41-D battery, Fusion 4NZ-L V2 gimbal, propellers) |
| Max Takeoff Weight | 1999 g | 1999 g | 1999 g | |
| Aircraft Dimensions |
562*649*150 mm（unfolded, with 1136 propellers） 563*650*150 mm（unfolded, with 1158 propellers） |
563*657*147 mm（unfolded, with propellers） | 563*657*147 mm（unfolded, with propellers） | |
| Max Flight Time | 42 minutes | 42 minutes | 42 minutes | |
| Max Endurance Range | 25 km | 25 km | 25 km | |
| Gimbal | Model | Fusion 4N | Fusion 4N V2 | Fusion 4NZ-L V2 |
| Night Camera |
2.3 MP Effective Pixels 0.0001 Lux Environment Brightness Recognition ISO up to 440000 1920 × 1200 30P Video Resolution 8x Digital Zoom |
0.0001 Lux Environment Brightness Recognition ISO up to 440000 1920 × 1200 30P Video Resolution 8x Digital Zoom |
/ |
|
| Wide-Angle Camera |
50 MP 1/1.28-inch CMOS F1.9 Aperture FOV 85° 23 mm Equivalent Focal Length |
50 MP 1/1.28-inch CMOS F1.9 Aperture FOV 85° 23 mm Equivalent Focal Length |
/ |
|
| Thermal Camera |
640 × 512 Resolution 9.1 mm Focal Length 16x Digital Zoom -20°C to +150°C / 0°C to +550°C Temperature Range |
640 × 512 Resolution 9.1 mm Focal Length 16x Digital Zoom -20°C to +150°C / 0°C to +550°C Temperature Range |
640X512 Resolution |
|
| Laser Rangefinder |
5-1200 m Measurement Range ±(1 m+D*0.15%) Accuracy (D refers to distance from vertical reflective surface) |
5-1200 m Measurement Range ±(1 m+D*0.15%) Accuracy (D refers to distance from vertical reflective surface) |
Range: 5-1200 m |
|
| Wide-Angle Night Vision Camera | / |
/ |
1/1.2-inch CMOS |
|
| Telephoto Night Vision Camera | / |
/ |
1/1.2-inch CMOS |
|
| Other Payload | / |
/ |
Infrared Laser Fill Light¹ 8° Field Angle Infrared Laser Fill Light² 30° Field Angle |
|
| Smart Battery | Model | ABX40 / ABX41 |
ABX41-D | ABX41-D |
| Weight | 520g/533g | 530g | 530g | |
| Dimensions | 158.4*74.3*50.7mm | 158.4*74.3*50.7 mm | 158.4*74.3*50.7 mm | |
| Nominal Capacity | 8070 mAh / 9248 mAh | 9248 mAh | 9248 mAh | |
| Energy | 120 Wh/136.5Wh | 136.5 Wh | 136.5 Wh |
The Max 4N Series drone combines best-in-class night time starlight vision camera with the advanced capabilities of the Max series UAV platform for advanced nightime operations. The starlight camera can perform 5 km night vision reconnaissance at night.
Autel EVO MAX 4N/4N V2 Camera Kit
- Starlight Camera: 2.3MP, Both can capture clear images in ambient light as low as 0.001 lux, have an ISO magnification of up to 44,000x, 8x digital zoom, and support 1920x1080 resolution video recording.
- Wide Camera: 50MP, f/1.9 aperture camera with 85° field of view optimized for low-light conditions and wide-area imaging.
- Thermal Camera: With a resolution of 640×512, a focal length of 9.1 mm, and a 16x digital zoom, it is capable of detecting temperatures from -4°F to 1022°F with an accuracy of ±2°C or ±2% of reading.
- Laser Rangefinder: With a measurement range of 5-1200 meters and an accuracy of ±(1m+D×0.15%), it is ideal for surveying and emergency management.
Autel EVO MAX 4NZ V2 Camera Kit
The Autel EVO MAX 4NZ V2 drone is equipped with the EVO MAX 4NZ-L gimbal camera, which features multiple sensors, including a telephoto night vision camera, a wide-angle night vision camera, a thermal imager, a laser rangefinder, and two infrared laser fill lights.
- Telephoto Night Vision Camera: 8MP, 1/1.2-inch CMOS, the maximum zoom can be adjusted to 16x, the ISO can be increased to 100,000 times in low-light environments, and it supports video shooting with a maximum resolution of 3840*2160.
- Wide-Angle Night Vision Camera: 8MP, 1/1.2-inch CMOS, 1-2.6x digital zoom, ISO can also be increased up to 100,000x, with a maximum resolution of 3840 x 2160@30 fps.
- Thermal Camera: With a resolution of 640×512, a focal length of 9.1 mm, and a 16x digital zoom, it is capable of detecting temperatures from -4°F to 1022°F with an accuracy of ±2°C or ±2% of reading.
- Laser Rangefinder: With a measurement range of 5-1200 meters and an accuracy of ±(1m+D×0.15%), it is ideal for surveying and emergency management.
- Infrared Laser Fill Light¹: 8° Field Angle,200 m Illumination Distance.
- Infrared Laser Fill Light²: 30° Field Angle, 50 m Illumination Distance.
