Autel Alpha Dual Thermal Camera

Introduction To Autel Alpha’s Long and Short Throw Thermal Imaging

Autel Alpha has taken a major leap forward in drone technology. This breakthrough industrial drone has multiple uses and has advanced features in autonomous flight, anti-jamming, obstacle avoidance, transmission technology and anti-jamming capabilities.

A major advantage of Autel Alpha is the Autel DG-L35T gimbal camera, which integrates multiple sensors into one, long and short focal length infrared camera, 560x super hybrid zoom camera, starlight night vision camera and laser rangefinder, super powerful camera gimbal Yes Autel Alpha is way ahead!

Autel Alpha Dual Thermal Camera Spec

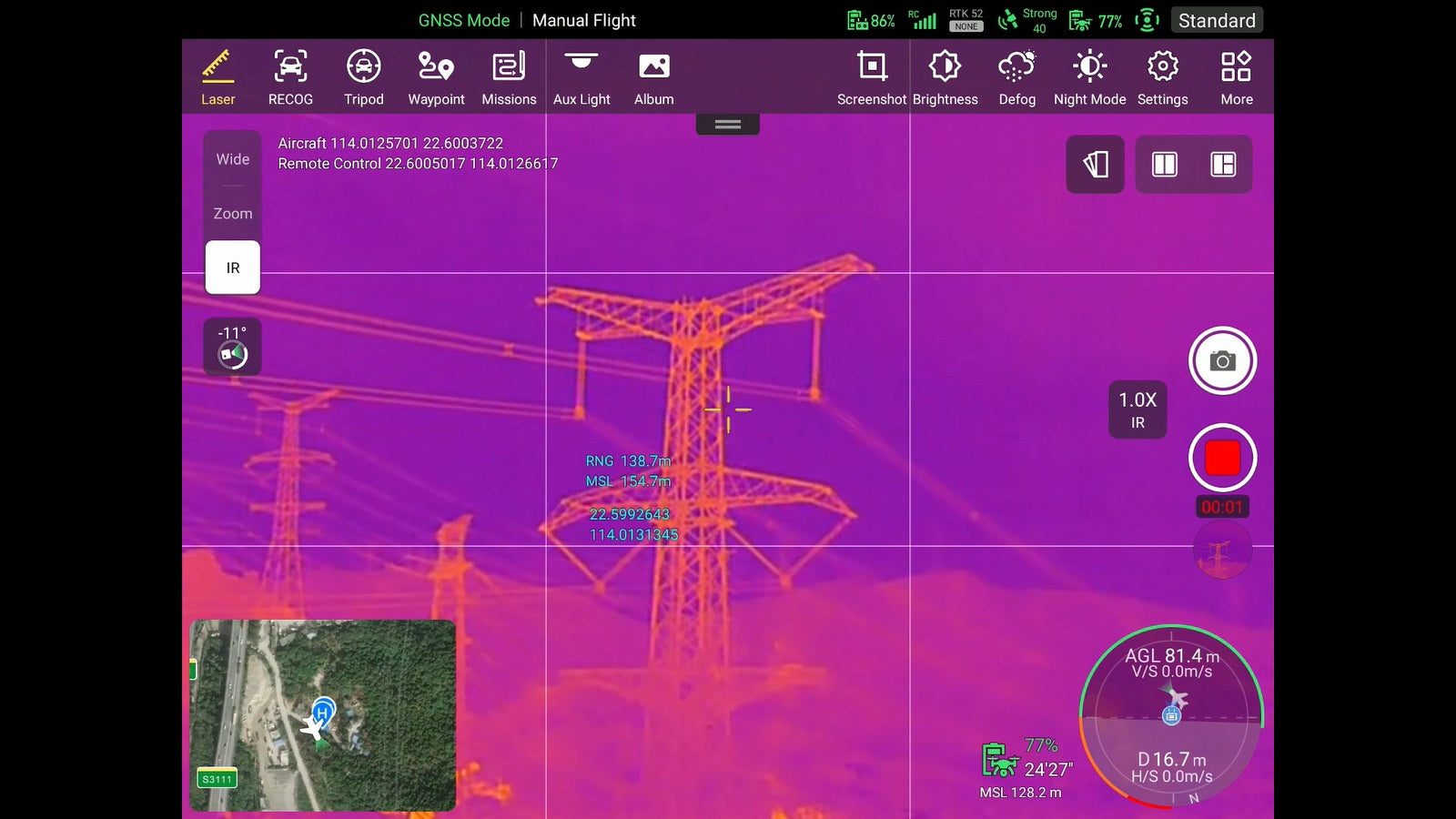

Autel Alpha's dual thermal imaging camera consists of a 13mm wide-angle thermal imaging camera and a 45mm long-distance thermal imaging camera lens. The dual thermal imaging camera combination can achieve 56x hybrid zoom, 1-3.5x lossless zoom, and supports 640*512@30fps thermal imaging video resolution output, accurate temperature measurement distance can reach 1~25m/4~50m, temperature measurement temperature difference is ±3℃ or ±3% of reading.

Max Bitrate  30Mbps
Supported File System exFAT/Fat32
Sensor Uncooled VOx Microbolometer
FOV 42°/12.3°
Sensor Resolution 640×512
Pixel size 12 um
Lens Focal Length 13mm/45mm
Wavelength Range 8 - 14um
Accurate Temperature Measurement Distance 1 ~ 25m/4 ~ 50m
Temperature Measurement Accuracy ±3℃ or ±3% of reading (whichever is greater)@ambient temperature -20℃ ~ +60℃
Temperature Range -20℃ ~ +150℃ (high gain mode); 0℃ ~ +550℃ (low gain mode)
Zoom 1 - 3,5x wide-angle thermal imaging digital zoom 3,5x~56x wide-angle thermal imaging digital zoom
Photo Mode auto
Photo Resolution 640×512
Photo Format JPG (with temperature information, parsed by dedicated SDK and PC tools)
Video Resolution 640×512@25FPS
Video Format MP4

The long focal length introduces shallow depth of field, while the wide-angle lens can capture more scenes or environments. The combination of the two types of cameras provides better support for Autel Alpha to perform drone thermal imaging inspections and aerial patrols in low light or unclear conditions at night.
