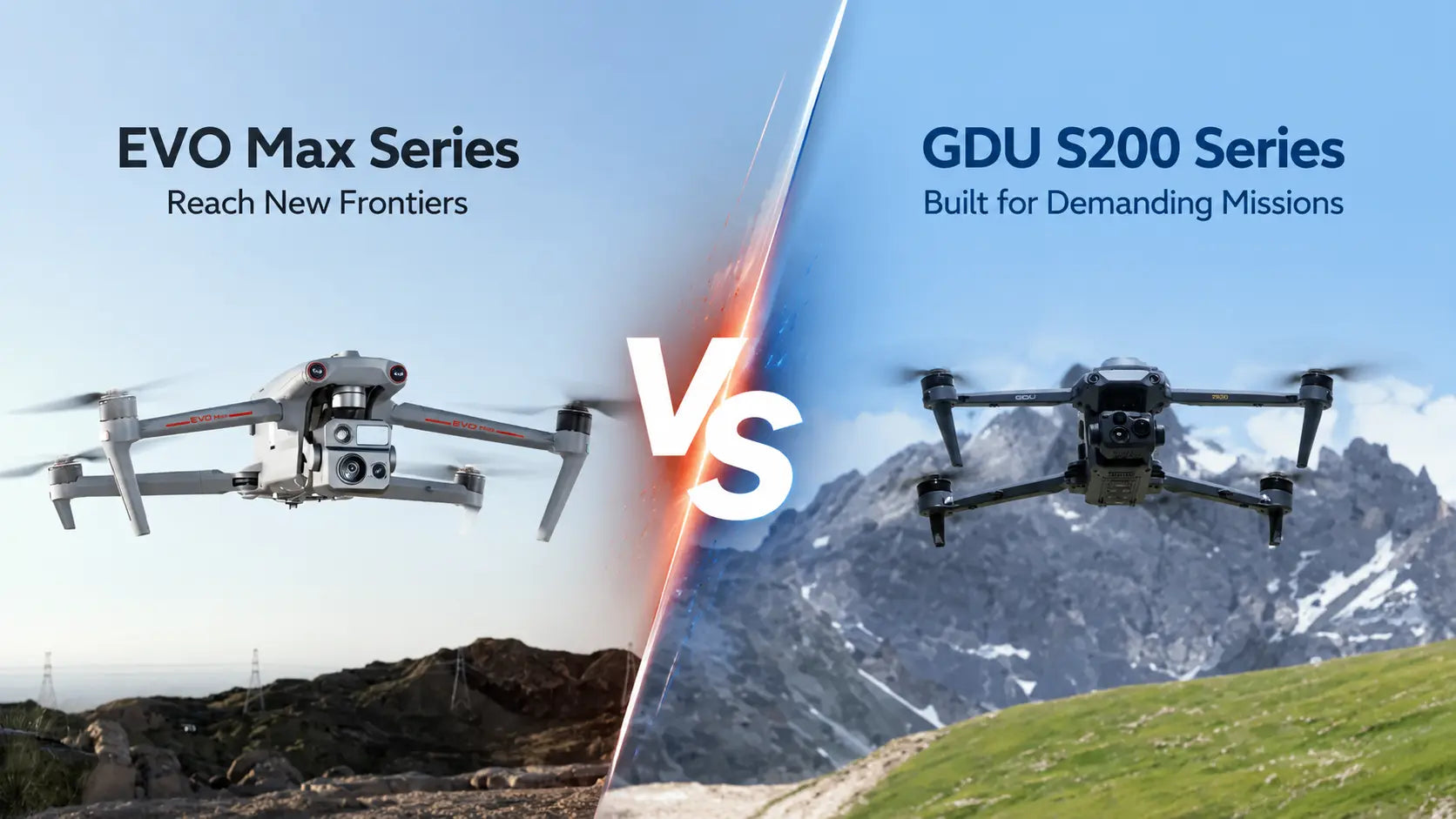

EVO Max Series vs GDU S200 Series: Which Enterprise Drone Is the Better Choice?

The enterprise drone market is booming, with major drone brands accelerating the expansion of industrial drone solutions for real-world missions. The Autel EVO Max series and GDU S200 series are flagship drone platforms designed for professional applications such as public safety, surveying, inspection, mapping, and industrial operations.

If you are choosing the right industrial drone for your project, this article will provide a comprehensive comparison and analysis, from performance to user scenarios.

EVO Max Series vs GDU S200 Series: What are they?

	Autel EVO Max Series		GDU S200 Series
	EVO Max 4T V2	EVO Max 4N V2	S200	S220	S220 Pro（640）	S220 Pro（1K）
Weight	1665g	1700g	1750g	1750g	1860g	1860g
IP Level	IP43	IP43	IP43	IP43	IP43	IP43
Max Flight Time	42 minutes	42 minutes	42 minutes	42 minutes	39 minutes	39 minutes
Communication Distance	15 km (FCC) 8 km (CE/SRRC)	15 km (FCC) 8 km (CE/SRRC)	15 km (FCC) 8 km (CE/SRRC/MIC)	15 km (FCC) 8 km (CE/SRRC/MIC)	15 km (FCC) 8 km (CE/SRRC/MIC)	15 km (FCC) 8 km (CE/SRRC/MIC)
Wide-angle Visible Light Lens	Effective pixel: 48 MP	Effective pixel: 50 MP	Effective pixel: 48 MP	Effective pixel: 48 MP	Effective pixel: 48 MP	Effective pixel: 48 MP
Night Vision Camera	/	1.69" CMOS. Effective pixels: 2.3M	/	/	/	/
Telephoto Visible Light Lens	Effective Pixels: 48 MP Optical Zoom: 2.7-10x Hybrid Zoom: 20-160x	/	Effective Pixels: 48 MP Optical Zoom: 10x Hybrid Zoom: 160x	Effective Pixels: 48 MP Optical Zoom: 10x Hybrid Zoom: 160x	Effective Pixels: 48 MP Optical Zoom: 10x Hybrid Zoom: 160x	Effective Pixels: 48 MP Optical Zoom: 10x Hybrid Zoom: 160x
Thermal Lens	640×512@30fps / 640×512@25fps	640×512@30fps / 640×512@25fps	/	640 x 512@30fps	640 x 512@30fps	1280x1024@30fps 640x512@30fps (Option)
Laser Ranging	5-1200m	5-1200m	/	/	10-1500 m	10-1500 m
Hovering Accuracy (w/RTK Moudle)	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm	Vertical: 1.5 cm + 1 ppm Horizontal:1 cm +1 ppm
Price	$5,699	$8,899	$3,205	$4,125	$5,999	$7,999

EVO Max Series Overview

The EVO Max series, as an advanced enterprise-grade drone platform, is designed for professionals who require high mobility, intelligent automation, and powerful imaging capabilities.

The EVO MAX series drones include the EVO MAX 4T, EVO MAX 4N, EVO MAX 4T XE, EVO MAX 4T V2, and EVO MAX 4N V2. Currently, the EVO Max V2 series is fully launched on the market, while the EVO Max V1 version has been discontinued.

The Autel EVO Max series focuses on advanced autonomous flight, AI-driven obstacle avoidance, superior anti-jamming performance, A-Mesh networking design, high-resolution aerial imagery, a compact and foldable design, and rapid on-site deployment.

Having been continuously validated in the commercial drone market, the EVO Max drone platform is now widely used in public safety, emergency response, infrastructure inspection, search and rescue, and industrial monitoring industries.

GDU S200 Series Overview

The GDU S200 series, as an industrial-grade drone solution, is specifically developed for demanding professional missions requiring stability, payload flexibility, and reliable operation.

The GDU S200 series drone platform includes: S200, S220, S220 Pro (640), and S220 Pro (1K), with features and performance varying depending on the model.

The S200 series focuses on heavy industrial applications, offering extended operational reliability, multi-sensor integration, and a professional inspection workflow.

The GDU S200 series industrial drone platform can be used for power line inspection, oil and gas monitoring, environmental surveys, building inspection, and precision mapping.

EVO Max Series vs GDU S200 Series: Payload and Imaging

In the Autel EVO Max series, the Max 4T focuses on zoom, with a maximum of 160x hybrid zoom. The Max 4N emphasizes night vision, allowing clear visibility even in faint starlight. All GDU S200 series drones support 160x zoom; the S220/S200 Pro (640)/S200 Pro (1K) can be equipped with a 640*512 thermal imager.

10x optical zoom + a maximum 160x zoom is sufficient for long-term capture of distant targets, making it ideal for detailed inspection of power towers or precise mapping. At night, the EVO Max 4N's starlight night vision capability far surpasses that of infrared thermal imagers, providing clearer nighttime images and enabling one-click access to comprehensive data for nighttime reconnaissance and fire rescue operations.

EVO Max Series vs GDU S200 Series: Flight Performance Comparison

Both drone series can fly for over half an hour. The EVO Max series drones are lightweight and foldable, offering long-endurance flight, high-speed flight, intelligent flight planning, strong wind resistance, and an advanced navigation system. Their autonomous flight capabilities allow operators to complete complex tasks with less manual control.

The GDU S200 series drones are also foldable quadcopter drones, possessing stable hovering performance, reliable long-duration mission execution capabilities, industrial-grade flight control, and payload adaptability, making them well-suited for infrastructure inspection or surveying.

EVO Max Series vs GDU S200 Series: Perception and Obstacle Avoidance

The EVO Max series drones support millimeter-wave radar + 720° omnidirectional vision. Utilizing the Autel Autonomy algorithm, they can accurately and autonomously locate and avoid obstacles even in environments with severe electromagnetic interference, extreme darkness, or areas without GPS signals.

The GDU S200 series drones are equipped with front and rear downward vision + millimeter-wave obstacle avoidance radar, providing stable and reliable industrial-grade omnidirectional protection, fully realizing perception and obstacle avoidance in drone mission scenarios.

EVO Max Series vs GDU S200 Series: Mission Ecosystem and Expansion

One of the powerful drone technologies of the Autel EVO Max series is A-Mesh networking technology and EVO Nest.

A-Mesh networking technology allows for free networking between drones and between drones and ground terminals, greatly expanding the operational radius in mountainous or base station-free areas. The accompanying EVO Nest has a compact structure, allows for rapid deployment, and easily realizes Drone-in-a-Box Solutions.

The EVO Max Series also supports Max RTK modules, searchlight-microphone combinations, and drop devices, further expanding the drone's application scope.

GDU has also strengthened its drone accessory ecosystem and automated drone nesting systems. The S200 series seamlessly integrates with GDU's gridded command platform and excels in external hardware expansion, such as mounting searchlights, microphones, and other industrial components, making it highly practical for nighttime search and rescue and police patrols.

EVO Max Series vs GDU S200 Series: Application Scenarios

The EVO Max series and GDU S200 Series drones represent a new standard in industrial drone operations, offering unparalleled performance.

Both drone series are suitable for emergency response, security and public safety, inspection missions, rapid deployment, and intelligent flight capabilities, enabling the drone platform to play a vital role in numerous scenarios. The addition of RTK modules further expands support for surveying and mapping, enabling large-scale enterprise operations.

Summary

Both the EVO Max series and GDU S200 series are powerful solutions for professional drone applications.

The EVO Max series prioritizes mobility, intelligence, and rapid mission execution, making it ideal for public safety, inspection, and emergency response.

The GDU S200 series focuses on industrial-grade reliability, customization, and professional applications, making it suitable for organizations with unique operational needs.

Ultimately, the best enterprise-grade drone isn't necessarily the one with the highest specifications, but rather the one that best suits your mission requirements, workflows, and industry challenges.
