Autel EVO MAX 4N V2: What’s New in the Upgraded Version?

UAV Drone technology is advancing rapidly and has found widespread application across various industries, particularly in industrial inspections, public safety and emergency response, precision agriculture, and geographic surveying.

Autel offers a wide range of drone models. Among all industrial drone series, the Autel EVO MAX 4N V2 stands out. The Autel EVO MAX 4N V2 integrates a wide-angle camera, a zoom camera, a thermal imaging camera, and a laser rangefinder to meet data collection needs and support critical decision-making across different industries.

As the top-of-the-line UAV in the Autel EVO series, what upgrades has it introduced compared to its predecessor, the Autel EVO MAX 4T V2? What are its key advantages in applications such as public safety, fire and rescue, and electrical inspections?

Brief Overview

Positioned as the “Explorer Under the Stars,” the Autel EVO MAX 4N V2 is an enterprise drone designed specifically for applications such as emergency response, search and rescue, and mapping.

It resembles a mid-sized consumer drone in appearance, features a foldable design, and is equipped with four cameras: a wide-angle camera, a super-starlight-level night vision camera, a thermal imaging camera, and a laser rangefinder.

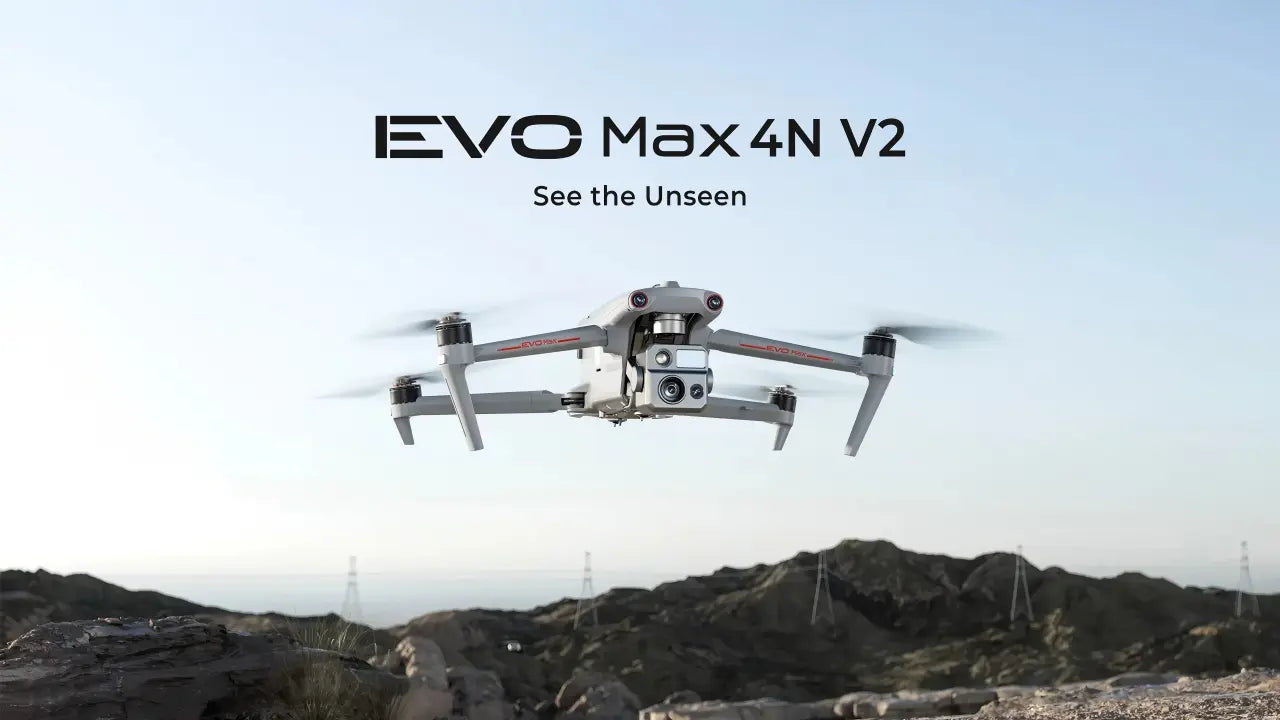

Autel EVO MAX 4N V2 Overview

Autel MAX 4N V2 Drone Highlight Features

• Maximum Flight Time: 42 minutes

• Camera System: Equipped with a Fusion 4N V2 gimbal module, it integrates a telephoto night vision camera, a wide-angle night vision camera, a thermal imaging camera, and a laser rangefinder (5–1200 m range).

• Night/Low-Light Performance: Featuring "Starlight Vision" and superior zoom capabilities, it is not limited by ambient light or temperature differences, enabling target identification in extremely low-light environments.

• Transmission/Communication: Image and control links have a maximum transmission distance of ~15 km.

• Anti-Interference/Perception System: Utilizes multi-sensor fusion (binocular + millimeter-wave radar) for all-round obstacle avoidance and environmental awareness.

• Networking/Collaboration: Supports A-Mesh networking, enabling multi-robot collaboration and communication relay.

• Environmental Adaptability & Enclosure Rating: Dust and water resistant to IP43 (customizable), operating within a temperature range of -20°C to +50°C / -4°F to +122°F.
• Weight/Takeoff Weight: Aircraft weight (battery and gimbal included) is approximately 1,641 g. Maximum takeoff weight (including payload) is approximately 1,999 g.

• Maximum Speed/Wind Resistance: The aircraft can reach a horizontal flight speed of approximately 82.7 km/h (approximately 23 m/s) and can withstand winds of approximately 27 mph (approximately 12 m/s).

Autel EVO MAX 4N V2 Vs MAX 4T V2: Comparison Chart

The Autel EVO MAX 4T V2 and MAX 4N V2 are both currently available models in the Autel EVO Max series. What are the differences between them? Compared to the Autel EVO MAX 4T V2, what upgrades and shortcomings does the Autel EVO MAX 4N V2 have? The table below highlights the differences in specifications between the two Autel drones.

Banner	EVO Max Series V2 Drone Comparison
Aircraft Differences and Distinctions	The EVO Max Series V2 has repositioned the fisheye lens and night vision lights to further enhance the drone’s visual obstacle avoidance capabilities.
	The EVO Max Series V2 features multiple cooling vents on the sides of the airframe, effectively improving heat dissipation.
Mounting and Functional Differences			EVO Max Series V2
	Gimbal		Fusion 4T V2	Fusion 4N V2
	Other Payloads		RTK Module	Public Address and Spotlight Combo
	Battery		Standard ABX41-D
	4G Video Transmission		Optional
	Remote Controller		Autel Smart Remote V3
	App		Autel Enterprise
EVO Max V2 Series Core Specifications Comparison	Series		EVO Max V2 Series
	Model		EVO Max 4T V2	EVO Max 4N V2
	Drone	Weight	1666 g (including ABX41-D Smart Battery, Rongguang 4T Gimbal, and propellers)	1,700 g (including ABX41-D smart battery, Rongguang 4N gimbal, and propellers)
		Max Takeoff Weight	1999 g
		Dimensions	563 × 657 × 147 mm (arms extended, including propellers)
		Max Flight Time	42 minutes
		Max Range	25 km
	Gimbal	Model	Fusion 4T V2	Fusion 4N V2
		Zoom Camera	48 MP 4000 x 3000 30P video resolution 10x continuous optical zoom 160x hybrid zoom F2.8–F4.8 adjustable aperture	/
		Night Vision Camera	/	2.3 million effective pixels 0.0001 Lux ambient light sensitivity ISO up to 440,000 1920×1200 30fps video resolution 8x digital zoom
		Wide-Angle Camera	48 MP 1/2-inch CMOS F2.8 aperture FOV 83.4° 24mm equivalent focal length	50MP 1/1.28-inch CMOS F1.9 aperture FOV 85° 23mm equivalent focal length
		Infrared camera	640×512 resolution 9.1mm focal length 16x digital zoom -20°C to +150°C / 0°C to +550°C temperature measurement range	640×512 resolution 9.1mm focal length 16x digital zoom -20°C to +150°C / 0°C to +550°C temperature measurement range
		Laser Rangefinder	5–1,200 m measurement range ±(1 m + D × 0.15%) measurement accuracy * D represents the distance to a vertical reflective surface	5–1,200 m measurement range ±(1 m + D × 0.15%) measurement accuracy * D represents the distance to the vertical reflective surface
	Smart Battery	Model	ABX41-D
		Weight	531 g
		Dimensions	158.4 × 74.3 × 50.7 mm
		Rated Capacity	9248 mAh
		Battery Energy	136.5 Wh

Autel EVO MAX 4N V2: What’s New in the Upgraded Version?

In our previous article, we looked at the differences between the EVO MAX 4N V2 and the 4N. So, what upgrades does it offer compared to the Autel EVO MAX 4T? Let’s take a look! Furthermore, what are its key standout features? Let's take a closer look!

Exceptional “Starlight” Night Vision Capabilities

This is the key difference between the 4N and the 4T, and it is also their core competitive advantage:

• Ultra-Sensitive Sensor: Equipped with a starlight camera featuring an extremely high ISO range (up to ISO 450,000), it can capture clear images even in environments with only faint moonlight or near-total darkness.
• Dual Night Vision Camera Design: Featuring a telephoto night vision camera and a wide-angle night vision camera, this system supports high-magnification nighttime reconnaissance, providing a dominant advantage in search and rescue operations and night patrols.

Autel EVO Max 4N V2 Starlight Visual Effects

4-in-1 “Multispectral” Gimbal (Fusion 4N Payload)

The Autel MAX 4N V2 isn’t just about exceptional night vision—it’s an integrated, all-around combat platform:

• Night Vision Camera: Captures details in the dark.
• Ultra-Wide-Angle Camera: 50MP sensor for wide-angle views.
• Infrared Thermal Imaging: 640x512 resolution, supports 16x digital zoom; the “Dual-Image Overlay” mode allows simultaneous viewing of heat sources and night vision outlines.
• Laser Rangefinder: Range up to 1.2 kilometers; quickly acquires the target’s GPS coordinates and altitude.

Autel EVO Max 4N V2 4-in-1 Gimbal

720° Omnidirectional Obstacle Avoidance and Anti-Interference

• Millimeter-wave radar + visual fusion: The Autel EVO Max 4N combines a traditional stereo vision system with millimeter-wave radar technology. This innovative combination enables the Autel Autonomous Engine to detect objects as small as 0.5 inches, eliminate visual blind spots, and operate in low-light or rainy conditions.
• Dedicated Anti-Jamming Module: The Autel EVO Max 4N is equipped with advanced flight control modules and algorithms specifically designed to counter radio frequency interference (RFI), electromagnetic interference (EMI), and GPS spoofing. This feature enables the drone to fly stably near power lines, critical infrastructure, and within complex environments.

Autel EVO Max 4N V2 Obstacle Avoidance

A-Mesh Drone Networking

The Autel EVO Max 4N is equipped with the all-new A-Mesh system, which enables autonomous communication, connectivity, and collaboration between drones.

• Strong Anti-Interference: Autel EVO Max 4N can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
• Beyond-Line-of-Sight Applications: The A-Mesh system in Autel EVO Max 4N allows multiple aircraft in the surrounding area to serve as relay points, significantly enhancing the effectiveness of operations beyond visual line of sight (BVLOS).
• Full-Fleet Control: Autel EVO Max 4N offers the capability to control multiple drones autonomously, either by a single pilot or by a group of pilots working simultaneously, with or without LTE coverage.
• Enhanced Range: Communication modes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

AI Object Recognition and Autonomous Flight

• Autonomous Path Finding: The Autel EVO Max 4N is equipped with Autel's advanced autonomous engine, which collects data on the surrounding environment and plans 3D flight paths through complex terrain such as mountains, forests, and buildings.
• Precise Target Recognition and Tracking: The Autel EVO Max 4N utilizes Autel’s AI recognition technology to automatically identify and lock onto various types of targets, such as heat sources, moving people, or vehicles.

Autel EVO MAX 4N V2 VS EVO MAX 4T V2: How to Choose?

👉 Choose the Autel EVO Max 4N V2 if:

• Your primary need is nighttime operations
• You require exceptional night vision capabilities (more important than thermal imaging)
• You plan to use it for law enforcement, search and rescue, or security

👉 Choose the Autel EVO Max 4T V2 if:

• You need an “all-around enterprise drone”
• You’ll mainly use it during the day or for complex missions
• You prioritize image quality, zoom capabilities, and versatility

Conclusion

Compared to the previous generation of this series, the Autel EVO MAX 4N V2 features significant upgrades, particularly in its night vision capabilities. Its starlight-level night vision camera enhances both zoom performance and wide-angle shooting results.

Even in low-light conditions, the Fusion 4N V2 camera’s dual built-in LED lights deliver exceptional nighttime image clarity. Combined with the thermal imaging camera, the EVO MAX 4N V2 night vision drone is the top choice for nighttime operations.
