Autel Robotics EVO II Pro V3 Camera Drone Rugged Bundle
Autel Robotics EVO II Pro V3 Camera Drone Rugged Bundle
- 6.4" Smart Controller SE
- 15KM Image Transmission
- Moonlight Algorithm 2.0
- SkyLink 2.0
- 12-bit A-Log
- 360° Obstacle Avoidance
- Dynamic Track 2.1
- 40 Mins Flight Time
- Overview
- SPECS
- Comparison

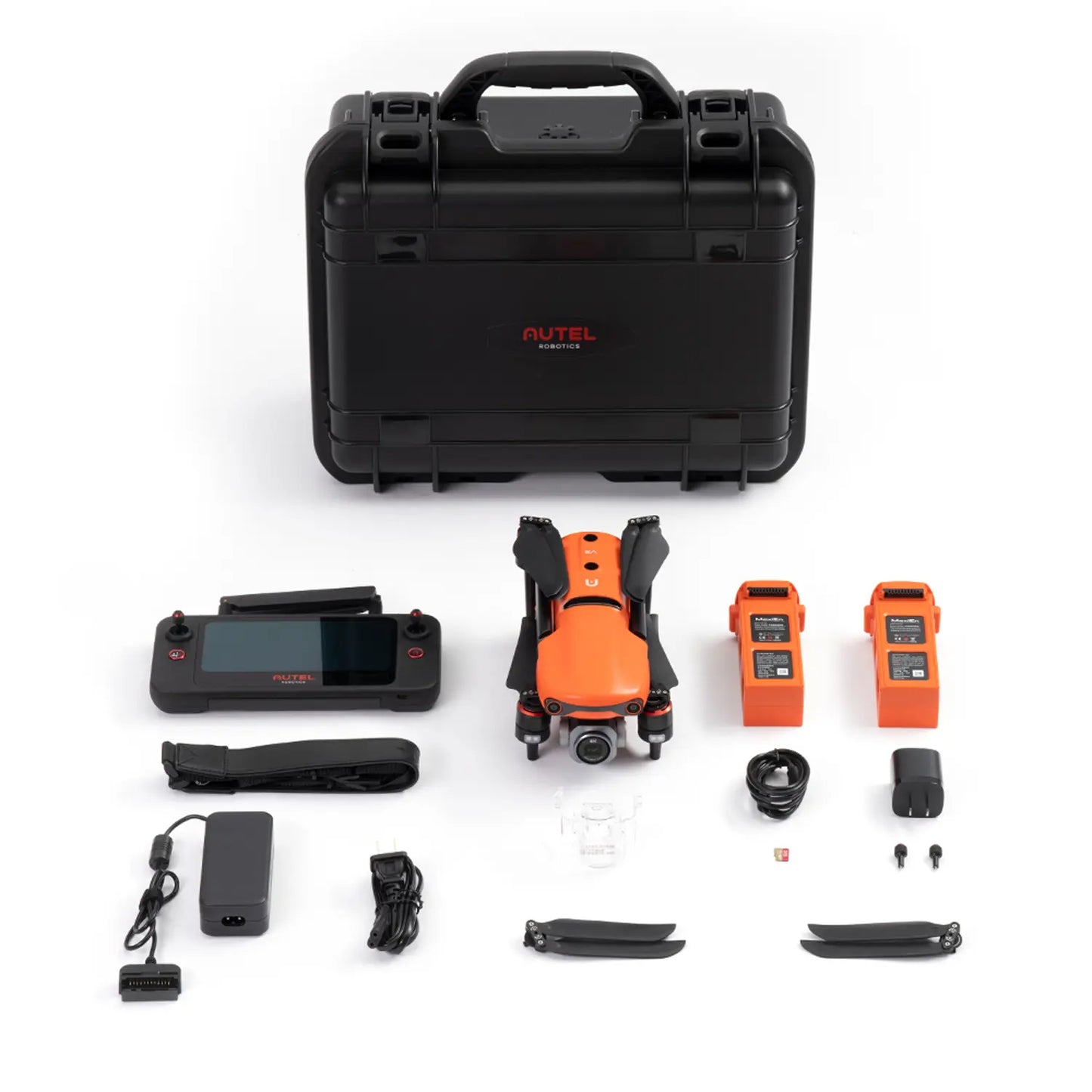

- In the box
- Videos
- Downloads
-
Autel Robotics EVO II Pro V3
Autel Robotics EVO II Pro V3 comes with Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, higher frame rates. The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.[Autel EVO II Pro V3 drone returns to home automatically without GPS signal at high altitude.]
Autel EVO II Pro 6K Camera
- Moonlight Algorithm 2.0
Succeed in night photography with EVO II Pro V3's 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.
- 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture
Autel Robotics EVO II Pro V3 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.
As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.
1" CMOS
Imaging Sensor
20MP
Photos Resolution
6K/30fps
HDR Video
- 4K HDR Video
For the ultimate in picture quality, the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, colour and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.
- 6K Hyper-lapse photography and More Shooting Modes
The EVO II Pro V3 camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure
-
Post-Production Flexibility with 12-bit DNG The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production. -
Hyper-Lapse Photography in 6K You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported. -
Post-Production Flexibility with 12-bit DNG The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production. -
Hyper-Lapse Photography in 6K You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
- Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
EVO II - AI Enhanced Dynamic Track
EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO 2 Pro V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Multiple Intelligent Flight Modes
Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.
Failsafe & Automatically Return Home
EVO 2 Pro V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
40 Minutes & 5.5 Miles HD Transmission
Autel EVO 2 Pro V3 comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.
Autel Smart Controller SE
Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.
6.4-Inch OLED Screen
15km Transmission Range
Removable Battery
3rd Party Apps
-10℃ to 40℃ Operating Temperature
6.4-Inch OLED Screen
15km Transmission Range
Removable Battery
3rd Party Apps
-10℃ to 40℃ Operating TemperatureLive Deck 2: Stream Anywhere
EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
1080P/60FPS Video
Stream
Three Auto-Switch
Bands
Transmission Range
5-Hour Battery Life
IP43 Resistance
1080P/60FPS Video
Stream
Three Auto-Switch
Bands
Transmission Range
5-Hour Battery Life
IP43 Resistance -
Camera Gimbal Aircraft Obstacle Avoidance RC and Transmission Battery Camera
Sensor 1" CMOS
Effective Pixels: 20 MP
Performance temperature: -10~60°CLens FOV: 82°
35mm Format Equivalent: 28.6 mm @ f/2.8
Aperture: f/2.8–f/11
Shooting Range: 1 m to ∞ISO Range Video: 100~3200 (Auto)
Video: 100~6400 (Manual)
Photo: 100~3200 (Auto)
Photo: 100~12800 (Manual)Shutter Speed Electronic Shutter: 8 ~ 1/8000s Digital Zoom 1 ~ 8x (Max. 3x lossless zoom) Still Image Resolution 5472x3648 (3:2)
5472x3076 (16:9)
3840x2160 (16:9)Still Image Format JPEG / DNG (RAW) Still Photography Modes Single Shot
Burst shooting: 3/5 frames
Automatic Exposure Bracketing (AEB):
3/5 bracketed frames at 0.7 EV Bias
Timelapse:
JPG: 2s/5s/7s/10s/20s/30s/60s
DNG: 5s/7s/10s/20s/30s/60s
HyperLight: support (under 4K JPEG format)
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)Video Resolution 6K 5472x3076 p30/p25/p24
5K 4800x2700 p60/p50/p48/p30/p25/p24
4K 3840x2160 p60/p50/p48/p30/p25/p24
2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24Video Format MOV / MP4 Codecs H.264 / H.265 Max Video Bitrate 120Mbps Gimbal
Weight 0.23 lbs (107g) Mechanical Range Pitch: -135~45°
Roll: -45~45°
Yaw: ±100°Controllable Range Pitch: -90~0°
Yaw: -90~90°
Stabilization 3-Axis (Tilt, Roll, Pan) Max Control Speed (Tilt) 300°/s Angular Vibration Range ±0.005° Aircraft
Takeoff Weight 2.6 lbs (1191 g) Dimensions Folded: 8.98 x 5.24 x 4.33 in (L x W x H)
(228 x 133 x 110 mm)
Unfolded: 16.69 x 13.94 x 4.33 in (L x W x H)
(424 x 354 x 110 mm)Diagonal Distance 15.63 in (397 mm) Max Ascent Speed Standard mode: 11.18 mph (5 m/s)
Ludicrous mode: 17.89 mph (8 m/s)
Max Descent Speed Standard mode: 6.71 mph (3 m/s)
Ludicrous mode: 8.94 mph (4 m/s)Max Speed (near sea level, no wind) Standard mode: 33.55 mph (15 m/s)
Ludicrous mode: 44.73 mph (20 m/s)Max Service Ceiling Above Sea Level 22,965 ft (7000 m) Max Flight Time (no wind) 40 minutes Max Hovering Time (no wind) 35 minutes Max Flight Distance (no wind) 15.53 miles (25 km) Max Wind Resistance Force 8 wind Max Tilt Angle Standard mode: 28°
Ludicrous mode: 33°Max Angular Velocity 120°/second Operating Temperature Range 14°F to 104°F (-10°C to 40°C) Transmission Power (EIRP) 2.4~2.4835GHz
FCC/ISED: ≤27 dBm
SRRC/CE/MIC/RCM:≤20dBmGNSS GPS/GLONASS/VIO/ATTI Hovering Accuracy Range Vertical:
± 0.78 in (when vision positioning is active)
± 7.87 in (with GPS positioning)
Horizontal:
± 0.78 in (when vision positioning is active)
± 3.28 ft (with GPS positioning)
Internal Storage 8 GB SD Storage Standard: 32 GB
Max Micro SD Card Supported: 256 GBSensing System (Obstacle Avoidance)
Sensing System Omnidirectional Obstacle Sensing Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
Downward: Surface with clear pattern and adequate lighting (lux > 20)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)Remote Controller and Transmission
Operating Frequency - 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
Max Transmission Distance FCC: 15 km
CE: 8 kmOperating Temperature Range 14°F to 104°F (-10°C to 40°C) Transmission Power (EIRP) - FCC:≤33dBm
- CE:≤20dBm@2.4G,≤14dBm@5.8G
- SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
Real-Time Transmission Quality 2340x1080 60fps Max Bitrate of Real-time Transmission 40Mbps Remote Controller Battery 1900mAh Operating Current/Voltage 1.7A @ 3.7V Charging Temperature Range 32°F to 104°F (0 to 40°C) Supported USB Port Types Lightning, Micro USB (Type-B), USB-C Operating Hours ~2 hours (Max. Brightness)
~4 hours (50% Brightness)OLED Brightness 800 nit Charging time 90 minutes Internal Storage ROM 128GB + expandable storage via micro-SD card Battery
Capacity 7100 mAh Battery Type LiPo 3S Battery Energy 82 Wh Voltage 11.55 V Max Charging Voltage 13.2 V Charging Temperature Range 41°F to 104°F (5°C to 40°C) Max Charging Power 92 W Net Weight 0.81 lbs (365g)
-
Remote Controller Max Transmission Distance - FCC: 5.59 miles (9 km)
- CE: 3.10 miles (5 km)
- FCC: 9.3 miles (15 km)
- CE: 5 miles (8 km)
Weight 0.82 lbs (370g) 1.36 lbs (617g) Screen Size 3.26-inch 6.4-inch Display screen 854*480 30fps 2340x1080 60fps OLED Brightness 330 nits 800 nits Touch Screen / 10-point multi-touch Battery 5000mAh 1900mAh Internal Storage / ROM 128GB + expandable storage via micro-SD card Operating Time 3 hours ~2 hours (Max. Brightness) ~3 hours (50% Brightness) Charging Time 90 minutes 90 minutes 640T Series Visual Camera 0.5" CMOS; 48MP effective pixels 0.8"(1/1.28") CMOS; 50MP effective pixels Live Deck 2 not support support Remote Controller Max Transmission Distance - FCC: 5.59 miles (9 km)
- CE: 3.10 miles (5 km)
- FCC: 9.3 miles (15 km)
- CE: 5 miles (8 km)
Weight 0.82 lbs (370g) 1.36 lbs (617g) Screen Size 3.26-inch 6.4-inch Display screen 854*480 30fps 2340x1080 60fps OLED Brightness 330 nits 800 nits Touch Screen / 10-point multi-touch Battery 5000mAh 1900mAh Internal Storage / ROM 128GB + expandable storage via micro-SD card Operating Time 3 hours ~2 hours (Max. Brightness)
~3 hours (50% Brightness)Charging Time 90 minutes 90 minutes 640T Series Visual Camera 0.5" CMOS; 48MP effective pixels 0.8"(1/1.28") CMOS; 50MP effective pixels Live Deck 2 not support support -

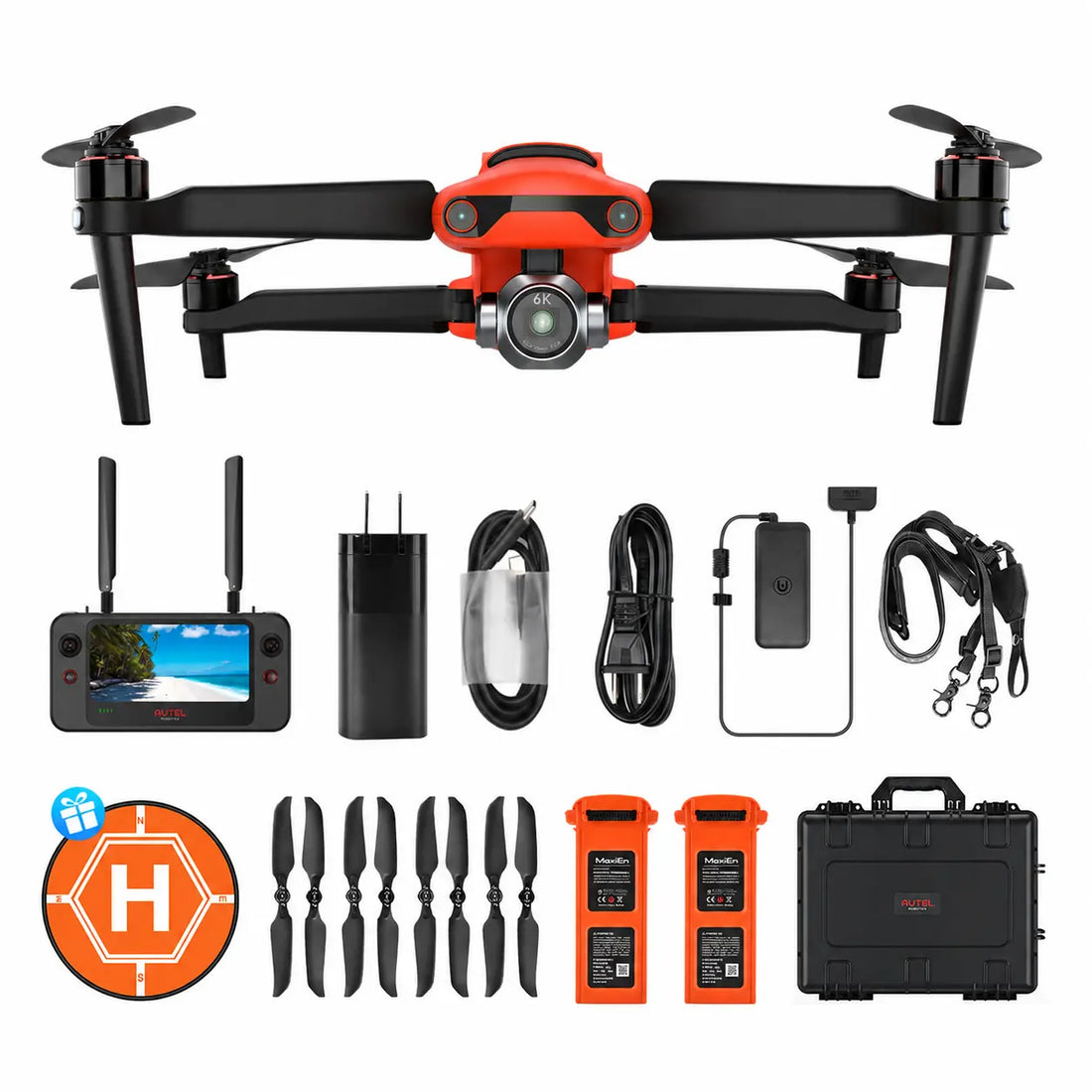

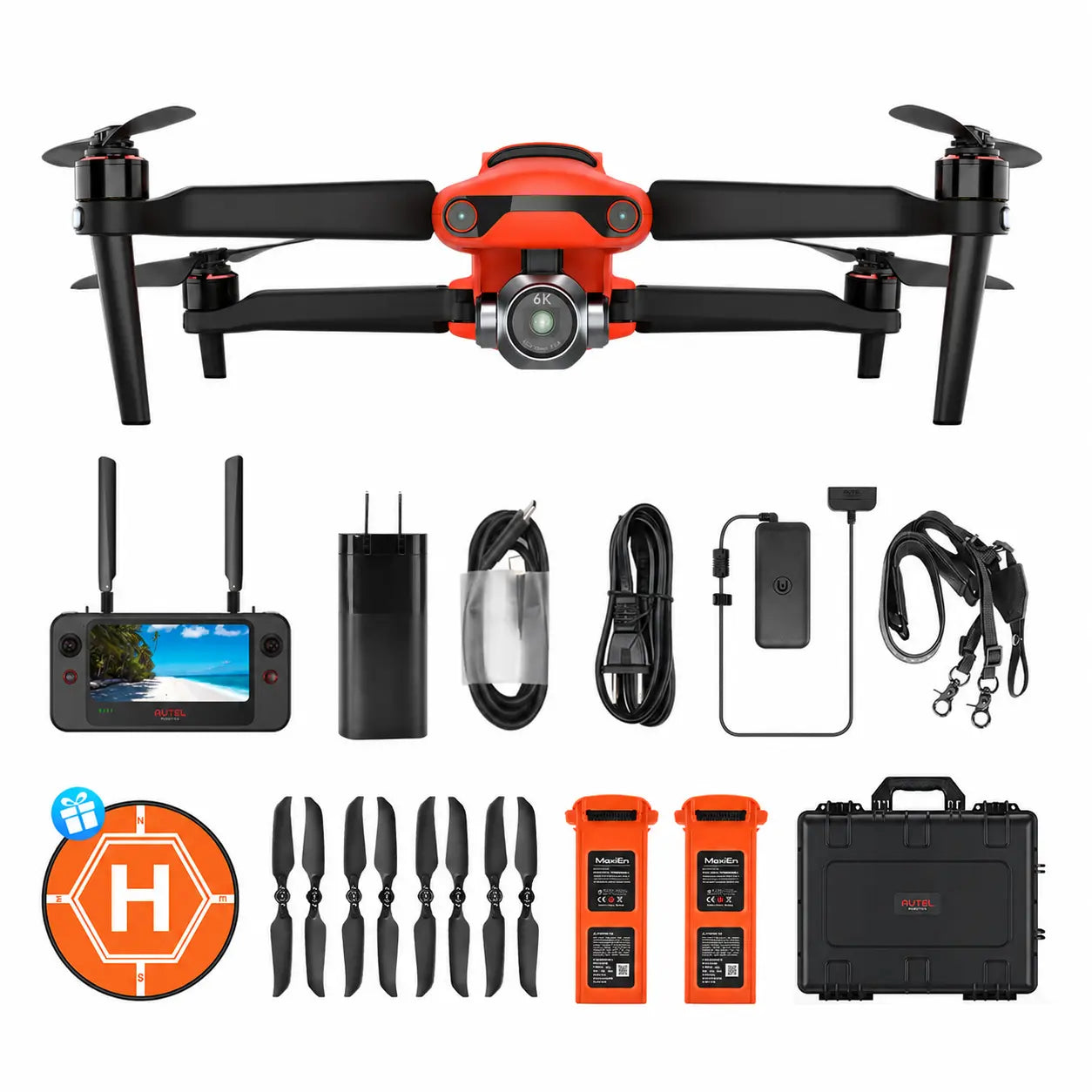

Autel EVO II Pro V3 Rugged Bundle

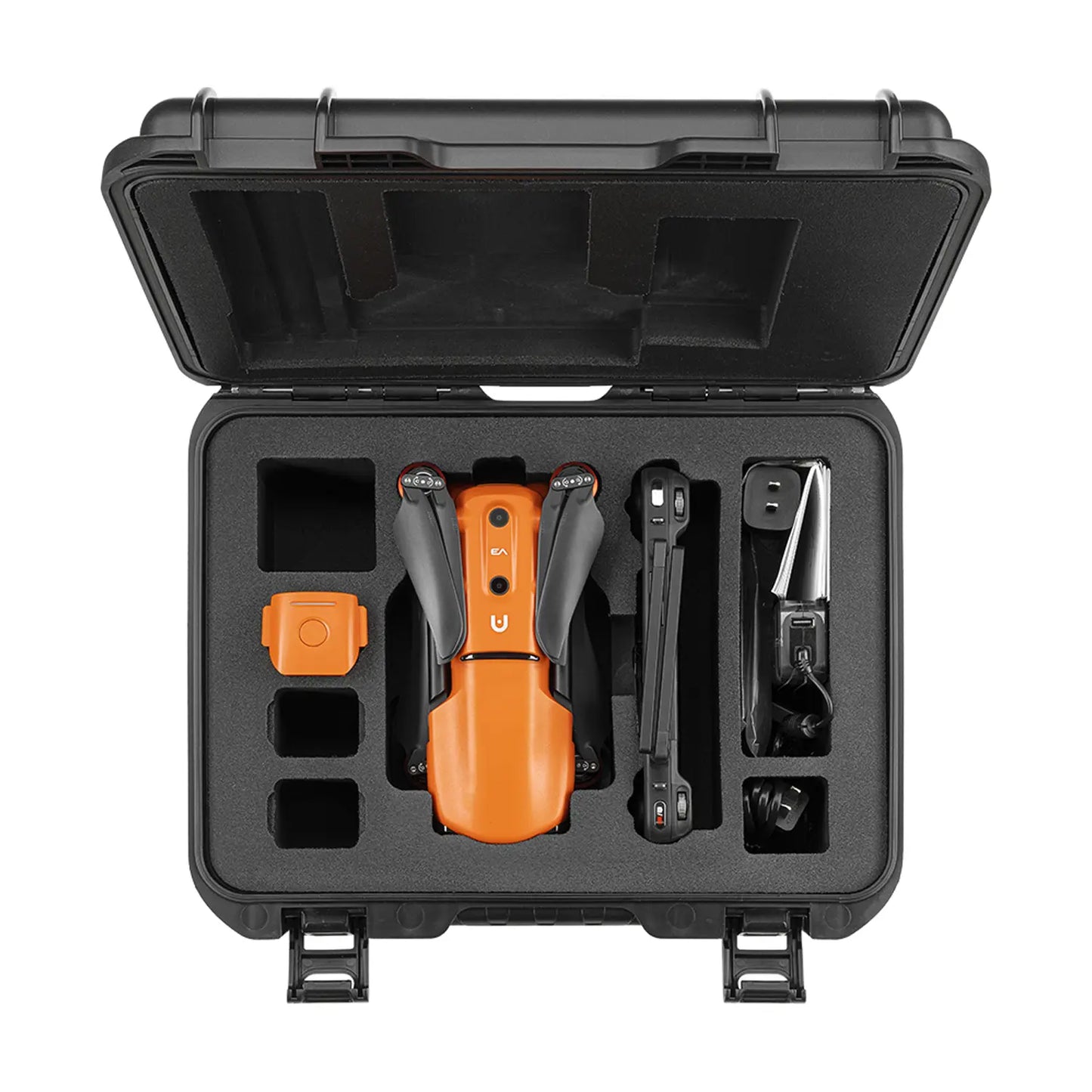

Autel EVO II Hard Case
-
