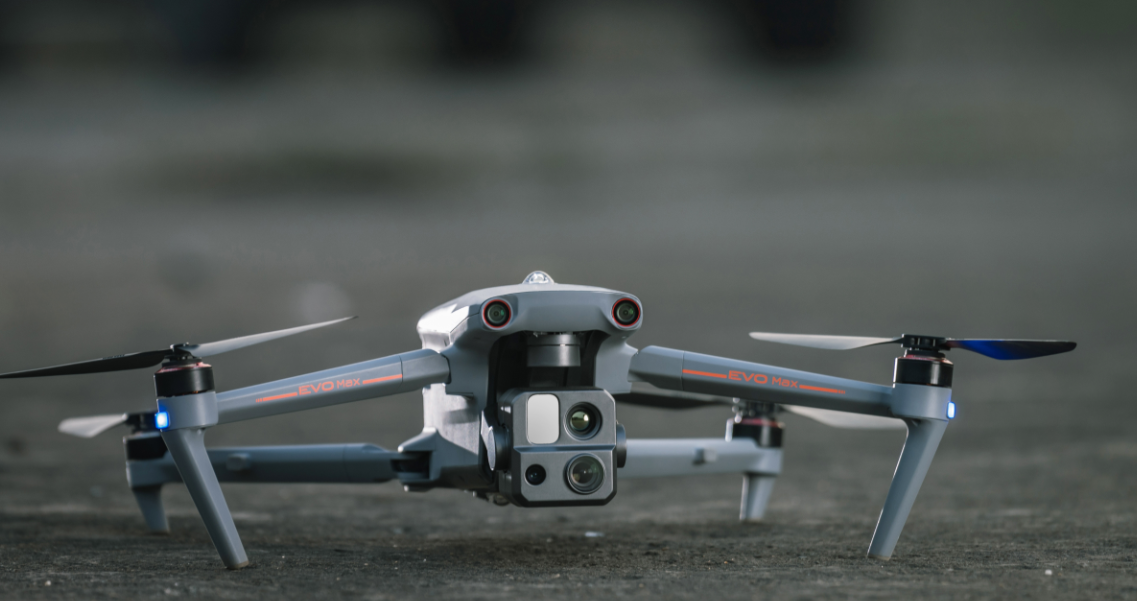

Autel MAX 4T has a powerful multi-functional camera gimbal, a powerful camera and a laser rangefinder are combined in one gimbal. The high-definition imaging system of MAX 4T will maximize the drone's field of view and capture the ground's perspective, which can meet all data collection needs and key decision-making.
The camera gimbal of Autel MAX 4T has a wide-angle camera, a telephoto camera, a thermal imager, and a laser rangefinder. These advanced sensor components guarantee the accuracy of Autel MAX 4T’s missions deployed in the air!
Mission Ready Payload of MAX 4T
Zoom Camera
The camera supports 8K 10x optical zoom and 160x maximum hybrid zoom with sharp details on targets as far as 1.24 miles away.
| Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max Photo Size | 8000×6000 |
| Max Video Resolution | 7680×4320 |
Wide-angle Lens
The camera can shoot 4K 30fps video with a maximum ISO of 64,000. Moonlight Algorithm 2.0 enhances post-processing so you can capture clear, detailed images in low-light environments. Expect noise reduction and HDR enhancements in photos.
| Sensor | 1/1.28 CMOS, Effective pixels: 50M |
| Lens | DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
Thermal Imager
This 640x512 high-resolution thermal camera supports 30fps video and 16x digital zoom.
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 64° Aperture: 13mm Focus: f/1.2 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperaturevalues |
Laser Range Finder
This allows you to get the coordinates and altitude of targets up to 0.75 miles away with just one tap on the RC screen.
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
