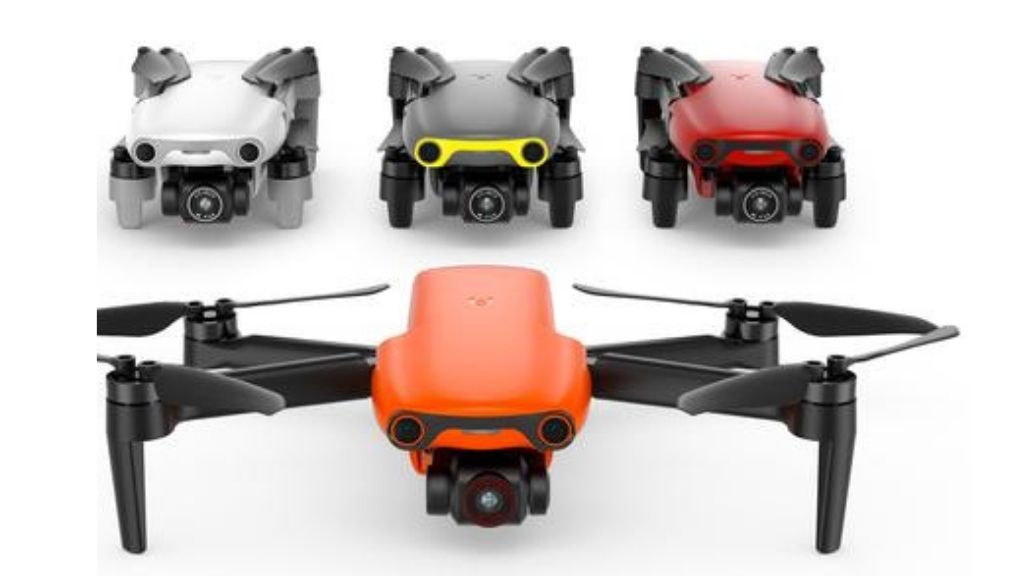

Autel EVO Nano+ Drone Specifications Overview

Autel EVO Nano+ Drone Specifications Overview

Autel Robotics EVO Nano+ is packed with a 1/1.28-inch CMOS sensor for 50MP photos. The Nano+ offers superior noise reduction capabilities and the power to effortlessly produce quality images in low-light conditions thanks to its RYYB color filter array design with a large fixed aperture of f/1.9. Track fast-moving subjects with incredible precision through a PDAF + CDAF autofocus system. Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.

EVO Nano Series

Aircraft

Takeoff Weight 249 grams (0.55 lbs)
Dimensions (Including Blades) Folded: 140x90x50mm (5.51x3.54x1.96 inches)
Expanded: 264x310x50mm (10.39x12.20
x1.96 inches)
Wheelbase 231mm
Maximum Takeoff Speed 13mph (Movement), 9mph (Normal), 7mph (Stable)
Maximum Landing Speed 9mph (Movement), 7mph (Normal), 4mph (Stable)
Maximum Horizontal Flight Speed 33mph (Movement), 22mph (Normal), 4mph (Stable)
Maximum Takeoff Altitude 13,000 ft
Maximum Flight Time 30 minutes
Maximum Hovering Time 28 minutes
Maximum Cruising Range 7.5 miles
Maximum Wind Resistance Level Level 5 Class Wind
Maximum Tilt Angle 33° (Movement), 25° (Normal), 25° (Stable)
Maximum Rotational Angular Velocity 200° (Movement), 120° (Normal), 60° (Stable)
Working Temperature 14°F to 104°F
Working Frequency 2400-2483.5MHz, 5725-5850MHz
Transmission Power (EIRP) ≤30dBm
Satellite Navigation System GPS
Hover Accuracy Vertical: ±0.1m (when the visual positioning is working)
±0.5m (when GPS is working)
Level: ±0.3m (when the visual positioning is working)
±1.5m (when GPS is working normally)

EVO Nano+ Camera

Image Sensor CMOS Size: 1/1.28"
Effective Pixels: 50MP
Pixel Size: 2.44μm*2.44μm (4 in 1 Binning mode)
Lens Viewing angle: 85°
Equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m ~ ∞
Focus method: HybridAF (phase focus fusion contrast focus) / manual focus MF
Shooting Mode Automatic mode (P gear): EV adjustable, ISO/Shutter not adjustable
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/ISO adjustable, EV not adjustable
ISO Range Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Shutter Speed Manual mode camera mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Filter Standard (default), black and white, custom (brightness, saturation, sharpness, contrast)
Through Fog and Haze Support
Digital Zoom Range 1-16 times
Photo Format JPG / DNG / JPG+DNG
Photo Resolution 50MP: 4096x3072 (4:3)
4K: 3840x2160 (16:9)
Photo Shooting Mode Single shot
Continuous shooting: 3/5
AEB continuous shooting: 3/5 shots
Timing: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)
HDR photo: 3840x2160
Video Format H265/H264
Video Resolution 3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/p50/p48/p30/p25/p24
HDR:
3840x2160 30/25/24fps
2720x1528 30/25/24fps
1920x1080 P60/50/48/30/25/24fps
Maximum Video Bit Rate 100Mbps
Portrait Software crops the vertical screen
Video mode: 720x1280p30, 1080x1920p30
Camera mode: 720x1280p30, 1080x1920p30, 960x1280p30, 1080x1440p30, 854x1280, 1080x1620
Time-Lapse Photography Original Image: 3840x2160, JPG/DNG
Video: 4KP25
Panoramic Photo Horizontal/Vertical/Wide-angle/Spherical
Original image: 4096x3072, JPG/DNG
Supported File System FAT32, exFAT
Video File Format MP4/MOV
Wi-Fi Fast Transfer 20B Rate
File Encryption None

3-Axis Gimbal

Mechanical Range Pitch: 35° to -125°
Roll: 33° to -34°
Yaw: ±25°
Controllable Rotation Range Pitch: -90° to 0°
Stable System Three-axis stabilization
Maximum Control Speed (Pitch) 30°/s
Angle Jitter ±0.003°

Remote Control and Image Transmission

Working Frequency 2400-2483.5MHz
5725-5850MHz
Maximum Signal Effective Distance (No Interference, No Obstruction) 7.4 miles
Working Temperature 32°F to 104°F
Transmission Power (EIRP) ≤30dBm
Built-in Battery Capacity 3900mAH
Endurance 3.5 hours (maximum)
Support Interface Type Type-C
Image Transmission Autel SkyLink
Real-Time Image Transmission Quality 720p30
Image Transmission Maximum Bit Rate 90Mbps
Image Transmission Delay ≤200ms

Aircraft Battery

Capacity 2250mAh
Standard 7.7V
Charging Limit Voltage 8.8V
Battery Type LiPo 2S
Energy 17.32Wh
Charging Environment Temperature 41°F to 113°F
Maximum Charging Power 30W

Charger

Input 100-240V/50-60HZ
Output 5V⎓3A,9V⎓3A,12V⎓2.5A
Rated Power 30W

App

Mobile App Autel Sky
Mobile Device System Version Requirements iOS 12.0
Android 8.0

Storage

Onboard Storage None
SD Card Storage Standard: 32GB
Maximum support 256GB (UHS-3 rating required)
