Autel EVO II Pro V3

Autel EVO II PRO V3 Unboxing Review

Autel EVO II V3 was officially released on October 28. The first batch of Autel EVO II V3 buyers have received the goods and have begun to share their experience. Now, let's see the unboxing review of Autel EVO II PRO V3.

Autel EVO II PRO V3 Packing List

evo 2 pro v3 package

  • Drone
  • Remote control
  • Two batteries and two chargers (one for the drone and one for the remote)
  • Spare propeller
  • Remote control belt
  • User's manual

Autel EVO II PRO V3 Rugged Bundle is a combination package of Autel EVO II PRO V3 and many drone accessories. More accessories help you fly better and safer.

Autel EVO II PRO V3: Appearance

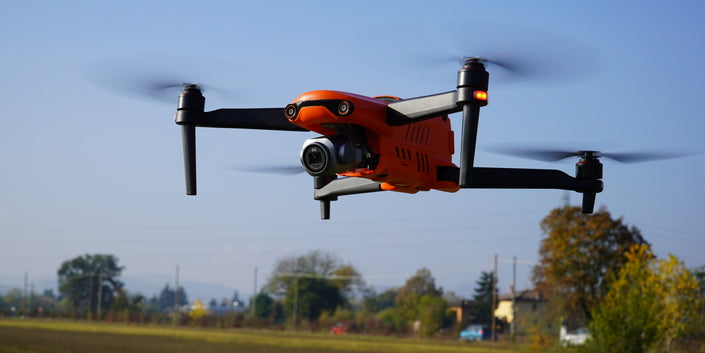

EVO II Pro V3

Autel EVO II PRO V3 has a V3 logo on the fuselage, which will distinguish the V3 and V2 drones very well.

The size of the Autel EVO II PRO V3 is 230x130x108mm when the wings are folded, and 457x558x108mm when unfolded. The maximum take-off weight is 1191 grams, and the maximum payload of the drone is 2 kg. EVO II PRO V3 wings are foldable, easy to carry.

Autel EVO II PRO V3: Camera

EVO II Pro V3 Shot at Night

The EVO II PRO V3 uses a 1-inch CMOS sensor, which allows taking photos up to 20 MP and videos up to 6k resolution. EVO II PRO V3 has an adjustable aperture f/2.8-f/11, the ISO range can be increased to 44000, and it becomes clearly visible in night scene mode.

EVO II PRO V3 can also replace the camera lens of the drone, and EVO II PRO V3 becomes EVO II 640T V3 by installing a thermal imaging lens. Note: The camera lens of EVO II PRO V3 is not compatible with EVO II PRO V2.

Autel EVO II PRO V3: Sensors

Autel EVO II PRO V3 with 12 Sensors

Autel EVO II PRO V3 has six-directional sensors, 2 on the upper, 2 landscape on each side, 2 front and 2 back, and the lower side also has two cameras and ultrasonic sensors.

Autel EVO II PRO V3 can achieve 360° omnidirectional obstacle avoidance, and can detect objects or people within its range very well. Modes in which the obstacle detection and avoidance functions are activated are available except Ludicrous mode.

Autel EVO II PRO V3: Controller

Autel Smart Controller SE

Autel EVO II PRO V3 uses the new Autel Smart Controller SE remote control.

The Autel Smart Controller SE is a remote with a display that offers a resolution of 2340×1080 at 800 nits of brightness and refreshes at 60fps per second. The brightness of the Autel Smart Controller SE is higher than that of the DJI RC, but lower than that of the DJI RC PRO, which is therefore its closest competitor.

The Autel Smart Controller SE remotes feature detachable joysticks and can be stored in recesses in the remote to avoid losing them during transport. In all cases, the remote fits perfectly in the suitcase without having to unscrew the joystick.

Transmission range up to 15 km in FCC, 8 km in CE, 900 MHz only in the US. The Autel Smart Controller SE remote has an antenna on the upper part and a speaker on the back, while also having a very comfortable stand, once taken out, you can safely place the remote on a surface.

The Smart Controller SE has an IP43 rating, with a 1900mAh interchangeable battery,
Guaranteed battery life of 3 hours at 50% brightness (switch to 100% brightness for 2 hours), fully charged for 90 minutes.

Autel EVO II PRO V3: Dynamic Tracks

EVO II V3 Dynamic Tracking

The dynamic tracking technology of Autel EVO II PRO V3 has been upgraded, which can track and lock the subject more clearly when recording dynamic shots.

The dynamic tracking of EVO II Pro v3 is easy to set up, and can be assigned to follow people or vehicles. You simply select the tracking type in the app and follow the on-screen instructions. EVO II Pro v3 adopts Dynamic Track2.1 technology, which can recognize up to 64 objects.

Autel EVO II PRO V3: Waypoints and Advanced Flight Planning

evo ii pro v3 flight mission

EVO II PRO V3 can perform photogrammetry tasks, choose 4 types of plans to execute. Waypoint, rectangle, polygon, slope.

Autel EVO II Pro V3 is a professional aerial photography drone that can be used for professional aerial photogrammetry without the need for third-party applications.

EVO II Pro V3 can directly establish a map on the spot, remember the points of interest during the flight, and use the autonomous flight mission of the UAV quadcopter to reduce the pilot's repeated operations.

Autel EVO II PRO V3: No-fly zone restrictions

EVO II PRO V3 does not have NFZ. In fact, currently all Autel drones have no no-fly zone, we leave the choice to the pilot, we will give a warning when the drone reaches the no-fly zone, but it will not prevent you from continuing to fly.

No NFZ does not mean that you can fly safely near airport surfaces or prohibited areas, as the responsibility for any violation of prohibitions and restrictions always rests with the pilot. Drone pilots will always fly drones within the limits of aviation permits.

Autel EVO II PRO V3: Price and Availability

Autel EVO 2 PRO V3 with Smart Controller SE for $2,495 at autelpilot.com
Smart Controller SE is priced at $749, contact us to buy
