Autel Alpha & Autel Titan enterprise drones are the first drones in the Autel quadcopter drone series to adopt a dual-battery design. Here we will explain the dual-battery design of the Autel Alpha & Titan Enterprise drones.
Autel Alpha drone dual battery design
In the dual-battery design of the Autel Alpha drone, the battery is put in from the tail of the drone. The two batteries are arranged side by side. The battery is a hot-swappable battery. The maximum flight time is 48 minutes. The drone battery is hot-swappable. The duration of pulling can last about 30 seconds.

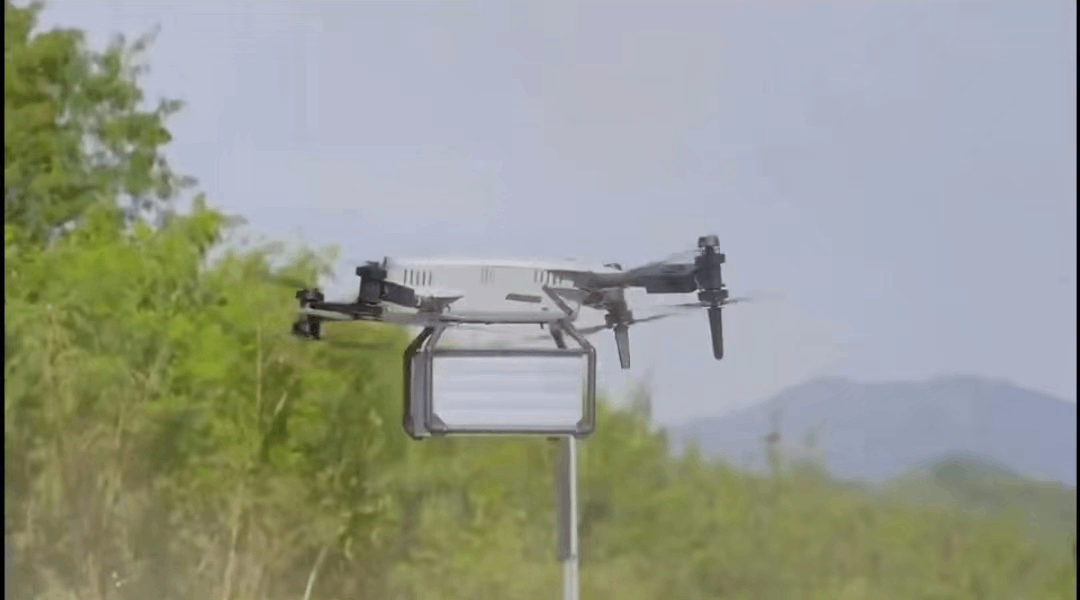

Autel Titan drone dual battery design
In the dual-battery design of the Autel Titan drone, the battery is put in from the tail of the drone. The two batteries are placed side by side. The battery is a hot-swappable battery. The maximum flight time is 60 minutes. The maximum mileage of the drone can be Up to 50 kilometers.
Autel drone dual battery design considerations:
When the drone adopts a dual-battery design, you must check whether the firmware version of both batteries is the same.
For drones with dual-battery designs, you should always use the batteries in pairs to extend their lifespan. Please note that paired batteries must be charged and discharged together.
Autel Alpha/Titan Intelligent Flight Battery
| Battery Capacity | 10000mAh（high density battery：13500mAh） |
| Voltage | 23.7V（high density battery：21.6V） |
| Battery Type | LiPo 6S |
| Energy | 237Wh（high density battery：291Wh） |
| Weight | 988g±50g（high density battery：980g±50g） |
| Charging Temperature | 50° F to 113° F (10ºC to 45ºC) When the temperature is lower than 50° F (10° C), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery. +10℃~+15℃: Standard charging; 2A +15℃~+45℃: Fast charging; 10A |
| Storage Temperature | -10℃ ~ +30℃ |
| Ideal Storage Temperature | +22℃ ~ +28℃ |
| Storage Humidity | 65±20%RH |
| Max Charging Power | 260W |
| Hot Swap | Support |
| Battery Charging Time | The charging time of a single battery is about 45 minutes; The simultaneous charging time of two batteries is about 1 hour |
