Can Thermal Drones Detect Water Leaks?

The potential of thermal imaging detection capabilities is limitless. Thermal imaging drones can not only detect water leaks, but have also become an important tool for efficient, non-invasive leak detection in fields such as water companies and agricultural irrigation. By capturing ground temperature anomalies, they can quickly locate hidden leaks that are difficult to see with the naked eye, significantly improving detection efficiency and saving water resources.

How do thermal imaging drones "see" water leaks?

Before using thermal imaging drones to find leaks, it's important to understand that any surface above absolute zero radiates infrared energy. Thermal imaging (infrared) cameras don't directly see the water; instead, they sense temperature differences on the surface of objects.

Water leaks alter the thermal properties of the local soil or the area around the pipe:

• In summer, the leaking water evaporates and absorbs heat, making the surrounding ground cooler, appearing as "cold spots" on the thermal image.
• In winter, the leaking water is relatively warm, forming "hot spots."
• Wet areas have a larger heat capacity, and their heating and cooling rates differ from dry soil, creating obvious temperature anomalies.

The drone is equipped with a high-sensitivity thermal imaging lens (resolution often reaching 640×512, temperature sensitivity down to 0.05℃), while the abnormal temperature difference at the point of pipe leak is approximately 1℃.

When inspecting pipes, thermal imaging drones should ideally fly as close to the ground as possible, maintaining an altitude of about 30 meters, quickly scanning a large area from the air to generate a thermal map with geographic coordinates. Combined with visible light imagery and AI analysis, suspected leaks can be accurately marked, which can then be verified and repaired by ground personnel.

The optimal time for detection is usually early morning or late afternoon (when solar radiation is minimal and temperature differences are most pronounced), with clear, windless weather yielding even better results.

Practical Application Cases of Thermal Imaging Drones for Leak Detection

Water Supply Companies: Leak Detection in Urban and Rural Pipelines

Traditional manual inspections or acoustic detection are inefficient and costly, especially for long-distance buried pipelines and rural areas. Many water companies have introduced thermal imaging drones:

Companies like Severn Trent in the UK use thermal imaging drones to scan pipelines, quickly identifying leaks by observing the drop in ground temperature. This reduces investigations that might have taken days to just hours, making it particularly suitable for pipelines in remote rural areas.

Companies like Veolia in the US deploy drones in areas with dense, aging pipe networks, utilizing the principle of cooling leaks in summer and warming them in winter to locate hidden leaks, helping to reduce millions of gallons of water wastage daily.

Water companies use an "aerial thermal imaging scan + ground verification" approach to quickly pinpoint hidden leaks in older neighborhoods or long-distance pipe networks, increasing efficiency several times over. Furthermore, combining thermal imaging data with photogrammetry technology allows for the scoring of vegetation stress, terrain undulations, and thermal signals in rural trunk pipelines.

This method eliminates the need for large-scale excavation, reducing impact on traffic and residents, and truly achieving "precision repair."

Farmers: Irrigation Pipe and Drip Irrigation System Inspection

In farmland irrigation systems, leaks in buried main pipes, branch pipes, or drip irrigation tape not only waste precious water resources but also lead to localized waterlogging or uneven drought. Traditionally, manual inspection along the lines is time-consuming and labor-intensive, especially in large areas of farmland.

Thermal imaging drones can fly low over irrigation areas: Leaks will appear as abnormally wet temperature differences on the thermal image.

Combined with visible light images, it can distinguish between normal irrigation moisture and accidental seepage.

A single flight can cover tens or even hundreds of acres, quickly generating a map of leak locations, allowing farmers to make targeted repairs, significantly saving water and increasing crop yields.

This technology is particularly useful in arid regions or in promoting water-saving agriculture, helping farmers achieve precise irrigation management.

Advantages and Disadvantages of Thermal Imaging for Leak Detection

Advantages:

Highly efficient inspection covering large areas, narrowing down the scope of anomalies, far exceeding the efficiency of manual inspection.

Non-contact, non-destructive testing, safe and does not damage the ground.

Can be combined with AI to automatically identify anomalies and generate reports.

Costs decrease with scale of use, making it more economical in the long run.

Limitations:

Signal may be weak when pipes are buried deeply or when temperature differences are not significant, requiring verification using multiple methods such as acoustic and pressure monitoring.

Affected by weather, vegetation cover, and ground material, requiring professional operation and interpretation.

Data may be affected by the material of reflective and detection surfaces, leading to false alarms. Regulations require compliance for flights (line-of-sight, airspace approval, etc.).

Currently, thermal imaging drones are a good example of drone application for leak detection. National Water Corporation spends tens of millions of dollars annually on leak detection projects, and thermal imaging drones significantly shorten detection time and improve efficiency.

However, we must understand that thermal imaging technology cannot replace acoustic correlation analysis, pressure logging, or directional drilling. The "aerial thermal imaging scanning + ground verification" model remains the standard procedure for leak detection projects.

Choosing a thermal imaging drone for leak detection

Ensuring the accuracy and precision of thermal drone detection depends on the thermal sensor's thermal resolution, NETD, wavelength band, detection temperature range, and radiation output data.

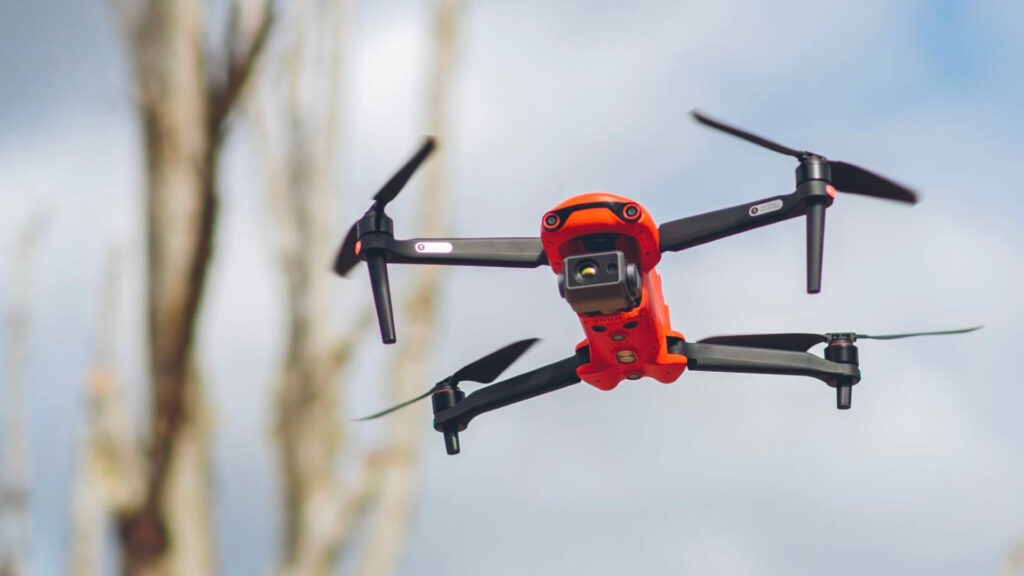

Among Autel's current enterprise-grade thermal imaging drones, the EVO Lite 640T Enterprise, Autel EVO II Dual 640T V3, EVO Max series, and Autel Alpha all feature 640*512 pixels at 25fps thermal cameras. With a sensitivity of 50 mK within a deviation range of approximately 1 degree Celsius, these drone platforms are sufficient for leak detection projects.

When using thermal imaging drones for pipeline leak detection projects, in addition to thermal imaging sensitivity, it's necessary to compare the drones' resolution, obstacle avoidance performance, flight time, and level of automation. These factors determine the water company's project schedule and cost.

Conclusion

Thermal imaging drones are making "invisible leaks" visible, transforming water resource management from urban water supply networks to rural fields.

Water companies use them to safeguard urban water supply security, and farmers use them for precise water-saving irrigation. With continuous improvements in drone flight time, thermal imaging accuracy, and AI analysis capabilities, this technology will be implemented in more scenarios, contributing to saving every drop of water.

Frequently Asked Questions

Can thermal imaging drones detect water leaks?

Indirectly. If the leak is large-area on the surface, the RGB camera on a dual-camera drone can detect the leak point. If the leak is small or underground, the thermal imaging camera on the dual-camera drone can detect the cooling, conduction, and thermal inertia changes in the ground or above-ground buildings caused by the leak. Thermal imaging itself cannot directly see the water.

How deep can thermal imaging technology detect water?

In reality, it can typically detect water flow signals only up to about one meter from the bottom of the pipe, and only when the amount of water escaping is sufficient to change the surface temperature. Deeper pipes often do not produce detectable signals, and the degree to which water depth affects flow depends on soil type, surface cover, and flow rate.

What time of day is best for thermal leak detection?

Measurements should be taken at night or before dawn in a calm, dry environment. Minimal solar radiation allows the sensor to obtain the clearest temperature contrast and avoids thermal crossover when the target temperature and background temperature tend to match.

Does U.S. water companies use drones to locate leaks?

Yes. Yes, select U.S. water companies use drones equipped with thermal imaging cameras to locate underground water pipe leaks. Veolia's drone program has proven effective in real-world scenarios.
