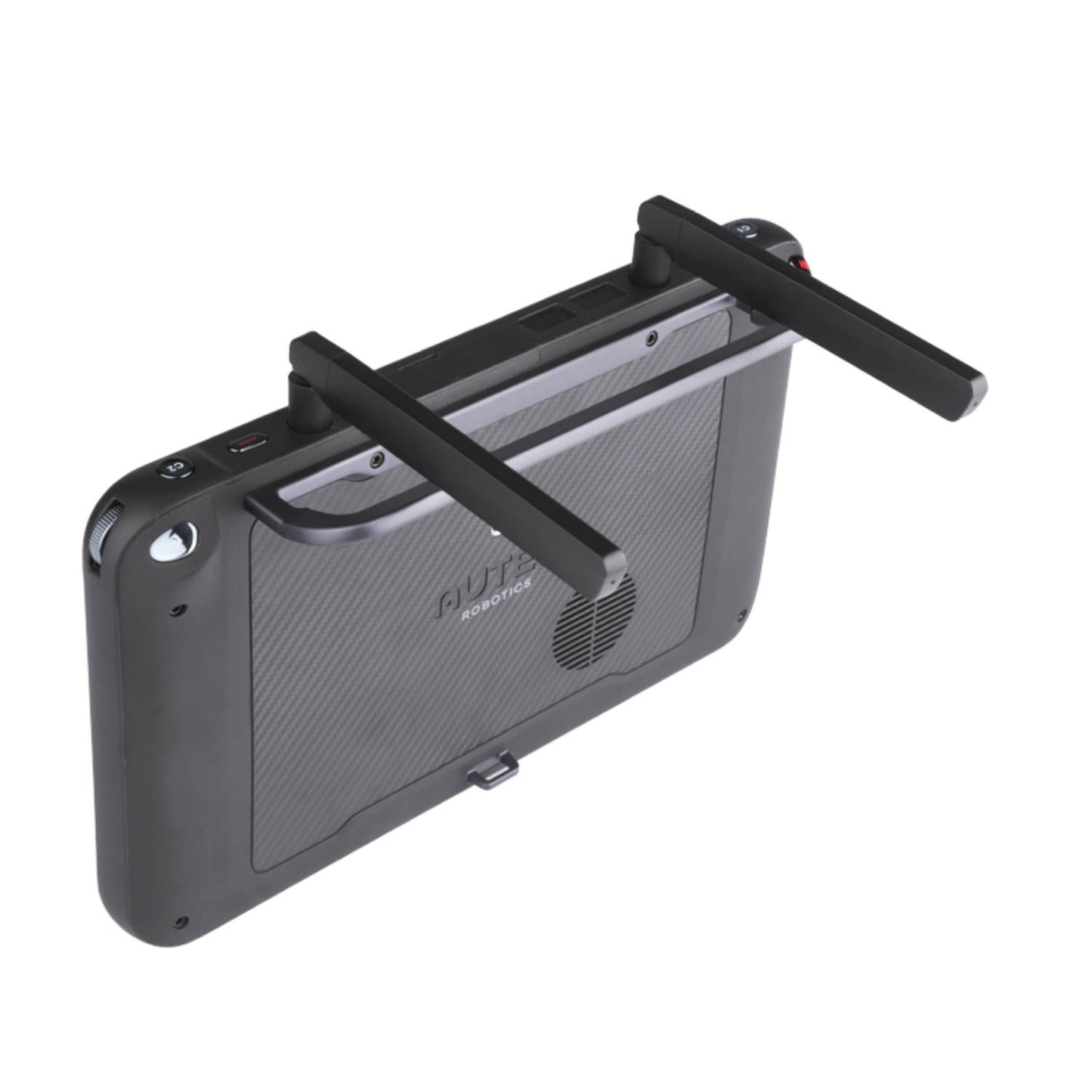

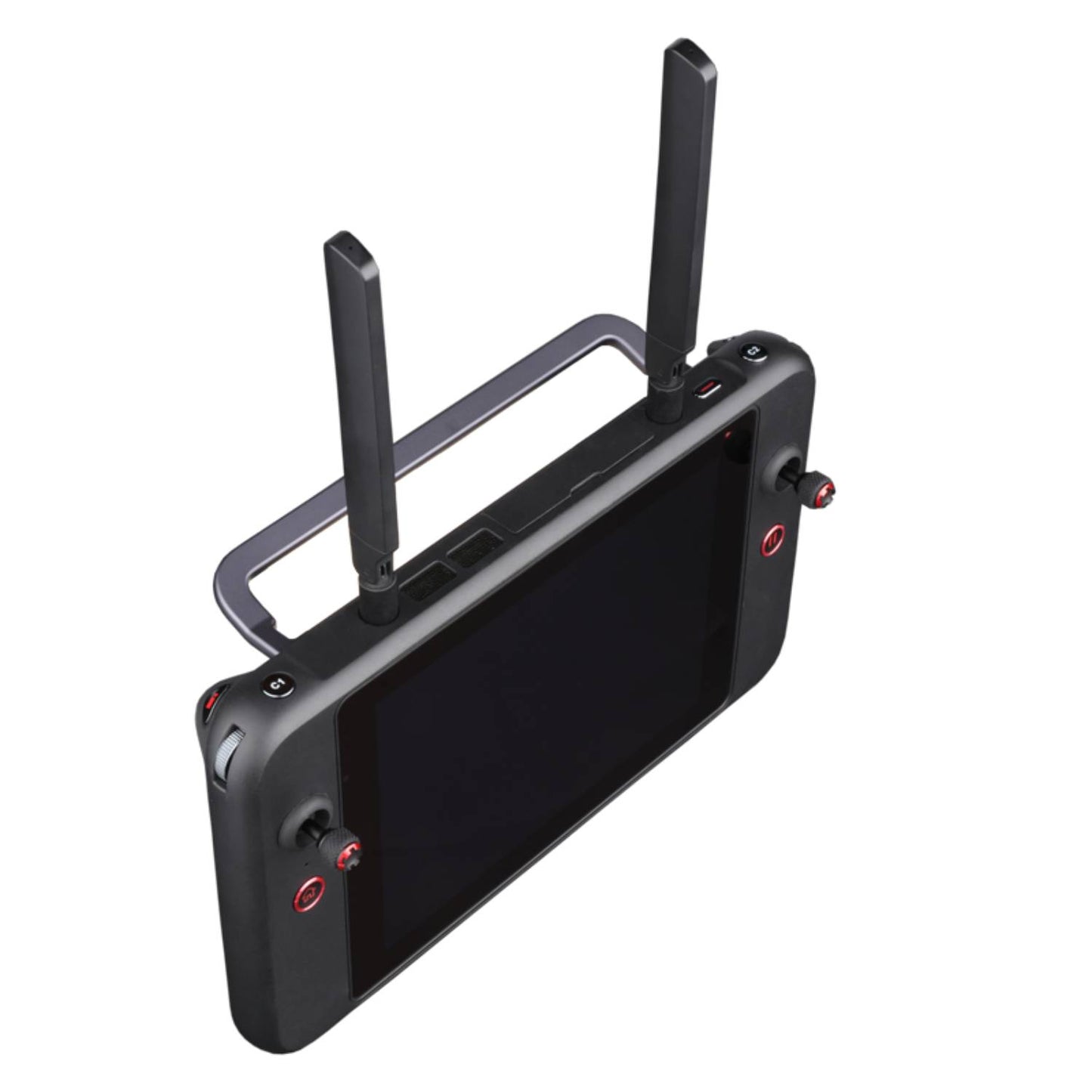

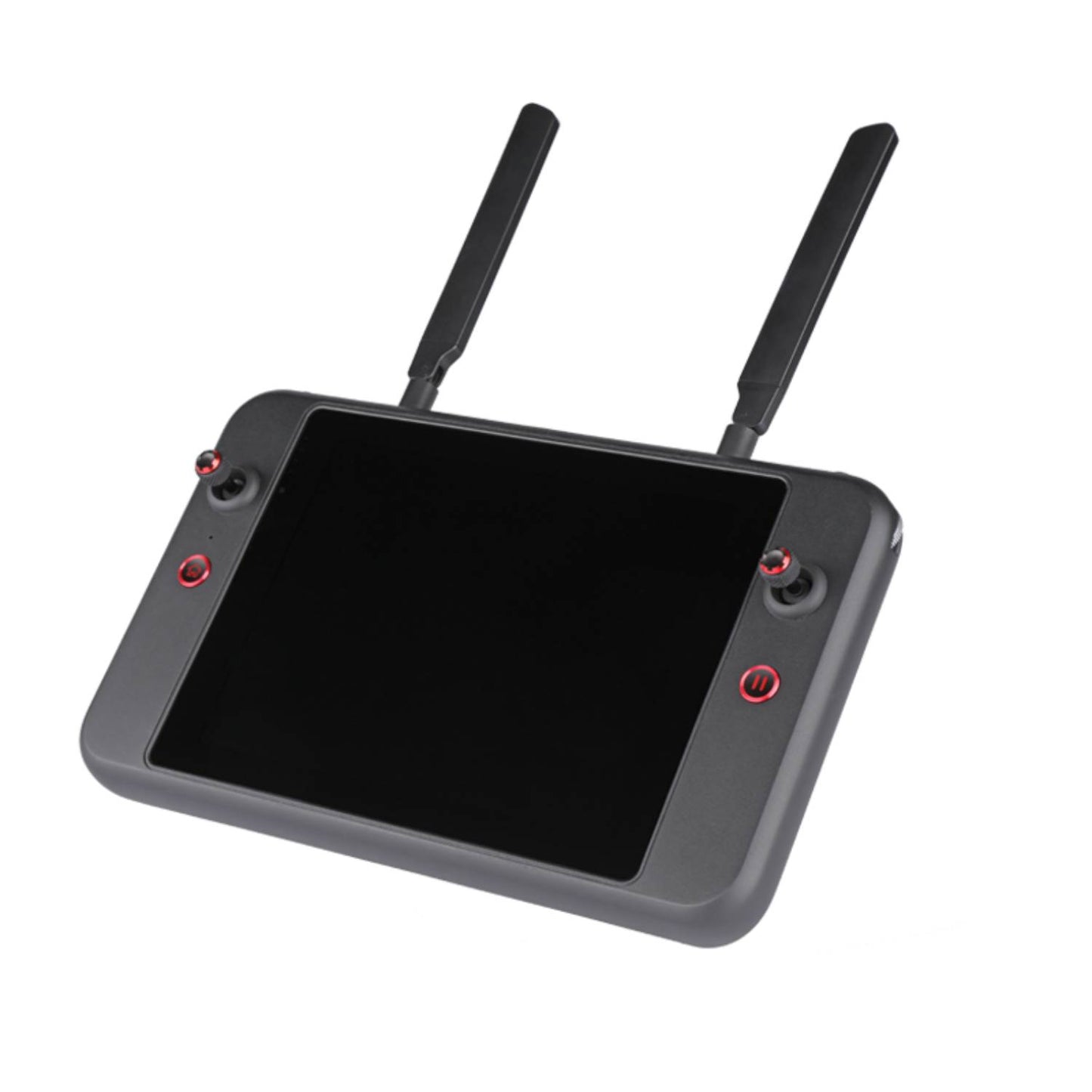

Autel Robotics Smart Controller V3 [Only Supported Aircrafts EVO II V3 Series]

Autel Robotics Smart Controller V3

Autel Robotics Smart Controller V3 [Only Supported Aircrafts EVO II V3 Series]

In Stock - Ships within 12 hrs
  • Automatic 8% OFF
  • 640*512 Thermal Imaging Resolution
  • 10 Thermal Color Palettes
  • 8K Video/48MP Picture
  • 360° Obstacle Avoidance
  • Dynamic Track 2.0
  • 38 Mins Flight Time
  • 5.5 Miles Video Transmission Range
  • Overview
  • Faqs
  • In the box
  • Videos
  • Documents

    Portable, Efficient, and Easy to Use

    autel smart controller features

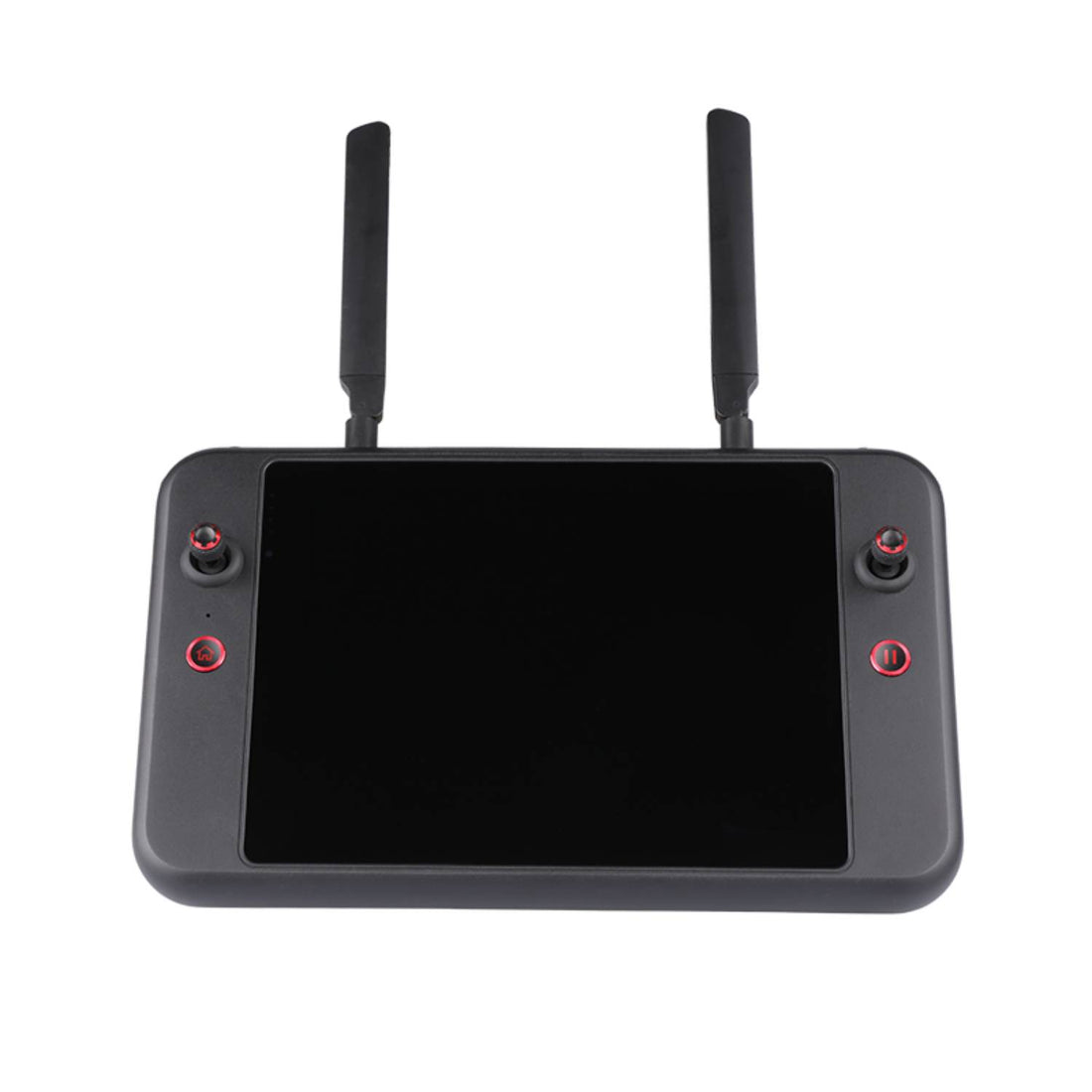

    Supersharp, High Brightness Display

    Smart Controller V3's built-in display at 2000nits is 4 times brighter than a conventional cell phone screen and the 7.9 inch Ultra-HD (2048x1536) touch screen provides clear visibility under direct sunlight. Integrated true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for the pilot in any lighting environment.

    autel smart controller features autel smart controller features

    Extensive Battery Life

    The 5800mAh lithium battery guarantees 4.5 hours of continuous work, and can be fully charged in 2 hours.

    autel smart controller features autel smart controller features

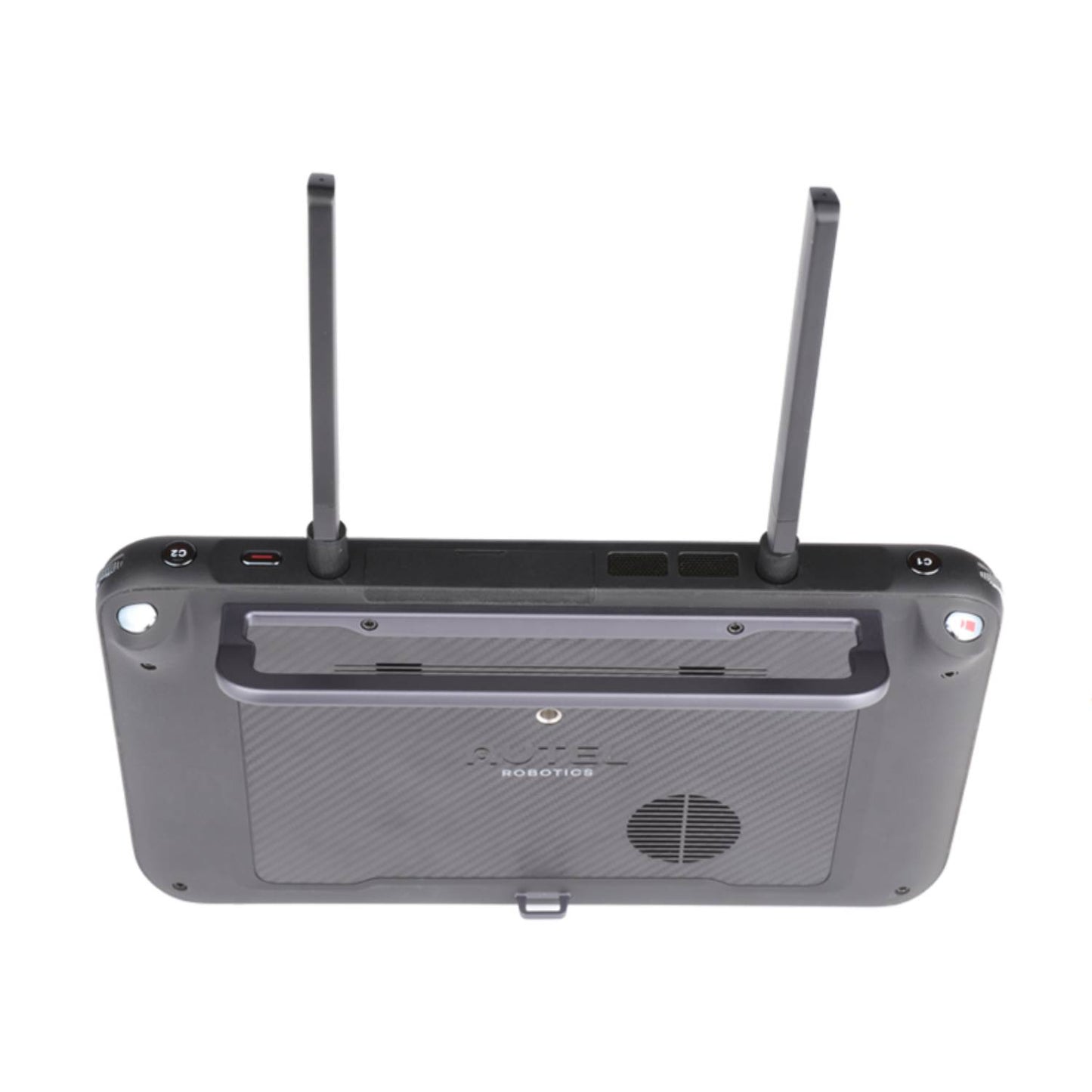

    Multi-Port Output

    HDMI, USB-A, and USB-C ports allow for live streaming with 4G/5G network modules. SMA connectors allows the antennas to be detachable and replaced or upgraded with SMA compatible third party devices.

    autel smart controller features
  • Image Transmission Wi-Fi Bluetooth Screen Battery General Specifications

    Image Transmission

    Antenna 2 Antennas, 1T2R
    *Operating Frequency 902-928MHz(FCC) 2.400-2.4835GHz 5.725-5.850GHz(Non-Japan) 5.650-5.755GHz(Japan Only)
    Max Transmission Distance(unobstructed, free of interference) FCC: 15km CE/SRRC: 8km
    Transmitter Power (EIRP) FCC:≤33dBm CE:≤20dBm@2.4G, ≤14dBm@5.8G SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7G


    Protocol Wi-Fi 802.11a/b/g/n/ac, 2x2 MIMO
    *Operating Frequency 2.400-2.4835GHz 5.725-5.850GHz
    Transmitter Power (EIRP) FCC:≤26dBm CE:≤20dBm@2.4G, ≤14dBm@5.8G SRRC:≤20dBm@2.4G, ≤26dBm@5.8G


    Protocol Bluetooth 5.0
    Operating Frequency 2.400-2.4835GHz
    Transmitter Power (EIRP) ≤11dBm


    Resolution 2048×1536
    Dimensions 7.9inches
    Frame Rate 60fps
    Max. Brightness 2000nits
    Touch Screen 10-point multi-touch


    Type Li-po
    Rated Capacity 5800mAh
    Nominal Voltage 11.55V
    Energy 67Wh
    Operating Time ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
    Charging Time 120 minutes
    Charging Temperature 5℃ to 45℃(41℉ to 113℉)

    General Specifications

    Internal Storage ROM 128GB
    Video Output Port HDMI
    USB-A Voltage/Current 5V/2A
    Operating Temperature -20℃ to 40℃ (-4℉ to 104℉)
    Storage Temperature >3 months: -20℃ to 25℃(-4℉ to 77℉) 1-3 months: -20℃ to 45℃(-4℉ to 113℉) 《1 month: -20℃ to 60℃(-4℉ to 140℉)
    Ingress Protection IP43
    Dimensions 303×190×87mm (antennas folded) 303×273×87mm (antennas unfolded)
    Weight 1150g (without protective case) 1250g (with protective case)
    **Supported Aircrafts EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3
  • Autel Smart Controller V3 Quick Questions & Quick Answers


    Q: Is this compatible to used with Autel EVO II V2?


    Q: How much internal storage space does the controller have?


    Q: Does the controller have a speaker and microphone?


    Q: Can the controller be connected to an HDMI port?


    Q: Does the product comply with CE/FCC for the max transmission distance?


    Q: What is the operating temperature of the controller?


    Q: Which drone models can the controller support?


    Q: How many communication frequency bands does the controller support?


    Q: Does the controller support 4G/5G?


    Q: Can the controller connect to Wi-Fi and Bluetooth?

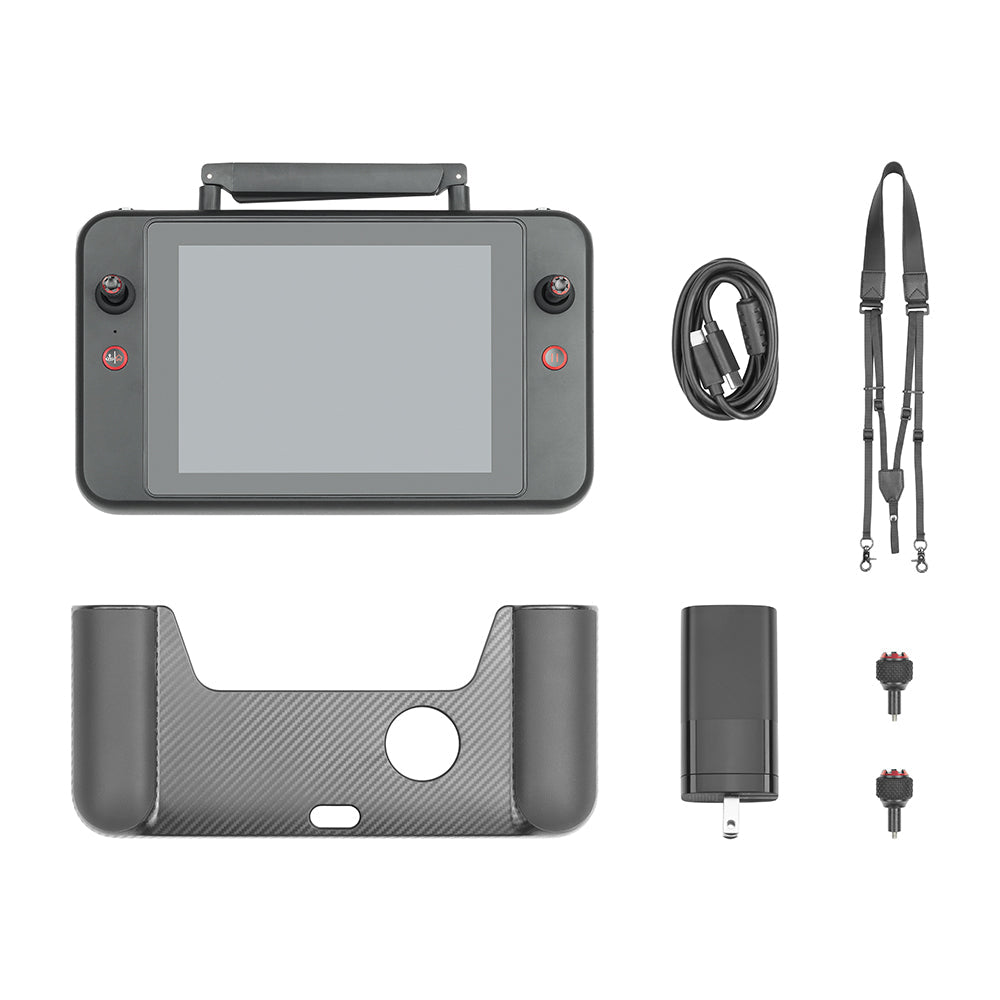

  • autel smart controller v3 boxing
  • Name


    EVO II Dual 640T Brochure - EN.pdf

    EVO II Dual 640T Quick Guide V2 - EN.pdf

    EVO II Series Disclaimer and Safety Guidelines - EN.pdf

    EVO II Dual Reports - FCC.pdf

    EVO II Dual Certificates - FCC.pdf

    *If you need certification from other countries or regions, please contact us.
