Autel Robotics EVO II Pro 6K Enterprise V3
Autel Robotics EVO II Pro 6K Enterprise V3
- Remote ID Updated
- 7.9" Smart Controller V3
- Include Speaker/Spotlight/Stobe
- 1" CMOS Sensor Gimbal Camera
- 12-bit DNG A-Log
- 20MP Photo& 6K/30fps Video
- 360° Obstacle Avoidance
- Dynamic Track 2.1
- ADS-B Singal Receiver
- 15km Transmission Range
- 42 Minutes Flight Time
- 9 Miles Video Transmission Range
Fast Delivered by Wed, Dec 11 - Fri, Dec 13 Free Ship from USA
Fast, Free Shipping & No Extra Tax
30-Day Return or Replacement
12-Month Free Warranty
Lifetime Customer Support
- Description
- Specification
- Package
- Documents
- Faqs
-
EVO II Pro Enterprise V3
Autel EVO 2 Pro Enterprise V3 is the latest addition to the EVO II lineup. This 6K Pro model features a 1" CMOS sensor, delivering up to 20MP still images. Enhanced with larger carbon fiber arms, powerful motors, and bigger propellers, it offers an extended flight time of up to 42 minutes.
EVO II Pro Enterprise V3 also includes an ADS-B receiver for improved situational awareness and encrypted storage options. All bundles come with Autel's 7.9" 2000-nit Smart Controller for optimal visibility during operation.
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Enterprise
Accessories -
15km
Transmission Range -
360°
Obstacle Avoidance -
ADS-B
Receiver -
42 Minutes
Flight Time -
7.9"
Smart Controller V3
-
1 inch
CMOS Sensor -
6K/30fps
Videos -
Enterprise
Accessories -
15km
Transmission Range -
360°
Obstacle Avoidance -
ADS-B
Receiver -
42 Minutes
Flight Time -
7.9"
Smart Controller V3
Work Like Never Before
Optimize your workflow with our toughest EVO II Pro Enterprise V3 yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with a single hand, the EVO II Dual 640T provides a surefire way to increase efficiency without increasing stress.
-
- 16x
Digital Zoom
- 16x
-
- 8-mile
HD Transmission
- 8-mile
-
- Modular
Accessories
- Modular
-
- Centimeter-level Positioning with RTK
-
- ADS-B
Receiver
- ADS-B
-
- 360° Obstacle Avoidance
-
All New 6K 1" CMOS Camera
See clearer with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.
- Adjustable Aperture
f/2.8 To f/11 - Moonlight Algorithm
2.0
- Adjustable Aperture
-
All New 6K 1" CMOS Camera
See clearer with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.
- Adjustable Aperture
f/2.8 To f/11 - Moonlight Algorithm
2.0
- Adjustable Aperture
-
-
Embrace The Night Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.
-
-
-
Zoom With Confidence The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.
-
-
-
Accident Reconstruction Rapidly reconstruct scenarios with precision, using built-in mission planning and third-party compatibility including Pix4D, DroneDeploy, and SkyeBrowse.
-
-
-
Greater Dynamic Range With 4K HDR 4K HDR offers greater detail in highlights and shadows, providing higher- quality images from the most demanding environments.
-
-
-
Embrace The Night Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.
-
-
-
Zoom With Confidence The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.
-
-
-
Accident Reconstruction Rapidly reconstruct scenarios with precision, using built-in mission planning and third-party compatibility including Pix4D, DroneDeploy, and SkyeBrowse.
-
-
-
Greater Dynamic Range With 4K HDR 4K HDR offers greater detail in highlights and shadows, providing higher- quality images from the most demanding environments.
-
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II Pro Enterprise V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles Do more because you can fly further away
-
QHD Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
-
9+ Miles
Do more because you can fly further away.
-
QHD
Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz
Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro Enterprise V3's images and upload them to your 3D mapping
-
Rectangular Mission -
Polygon Mission
-
Rectangular Mission -
Polygon Mission
EVO II - AI Enhanced Dynamic Track
EVO II Pro Enterprise V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO II Pro Enterprise V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Multiple Intelligent Flight Modes
Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.
Failsafe & Automatically Return Home
EVO 2 Enterprise V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
42 Minutes & 9 Miles HD Transmission
Autel EVO 2 Enterprise V3 comes standard with a 7100mAh rechargeable battery. Providing up to 42 mins of flight time in forward motion to up to 15km (9 miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.
-
-
42 Minutes of Flight Time Large propellers and revised flight algorithms provide the longest flight time in its category.
-
-
-
Extended Thermal Vents Additional thermal vents for additional heat dissipation, prolonging battery life.
-
-
-

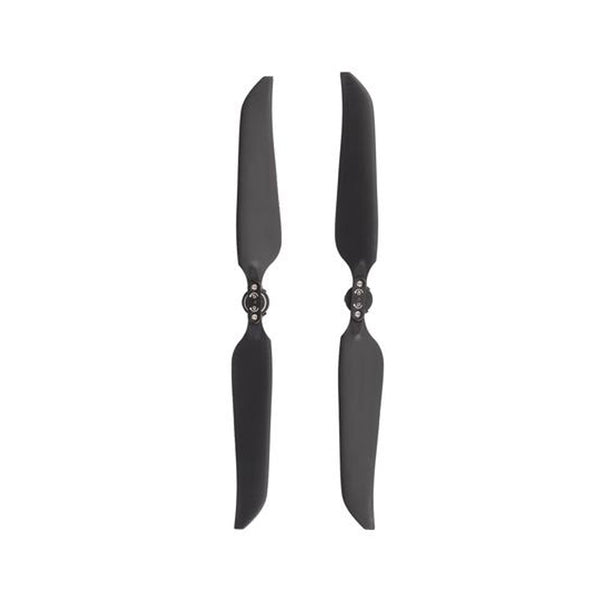

Longer Carbon Fiber Arms Carbon fiber arms and longer propellers provide additional rigidity and flight stability.
-
-
-
42 Minutes of Flight Time Large propellers and revised flight algorithms provide the longest flight time in its category.
-
-
-
Extended Thermal Vents Additional thermal vents for additional heat dissipation, prolonging battery life.
-
-
-
Longer Carbon Fiber Arms Carbon fiber arms and longer propellers provide additional rigidity and flight stability.
-
Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
-
-
- 7.9-Inch HD Touch Screen
-
- -4 °F to 104 °F Temperature Range
-
- 2000 nits Maximum Brightness
-
- IP43 Resistance
-
-
-
7.9-Inch HD Touch Screen
-
-
-
-4 °F to 104 °F Temperature Range
-
-
-
2000 nits Maximum Brightness
-
-
-
IP43 Resistance
-
Enterprise Bundle Accessories
-
Spotlight
Beams a powerful, long-distance aerial light when searching or shooting at night.
-
Strobe
Indicate the location of the aircraft at night to avoid air traffic accidents.
-
Speaker
Enables more effective on-site communication through long-distance telephony and audio loops.
-
Spotlight
-
Strobe
-
Speaker
-
- Support Live Deck 2
- Moonlight Algorithm 2.0
- Autel Skylink 2.0
- Smart Controller V3
- 15KM Tansmission
- 2.4GHz/5.8GHz/900MHz
-
- /
- /
- Autel SkyLink
- Smart Controller V2
- 9KM Transmission
- 2.4GHz/5.8GHz
-
- Support Live Deck 2
- Moonlight Algorithm 2.0
- Autel Skylink 2.0
- Smart Controller V3
- 15KM Tansmission
- 2.4GHz/5.8GHz/900MHz
-
- /
- /
- Autel SkyLink
- Smart Controller V2
- 9KM Transmission
- 2.4GHz/5.8GHz
Autel EVO II Pro Enterprise V3 Package List
Autel EVO II Pro Enterprise Plus RTK Module V3 Package List
-
-
Autel EVO II Pro Enterprise V3 6K Drone Specification
Aircraft Gimbal Camera Remote Controller Accesories Battery Charger Multi-Charger Aircraft Gimbal Camera Remote Controller Accesories Battery Charger Multi-Charger Aircraft Takeoff Weight (Without Accessories) EVO II Pro Enterprise V3 Enterprise:2.45lbs (1110g)
EVO II Dual 640T Enterprise:2.51lbs (1136.5g)
Max Takeoff Weight 1999 g Diagonal Length 16.8 inches (427 mm) Size(L*W*H) Folded: 9.6*5.1*4.4 inches; 245*130*111mm
Unfolded: 19.9*24.4*4.4 inches; 506*620*111mmMax Takeoff Altitude 4.3 miles (7000 m) MSL Max Ascent Speed 18 mph (8 m/s) (Ludicrous) Max Descent Speed 9 mph (4 m/s) (Ludicrous) Max Level Flight Speed 45 mph (20 m/s) (Ludicrous) Max angular velocity 120°/s Max tilt angle 33° (Ludicrous) Max Flight Time (no wind) 42 min(without accessories) Max Hovering Time (no wind) 38 min(with strobe)
29 min(with spotlight)
34 min(with loudspeaker)
36 min(with RTK module)Operating Temperature Range 14℉ to 104℉ (-10℃ to 40℃) Max Wind Speed Resistance 27mph, 12 m/s (Take-off and landing) Operating Frequency 2.400 GHz - 2.4835 GHz;
5.725GHz - 5.850 GHzHovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) Gimbal Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max Control Speed (Tilt) 300°/s Angular Vibration Range ±0.005° Camera Sensor 1" CMOS
Effective Pixels: 20 MPLens FOV: 82°
35 mm format equivalent focal
Equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinityISO Range Video: 100-44000
Photo: 100-6400Shutter Speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1 ~ 16x (Max. 3x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / 12bits DNG / JPG+12bits DNG Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) Max bitrate 120Mbps Supported file system FAT32/exFAT Remote Controller *Operating Frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Max Transmission Distance(unobstructed, free of interference) FCC: 15km
CE: 7kmTransmitter Power (EIRP) 902-928 MHz
FCC:≤30dBm
2.400-2.4835 GHz
FCC:≤30dBm
CE:≤20dBm
5.725-5.850 GHz
CE:≤14dBmInternal Storage 128GB Display screen 2048x1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)Charging time 90 minutes Internal Storage ROM 128GB Accessories Strobe Dimensions: 39*72*34 mm
Weight: 19.5g
Connections: Floating Connectors
Power:Avg. 1.6W
Controllable Range:5000m
Light intensity:Min 50cd;Max 486cd;Avg. 290cdLoudspeaker Dimensions:46*80*77 mm
Weight: 98.5g
Connections: Floating Connectors
Power:Max 18W
Decibel:120dB @ 1m;88dB @ 60m;70dB @ 110m;
Max Bitrate:36kbps
Adjustable Angle Range:0°~45°
Spotlight Dimensions: 48.5*72*63 mm
Weight: 77g
Connections: Floating Connectors
Power:Max 35W
Controllable Range:30m
Adjustable Angle Range:0°~90°
Illuminance:FOV14°, Max:11lux @ 30m Straight
RTK Module(sold separately) Dimensions:55.5*72.5*57 mm
Weight:59.5 g
Connections:Floating Connectors
Power:~ 3W
RTK Positioning Precision:
1.5 cm + 1 ppm((Vertical)
1 cm + 1 ppm(Horizontal)Battery Capacity 7100 mAh Voltage 11.55 V Battery Type LiPo 3S Energy 82Wh Net Weight 365g Charging Temperature 5~45℃ Storage Temperature & Humidity -10~30℃,65±20%RH Recommended Storage Temperature 22~28℃ Max Charging Power 93 W Charging Time 90 mins Charger Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AVoltage 13.2 ± 0.1 V Rated Power 66 W Multi-Charger Voltage 13.2 V Charging temperature range 5℃ to 45℃ -
Autel EVO II Pro Enterprise V3 Package List
Autel EVO II Pro Enterprise Plus RTK Module V3 Package List
-
Autel Robotics EVO II Enterprise Series Quick Questions & Quick Answers
Q: What is the main difference between the Enterprise drones and other products in the EVO II series?Q: What remote control does the Enterprise drone use?Q: How many communication frequency bands does the remote control support?Q: What is the working range of the spotlight?Q: Can the intensity of the spotlight be adjusted?Q: What is the loudness of the loudspeaker?Q: What is the effective distance of strobe?Q: How to replace the expansion accessories?Q: How long does it take to fully charge the battery?Q: Can the battery be used in a low temperature environment?
