Obstacle Avoidance Drone & Autel EVO II Drone

EVO II Obstacle Avoidance Calibration Tool

Less drone crashes is what everyone wants.  For the drone owner, it is very easy to get carried away while flying.  If you loose your bearings or concentration, you could easily fly backwards or sideways into an object. It is even possible to fly head on into an obstacle especially when flying further out distances.

The many features of Autel Drone EVO 2, including precise controls, computer vision, object avoidance tech flight planning, GPS capabilities, geofencing, huge carrying capacities, and artificial intelligence, make the industrial-grade models capable of fulfilling many commercial construction purposes. When deployed properly, drones can easily perform a wide range of roles that were previously considered labor-intensive and time-consuming.

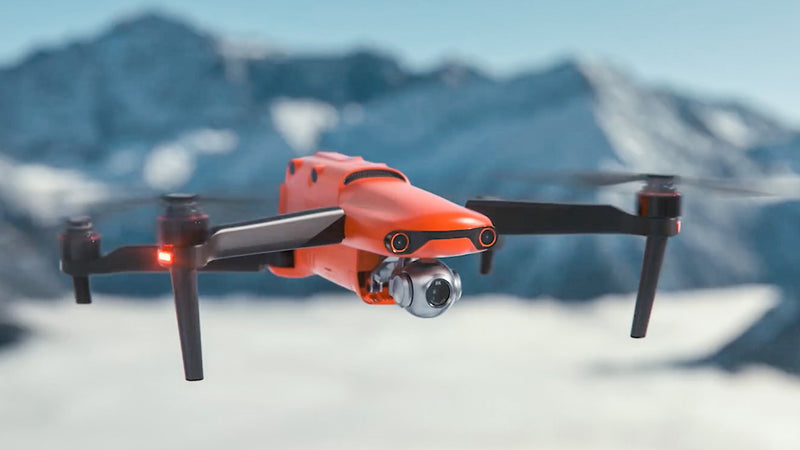

 Autel EVO II drones

At the heart of the Autel EVO II drone models lies a high-performance efficient processor that gives these drones 6 direction obstacle sensing, 5-mile transmission range, and a whopping 40 minute flight time. The Autel EVO II drones comes in 3 distinct camera variations. With the large sensor in the Autel 2 Pro easily create 3D maps of buildings and structures. With the Autel Evo 2 Dual thermal sensor see through smoke and assist with search and rescue missions.

Only Autel offers Hyperlapse photography in 8K

With Hyperlapse mode, no post processing is required. The 8K images may be taken straight out of the drone and may be shared immediately. JPEG and RAW files are recorded simultaneously. Create perfect flight paths and achieve accurate, repeatable hyperlapse videos with just one click.

EVO II Camera

Sensor 1/2" CMOS
Effective Pixels: 48 MP
Performance temperature: -20~60°C
Lens FOV: 79°
35mm Format Equivalent: 25.6 mm
Aperture: f/1.8
Shooting Range: 0.5 m to ∞
ISO Range Video: 100~3200 (Auto)
Video: 100~3200 (Manual)
Photo: 100~3200 (Auto)
Photo: 100~3200 (Manual)
Shutter Speed Electronic Shutter: 8 ~ 1/8000s
Digital Zoom 1 ~ 8x (Max. 4x lossless zoom)
Still Image Resolution 8000x6000 (4:3)
7680x4320 (16:9)
4000x3000 (4:3)
3840x2160 (16:9)
Still Image Format JPEG / DNG(RAW)
Still Photography Modes Single Shot
Burst shooing: 3/5 frames
Automatic Exposure Bracketing (AEB):
3/5 bracketed frames at 0.7 EV Bias
Timelapse:
JPG: 2s/5s/7s/10s/20s/30s/60s
DNG: 5s/7s/10s/20s/30s/60s
HyperLight: support (under 4K JPEG format)
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)
Video Resolution 8K 7680x4320 p25/p24
6K 5760x3240 p30/p25/p24
4K 3840x2160 p60/p50/p48/p30/p25/p24
2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
FHD 1920x1080 p120/p60/p50/p48/p30/p25/p24
Video Format MOV / MP4
Codecs H.264 / H.265
Max Video Bitrate 120Mbps

 Safer Drones With Obstacle Detection

Autel evo 2 cameras Upgraded Dynamic Track 2.0 algorithm makes it an perfect tool for shooting motive objects, it can model location and speed of targets simultaneously, predict their trajectory accurately,and track them continuously while identifying up to 64 objects at the same time. Dynamic tracking uses deep learning algorithms to detect six types of subjects in real time: pedestrian, cyclist, car, truck, boat, or animal The function can track the subject in three modes.

Sensing System (Obstacle Avoidance)

Sensing System Omnidirectional Obstacle Sensing
Forward Precision Measurement Range: 0.5-20 m
Detectable Range: 0.5-40m
Effective Sensing Speed: <15m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Precision Measurement Range: 0.5-16 m
Detectable Range: 0.5-32m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 60°, Vertical: 50°
Downward Precision Measurement Range: 0.5-11 m
Detectable Range: 0.5-22m
Effective Sensing Speed: <6m/s
FOV: Horizontal: 90°, Vertical: 70°
Sides Precision Measurement Range: 0.5-12 m
Detectable Range: 0.5-24m
Effective Sensing Speed: <10m/s
FOV: Horizontal: 60°, Vertical: 50°
Operating Environment Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20)
Downward: Surface with clear pattern and adequate lighting (lux > 20)
Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Built-in Smart Flight System

EVO II delivers stable and user-friendly flight control via its built-in Smart Flight System. The system enables a variety of advanced functions, including Go Home, Fail safe, and the Starpoint Positioning System. The EVO II can automatically switch between two flight modes (GPS mode and ATTI mode) depending on GPS availability and flying conditions.

Gimbal

Mechanical Range Pitch: -135~45°
Yaw: ±100°
Controllable Range Pitch: -90~300°
Yaw: -90~90°
Stabilization 3-Axis (Tilt, Roll, Pan)
Max Control Speed (Tilt) 300°/s
Angular Vibration Range ±0.005°

EVO II Drone

Autel evo 2 drone companies building and managing large infrastructure such as roads, railways, bridges, dams, water reservoirs, airports, industrial complexes, oil and gas operations, and power complexes have considerable potential to use drone data to optimize their operations.
