Autel RTK Drones

Autel EVO II RTK V2 VS EVO II RTK V3

Autel RTK drone is a leading aerial surveying and mapping drone, RTK module plays an important role in realizing centimeter-level accuracy, RTK, network RTK and PPK functions.

Autel EVO II series announced to upgrade to V3, here we will discuss the difference between EVO II RTK V2 VS EVO II RTK V3, and the improvement aspects of Autel RTK drone. We will compare the RTK capabilities, camera capabilities, and mapping capabilities of these two generations of drones.

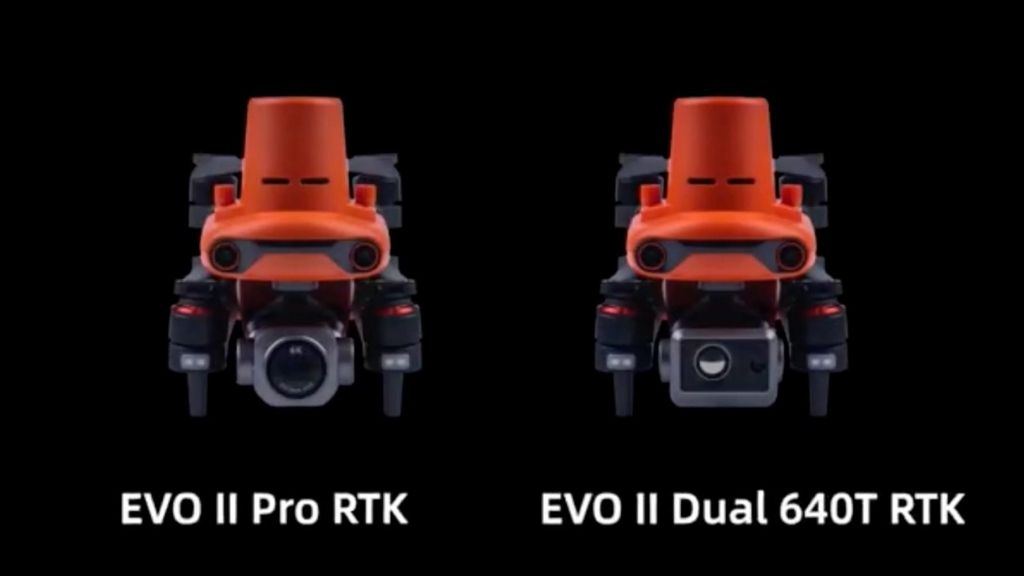

Autel RTK drone has two aircrafts, Autel EVO II Pro RTK and Autel EVO II Dual 640T RTK. The RTK module payloads of these two generations of drones are interchangeable as there is not much difference between their airframes.

Autel RTK Drones V2

Features of Autel Robotics EVO II RTK Module

Real-time centimeter-level positioning data, supporting post-processing kinematics
The positioning system supports A-RTK base station and RTK network
Compatible with Autel Robotics EVO II Enterprise Series aircraft

EVO II RTK v2 VS EVO II RTK V3: RTK Capabilities

  EVO II RTK V2 EVO II RTK V3
Positioning Accuracy RTK Horizontal Positioning Accuracy: 1cm+1ppm
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
RTK Horizontal Positioning Accuracy: 1cm+1ppm
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
Mission Planning Waypoint Mission
Rectangular Mission
Polygon Mission
Oblique

Waypoint Mission
Rectangular Mission
Polygon Mission
Oblique
Multi-Battery Missions
Polygon Missions

GCP Required No No
3rd Party Base Station Support Support
Photo Replication Yes Yes
Customizable course Yes Yes
Double grid mapping Supports No Yes

EVO II Pro RTK V2 VS EVO II Pro RTK V3: RGB Camera Performance

  EVO II Pro RTK V2 RGB Camera EVO II Pro RTK V3 RGB camera
Sensor 1" CMOS RTK Horizontal Positioning Accuracy: 1cm+1ppm
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
Pixels 20MP

Waypoint Mission
Rectangular Mission
Polygon Mission
Oblique
Multi-Battery Missions
Polygon Missions

FOV 82° 82°
Aperture f/2.8-f/11 f/2.8-f/11
Focal Length 28.6 mm 29 mm
Shooting Range 1 m to ∞ 0.5 m to ∞
ISO range Video: 100-6400
Photo: 100-12800
Video: 100-44000
Photo: 100-6400
Maximum photo size 5472x3648 (3:2)
5472x3076 (16:9)
3840x2160 (16:9)
5472x3648 (3:2)
5472x3076 (16:9)
3840x2160 (16:9)
Video resolution 6K 5472x3076 p30/p25/p24
5K 4800x2700 p60/p50/p48/p30/p25/p24
4K 3840x2160 p60/p50/p48/p30/p25/p24
2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24
5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24

EVO II Dual 640T RTK V2 VS EVO II Dual 640T RTK V3: RGB Camera Performance

EVO II Dual 640t V2 RGB Camera EVO II Dual 640t V3 RGB Camera
Sensor 1/2 1/1.28
Pixels 48MP 50MP
FOV 79° 85°
Aperture f/1.7 f/1.9
Focal Length 25.6 mm 23 mm
Maximum photo size 8000x6000(4:3)
7680x4320(16:9)
4000*3000 (4:3)
3840*2160 (16:9)
8192*6144(4:3)
4096*3072(4:3)
3840x2160(16:9)
Video resolution 8K 7680*4320 p25/p24
6K 5760*3240? p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920*1080? ?p120/p60/p50/p48/p30/p25/p24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24

EVO II RTK V2 VS EVO II RTK V3: Image transmission performance

EVO II RTK V2 Transmission EVO II RTK V3 Transmission
Working Frequency

2.4~2.4835GHz
5.725~5.850GHz

902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only
Max Transmission Distance FCC:9km
CE:5km
FCC:15km
CE:8km
Real-time image transmission quality 720@60fps 720p@30fps / 1080p@30fps
Display screen 2048x1536 3.26'' OLED?
Remote controller battery 5000mAh 5800mAh
Max Run time 3 hours 4.5 hours
Internal Storage No ROM 128GB

Summarize

The most obvious change between Autel EVO II RTK V2 VS EVO II RTK V3 lies in the upgrade of camera performance and image transmission performance, and the RTK capability has also been improved to a certain extent. Choosing Autel RTK drone will definitely help improve the workflow and improve work efficiency.
