Autel Drone EVO Series Adapts to Enterprise Needs

Autel Drone EVO Series Adapts to Enterprise Needs

Since its inception in 2014, Autel Robotics has proven to be an exciting company in the field of unmanned aerial systems. Autel released its highly advanced EVO series of compact drone solutions in 2020. At the Autelpilot store, it's easy to choose the one that suits your needs, making your drone selection less of a challenge.

Let us Introduce The Autel Enterprise Drone Today!

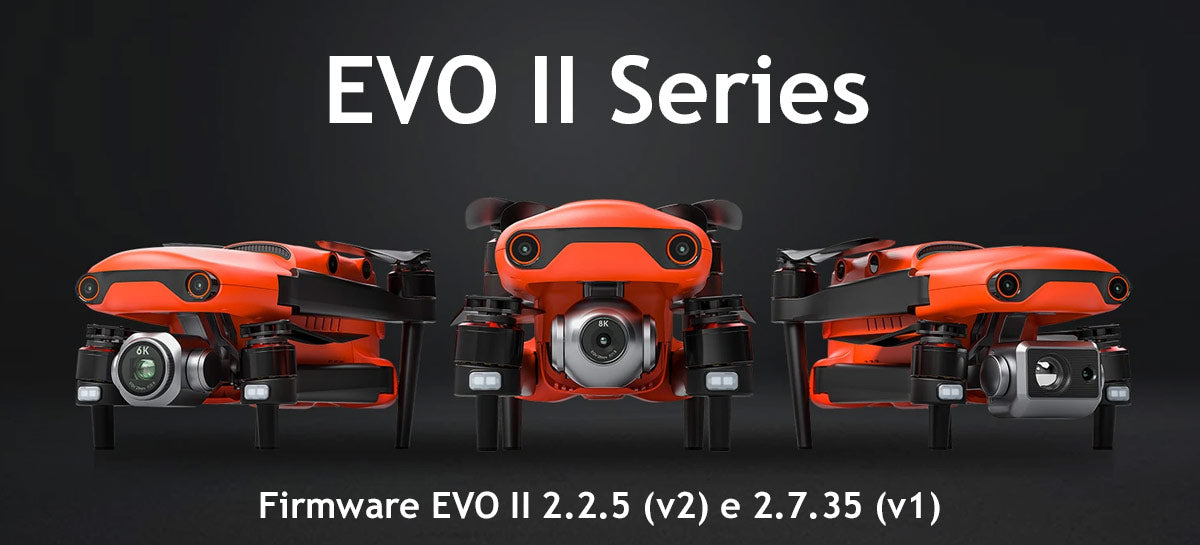

Autel Drone EVO Series

First of all, Autelpilot's popular drone series are Nano series, Lite series and EVO II series. Nano series, Lite series comparison, for drone enthusiasts, in April 2020, the company announced the launch of the foldable Evo II series in the Chinese market, and in September the Arowana and EVO II RTK, the product Able to perform kinematic positioning in real time.

The EVO II series costs more, but it excels in many ways. The Mavic 2 drone captures images in 4K, but the Evo II is the world's first foldable drone with an 8K camera. The Evo II Pro Model supports 6K. They have improved obstacle avoidance and auto-tracking performance, with a maximum flight time of 40 minutes, surpassing the Mavic 2.

The Dronefish range includes Lite, Standard and Pro models, which all have angled rotors. With an aerodynamically designed airframe, they have a maximum flight time of 120 minutes and are capable of transmitting images over distances of up to 30 kilometers. Options include dual-sensor, triple-sensor or multispectral cameras. These cameras can achieve 240x magnification using a combination of optical and digital magnification.

Autel's enterprise-grade drones are currently used in power utility inspections, forest fire prevention, traffic monitoring and police operations. As an enterprise-level drone, it has been greatly upgraded in drone performance and camera configuration. The Evo II Dual 640 T is currently selling extremely well in the enterprise-grade version of the drone.

The EVO II Dual 640T is a brand new product from Autel Robotics and is part of its growing EVO II series product line. This EVO II features a 640×512 radiometric thermal imager and a 12 MP visual/RGB camera. With the addition of radiometric capabilities, their EVO II series now covers every task in nearly every vertical where drones are used today.

Autel Drone Enterprise EVO Series

Autel Dual Sensor Advantage

Autel has taken the EVO II to a whole new level by integrating a custom non-FLIR bolometer sensor into their already powerful dual sensor EO/IR EVO II Dual payload.

A New Generation of Termal Imaging Cameras

Autel's custom thermal sensors capture thermal images and video at resolutions up to 640x512 and detect heat sources within a range of 2 to 15 meters. Its 30 Hz refresh rate provides smooth real-time thermal data through the EVO II's live video feed.

With the ability to choose from one of 10 available hot palettes, there's a view that fits almost any environment imaginable.

Picture-in-picture (PiP) mode enables simultaneous thermal and visual camera feeds for faster target acquisition and better situational awareness throughout the mission.

Advanced Temperature Measurement Mode
The hardware is just the beginning for the EVO II Dual 640T. A variety of advanced measurement modes and tools are embedded into the complete software stack and are immediately accessible through the Autel Explorer app.

Central temperature measurement. View the real-time temperature display in the center area of ​​the screen.

Field temperature measurement. Click anywhere on the screen to instantly read the temperature of that object/area.

Area temperature measurement. Instantly and dynamically measure the average temperature, maximum temperature and minimum temperature of the visual scene.

Enhanced Real-time Thermal Data

When lives are at stake, the ability to immediately and reliably identify regions of interest is critical. As such, Autel enables a number of ways to enhance the real-time view of the thermal data present in the scene.

Temperature alert. Monitors the entire scene in real time and alerts you when it detects that temperatures are at or above set limits.

Isotherm. Set a temperature range and the system will automatically detect any object detected within that temperature range.

Image enhancement. At the touch of a button, brightness and contrast can be adjusted in real-time to automatically highlight any object within a specified temperature range.

Unrivaled Clarity in 8K Video from Drones

The EVO II Dual 640T records visual images at resolutions up to 7680×4320. That's 4 times the pixels of 4K and 16 times that of HD. At 4K pixels, the resolution is 3840x2160. And we know that the magnification and cropping of 4k video will not affect the clarity of the picture quality, and under 8k video, we will be able to see a smoother and clearer picture texture.

48 MP Vision Sensor

The EVO II Dual 640T's 1/2-inch CMOS sensor is capable of capturing images with resolutions up to 48 MP, allowing you to zoom in further and extract more detail. With embedded metadata, the Autel EVO II Dual 640T is a powerful tool for gathering evidence, investigating fire scenes, and virtually any public safety task.

Drone 4X Lossless Visual Zoom

With its high-resolution vision camera, the Autel EVO II Dual 640T is able to deeply zoom in on a scene and crop an image or video to 4K with lossless 4x zoom without any loss of quality. Easily capture scenes, zoom in and recompose.
