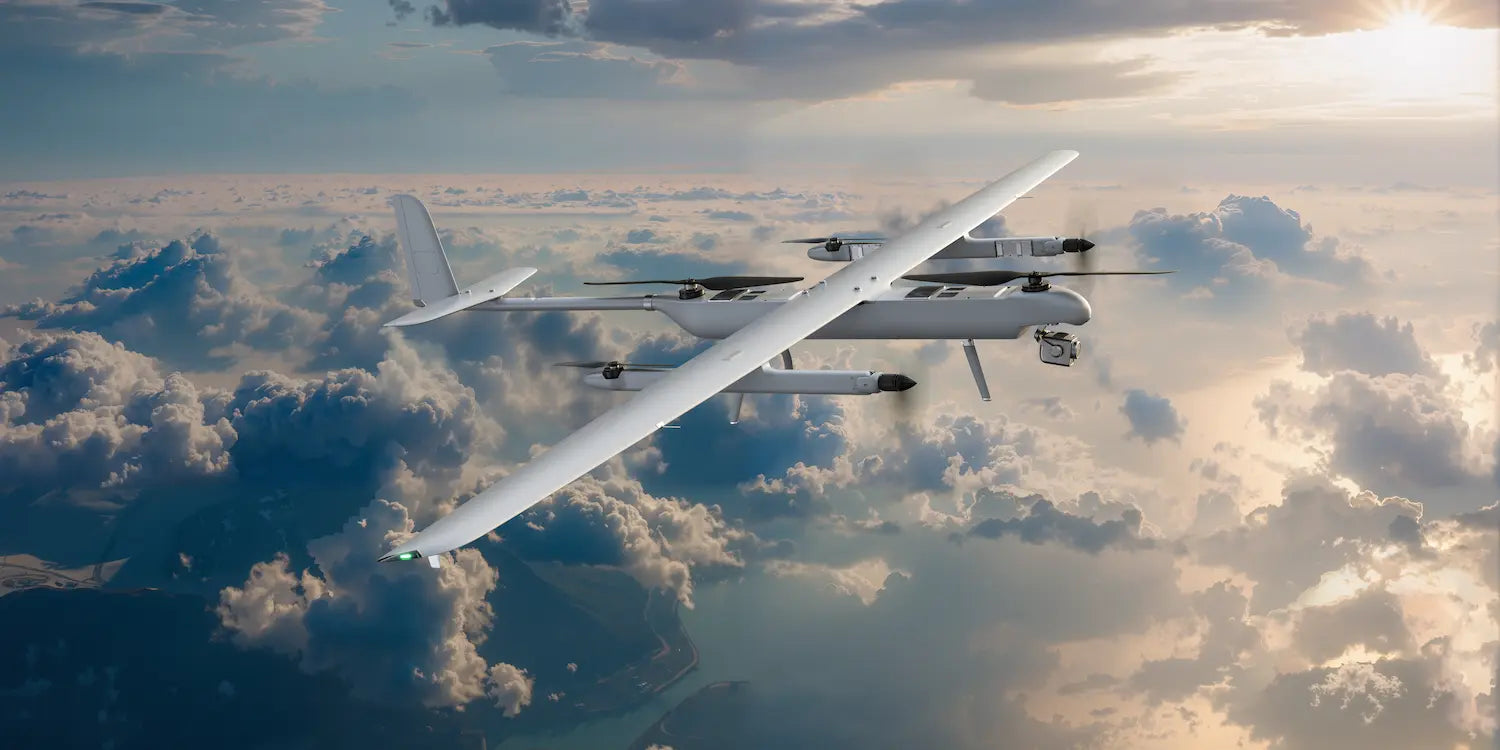

The Autel Dragonfish series is a tilt-rotor VTOL drone series from Autel Robotics. Designed for industrial and government applications, they feature long flight time, long range, and high intelligence, serving missions such as public safety, energy inspection, mapping, emergency rescue, and ocean surveillance. Now, we introduce the next generation, upgraded Multi-Mission eVTOL UAV drone: the Autel Dragonfish-25.
What's the Autel Dragonfish-25?
The next-generation Dragonfish-25 continues Autel Robotics' unique tilt-rotor design, combining the versatility of a multirotor vertical take-off and landing (VTOL) drone with the long-endurance of a fixed-wing aircraft.
The Dragonfish-25 boasts excellent anti-interference capabilities, rapid deployment within 10 minute, and is intelligent and user-friendly. It has a maximum payload of 10 kg, a maximum flight range of 220 km, a maximum fully loaded flight time of 210 minutes, and a maximum flight speed of 126 km/h.
This powerful flight performance makes this industrial drone popular for border and coast patrol, law enforcement, energy inspection, and traffic inspection.
Autel Dragonfish-25: Intelligent Operations
Autel Robotics' advanced flight control technology and artificial intelligence provide unparalleled ease of use and precision. With Intelligent Operations, drone pilots can use intelligent target tracking, touch-to-fly, intelligent AI target recognition and positioning, rapid missions, precise positioning, added off-site landings, temporary missions, terrain avoidance, rapid mobile platform takeoff and landing, and one-touch self-checking.
Autel Dragonfish-25: Safety Mechanisms
The Autel Dragonfish-25 features robust hardware redundancy and powerful flight performance, supporting comprehensive system customization and suitability for use in a variety of complex and harsh environments. The Autel Dragonfish-25 offers comprehensive protection, including GNSS loss protection, intelligent low-battery return home, automatic return home upon signal loss, and emergency manual override.
Autel Dragonfish-25: Payload
The Dragonfish-25 can be freely equipped with a range of class-leading EO/MWIR payloads such as the DG-T5 and DG-T5L, breaking through lighting limitations to enable simple all-weather operations.
| DG-T5 Gimbal Camera | DG-T5L Gimbal Camera | |
| Wide-Angle Camera |
1/2"CMOS Effective pixels: 12MP Aperture: f/2.8 Video resolution: 4000×3000@25fps Photo size: 4000×3000 |
1/2"CMOS Effective pixels: 12MP Aperture: f/2.8 Video resolution: 4000×3000@25fps Photo size: 4000×3000 |
| Zoom Camera |
1/1.8"CMOS Effective pixels: 8MP 35x optical zoom 560x hybrid zoom Video resolution: 3840×2160@30fps Photo size: 3840×2160 |
1/1.8"CMOS Effective pixels: 8MP 35x optical zoom 560x hybrid zoom Video resolution: 3840×2160@30fps Photo size: 3840×2160 |
| Wide-Angle Thermal Camera |
640*512 Resolution FOV 42° Focal length: 13 mm Measurement range: -20℃~150℃ / 0℃~550℃ Measurement accuracy: ±3℃ or ±3% of reading |
|
| Tele Infrared Thermal Camera |
640*512 Resolution FOV 12.4° Focal length: 45 mm Measurement range: -20℃~150℃ / 0℃~550℃ Measurement accuracy: ±3℃ or ±3% of reading |
|
| Thermal Camera |
640×512 Resolution Focal length: 25 mm Measurement range:-20℃~150℃ / 0℃~550℃ Measurement accuracy: ±3℃ or ±3% of reading |
|
| Laser Rangefinder |
Measurement range: 10-2000m Measurement accuracy: ≤400m:1m；＞400m: D×0.3% * where D is the distance to a vertical reflecting plane |
Measurement range: 10-2000m Measurement accuracy: ≤400m:1m; ＞400m: D×0.3% * where D is the distance to a vertical reflecting plane |
| Laser Fill Light lens |
Adjustable FOV: 2°-70° Lighting distance: 800m |
Dragonfish-25: Accessories
Dragonfish Ground Station |
Display: 9.7-inch screen,1000-nit maximum brightness,2048x1536 resolution. Battery Life: 4.5 hours. Storage: Built-in 256GB storage. Environmental Adaptability: Operating temperature range from -20°Cto 50°C. |
Autel Smart Antenna Transmission |
The Autel Smart Antenna Transmission integrates directional and omnidirectional antennas, a base station motherboard, and an RTK antenna, enabling up to 45 km* ultra-long transmission with enhanced anti-interference performance. |
Dragonfish Base Station (Optional) |
With centimeter-level positioning accuracy and strong anti-interference capabilities, the dragonfish base station ensures reliable UAV operations even in challenging environments such as near high-voltage lines and metal structures. |
