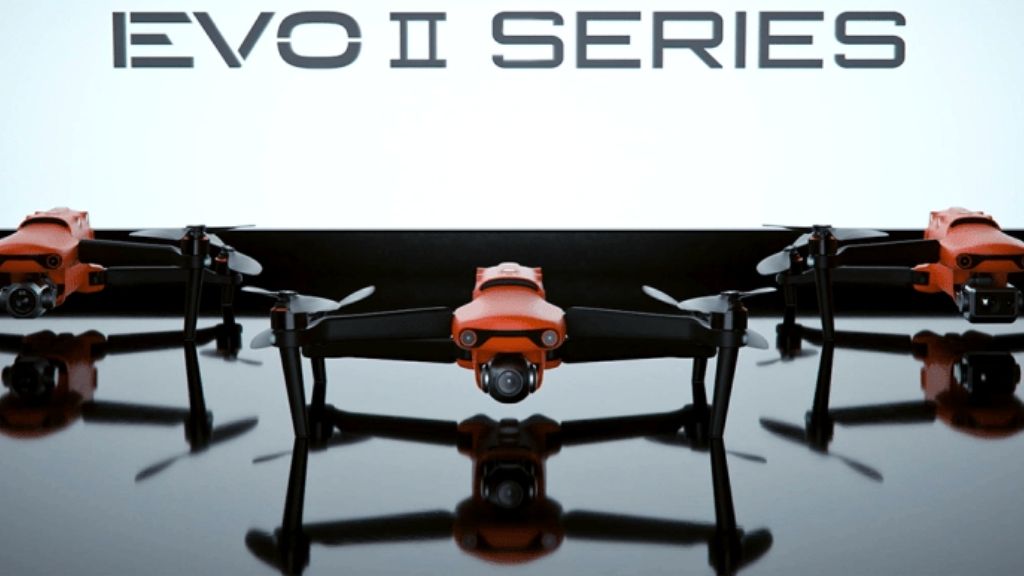

Autel EVO II Series: 6K II Pro VS 8K II Dual 640T Camera Drone

Autel EVO II Series: 6K II Pro VS 8K II Dual 640T Camera Drone

May 07, 2022

Perhaps you have heard of drone products from Autel Robotics, a technology company focused on producing and developing high-quality drones. It is currently the second largest company in the world in the field of consumer drones and commercial drones.

Autel Robotics rose to fame at CES 2020 with the release of the EVO II series of drones, which have the best technology on the market, and Autelpilot is the only agent in the world to sell high-end drone products. Let's meet the drones of the EVO II series.

The EVO II series is available in consumer drone versions for users looking for high-quality photos and video, as well as enterprise-grade versions for business and security, including thermal cameras and accessory racks. The line has the most advanced drone technology on the market.

The Autel EVO II series consists of 5 versions, EVO II, EVO II Pro and EVO II RTK,Ā EVO II Dual 640T and EVO II Enterprise series, and the EVO II Drone is the first consumer drone with an 8K resolution camera.

Autel Drone EVO II Enterprise series

Drone in 6K Footage: Autel EVO II Pro

  • 6K ISO 6400 camera
  • 4K HDR footage -
  • 20MP 1" CMOS sensor
  • Aperture f/2.8 to f11
  • 40 minutes of flight autonomy

The EVO II 6K camera captures photos at up to 20MP (5472x3076) and records 6K video at 30fps or 4K at 60fps with bit rates up to 120 Mbps.

With its larger sensor and variable aperture, the EVO II Pro camera is also considered the best model for those looking for higher image quality and a must-have for video, capturing stunning detail previously impossible on an aerial platform.

Drone in 8K Footage: Autel EVO IIĀ

  • 1/2" CMOS Camera
  • 8K HDR footage -
  • 48MP 8000*6000
  • 1-16x (up to 4x lossless zoom)
  • 40 minutes of flight autonomy

The EVO II 8K camera captures photos at up to 48 MP (8000 x 6000) and records 8K video at 25fps or 6K at 30fps with bit rates up to 120 Mbps

The Autel EVO II drone, as the world's first foldable 8K camera drone, speaks for itself in terms of the quality of its footage. The Evo II 8K can record video at resolutions up to 7680x4320, redefining image detail, and can even shoot 8K time-lapse video directly for live deck streaming. A top-tier photography drone, worthy of owning.

Drone in 8K and thermal combined: Autel EVO II Dual 640T

  • Autel EVO II Dual (2 variants, interchangeable camera)
  • 640x512 or 320x256px FLIR LWR thermal camera
  • 4x zoom 8K camera
  • Shoot in 4K with HDR
  • 48MP 1/2" CMOS sensor
  • f/2.8 aperture
  • 38 minutes of autonomous flight

The EVO II Dual 640T is a brand new product from Autel Robotics as part of its enterprise drone product line. The EVO II Dual 640T features a 640Ɨ512 radiometric thermal imager and a 48 MP visual/RGB camera. With the addition of radiometric capabilities, every task in nearly every vertical where drones are used today is covered. Widely used in solar inspection, fire rescue, substation, roof inspection, measurement monitoring imaging and so on.

Take a Look at The Comparison of The Specific Parameters of The 3 Drones Under The EVO II Series

Ā

Autel EVO II Pro

Autel EVO II Dual 604T

Autel EVO II

Flight Autonomy

 40 Minutes 38 Minutes 40 Minutes
Drone Battery LiPo 3S, 7100 mAh LiPo 3S, 7100 mAh LiPo 3S, 7100 mAh
Control Distance 9000 meters 9000 meters 9000 meters
Transmission Resolution 1080p 1080p
Maximum speed 72 Km/h 72 Km/h 72 Km/h
Wind Resistance Scale 8 - 75.6 km Scale 8 - 75,6 km Scale 8 - 75,6 km
Video Resolution 6K 30FPS, 4K 60FPS, 2.7K 120FPS, 120Mbps, ISO 100-6400 8K 24FPS, 6K 30FPS, 4K 60FPS, 2.7K 120FPS, 120Mbps, ISO 100-6400 + FLIR Boson termal 640x512 8K 24FPS, 6K 30FPS, 4K 60FPS, 2.7K 120FPS, 120Mbps, ISO 100-6400
Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) + Termal MOV/MP4 (H.264/H.265) MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Camera Sensor 20MP, 1 CMOS, 28.6mm, f2.8-f11, ISO 100-12800 (auto), 5472Ɨ3648px max 48MP, 1/2 CMOS, f1.8, ISO 100-3200 (auto), 8000x6000px + termal 640x512 48MP, 1/2 CMOS, f1.8, ISO 100-3200 (auto), 8000x6000px
Photo Format JPEG/DNG (RAW) JPEG/DNG (RAW) JPEG/DNG (RAW)
Stabilization 3-axis gimbal (tilt, roll, pan) 3-axis gimbal (tilt, roll, bread) 3-axis gimbal (tilt, roll, bread)
Detection Sensors Obstacle sensors in all directions Obstacle sensors in all directions Obstacle sensors in all directions
Ads-B Sensor NO NO NO
Data Storage 8GB Internal, microSDXC 8GB Internal, microSDXC 8GB Internal, microSDXC
Gesture Control NO NO NO
Live Stream YES YES YES
GPS GPS, GLONASS, VIO, ATTI GPS, GLONASS, VIO, ATTI GPS, GLONASS, VIO, ATTI
Saved Size 228 x 133 x 110 mm 228 x 133 x 110 mm 228 x 133 x 110 mm
Open Size 424 X 354 X 110 mm 424 X 354 X 110 mm 424 X 354 X 110 mm
Assembled Weight 1191 gramas 1157 gramas 1191 gramas
Control App Autel Explorer Autel Explorer Autel Explorer
Extras Dinamic Track 2.0 Dinamic Track 2.0 Dinamic Track 2.0
