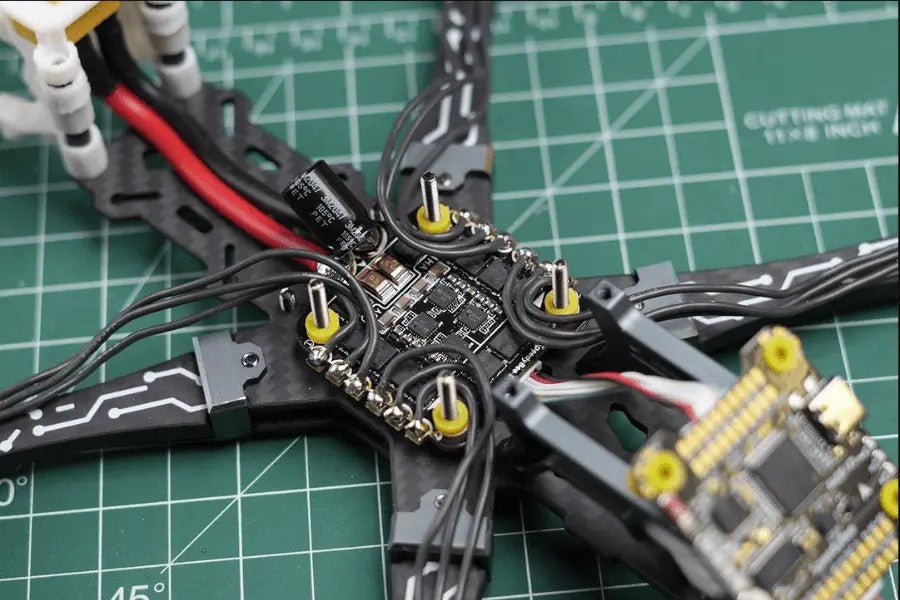

ESC for Drone

What is the ESC for Drone?

Inside the drone, ESC is an indispensable core component. ESC not only directly affects flight stability, but also plays a vital role in flight performance.

How do drone beginners understand the electronic speed controller (ESC)?

The electronic speed controller (ESC) is a key electronic component in the electric drive system of the drone, which is used to adjust the speed of the brushless motor. Simply put, its function is to convert the signal sent by the flight controller into the power required by the motor, so as to achieve the flight actions such as lifting, turning, accelerating and decelerating of the drone.

ESC adjusts the speed and direction of the motor in real time by receiving signals from the flight controller (FC). Its working principle is to determine the speed of the motor by controlling the power output of the motor to ensure the stable flight of the drone in the air.

Working principle of drone ESC

The working principle of ESC can be simply summarized as: receiving signals → adjusting motor power → controlling motor speed. The specific process is as follows:

Receiving signals: The flight controller sends a control signal (usually a PWM signal) according to the operator's instructions. This signal determines the lifting, turning, acceleration and deceleration of the aircraft.

Adjusting power: After receiving the signal from the flight controller, the ESC will control the power output of the brushless motor by adjusting the current. It controls the aircraft by changing the speed of the motor.

Adjusting the motor speed: By precisely controlling the speed of the motor, the ESC can achieve fine control of the aircraft, including smooth takeoff, stable hovering, precise turning, etc.

  • Multirotor aircraft (quadcopter drones) are controlled by adjusting the motor speed, which in turn adjusts the rotation speed of the aircraft propellers.
  • By increasing or decreasing the motor speed, the aircraft can increase or decrease altitude.
  • By increasing the speed of the rear propeller, the aircraft can fly forward, and vice versa;
  • By speeding up the right propeller, the aircraft can fly to the left.
  • Turning is achieved by taking advantage of the fact that two motors rotate clockwise and two motors rotate counterclockwise, and then precisely adjusting the speed of each motor.

The turning process starts with the aircraft's flight controller, which receives the pilot's instructions, which are then converted into digital commands and sent to the ESC. The ESC interprets these instructions in turn and increases or decreases the voltage of each motor.

Key functions of drone ESC

Speed ​​control: The basic function of ESC is to control the speed of the motor, and to achieve fine control of each axis of the drone by accurately adjusting the power output.

Direction control: By adjusting the power of four motors (or more), ESC can affect the flight direction and attitude of the drone. For example, increasing the speed of a motor to tilt or turn in that direction.

Battery management: ESC also has battery management functions. It can monitor the voltage of the battery to ensure that the motor operates within a safe voltage range and prevent the battery from being over-discharged or overloaded.

Protection function: Many modern ESCs also have safety functions such as temperature protection, overload protection, and short-circuit protection, which can cut off the power supply in time when there is a problem with the motor or circuit to prevent more serious damage.

The importance of ESC in drones

The flight performance of the drone is closely related to the selection and configuration of the ESC. A high-quality ESC can ensure that the motor works stably and reliably during flight, avoiding problems such as jitter and loss of control during flight.

Flight stability: The performance of the ESC directly affects the stability of the drone. If the ESC is not handled properly or is slow to respond, it may cause the aircraft to vibrate or stall, affecting the flight effect.

Motor efficiency: The control ability of the ESC over the motor determines the efficiency of the motor. An efficient ESC can effectively reduce battery consumption, thereby extending the flight time.

Response speed: The control performance of the drone is closely related to the response speed of the ESC. The faster the ESC responds, the more flexible the control of the aircraft is, especially in complex flight missions.

Temperature control and safety: ESC often has a temperature sensor inside, which can automatically reduce power or cut off power when the current is too large or the motor temperature is too high, thereby preventing fire or motor damage.

How to choose a suitable drone ESC?

Common quadcopter drones The drone fuselage and its internal sensor components are uniformly produced and assembled by drone manufacturers. There is no need to purchase additional ESCs or put in other ESCs. If you are an FPV enthusiast who prefers DIY drones, you need to strengthen your knowledge of ESC components before choosing an ESC.

Choosing a suitable ESC needs to be determined based on the purpose of the drone, flight requirements, and motor type. Here are a few factors to consider when choosing an ESC:

Current capacity: When choosing an ESC, you must make sure it can handle the maximum current output by the motor. For example, if your drone uses a high-power motor, the ESC you choose needs to have a high current carrying capacity.

Input voltage range: Different types of drones use batteries with different voltages. Make sure the ESC can support the battery voltage range you are using. General drone ESCs support different batteries such as 3S, 4S, and 6S.

Control signal type: Most ESCs use PWM signal control, but some advanced flight control systems may use more complex control protocols such as DShot, OneShot, etc. When choosing an ESC, make sure it is compatible with the flight controller.

Weight and size: For drones that require a lightweight design (such as racing drones), it is important to choose a small and light ESC. Try to choose an ESC of the right size to avoid unnecessary impact on the weight of the aircraft.

Brand and quality: A high-quality ESC can greatly improve flight stability and safety. Choosing some well-known brands of ESC, such as Hobbywing, BLHeli, etc., can be more secure.

How to maintain and care for ESC?

In order to ensure that the ESC works stably for a long time, it needs to be maintained and checked regularly:

Clean ESC: Clean the dust and dirt on the ESC regularly to keep the heat dissipation good. You can use an air blower or a soft brush to clean it.

Check the wire connection: Make sure the wire connection between the ESC and the motor is stable to avoid flight interruptions due to poor contact.

Update firmware: Some high-end ESCs can be upgraded through firmware updates to improve performance or fix known problems. Check regularly for new firmware updates.

Avoid overloading: Avoid overloading the ESC for a long time. During the flight, if you feel that the ESC temperature is too high, you should stop the flight immediately and let it cool down.

Autel UAV drone ESC Integration and Intelligence

Autel drones are divided into consumer drone series and commercial drone series. The ESC components are carefully designed to perfectly adapt to each platform and its usage. Autel multi-rotor drones are compact and foldable, and the internal components of the drone are small in size, light in weight and highly durable.

After the motor is powered on, the Autel drone will perform an intelligent self-check to ensure that the motor is in good working condition. The Autel drone ESC self-check will continuously optimize the stability and control accuracy of the drone.

Conclusion

As an indispensable core component in the drone flight system, the electronic speed controller (ESC) plays a vital role. It not only directly affects the motor speed and flight stability, but also ensures the safety and efficiency of the flight.

The Autel drone has a powerful flight system. Whether you are a DIY drone enthusiast or a professional pilot, you can fully tap the potential of the drone and enjoy a perfect flight experience!
