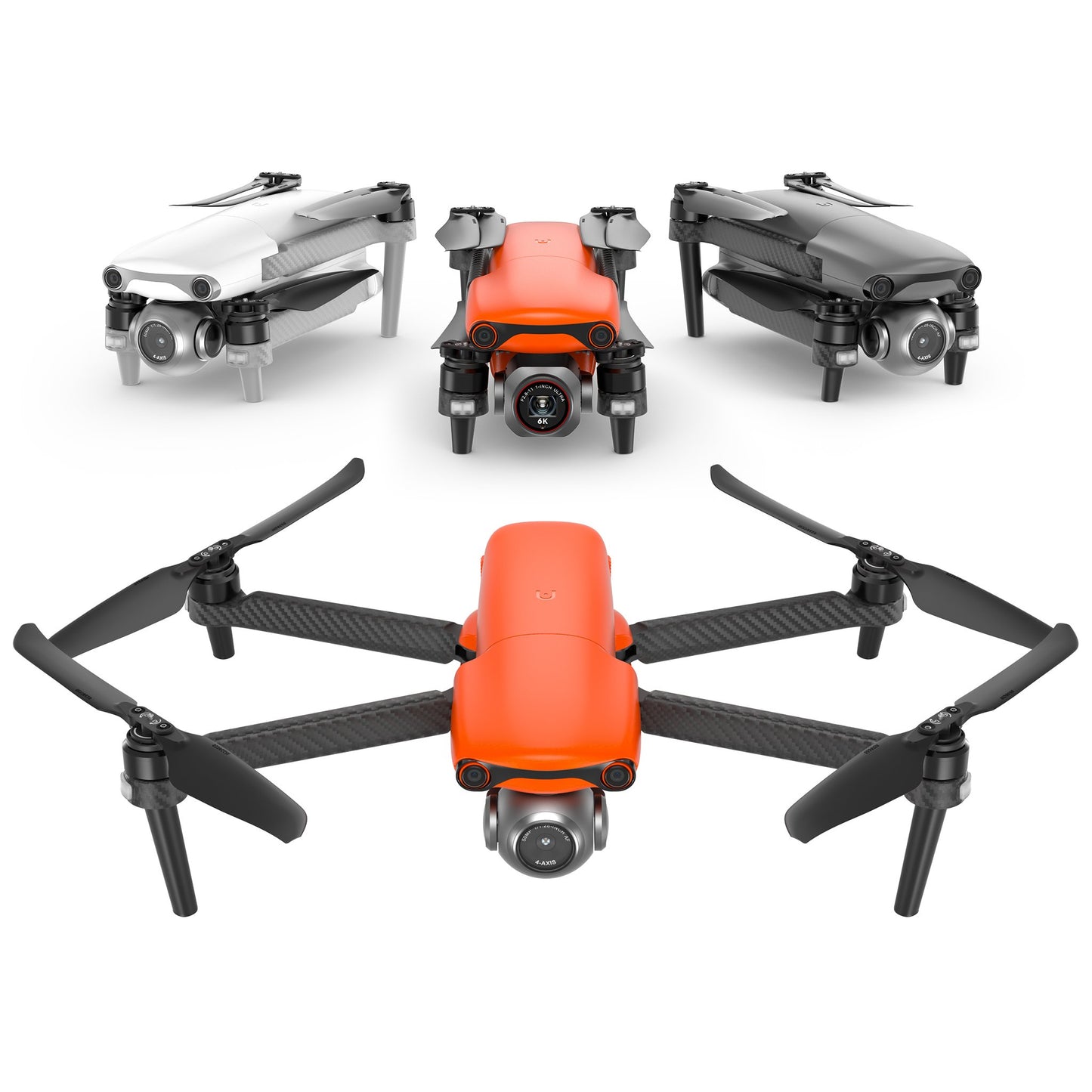

Autel Robotics EVO Lite Drone
Autel Robotics EVO Lite Drone
- 1/1.28 Inch CMOS Sensor
- 4K/60fps HDR Video
- One-Click For Vertical Shot
- 12km Video Transmission
- Obstacle Sensing in 3 Directions
- 40-Min Max Flight Time
- Overview
- SPECS
- In the box
- Download
-

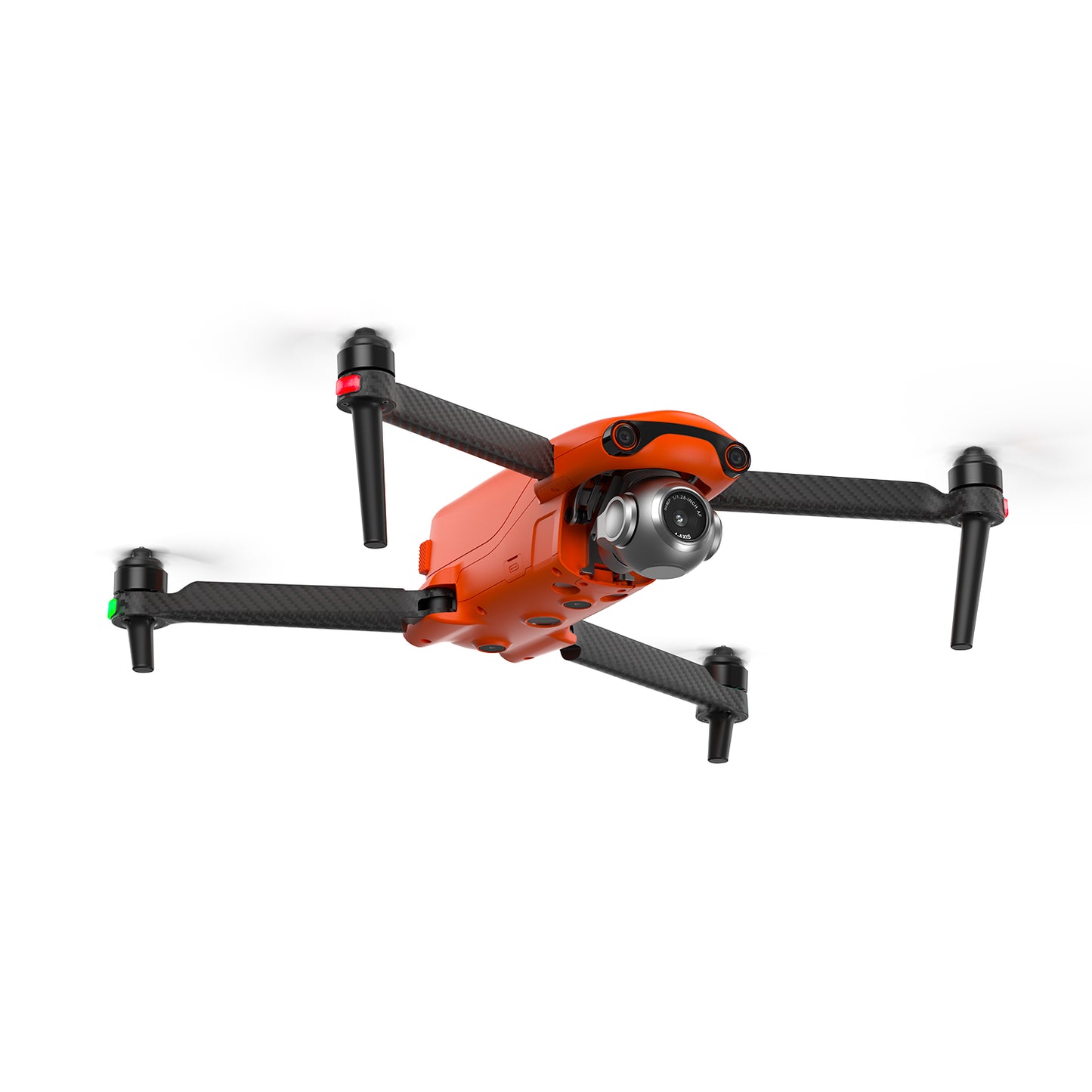

EVO Lite Drone
The EVO Lite is the first drone in the world to introduce a four-axis gimbal design, enabling you to shoot vertical videos for easy editing and sharing on mobile devices.
The Autel EVO Lite drone is packed a 50MP camera with a 1/1.28-inch CMOS sensor and RYYB color filter array gives you the ability to capture vibrantly detailed 4K HDR videos and super hi-res stills, with the RYYB array being capable of capturing up to 40% more light than standard RGGB arrays, allowing you to capture natural scenery in all its glory.
1/1.28" CMOS
Imaging Sensor
50MP
Photos
4K/60fps
HDR Video
4-Axis
Mechanical Gimbal
40 Mins
Flight Time
7.4 Miles
Transmission Distance

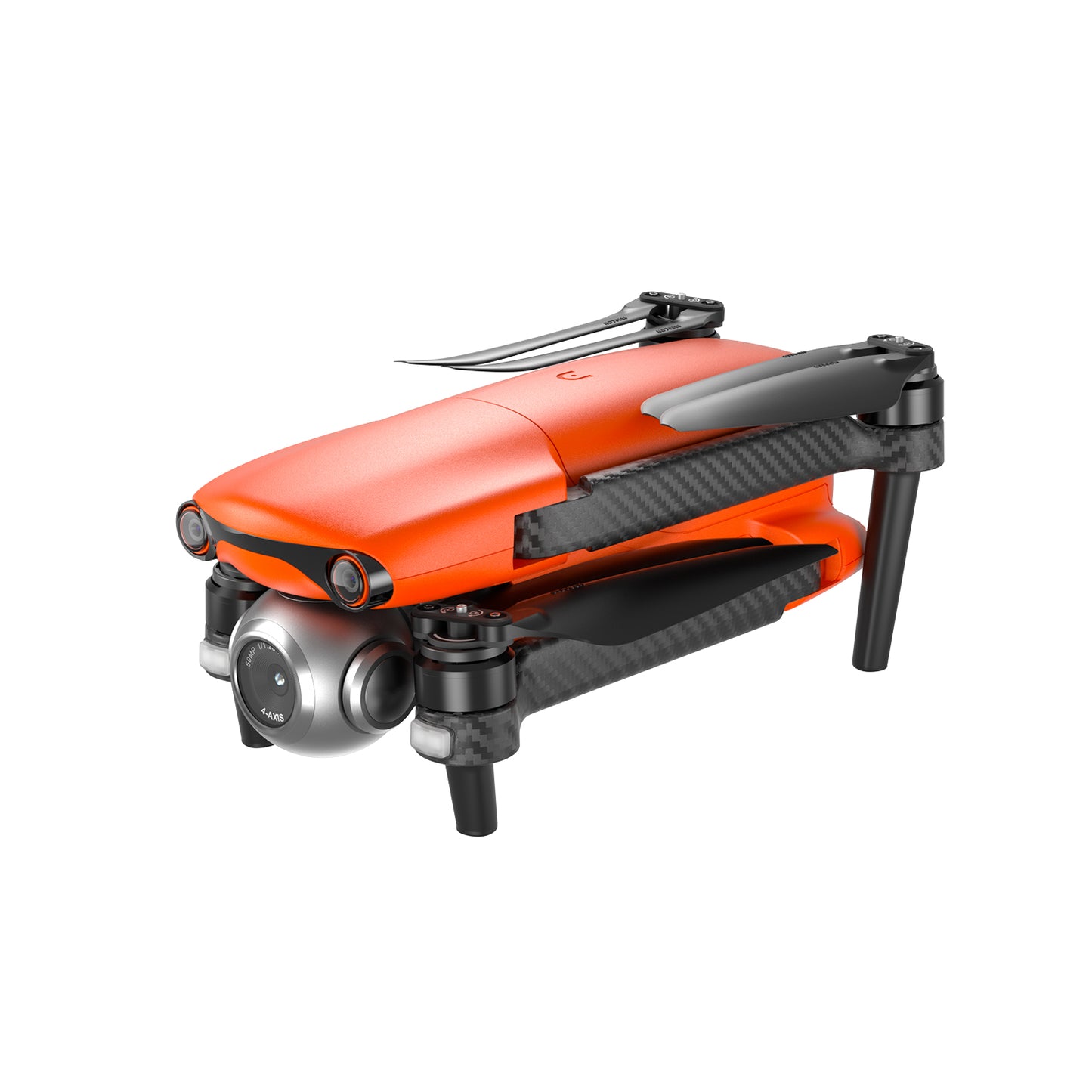

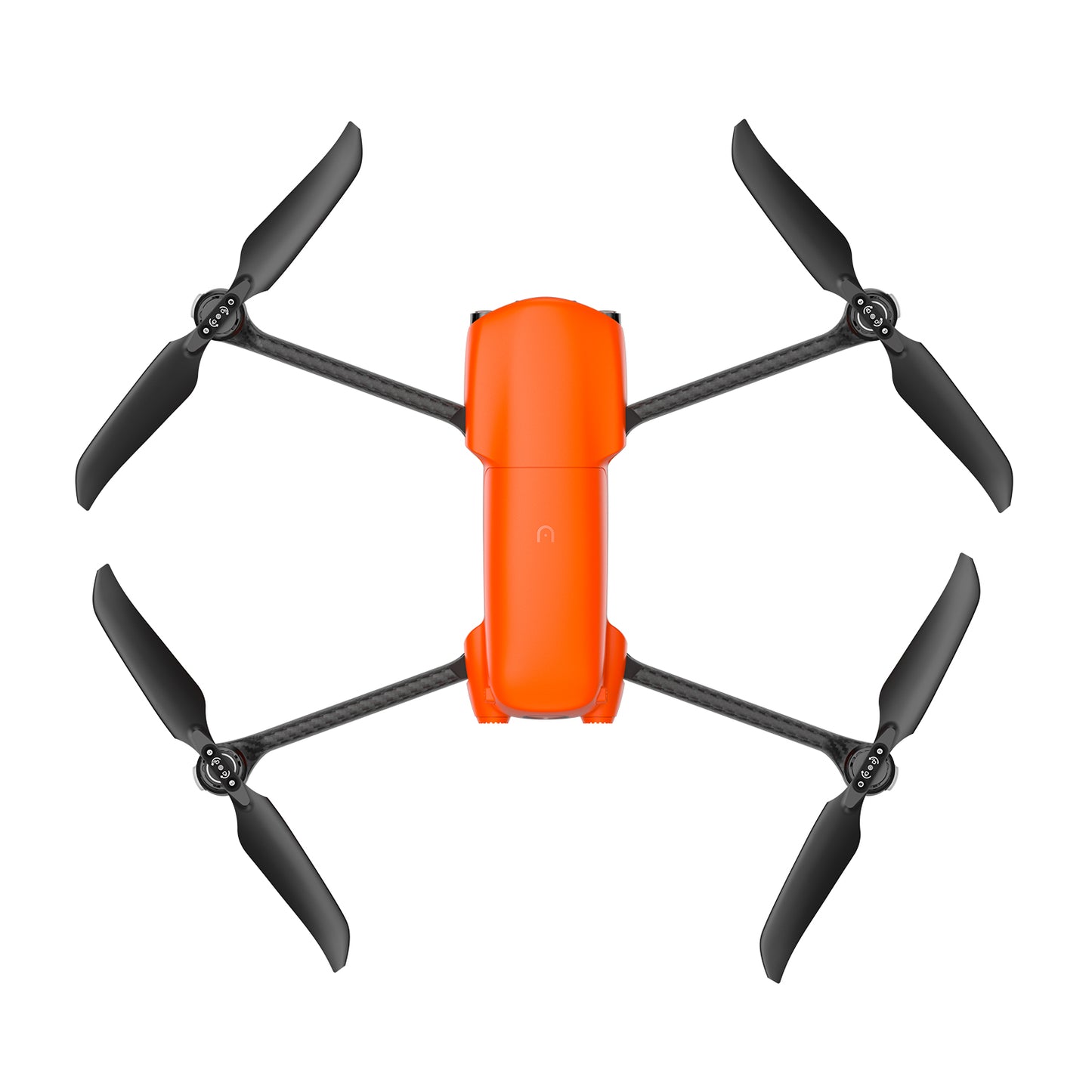

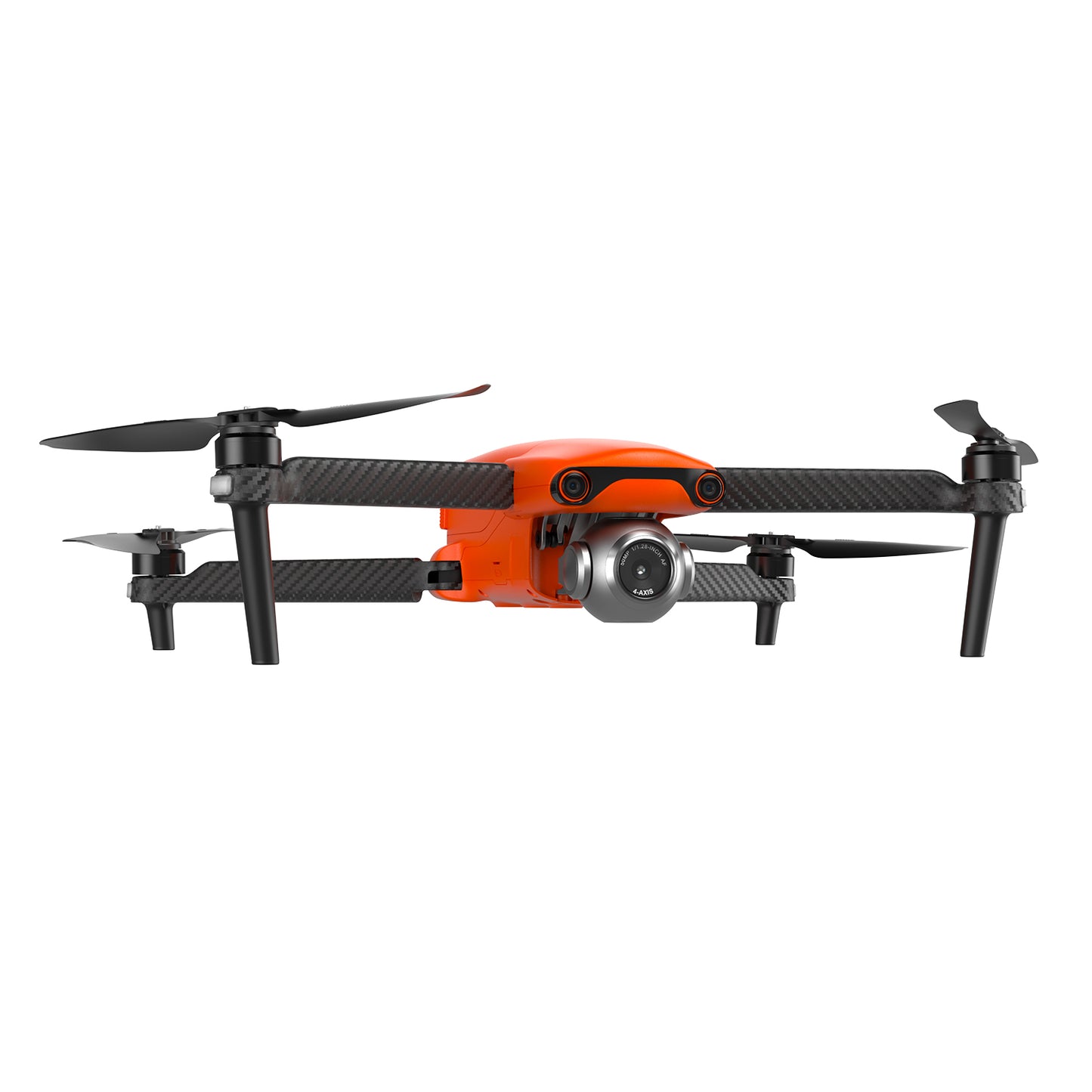

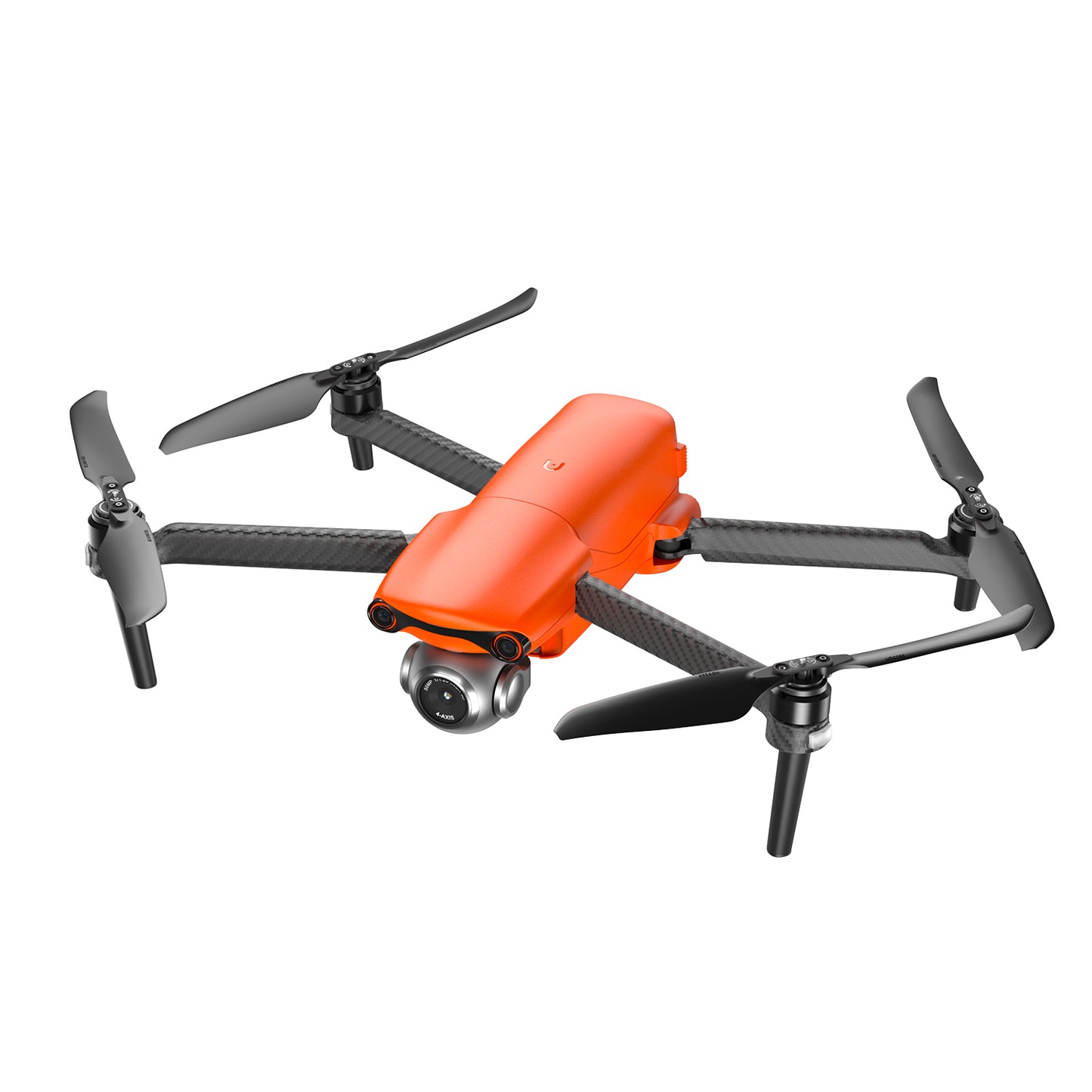

Compact & Foldable Design
Take the EVO Lite to see the world and record something different and wonderful.
The propellers and arms of the Autel EVO Lite conveniently can be folded into a tight package that makes traveling with your drone easier.
World's First 4-Axis Gimbal Design - One Click For Vertical Shot
Autel EVO Lite is the first drone featuring a four-axis gimbal design in the industry to improve customers' experience. The 4th "axis" happens within the gimbal, where the widescreen imaging frame can be remotely rotated into a vertical position. With a vertical mode of shooting, you can capture images and videos that are mobile-ready for social media platforms where videos and images are displayed in the ratio 16:10 like Titok, with no need for additional edits to make them vertical manually. It's perfect for vloggers!
Supersensitive 50MP Camera with 1/1.28" CMOS Sensor
Experience a new level of image quality thanks to a supersensitive 50MP camera equipped with a 1/1.28-inch CMOS sensor and 16x digital zoom. The Autel EVO Lite comes with a large aperture of f/1.9 and a higher ISO range up to 64000 at the night scene mode, which gives you the ability to capture crisp, vibrant pictures. Even under the condition of complex light, you can freeze the beautiful moment clearly.
1/1.28" CMOS
Imaging Sensor
1.22μm( Bin2)
Pixel size
HDR Video
4K 8-bit HDR
4-Axis
Mechanical Gimbal
RYYB Sensor
Color Filter
PDAF+CDAF Lens
Autofocus System
New Generation RYYB Color Filter Array Design, Turn On the Night
The EVO Lite drone camera adopts an RYYB color filter array design, which absorbs 40% more light than traditional RGGB arrays. Even in a dark scene, the EVO Lite still can take clear and bright pictures, capturing gorgeous night views, allowing you to record the dance of light with a camera.
PDAF + CDAF Dual Autofocus System - Instant Focus, Instant Capture
The EVO Lite drone tracks fast-moving subjects with precise autofocus that locks in within milliseconds using a phase detection autofocus and dual focus algorithm. It's really practical in scenes like sports events, or weddings.
Industry's First AI Moonlight Algorithm - Repel The Darkness
The EVO Lite adopts AI Moonlight Algorithm, Autel Robotic's most advanced tech in light processing, even in an environment where the light is so weak that it is almost invisible to the naked eye, it still can shoot bright, detailed and low-noise videos at night. The high-resolution capabilities make the night in the camera fantastic but without distortion.
HDR: Darker Shadows, Brighter Highlights.
With HDR on, the EVO Lite drone will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range. The EVO Lite intelligently recognizes the scene and optimizes the details to make the transition between light and dark in the picture more natural, with bright colors and clear layers. You can't help but share your works immediately.
Restore Natural Colors
The EVO Lite automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.
Defog Mode
Whether you're flying over a gloomy hilltop at dawn or hovering at the base of a waterfall, the EVO Lite enables you to cut through the haze with a fog penetration function that automatically adjusts the camera's vibrance settings to make your footage look crisp and clear.
Cinematic Shots With A Single Click
Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. EVO Lite is not only cool but easy to use; novices can get started in seconds. With just one click on the screen, EVO Lite will automatically shoot professional-level short videos, allowing your works to shine on social media.
Four Automatic Shooting Modes
ROCKET
FADE AWAY
ORBIT
FLICK
Be A Selfie Master With SkyPortrait Function
Take the ultimate selfie with the press of a single button. When engaged, SkyPortrait in Autel Sky APP will raise your EVO Lite into the air where it will snap a photo, automatically adjusting the lens to include everyone. You can even have the Lite automatically blur out the background to focus only on you and your friends for additional cinematic effect/Portrait.
Dynamic Track 2.1: Master Subject Tracking
3 Follow Modes in Autel Sky App: Quick Follow; Smart Follow; Orbit Follow. Recruit your Nano drone to automatically follow any person, animal, or vehicle so you can focus on your activities while your EVO Lite handles the cinematic side. How cool is that!
Hyperlapse - Blend the good scenery you encounter into a moment
In a hyper-lapse video, the process of slowly changing objects or scenes is compressed into a short period of time, presenting a wonderful scene that is usually undetectable by the naked eye. The EVO Lite is born for storing wonderful moments for you with a hyper-lapse feature.
Panoramic View of Grand Scenery
The AutelSky App boasts 180°panorama mode allowing you to shoot the grand view of a wide area with no effort, including everything you see into the camera. Never miss any beautiful views.
Movie Master: Quick And Easy Movies
Flying, shooting, editing, and sharing in one go.
Apply your favorite templates from the Autel Sky app for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can share your creations in minutes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, producing unforgettable results.
Effortless Editing
Imaginative Templates
Quick Sharing
Snap And Share In Seconds
Done shooting? Simply place your smartphone close to the EVO Lite to upload photos and videos at a speedy rate of 160Mbps using the Autel Sky app.
SonarSound: Hear Everything
Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is miles above.
Fly Safer With 3-Way Obstacle Avoidance
Not commonly seen in drones of this size, the EVO Lite 4K drone incorporates an advanced obstacle avoidance system to keep it safe while flying. The 3-way binocular vision sensors enable the drone to perceive obstructions in front of it, behind it, and below it. If anything comes into the Lite's path, it will automatically brake and hover to avoid a collision.
12KM 2.7K/30FPS Video Transmission
Autel EVO Lite drone features Autel's most advanced Autel SkyLink image transmission system yet, delivering an ultra-smooth, clear, and reliable image feed while flying farther. The EVO lite has a video transmission distance of up to 7.4miles (12 km), a transmission quality of 2.7K/30FPS.
2.4/5.2G/5.8Hz Three Frequency
Reliable Signal, Smooth Flight
The EVO Lite drone supports 2.4/5.8GHz three-frequency communication and automatically switches to the best channel with the lowest interference in real-time. This significantly improves the aircraft's anti-interference ability in challenging environments, increasing flight safety.
7.4Miles
Transmission Distance
2.7K/30FPS
Transmission Quality
2.4/5.8/5.2GHz
Operating Frequency
Level 7 Wind Resistance, Perfectly Steady
Heavy winds come unexpectedly. Be ready. The EVO lite boasts 7 level wind resistance, offering you a smooth shot. Most importantly, it makes sure that the drone won't be taken by winds and cause you a loss.
40 Minutes Flight Time
More Battery. More Time. More Creativity.
The EVO Lite can fly continuously for 40 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.
-
Lite Aircraft
Takeoff weight 820g Dimensions
(including blades)Folded: 210×104×85mm
Unfolded: 430×517×85mmWheelbase 368mm Max ascent speed 8m/s (sport), 5m/s (normal), 3m/s (stable) Max descent speed 4m/s (sport), 3m/s (normal), 2m/s (stable) Max Level Flight Speed
(no wind, near sea level)19m/s (sport), 10m/s (normal), 5m/s (stable) Max Takeoff Altitude 4000m Max Flight Time (no wind) 40min Max Hovering Time (no wind) 38min Max Flight Distance (no wind) 24km Max Wind Resistance Level 7 Max Tilt Angle 33°(movement), 25°(normal), 25°(stable) Max Angular Velocity 200°(movement), 120°(normal), 60°(stable) Operating Temperature -10°C ~ 40°C Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHzTransmission Power (EIRP) FCC:≤30dBm GNSS GPS Hovering Accuracy Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning);
Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);Built-in storage 6GB SD storage Max. support 256GB(UHS-3 rating required) Gimbal
Lite Lite+ Stabilization 4-axis
(horizontal/vertical/tilt/rotation shooting)3-axis Mechanical Range Pitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°
Rotate: -400°~400°Pitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°Controllable Range Pitch: -90°~30°
Yaw: -80°~80°
Rotate: -360°~360°Pitch: -90°~30°
Yaw: -80°~80°Max Control Speed (pitch) 30°/s 30°/s Angular Vibration Range ±0.003° ±0.003° Perception System
Forward Accurate measurement range: 0.5~18m
Effective sensing speed:<12m/s
FOV: horizontal<70°, vertical <88°Backward Accurate measurement range:0.5~18m
Effective sensing speed:<12m/s
FOV:Horizontal<40°,Vertical<30°Downward Accurate measurement range: 0.5~22m
Visual hovering range: 0.5~40m
FOV: horizontal<40°, vertical <30°Operating environment Forward, backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)Camera
EVO Lite EVO Lite+ Sensor CMOS: 1/1.28 inch
Effective pixels: 50M
Pixel size: 1.22μm*1.22μmCMOS: 1 inch
Effective pixels: 20M
Pixel size: 2.4μm*2.4μmLens FOV: 85°
Equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m ~ ∞
Focus mode: PDAF+CDAF/MFFOV: 82°
Equivalent focal length: 29mm
Aperture: f/2.8 ~ f11
Focus range: 0.5m ~ ∞
Focus mode: CDAF/MFShooting mode Automatic mode (P gear): EV adjustable, ISO/Shutter automatic
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/EV adjustable, ISO automaticAutomatic mode (P gear): EV is adjustable, Shutter/Aperture is not adjustable, ISO is automatic or adjustable. Manual mode (M gear): ISO/Shutter/Aperture is adjustable, EV is not adjustable.
Shutter priority (S file): Shutter/EV adjustable, Aperture automatic, ISO automatic or adjustable.
Aperture priority (A gear): Aperture/EV adjustable, Shutter automatic, ISO automatic or adjustable.ISO range Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: ISO up to 64000Video: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: ISO up to 64000Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesPhoto mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesPortrait blur Real-time image transmission portrait blur and photo portrait blur Real-time image transmission portrait blur and photo portrait blur Defog mode Support Support Zoom Range Digital zoom: 1 ~ 16 times
Lossless zoom: 4K: 2 times; 1080p: 4 times
Note:
4K: more than 2 times the digital, the following is lossless
1080P: more than 4 times the digital, the following is losslessDigital zoom: 1 ~ 16 times
Lossless zoom: 4K: 1.3 times; 1080p: 3 times
Note:
6K: Digital zoom
4K: more than 1.3 times the digital, the following is lossless
1080P: more than 3 times the digital, the following is losslessPhoto format JPG / DNG / JPG+DNG JPG(10bit) / DNG(12bit) / JPG+DNG Photo resolution 50MP:8192x6144(4:3)
12.5MP(default):4096x3072(4:3)
4K:3840x2160(16:9)5472x3648 (3:2,default)
5472x3076 (16:9)
3840x2160 (16:9)Photo shooting mode Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR imaging: 8192x6144/4096x3072/3840x2160
HyperLight: 8192x6144/4096x3072/3840x2160Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)
HDR imaging: 5472x3648/3840x2160
HyperLight: 5472x3648/3840x2160Video coding format H265/H264 H265/H264 Video resolution 3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 P60/50/48/30/25/245472x3076 p30/25/24
3840x2160 p60/50/48/30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p120/60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p60/50/48/30/25/24
1920x1080 p60/50/48/30/25/24Max bitrate 120Mbps 120Mbps Timelapse Original image:3840*2160,JPG/DNG
Video: 4K P25Original image:5472*3076/3840*2160,JPG/DNG
Video:5.4K/4K P25Panorama Horizontal/Vertical/Wide-angle/Spherical
Original image: 4096*3072,JPG/DNGHorizontal/Vertical/Wide-angle/Spherical
Original image: 5472*3648, JPG/DNGSupported file system Fat32、exFat Fat32、exFat Video format MP4/MOV MP4/MOV WIFI transfer 20MB/s 20MB/s Remote controllor and image transmission
Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHzMax transmission distance
(unobstructed, free of interference)FCC:12km Operating temperature 0°C ~40°C Transmission power (EIRP) FCC:≤30dBm Battery capacity 3930mAh Max battery life ~ 3.5h (when connected to a mobile phone)
~ 2.5h (when not connected to mobile phone)Interface type Type C Transmission system Autel SkyLink Realtime transmission quality Transmission distance<1km:2.7K 30fps
Transmission distance>1km:720P 30fpsTransmission bitrate 90Mbps Transmission delay ≤200ms Adapter
Input 100-240V/50-60HZ Output 12.75V==5A Rated power 63.75W Aaircraft Battery
Capacity 6175mAh Voltage 11.13V Max charging voltage 12.75V Battery Type Li-Po 3S Energy 68.7Wh Charging temperature 5~45℃ Single battery charging time 90min Max charging power 78W App
Mobile App Autel Sky Mobile system required iOS 12.0 and above
Android 8.0 and above -

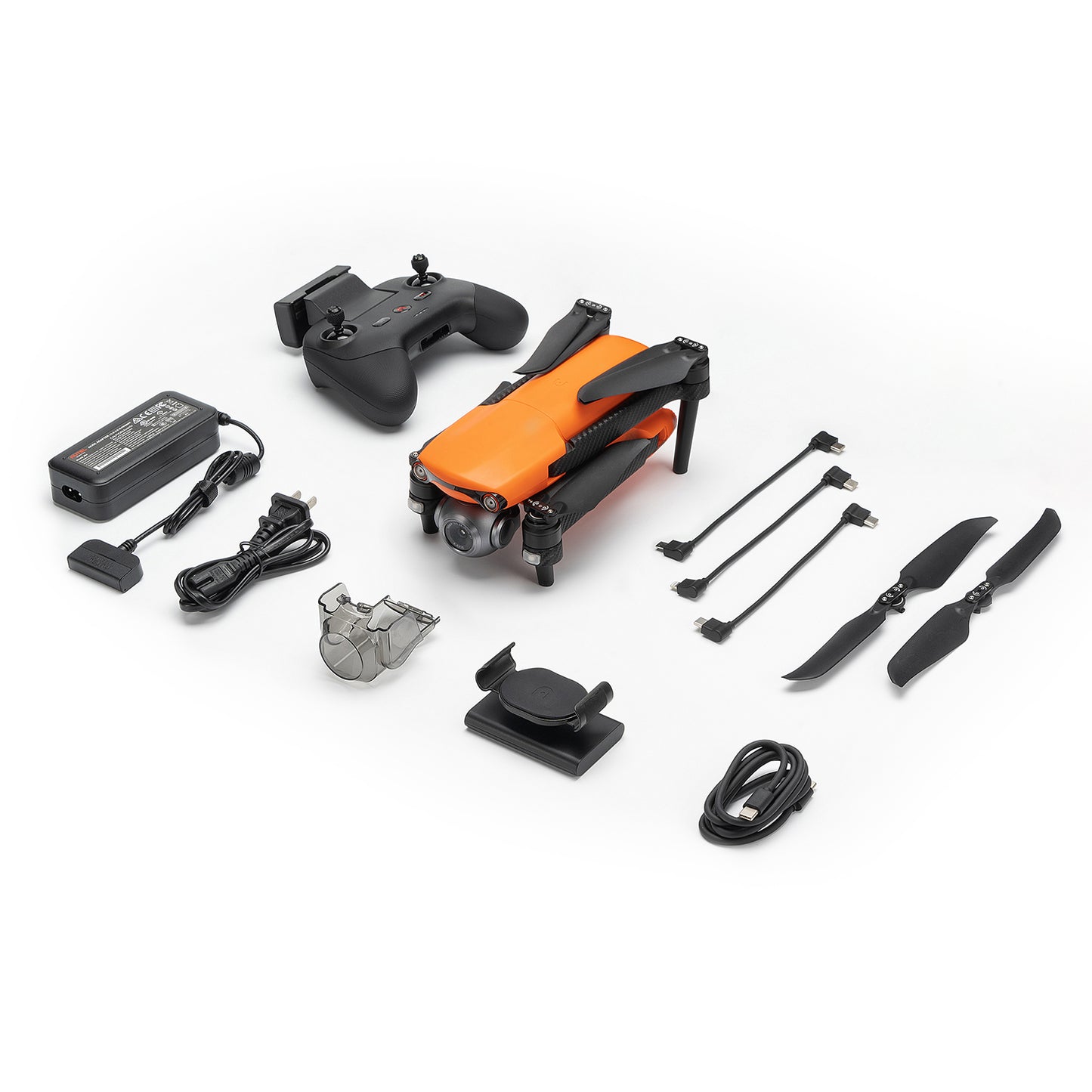

EVO Lite Standard Packing List
1* EVO Lite Aircraft (including gimbal cover)
3* Pairs Propellers
1* Flight Battery
1* Remote Controller
1* Flight Battery Charger
1* Vertical Stand
1* RC Charging Cable
1* RC Cables (Lightning, Micro-USB, USB-C)
In the Box - Base vs. Premium Bundle
As highlighted below, compare to the Base Package, the Premium Bundle provides two (2) additional Flight Batteries, a Battery Charging Hub, a set of ND Filters, two (2) additional Propeller Pairs, and a Shoulder Bag.
Items Standard Premium Bundle Aircraft 1 1 Total Flight Batteries 1 3 Flight Battery Charger 1 1 Total Propeller (Pairs) 3 5 Flight Battery Charging Hub 1 Remote Controller 1 1 Remote Controller Charger 1 1 *Vertical Stand 1 1 RC Cables
(Lightning, Type-C, Micro USB)1 1 ND Filters (ND4/8/16/32) 1 Shoulder Bag
1 -
Autel Sky
Built to accompany the EVO Nano and EVO Lite, the Autel Sky app enables beginners and veterans alike to get professional-level shots at the touch of a button with four automatic shooting modes (flick, rocket, fade away, and Orbit). Make your shots even more unique using the app‘s time-lapse, panoramic, tracking, and portrait modes. Done shooting? Instantly upgrade your footage from impressive to unforgettable using the app's vast selection of ready-made video templates and soundtracks. From flying to shooting to editing, Autel Sky is a must-have companion for any videographer hoping to make an impact.Compatible with:EVO Nano, EVO Nano+, EVO Lite, EVO Lite+
