Autel Robotics EVO Nano Premium Bundle
Autel Robotics EVO Nano Premium Bundle
- <249g
- 4K/FPS Video
- 10km Video Transmission
- Obstacle Sensing in 3 Directions
- Level 5 Wind Resistance
- 28-Min Max Flight Time
- Overview
- SPECS
- In the box
- Download
-

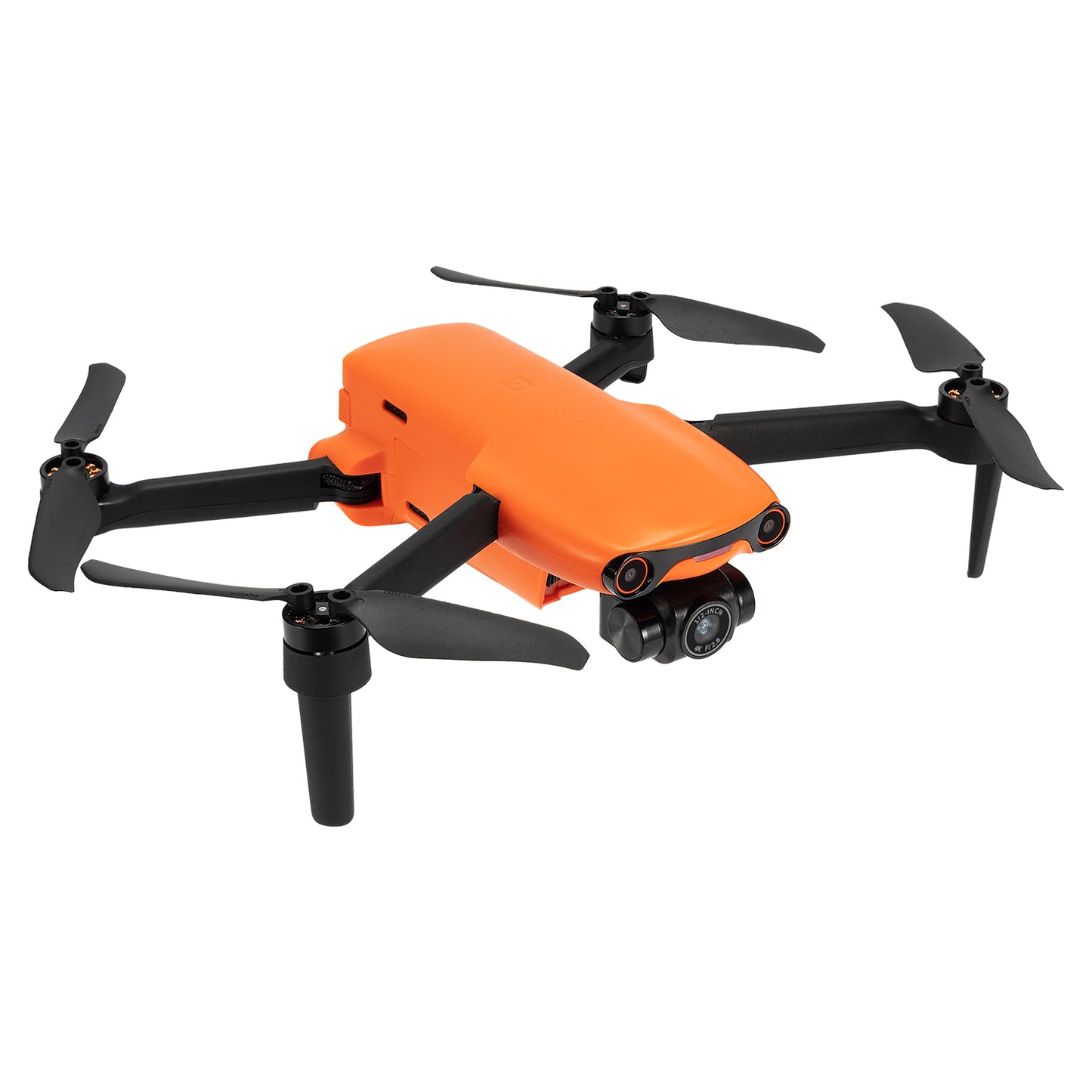

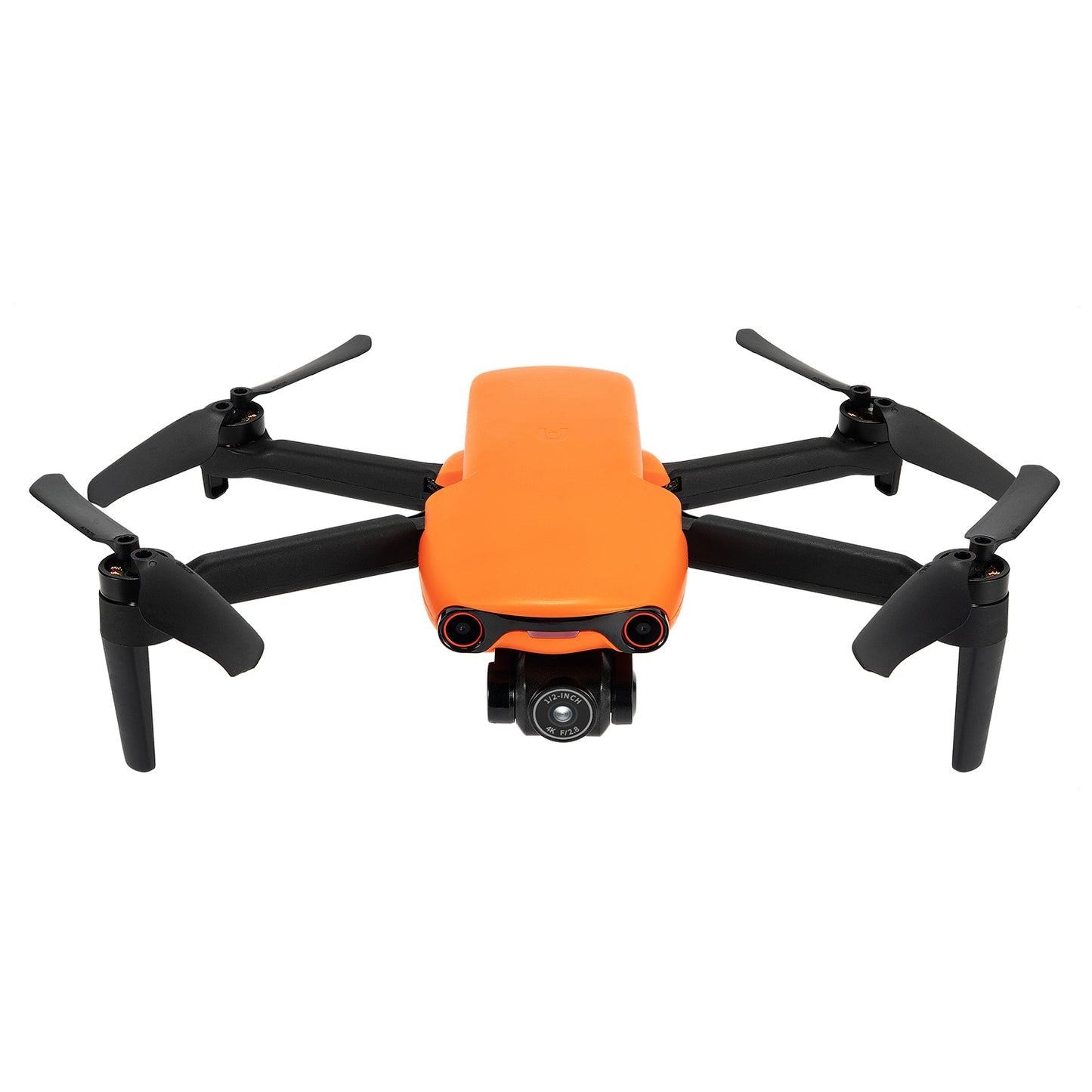

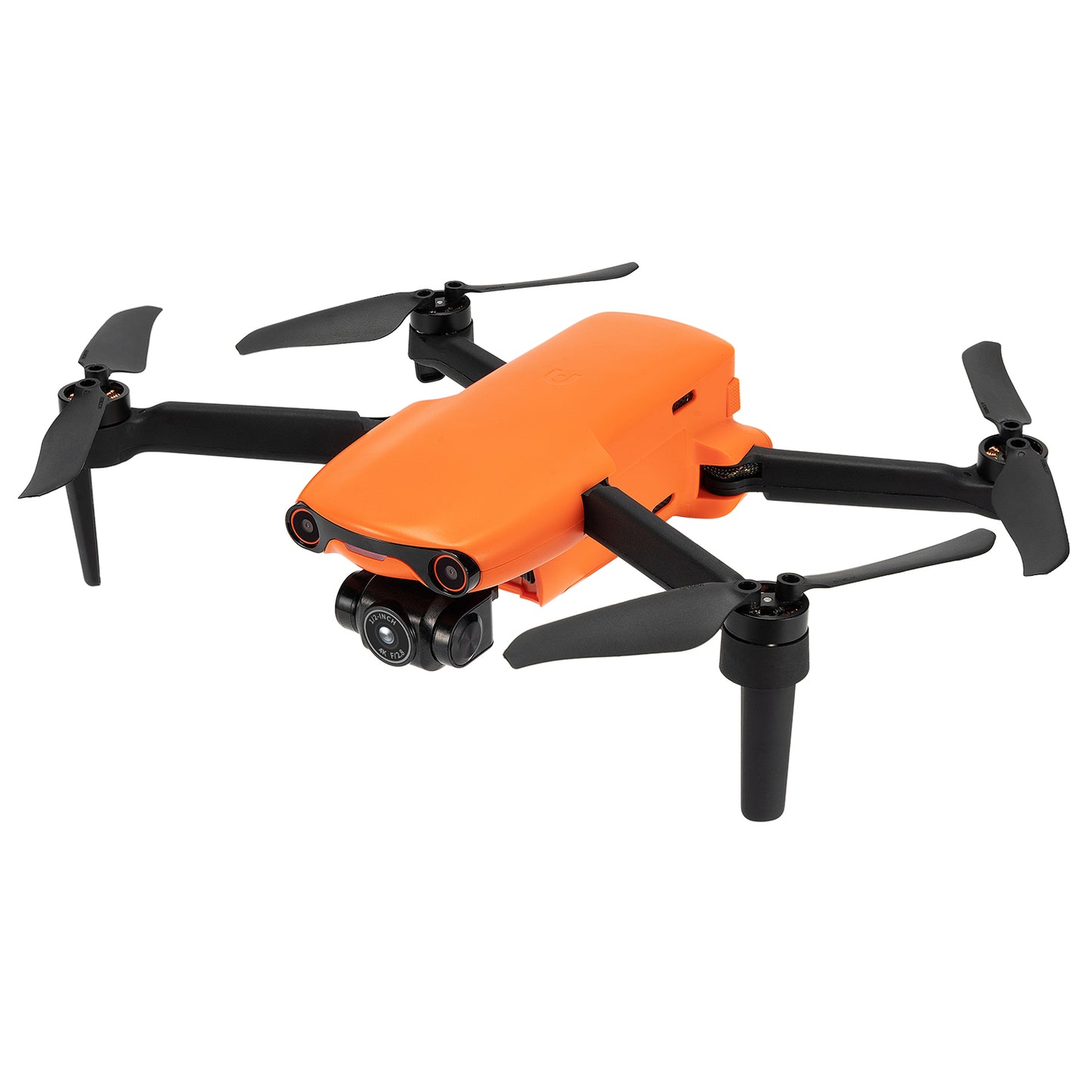

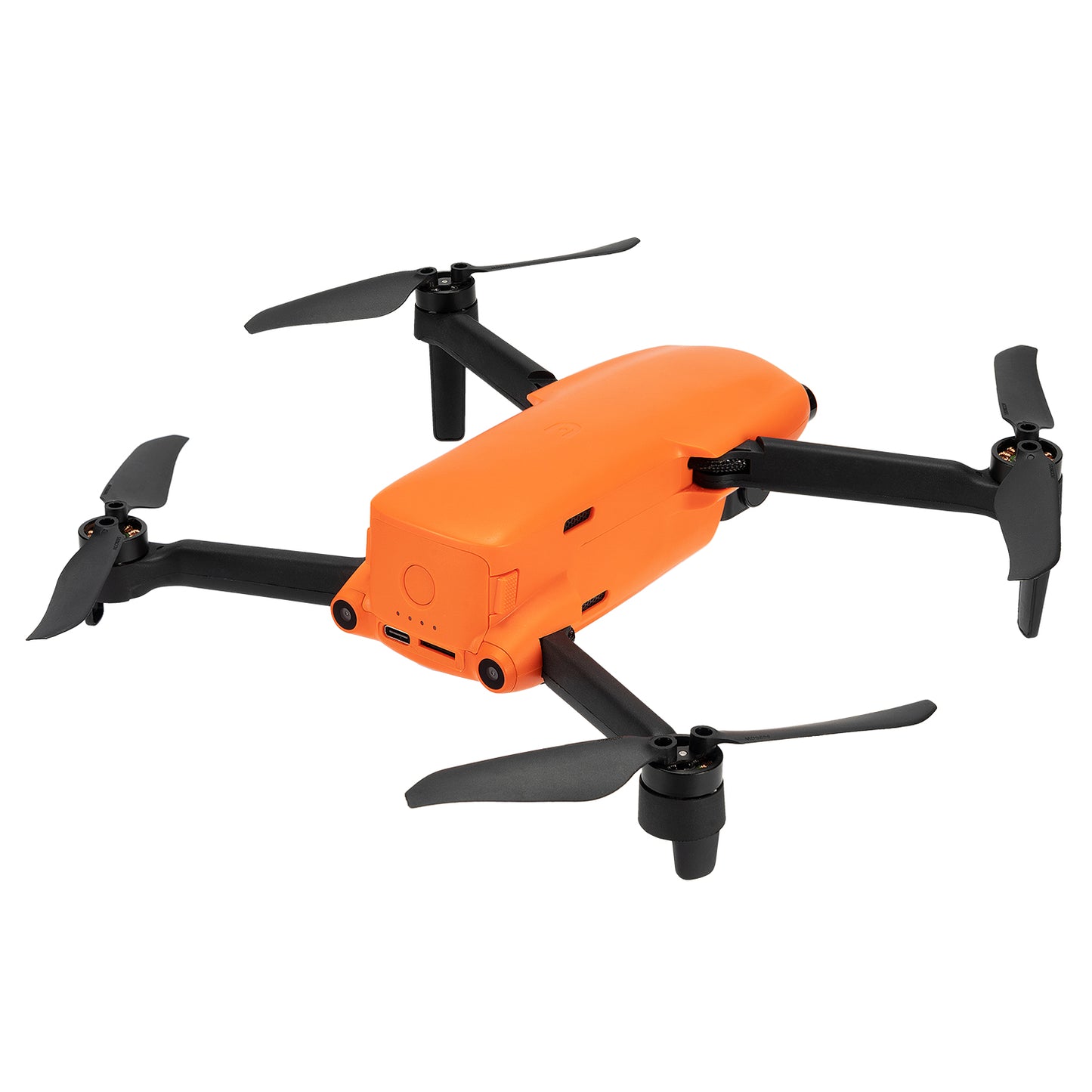

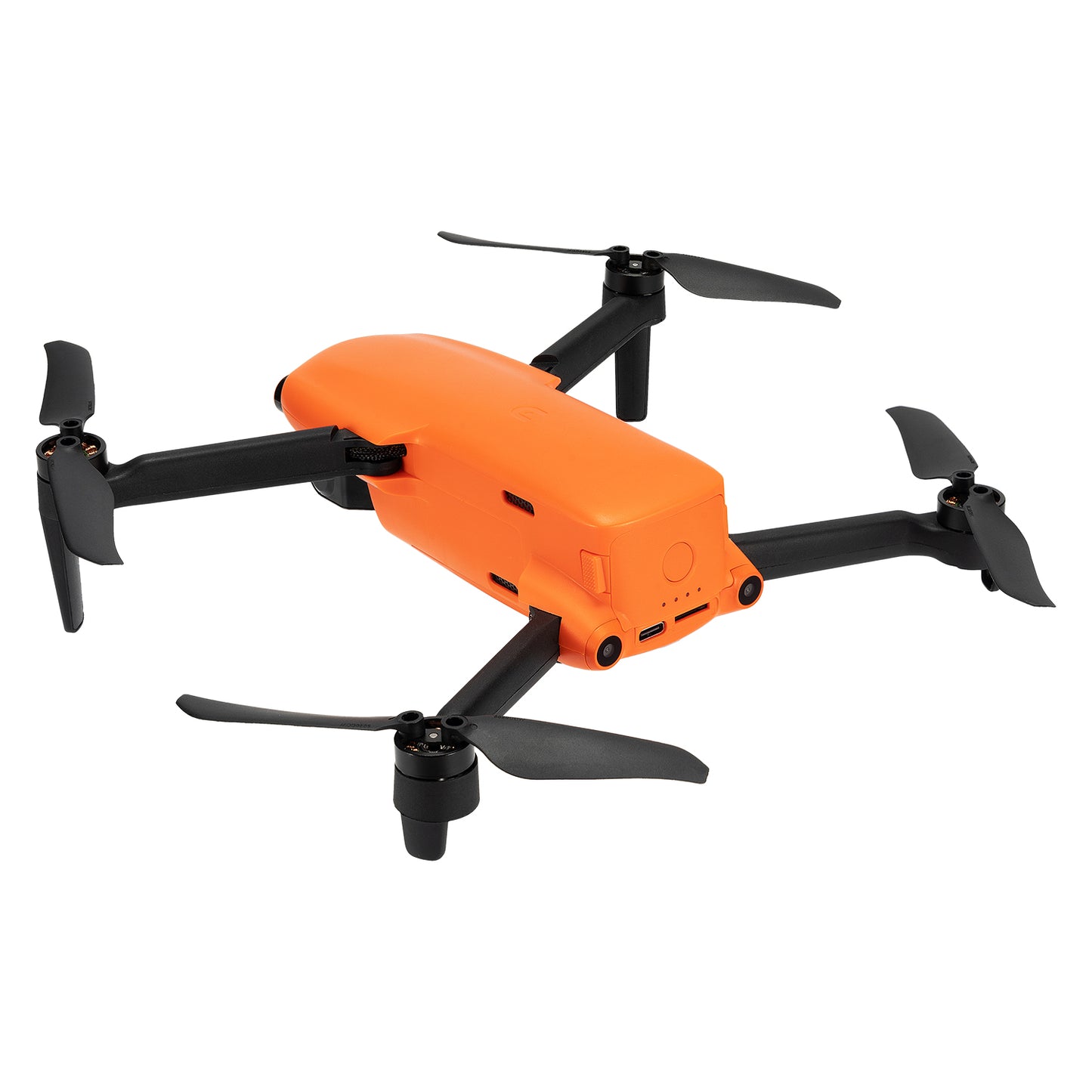

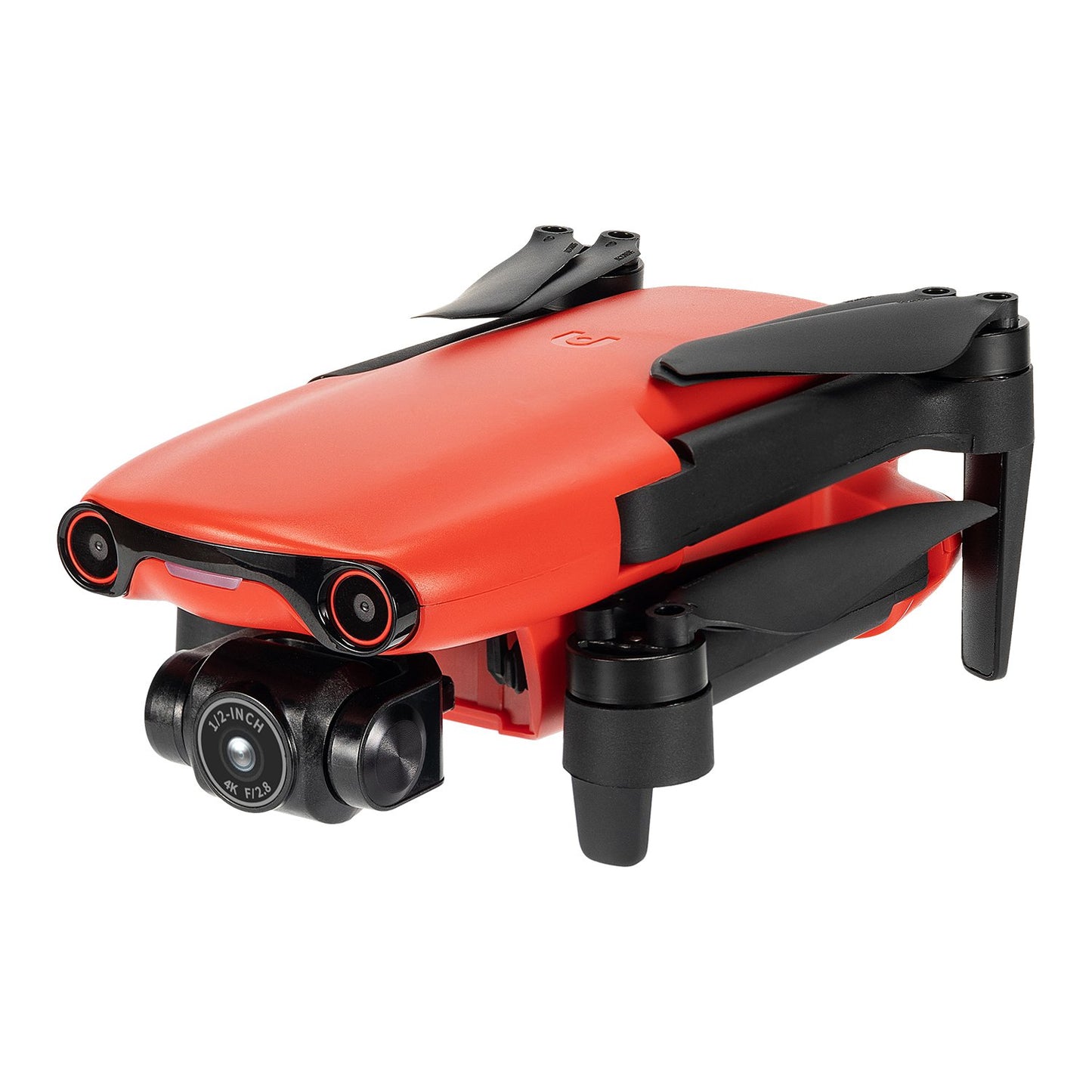

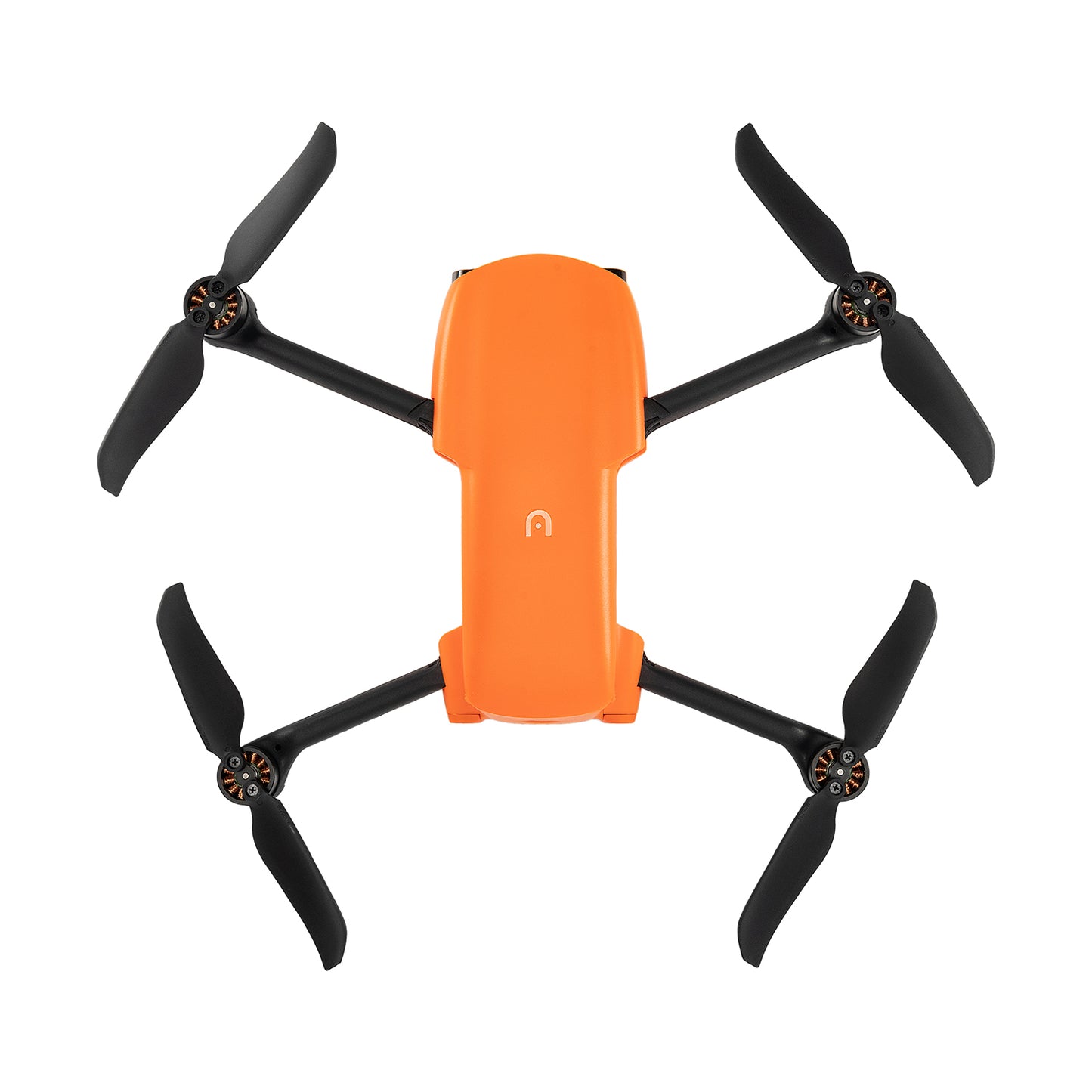

EVO Nano Drone
The Autel Drones EVO Nano features powerful aerial photography capabilities packed in a compact, foldable, palm-sized frame. Even weights only 249g, the EVO Nano's 1/2" CMOS sensor 48MP camera paired with an ultra-stable three-axis mechanical gimbal is capable of recording smooth cinematic 4K/30fps HDR video in challenging conditions. The frame has been engineered to withstand up to level 5 winds. And with its 28-min flight time, 6.2 miles (10km) transmission distance, the EVO Nano mini drone give you the ability to fly farther and see clearer.
1/2" CMOS
Imaging Sensor
48MP
Photos
4K/30fps
HDR Video
3-Axis
Mechanical Gimbal
28 Mins
Flight Time
6.2 Miles
Transmission Distance
EVO Nano Premium Bundle
The EVO Nano Premium Bundle version is designed to make it easier to get to your location and film longer. Compare to the Standard Package, the Premium Bundle provides two (2) additional Flight Batteries, a Battery Charging Hub, a Propeller Holder, two (2) additional Propeller Pairs, and a Shoulder Bag.
For a complete comparison of the Standard Package and Premium Bundle, Please view "In The Box" tab.

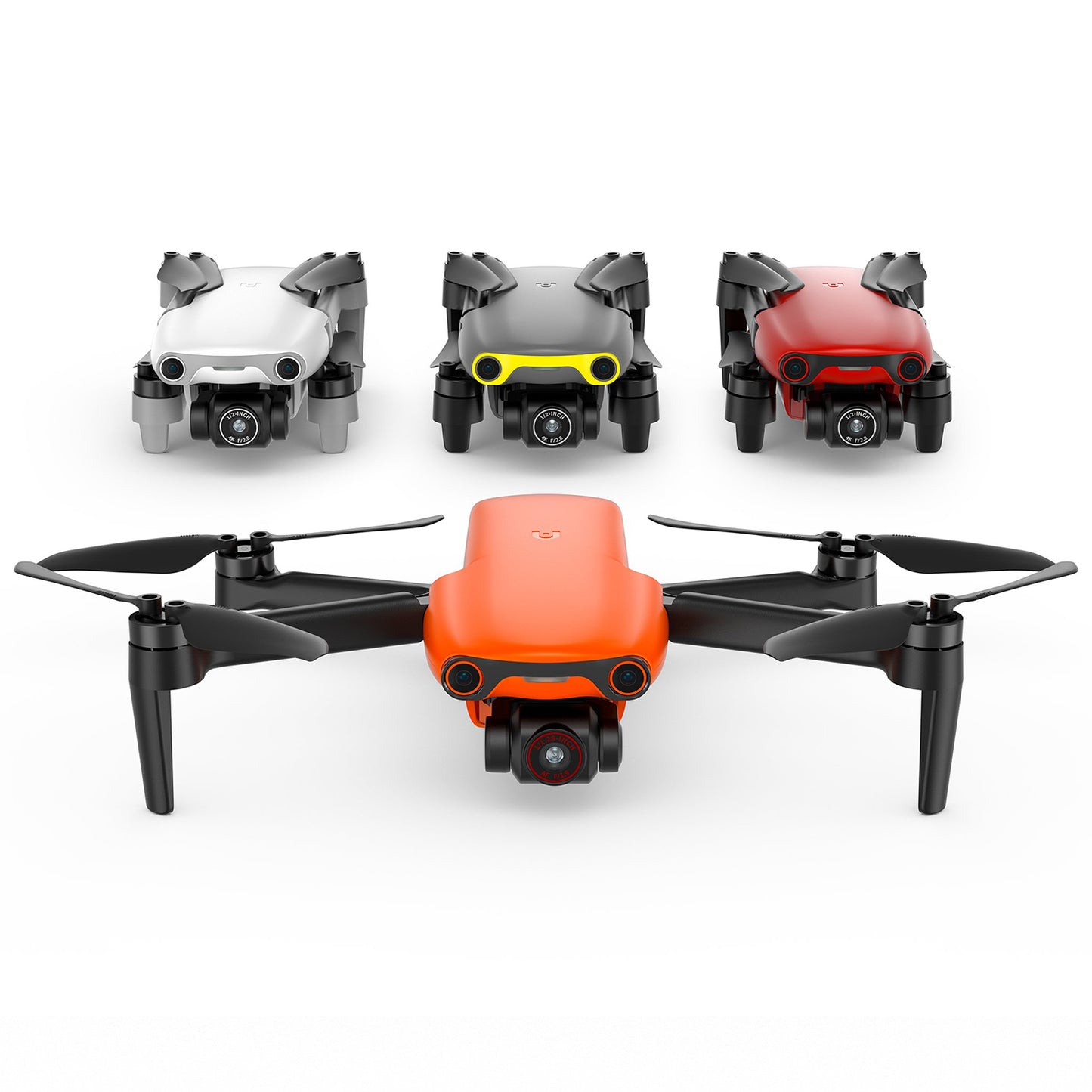

Which is the Best for You?
-
Autel EVO Nano
249 g
1/2" CMOS 48MP
Aperture f/2.8
4K/30fps Video
28-Min Max Flight Time
10km 2.7K Transmission
Forward + Backward + Downward Sensors
-
Autel EVO Nano+
249 g
1/1.28" CMOS 50MP
Aperture f/1.9
4K/30fps Video
28-Min Max Flight Time
10km 2.7K Transmission
Forward + Backward + Downward Sensors

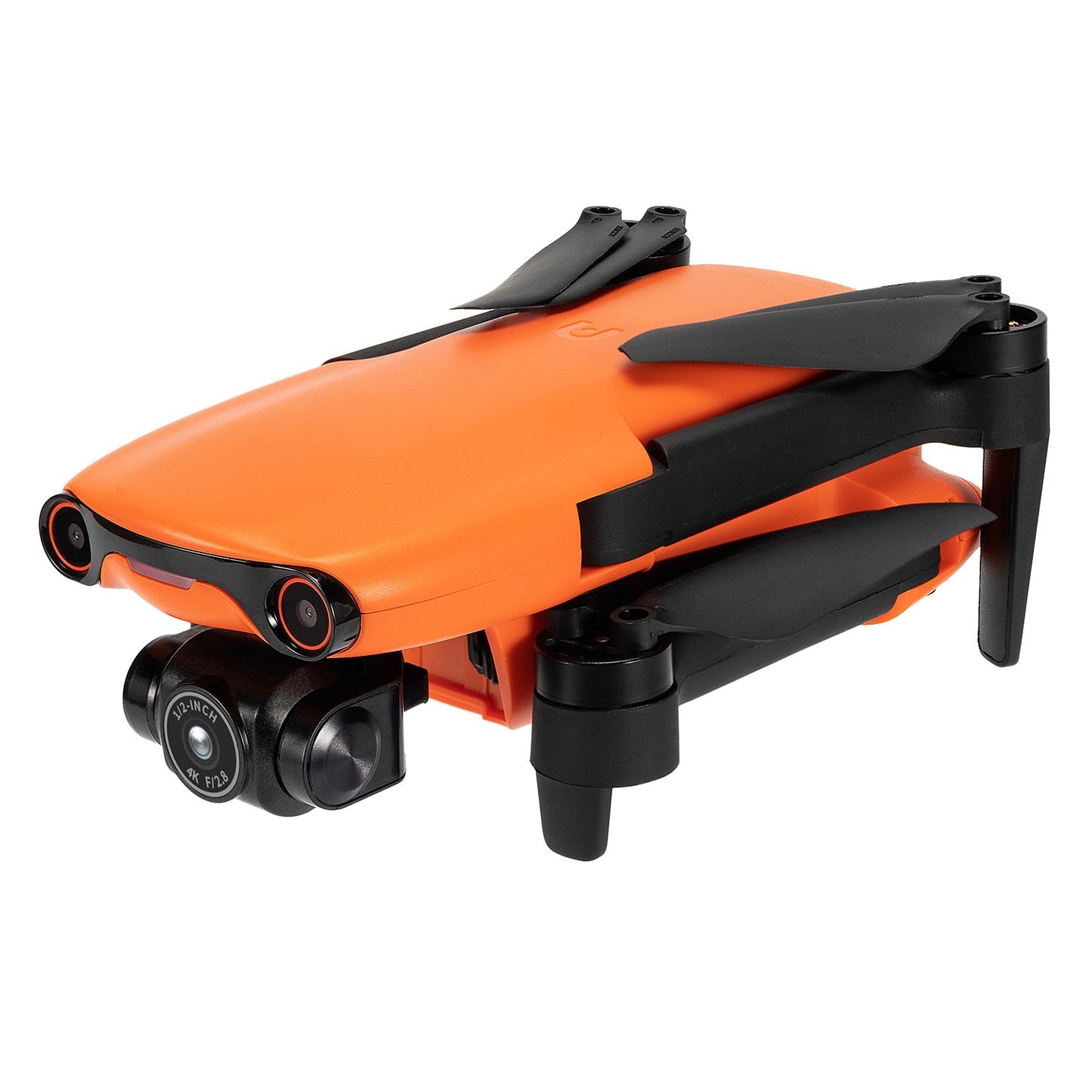

Foldable and Compact Body - Only 249g
Just how light is Autel EVO Nano+? Weighing only 249 grams, the EVO Nano+ is almost as light as an orange and plus its foldable and compact body design, This makes EVO Nano+ exceptionally portable and can fits almost anywhere—from the side pocket of your hiking pack to the palm of your hand. Additional, as under 250g which may exempt it from certain regulations in many countries.
Powerful Camera System
1/1.28″ CMOS Sensor
Autel EVO Nano mini drone is packed a 1/2-inch(0.-inch) 48-megapixel sensor with up to 16x digital zoom, captures impressive 48MP photos and records ultra-sharp 4K/30fps video. Paired with a three-axis mechanical gimbal to prevent vibration, the Nano drone provides everything you need to ensure your footage is smooth and stable no matter how rough the conditions.
HDR Video & Photos: Squeeze rich detail from shadows and highlights no matter how extreme the lighting conditions using HDR mode, which rapidly snaps several photos at different exposures so they can be stitched together in post-production.
1/2" CMOS
Imaging Sensor
1.6μm( Bin2)
Pixel size
4K HDR
Video/ Photos
3-Axis
Mechanical Gimbal
Hyperlapse and Panorama
Speed up time and movement with a single tap by creating a striking hyperlapse. You can also capture larger, more detailed shots of your surroundings with panorama (wide-angle, 180°, or spherical).
HDR - Darker Shadows. Brighter Highlights.
With HDR on, the EVO Nano will snap several photos at different exposures and automatically stitch them together- resulting in a photo with more contrast and dynamic range.
SkyPortrait - Blur the background automatically for additional cinematic effect/Portrait
Take the ultimate selfie with the press of a single button. When engaged, SkyPortrait will raise your EVO Nano+ into the air where it will snap a photo, automatically adjusting the lens to include everyone. You can even have the Nano+ automatically blur out the background to focus only on you and your friends for additional cinematic effect/Portrait.
FreezeFollow
Freeze the Autel Nano drone in mid-air at any angle and have its camera follow and continuously film a moving subject, whether it's a person or an object.
Dynamic Track 2.1: Master Subject Tracking
Recruit your Nano drone to automatically follow any person, animal, or vehicle so you can focus on your activities while your Nano+ handles the cinematic side.
Cinematic Shots With A Single Click
Create dramatic, professional-level shots at the touch of a button with four automatic shooting modes. Add a soundtrack and filters in the Autel Sky app to make your video even more epic, allowing you to produce unforgettable results whether you're a veteran pilot or completely new to the drone game.
Four Automatic Shooting Modes
ROCKET
FADE AWAY
ORBIT
FLICK
MovieMaster: Quick And Easy Movies
Apply your favorite templates from the Autel Sky app for quick and easy movie-making, allowing you to drastically reduce the tedious editing process so you can share your creations in minutes.
Effortless Editing
Imaginative Templates
Quick Sharing
Snap And Share In Seconds
Done shooting? Simply place your smartphone close to the Nano to upload photos and videos at a speedy rate of 160Mbps using the Autel Sky app.
SonarSound: Hear Everything
Record voices and ambient sounds on the ground through the smartphone, allowing you to bring your videos to life even when your drone is miles above.
Fly Safer With 3-Way Obstacle Avoidance
Not commonly seen in drones of this size, the EVO Nano+ drone incorporates an advanced obstacle avoidance system to keep it safe while flying. With 3-way binocular vision sensors that enable the drone to perceive obstructions in front of it, behind it, and below it. If anything comes into the Nano's path, it will automatically brake and hover to avoid a collision.
10KM 2.7K/30FPS Video Transmission
Autel EVO Nano drone features Autel's most advanced Autel SkyLink image transmission system yet, delivering an ultra-smooth, clear, and reliable image feed while flying farther. The EVO Nano+ has a video transmission distance of up to 6.2miles (10 km), the transmission quality of 2.7K/30FPS.
2.4/5.2G/5.8Hz Three Frequency
Reliable Signal, Smooth Flight
The EVO Nano drone supports 2.4/5.8GHz three-frequency communication and automatically switches to the best channel with the lowest interference in real-time. This significantly improves the aircraft's anti-interference ability in challenging environments, increasing flight safety.
6.2Miles
Transmission Distance
2.7K/30FPS
Transmission Quality
2.4/5.8/5.2GHz
Operating Frequency
28 Minutes Flight Time
More Battery. More Time. More Creativity.
The EVO Nano can fly continuously for 28 minutes, which means plenty of time to experiment with creative angles and dream up inventive shots.
-
-
Nano Aircraft
Takeoff Weight
(without Accessories)249g Dimensions
(including blades)Folded: 140×90×50mm
Unfolded: 264×310×50mmWheelbase 231mm Max Ascent Speed/strong> 6m/s (sport), 4m/s (normal), 3m/s (stable) Max Level Flight Speed 4m/s (sport), 3m/s (normal), 2m/s (stable) Max Level Flight Speed
(no wind, near sea level)13m/s (sport), 10m/s (normal), 5m/s (stable) Max Takeoff Altitude 4000m Max Flight Time (no wind) 28min Max Hovering Time (no wind) 26min Max Flight Distance (no wind) 16.8km Max Wind Resistance Level 5 Max Tilt Angle 33°(movement), 25°(normal), 25°(stable) Max Angular Velocity 200°(movement), 120°(normal), 60°(stable) Operating Temperature -10°C ~ 40°C Transmission Power (EIRP) FCC:≤30dBm GNSS GPS Hovering Accuracy Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning);
Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);Built-in storage No SD storage Max. support 256GB(UHS-3 rating required) Gimbal
Stabilization 3-axis Mechanical Range Pitch: -125°~35°
Roll: -34°~33°
Yaw: -25°~25°Controllable Range Pitch: -90°~ 0° Max Control Speed (pitch) 30°/s Angular Vibration Range ±0.003° Perception System
Forward Accurate measurement range:0.5~16m
Effective sensing speed:<10m/s
FOV:Horizontal<40°,Vertical<30°Backward Accurate measurement range:0.5~18m
Effective sensing speed:<12m/s
FOV:Horizontal<40°,Vertical<30°Downward Accurate measurement range:0.5~20m
Visual hovering range:0.5~40m
FOV:Horizontal<40°,Vertical<30°Operating environment Forward, backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)Camera
EVO Nano EVO Nano+ Sensor CMOS:1/2 inch;
Effective pixels:48M
Pixel size:1.6μm*1.6μm(Bin2)CMOS:1/1.28 inch
Effective pixels:50MP
Pixel size: 2.44μm*2.44μm (Bin2)Lens FOV:84°
Equivalent focal length:24mm
Aperture:f/2.8
Focus range:1m ~ ∞
Focus mode: fixed focusFOV: 85°
Equivalent focal length: 23mm
Aperture: f/1.9
Focus range: 0.5m ~ ∞
Focus mode::PDAF+CDAF/MFShooting mode Automatic mode (P gear): EV adjustable, ISO/Shutter automatic
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/EV adjustable, ISO automaticAutomatic mode (P gear): EV adjustable, ISO/Shutter automatic
Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
Shutter priority (S file): Shutter/EV adjustable, ISO automaticISO range Video:ISO100 ~ ISO3200
Photo:ISO100 ~ ISO3200Video:ISO100 ~ ISO6400
Photo:ISO100 ~ ISO6400Shutter speed Photo Mode:1/8000 ~ 8s
Other:1/8000 ~ 1/frame ratesPhoto Mode:1/8000 ~ 8s
Other:1/8000 ~ 1/frame ratesPortrait blur Real-time image transmission portrait blur and photo portrait blur Real-time image transmission portrait blur and photo portrait blur Defog mode Support Support Zoom Range Digital zoom:1 ~ 16 times Digital zoom:1 ~ 16 times Photo format JPG/ DNG/ JPG+DNG JPG/ DNG/ JPG+DNG Photo resolution 48MP:8000x6000(4:3)
12MP(default):4000x3000(4:3)
4K:3840x2160(16:9)50MP:8192x6144(4:3)
12.5MP(default):4096x3072(4:3)
4K:3840x2160(16:9)Photo shooting mode Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR imaging: 3840x2160Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR imaging: 3840x2160Video coding format H265/H264 H265/H264 Video resolution 3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/243840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/24Max bitrate 100Mbps 100Mbps Timelapse Original image:3840*2160,JPG/DNG
Video: 4K P25Original image:3840*2160,JPG/DNG
Video: 4K P25Panorama Horizontal/Vertical/Wide-angle/Spherical
Original image: 4000*3000, JPG/DNGHorizontal/Vertical/Wide-angle/Spherical
Original image: 4096*3072, JPG/DNGSupported file system Fat32、exFat Fat32、exFat Video format MP4/MOV MP4/MOV WIFI transfer 20MB/s 20MB/s Remote controllor and image transmission
Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHzBackward Accurate measurement range:0.5~18m
Effective sensing speed:<12m/s
FOV:Horizontal<40°,Vertical<30°Max transmission distance
(unobstructed, free of interference)FCC:10km Operating temperature 0°C ~40°C Transmission power (EIRP) FCC:≤30dBm Battery capacity 3930mAh Max battery life ~ 3.5h (when connected to a mobile phone)
~ 2.5h (when not connected to mobile phone)Interface type Type C Transmission system Autel SkyLink Realtime transmission quality Transmission distance<1km:2.7K 30fps
Transmission distance>1km:720P 30fpsTransmission bitrate 90Mbps Transmission delay ≤200ms Adapter
Input 100-240V/50-60HZ Output 5V==3A,9V⎓==A,12V==2.5A Rated power 30W Aircraft Battery
Capacity 2250mAh Voltage 7.7V Max charging voltage 8.8V Battery Type Li-Po 2S Energy 17.32Wh Charging temperature 5~45℃ Single battery charging time 90min Max charging power 30W App
Mobile App Autel Sky Mobile system required iOS 12.0 and above
Android 8.0 and above -

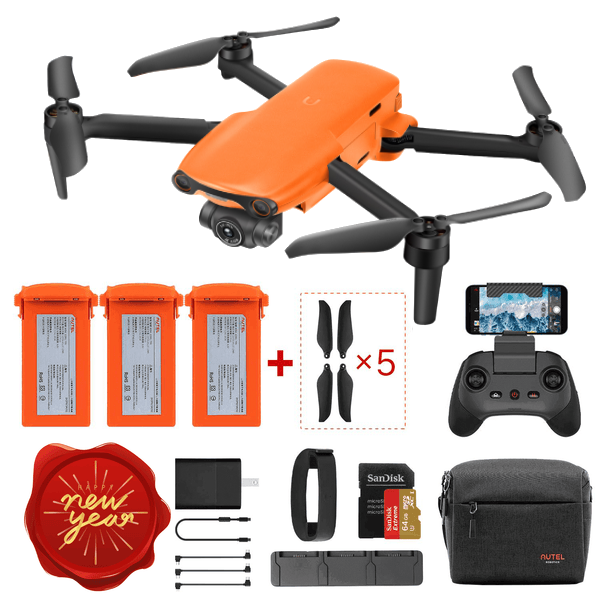

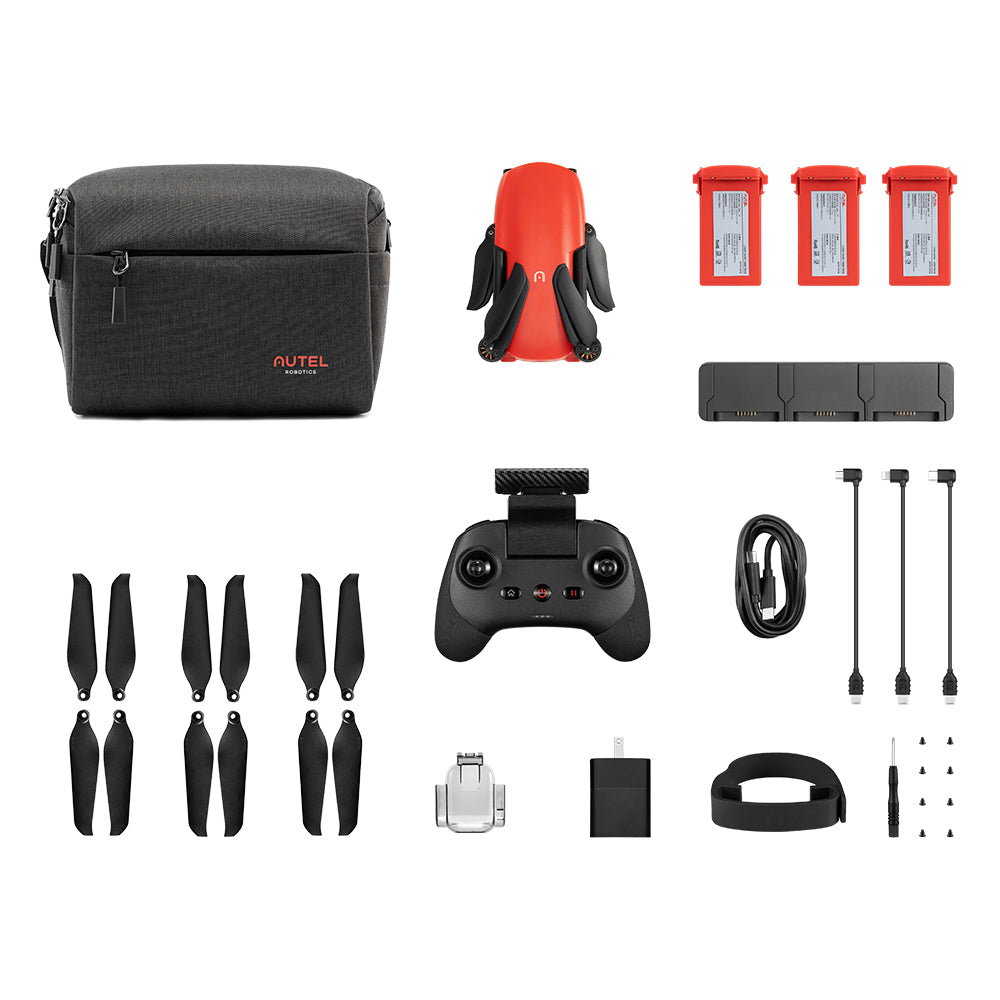

EVO Nano Premium Bundle Packing List
1* EVO Nano Aircraft (including gimbal cover)
5* Total Pairs Propellers
3* Total Flight Battery
1* Propeller Holder
1* Flight Battery Charging Hub
1* Flight Battery Charger
1* Remote Controller
1* RC Charging Cable
1* RC Cables (Lightning, Micro-USB, USB-C)
8* Spare Screws
1* Screwdriver
1* Shoulder Bag
In the Box - Standard vs. Premium Bundle
As highlighted below, compare to the Standard Package, the Premium Bundle provides two (2) additional Flight Batteries, a Battery Charging Hub, a Propeller Holder, two (2) additional Propeller Pairs, and a Shoulder Bag.
Items Standard Premium Bundle Aircraft 1 1 Total Flight Batteries 1 3 Flight Battery Charger 1 1 Total Propeller (Pairs) 3 5 Propeller Holder 1 Flight Battery Charging Hub 1 Remote Controller 1 1 Remote Controller Charger 1 1 Spare Screws 8 8 Screwdriver 1 1 RC Cables
(Lightning, Type-C, Micro USB)1 1 Shoulder Bag
1 -
