Autel Robotics EVO II Pro V2 6K Enterprise [RTK Module Optional]

$4,049.00 $5,123.00 saving $1,074.00

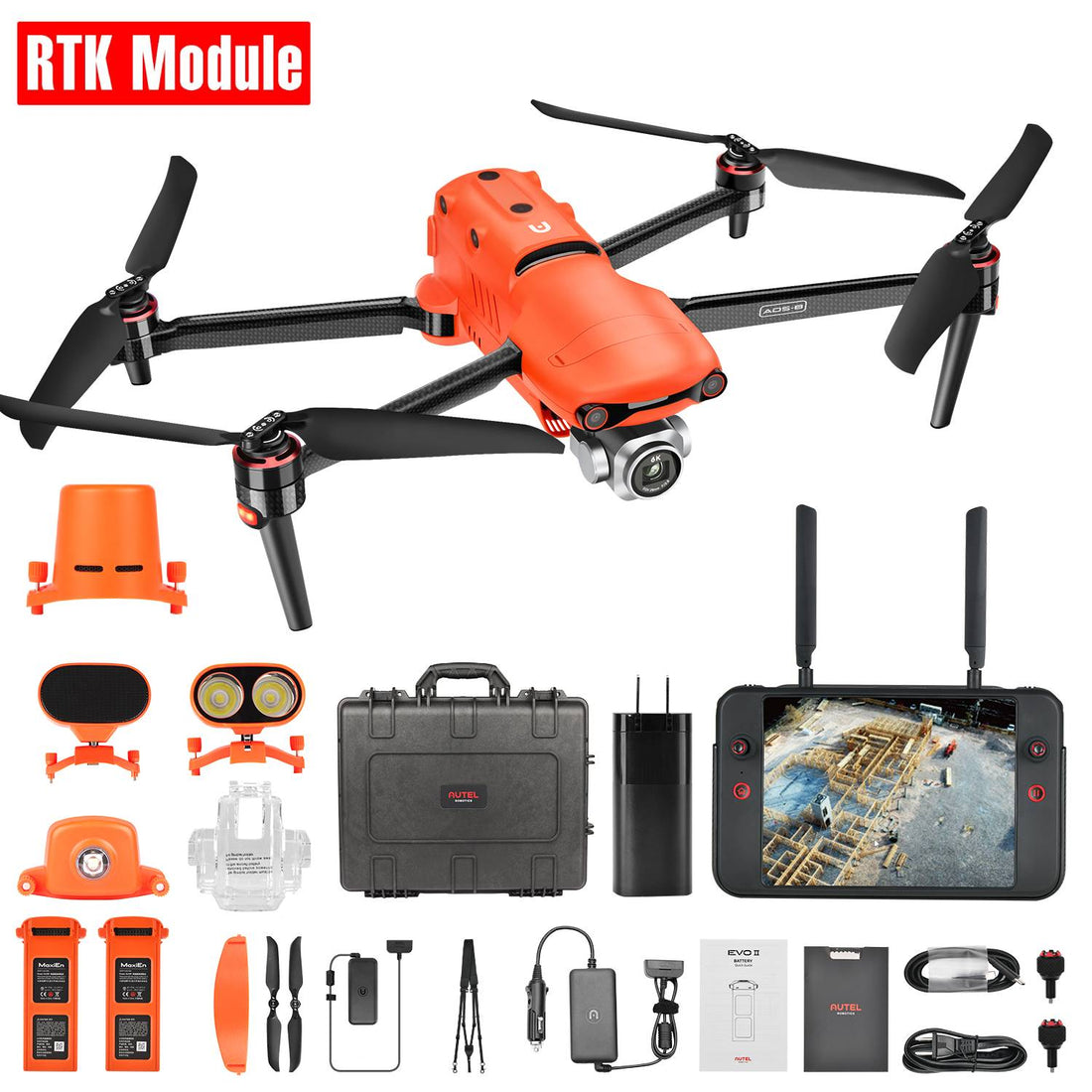

Autel Robotics EVO II Pro 6K Enterprise Rugged Bundle V2 with RTK Moudle

Autel Robotics EVO II Pro V2 6K Enterprise [RTK Module Optional]

$4,049.00 $5,123.00 saving $1,074.00
  • No Geofencing
  • 7.9" Smart Controller
  • Include Speaker/Spotlight/Stobe
  • 1" CMOS Sensor Gimbal Camera
  • 10-bit DNG A-Log
  • 20MP Photo& 6K/30fps Video
  • 360° Obstacle Avoidance
  • Dynamic Track 2.0
  • 40 Minutes Flight Time
  • 5.5 Miles Video Transmission Range
  • Description
  • Applications
  • SPECS
  • In the box
  • Videos
  • EVO II Pro (6K) Enterprise Rugged Bundle

    Autel Robotics EVO II Pro 6K Enterprise Bundle is the newest model in the EVO II lineup. The 6K Pro Model features a 6K 1" CMOS sensor capable of shooting up to 20MP stills. The Enterprise version features larger carbon fiber arms with bigger, more powerful motors and larger propellers which yield an additional 5-7 minutes of flight time bringing the maximum flight time to 42 minutes. The EVO II Enterprise also has an ADS-B receiver for enhanced awareness of the operators' airspace in addition to encrypted internal and external storage. All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.

    EVO II Pro (6K) Enterprise Features

    The EVO II Pro Enterprise boasts a maximum flight time of 42 minutes and allows for the installation of add-on modules onto the hood of the aircraft. These add-on modules include the speaker, spotlight, and beacon, there is also an RTK add-on module for separate purchase. The EVO II Pro Enterprise comes with the Autel Smart Controller, three flight batteries, a wall charger, and a wheeled carrying case (see "In the Box" for full kit contents).

    The EVO II Enterprise is a slightly different airframe from the regular EVO II models. The Enterprise model features carbon fiber arms, larger motors and larger propellers. These three characteristics yield an additional 5-7 minutes of flight time for the Enterprise model. The EVO II Enterprise also has a built-in ADS-B receiver so that you can ensure you are operating safely with knowledge of manned aircraft in your operational environment. In addition, the EVO II Enterprise features AES-256 encryption, called "Autel DataSecure Encryption".

    Autel Robotics EVO II Pro 6K Enterprise Drone Camera Features

    The 20MP 1" 6K CMOS sensor features 3X lossless and 16X digital zoom capability along with an adjustable aperture range of f/2.8 to f/11. The EVO II Pro camera sensor as an electronic rolling/linear shutter.

    6K Camera & Dual 640T Camera

    • 6k evo ii pro camera
      EVO II Pro Enterprise
      • 20MP 1"CMOS Sensor
      • 3x Optical 16x Digital Zoom Capability
      • Adjustable Aperture Range of f2.8 to f11
    • EVO 640T Camera
      EVO II Dual 640T Enterprise
      • 640*512 Thermal Imaging Sensor
      • 48MP Visual Camera
      • Multiple Display Modes: Visual, Thermal, Picture-in-Picture
    • EVO II Pro Camera
      EVO II Pro Enterprise
      • 20MP 1"CMOS Sensor
      • 3x Optical 16x Digital Zoom Capability
      • Adjustable Aperture Range of f2.8 to f11
    • EVO II 640T Camera
      EVO II Dual 640T Enterprise
      • 640*512 Thermal Imaging Sensor
      • 48MP Visual Camera
      • Multiple Display Modes: Visual, Thermal, Picture-in-Picture

    Enterprise Accessories

    Modular accessories give users the ability to hotswap between a loudspeaker, spotlight, strobe, and RTK module for ultimate mission versatility.

    EVO II Pro 6K Enterprise Accessories

    Intelligent Software Features

    16x Digital Zoom; Robust Mission Planner: Allows for autonomous flights and mapping-related missions in Orbit, Waypoint, Rectangular, and Polygon; Data Security, and Prerecord.

    Autel Robotics EVO II Pro 6K Enterprise Software Features

    Enterprise Smart Controller

    All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.

    Autel Robotics EVO II Pro 6K Enterprise 7.9 inch smart controller

    ADS-B Receiver

    Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

    autel evo ii enterprise ads-b reciever

    Autel EVO II Pro 6K Camera

    • 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture

    Autel Robotics EVO II Pro 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.

    As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.

    1" CMOS

    Imaging Sensor

    20MP

    Photos Resolution

    6K/30fps

    HDR Video

    • 6K Hyper-lapse photography and More Shooting Modes

    The EVO II Pro camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure

    autel roboticse evo ii pro 6k hyper-lapse
    • Capture the night time world

    The EVO II Pro camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

    • 10-bit A-Log Color Recording

    This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

    evo ii pro 4k camera drone
    • Connect Autel Live Deck to display live video from EVO II on any device

    The live video from EVO 2 drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.

    • Adjust field-of-view to any angle from 0° to 90° while flying

    EVO II Pro Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

    • Cameras interchangeable

    Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

    Autel EVO II One new aircraft with three camera options

    EVO II - AI Enhanced Dynamic Track

    EVO II Pro can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

    360° Obstacle Avoidance

    EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

    autel robotics evo ii pro 6k drone 360° Obstacle Avoidance autel robotics evo ii pro 6k drone 360° 12 binocular vision sensing systems

    Multiple Intelligent Flight Modes

    Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

    autel robotics evo ii pro flight mode

    Failsafe & Automatically Return Home

    EVO 2 Pro will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

    40 Minutes & 5.5 Miles HD Transmission

    Autel EVO 2 Pro comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.

    autel robotics evo ii pro 40 mins flight time autel robotics evo ii pro no flight restriction

    RTK Moudle Introduction

    Centimeter-Level Positioning System

    The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.

    Autel Robotics EVO II RTK Series Drone Centimeter-Level Positioning System

    Mission Execution With Advanced Intelligence

    EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.

    Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.

    autel evo ii pro rtk Mission Execution With Advanced Intelligence

    No Need for Ground Control Points

    The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.

    autel evo ii pro rtk application
    • RTK / PPK

      The Evo II RTK Series supports third party base stations with NTRIP capability

      autel evo ii pro rtk ppk,ptk
    • RTK High-precision GNSS Base Station

      The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.

      autel evo ii pro rtk
    • RTK / PPK

      The Evo II RTK Series supports third party base stations with NTRIP capability

      autel evo ii pro rtk ppk,ptk
    • RTK High-precision GNSS Base Station

      The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.

      autel evo ii pro rtk

    Photo Replication

    For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    autel evo ii rtk
    • 1
    • 4
    • 2
    • 5
    • 3
    • 6
    • 1
    • 4
    • 2
    • 5
    • 3
    • 6
  • Autel EVO II Pro 6K Enterprise Drone Specification

    Aircraft Gimbal Camera Remote Controller
    Accesories Battery Charger Storage
    Aircraft Gimbal Camera Remote Controller Accesories Battery Charger Storage
    Aircraft
    Takeoff Weight (Without Accessories) EVO II Pro Enterprise:2.45lbs (1110g)
    EVO II Dual 640T Enterprise:2.51lbs (1136.5g)
    Diagonal Length 16.8in (427mm)
    Max Flight Time (no wind) 42min(without accessories)
    Hovering Time (no wind) 38min(with strobe)
    29min(with spotlight)
    34min(with loudspeaker)
    36min(with RTK module)
    Max Level Flight Speed 45 mph (20 m/s) (Ludicrous)
    Max Ascent Speed 18 mph (8 m/s (Ludicrous)
    Max Descent Speed 9 mph (4 m/s) (Ludicrous)
    Max Service Ceiling Altitude 4.3 miles (7000 m) MSL
    Operating Temperature 14℉ to 104℉ (-10℃ to 40℃)
    Max Wind Speed Resistance 39mph (17m/s)
    Operating Frequency 2.400GHz - 2.4835GHz;5.725GHz - 5.850GHz
    Hovering Accuracy Range Vertical:
    ± 0.3ft (0.1m) (with RTK)
    ± 0.3ft (0.1m) (with Vision Positioning)
    ± 1.6ft (0.5m) (with GPS Positioning)
    Horizontal:
    ± 0.3ft (0.1m) (with RTK)
    ± 0.9ft (0.3m) (with Vision Positioning)
    ± 4.9ft (1.5m) (with GPS Positioning)
    Gimbal
    Operation Range Pitch: -135° to +45°
    Yaw: -100° to +100°
    Operation Range Pitch: -90° to +30°
    Yaw: -90° to +90°
    Stability More Stable with 3 Axies
    Max Control Speed (Tilt) 300°/s
    Angular Vibration Range ±0.005°
    Enterprise Camera
    Sensor 1-inch CMOS; 20 million effective pixels
    FOV 82°
    Aperture f/2.8 - f/11
    f/2.8 - f/11 1m to ∞
    Equivalent Focal Length 28.6mm
    ISO Range Video: 100-6400 (auto)
    Photo: 100-3200 (auto)
    Zoom 1-16x (up to 3x lossless zoom)
    Still Photography Modes Single Shot
    Burst shooing: 3/5 frames
    Automatic Exposure Bracketing (AEB):
    3/5 bracketed frames at 0.7 EV Bias
    Timelapse:
    JPG:2s/5s/7s/10s/20s/30s/60s
    DNG:5s/7s/10s/20s/30s/60s
    HyperLight:support (under 4K JPEG format)
    Long Exposure: Max 8s
    HDR imaging: (under 4K JPEG)
    Still Photography Resolution 5472*3648 (3:2)
    5472*3076 (16:9)
    3840*2160 (16:9)
    Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
    Video Resolution 6K 5472*3076 p30/p25/p24
    4K 3840*2160 p60/p50/p48/p30/p25/p24
    2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
    1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24
    Max Bitrate 120Mbps
    Dual 640T Enterprise Thermal Camera
    Sensor Vanadium oxide uncooled infrared focal plane detector
    Viewing Angle H33°V26°
    Sensor resolution 640x512
    Pixel Pitch 12μm
    Focal Length 13mm
    Wavelength range 8~14μm
    Accurate temperature measurement distance 2-20 meters
    Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
    @ambient temperature -20℃~60℃
    Temperature range High gain mode: -20° to +150°C
    Low gain mode: 0° to +550°C
    Zoom 1-16x
    Photo shooting mode Single shooting, continuous shooting,time-lapse shooting
    Camera resolution Infrared mode: 640*512
    Picture in Picture: 1920*1080, 1280*720
    Video Resolution 640*512 30fps
    Video format MOV / MP4 (support H.264/H.265)
    Dual 640T Enterprise Visual Camera
    Sensor
    1/2 inch CMOS; 48M effective pixels
    FOV FOV:79°
    Aperture f/1.8
    Focus range
    0.5m to ∞
    Equivalent Focal Length 25.6mm
    ISO Range Video: 100-6400 (auto)
    Photo: 100-3200 (auto)
    Zoom 1-16x (up to 4x lossless zoom)
    Still Photography Modes Single Shot
    Burst shooing: 3/5 frames
    Automatic Exposure Bracketing (AEB):
    3/5 bracketed frames at 0.7 EV Bias
    Timelapse:
    JPG:2s/5s/7s/10s/20s/30s/60s
    DNG:5s/7s/10s/20s/30s/60s
    HyperLight:support (under 4K JPEG format)
    Long Exposure: Max 8s
    HDR imaging: (under 4K JPEG)
    Still Photography Resolution 8000*6000 (4:3)
    7680*4320 (16:9)
    4000*3000 (4:3)
    3840*2160 (16:9)
    Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
    Video Resolution 8K 7680*4320 p25/p24
    6K 5760*3240 p30/p25/p24
    4K 3840*2160 p60/p50/p48/p30/p25/p24
    2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
    Max Bitrate 120Mbps
    Remote Controller
    *Operating Frequency 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
    Max Transmission Distance(unobstructed, free of interference) FCC: 13km
    CE: 7km
    Transmitter Power (EIRP) 902-928 MHz
    FCC:≤30dBm
    2.400-2.4835 GHz
    FCC:≤30dBm
    CE:≤20dBm
    5.725-5.850 GHz
    CE:≤14dBm
    Internal Storage 128GB
    Video Output Port HDMI
    Built-in Battery Name: Intelligent Li-ion battery
    Capacity:5800mAh
    Voltage:11.55V
    Battery Type:Li-ion
    Battery Energy:67 Wh
    Charging time:120 min
    Battery Life 3hr (Max. intensity)
    4.5hr (50% intensity)
    Operating Temperature -20℃ - 40℃
    RC Size 303×190×87mm(Ant. folded)
    303 x 273 x 87 mm (Ant. unfolded)
    Weight 1150g (Without protective case)
    1250g (With protective case)
    Satellite Positioning Module GPS + GLONASS + Galileo
    Accessories
    Strobe Dimensions: 39*72*34 mm
    Weight: 19.5g
    Connections: Floating Connectors
    Power:Avg. 1.6W
    Controllable Range:5000m
    Light intensity:Min 50cd;Max 486cd;Avg. 290cd
    Loudspeaker Dimensions:46*80*77 mm
    Weight: 98.5g
    Connections: Floating Connectors
    Power:Max 18W
    Decibel:120dB @ 1m;88dB @ 60m;70dB @ 110m;
    Max Bitrate:36kbps
    Adjustable Angle Range:0°~45°
    Spotlight Dimensions: 48.5*72*63 mm
    Weight: 77g
    Connections: Floating Connectors
    Power:Max 35W
    Controllable Range:30m
    Adjustable Angle Range:0°~90°
    Illuminance:FOV14°, Max:11lux @ 30m Straight
    RTK Module(sold separately) Dimensions:55.5*72.5*57 mm
    Weight:59.5 g
    Connections:Floating Connectors
    Power:~ 3W
    RTK Positioning Precision:
    1.5 cm + 1 ppm((Vertical)
    1 cm + 1 ppm(Horizontal)
    Battery
    Capacity 7100 mAh
    Voltage 11.55 V
    Battery Type LiPo 3S
    Energy 82Wh
    Net Weight 365g
    Charging Temperature 5~45℃
    Storage Temperature & Humidity -10~30℃,65±20%RH
    Recommended Storage Temperature 22~28℃
    Max Charging Power 93 W
    Charging Time 90 mins
    Charger
    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V ⎓ 5 A
    5V⎓3A 9V⎓2A 12V⎓1.5A
    Voltage 13.2 ± 0.1 V
    Rated Power 66 W
    Storage
    Internal Storage 8 G
    SD Storage Standard: 32 GB
    Max. support 256GB ( UHS-3 rating required )

    Note: *The operating frequency band varies according to different countries and areas.

    Note: *Operating frequency varies by countries and regions, please refer to local laws and regulations.

  • Autel EVO II Pro Enterprsise Rugged Bundle

    autel evo ii pro enterprise package list mobile autel evo ii pro enterprise package list pc

    Autel EVO II Pro Enterprsise Rugged Bundle With RTK Module

    autel evo ii rtk enterprise bundle with rtk module pc autel evo ii rtk enterprise bundle with rtk module mobile
  • Introducing: EVO II Enterprise

    EVO II Enterprise: Unboxing & Walkthrough

    EVOLVE with EVO II Series
