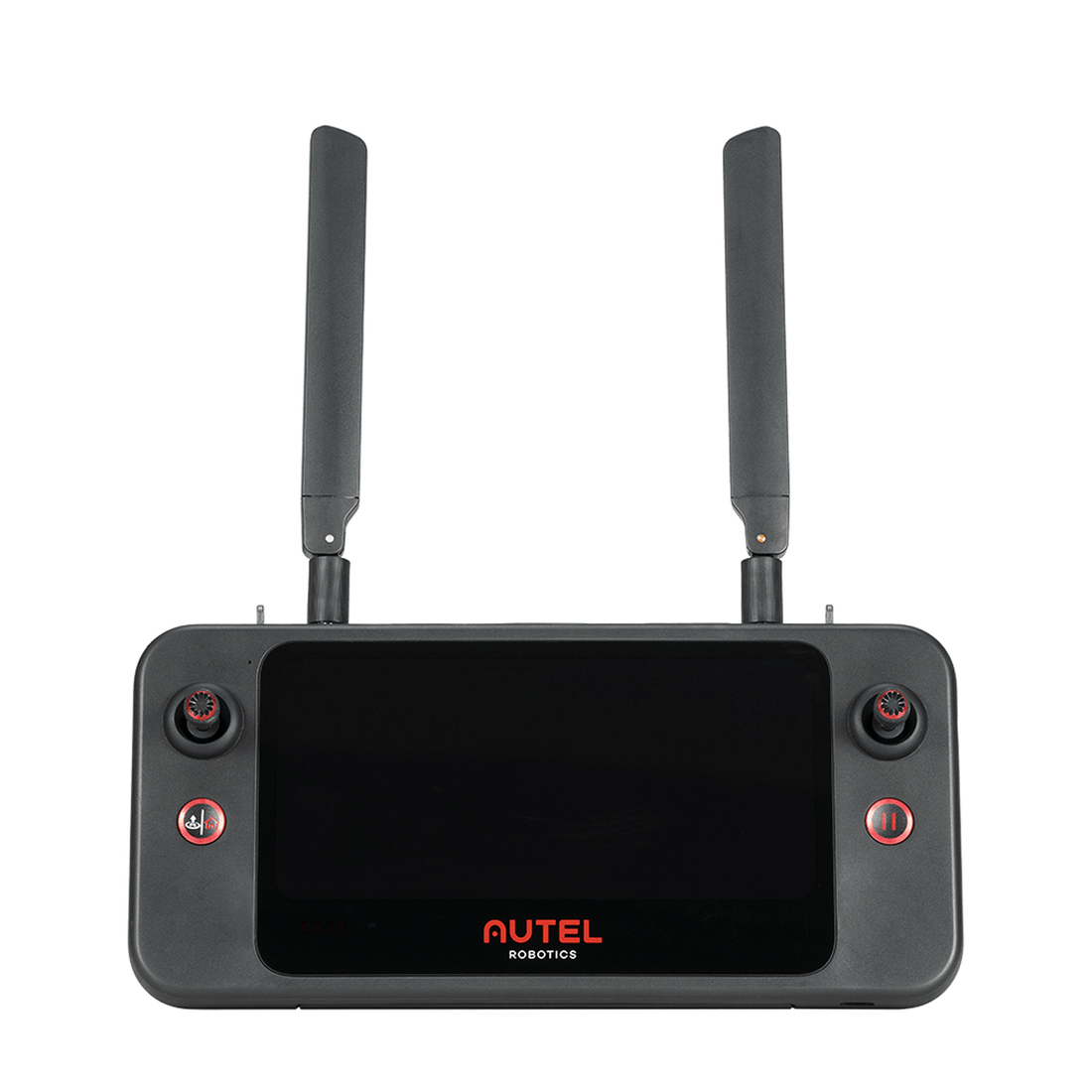

Autel Robotics Smart Controller SE for EVO II V3
Autel Robotics Smart Controller SE for EVO II V3
- Overview
- SPECS
- In the box
- Videos
- Downloads
- Faqs
-

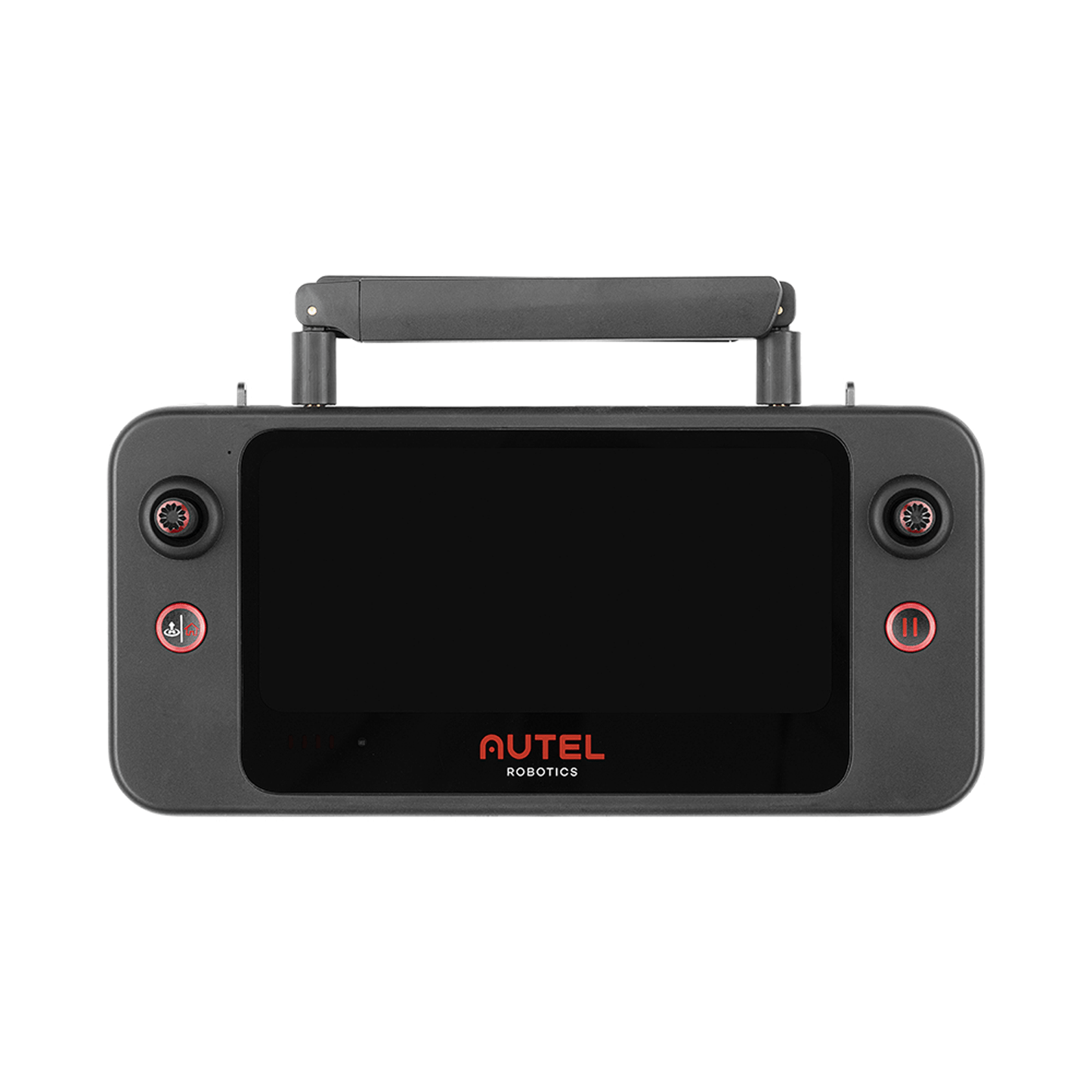

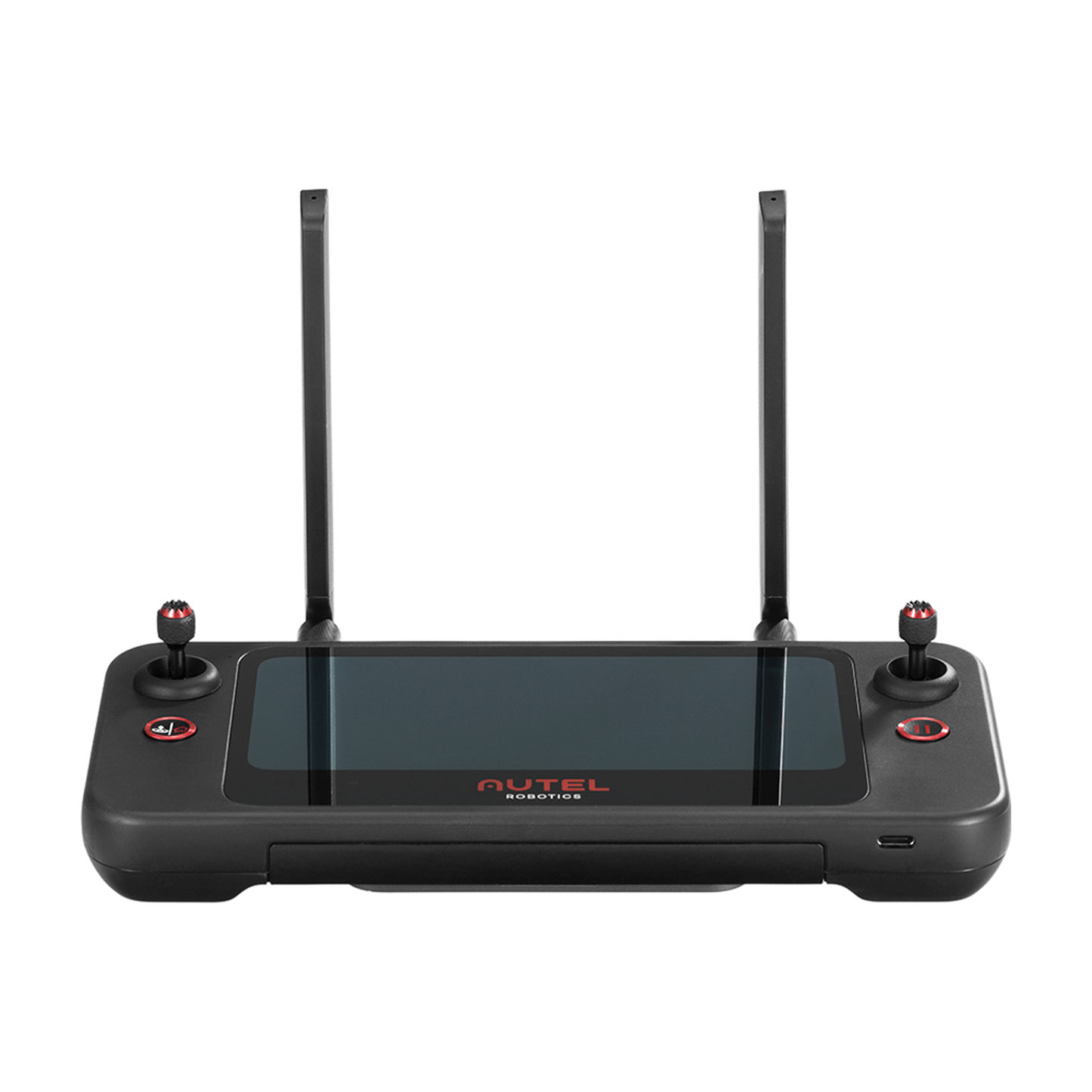

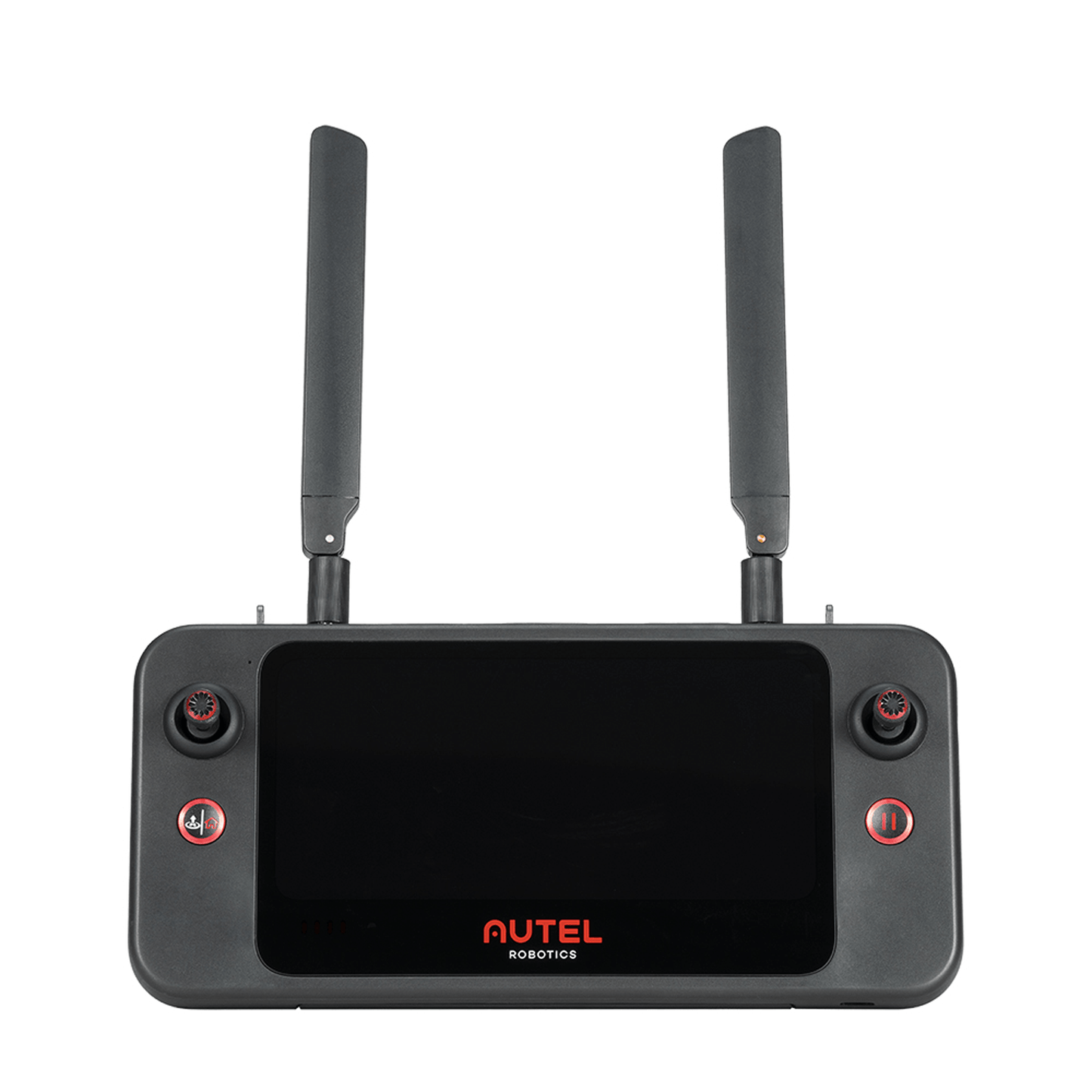

Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

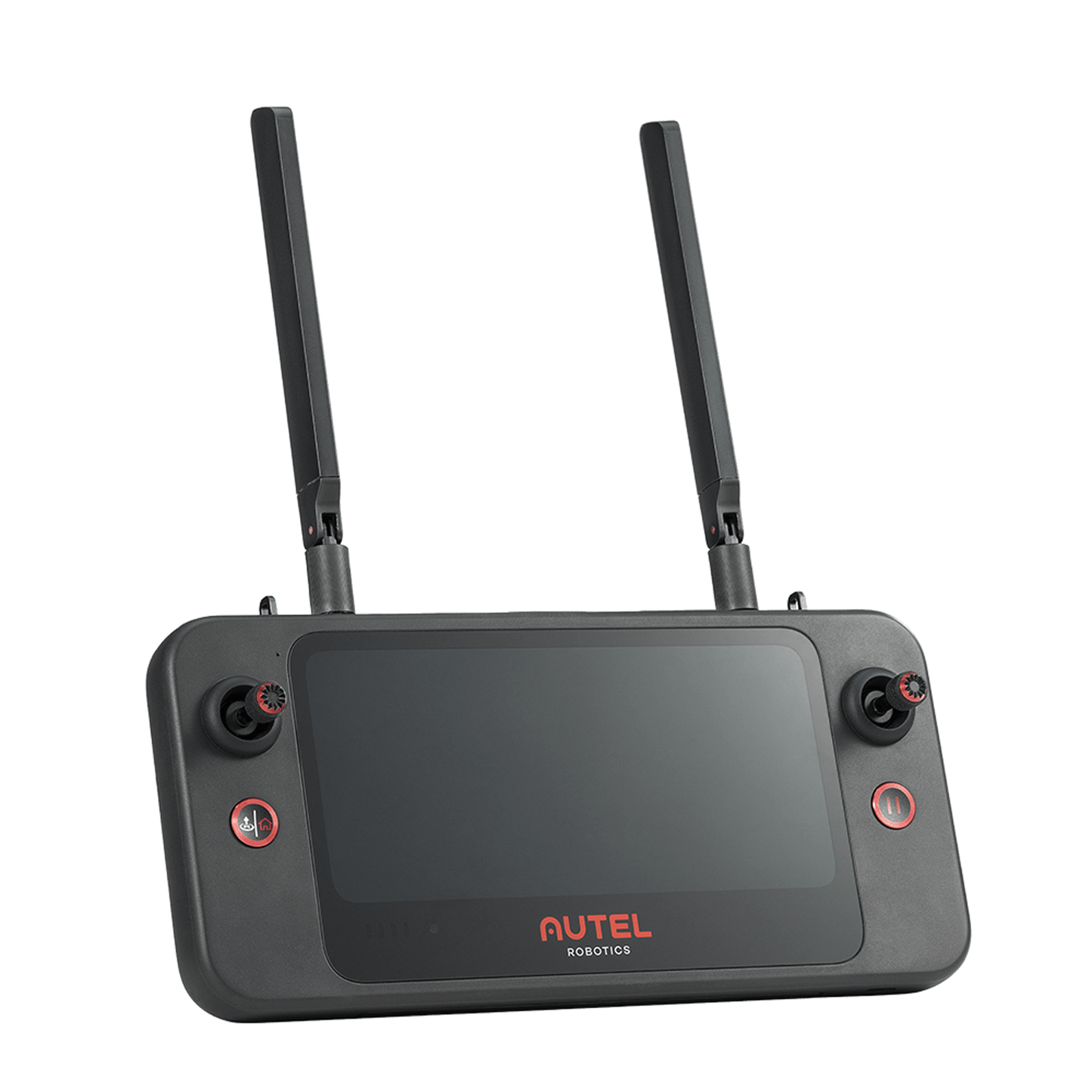

High Resolution OLED Screen
The Autel Smart Controller SE comes with a 6.4" OLED 2340x1080 touch screen with exceptional touch sensitivity. The OLED's high contrast and 800 nits brightness makes the Smart Controller SE readable in most daylight conditions.
Autel SkyLink 2.0 Transmission Technology
Autel Smart Controller SE uses Autel's latest SkyLink 2.0 transmission technology, capable of QHD video within 1km and HD video up to 15km away. SkyLink 2.0 utilizes triple frequencies of 5.8Ghz, 2.4Ghz, and 900 Mhz for enhanced anti interference capabilities in urban environments.
-
3rd Party App Support Smart Controller SE's Android system allows for the installation and customization of 3rd party apps.
-
Livestream Smart Controller SE supports livestreaming to a local monitor via the HDMI port or through 3rd party apps downloads.
-
3rd Party App Support Smart Controller SE's Android system allows for the installation and customization of 3rd party apps.
-
Livestream Smart Controller SE supports livestreaming to a local monitor via the HDMI port or through 3rd party apps downloads.
High Performance Hardware
Featuring Qualcomm 8-core processor of 14nm technology, the Smart Controller SE comes with stronger computing capability while lowering power consumption. It is capable of decoding 4K videos and processing audios in high-fidelity. The supporting of Wi-Fi 5 protocol enables it to download third-party applications real fast.
Weather Sealed and Temperature Tolerant
Autel Smart Controller SE has an IP43 against dust and light rain. An operating temperature between -10°C to 40°C enhances reliability of the Smart Controller SE in all seasons.
-
Lightweight and Portable

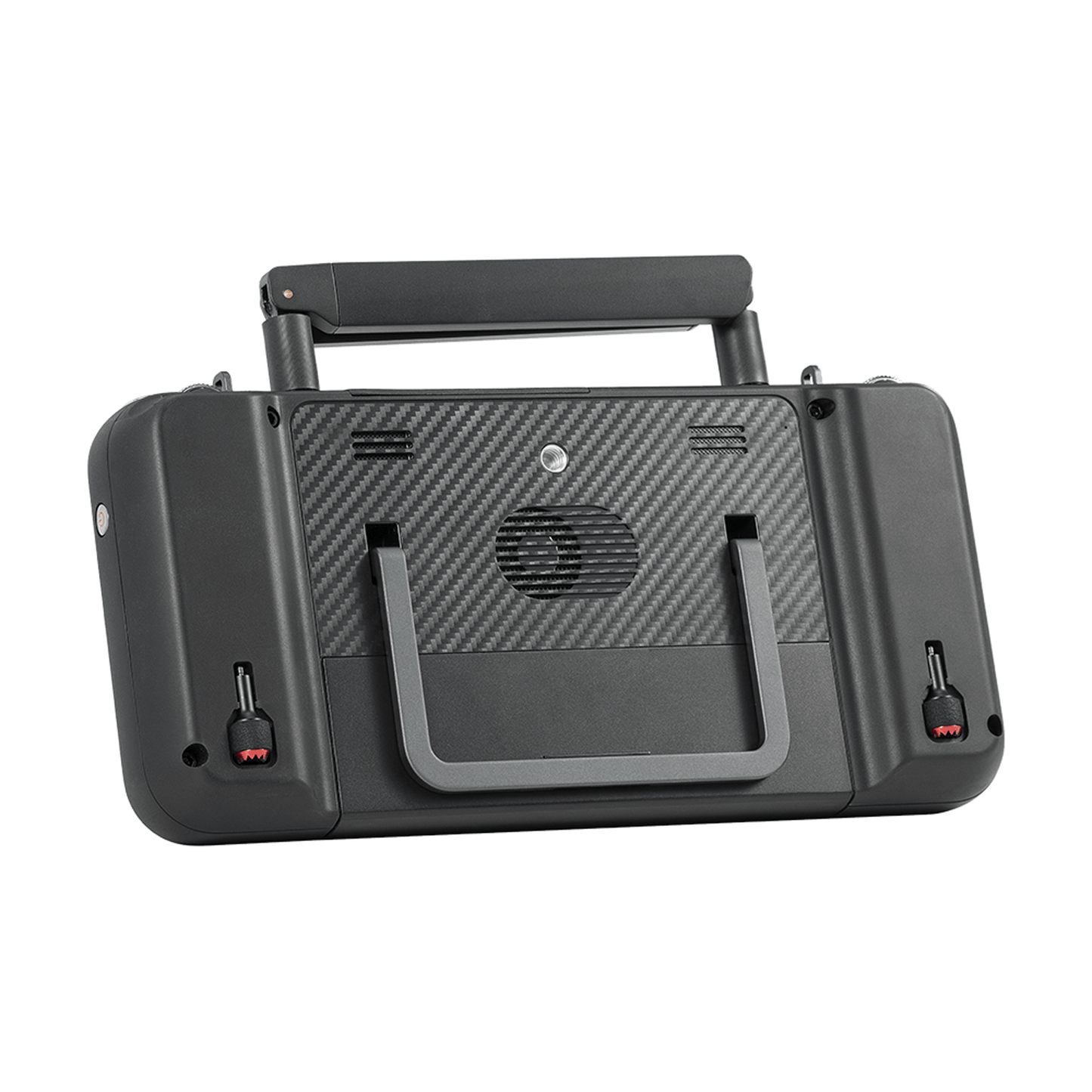

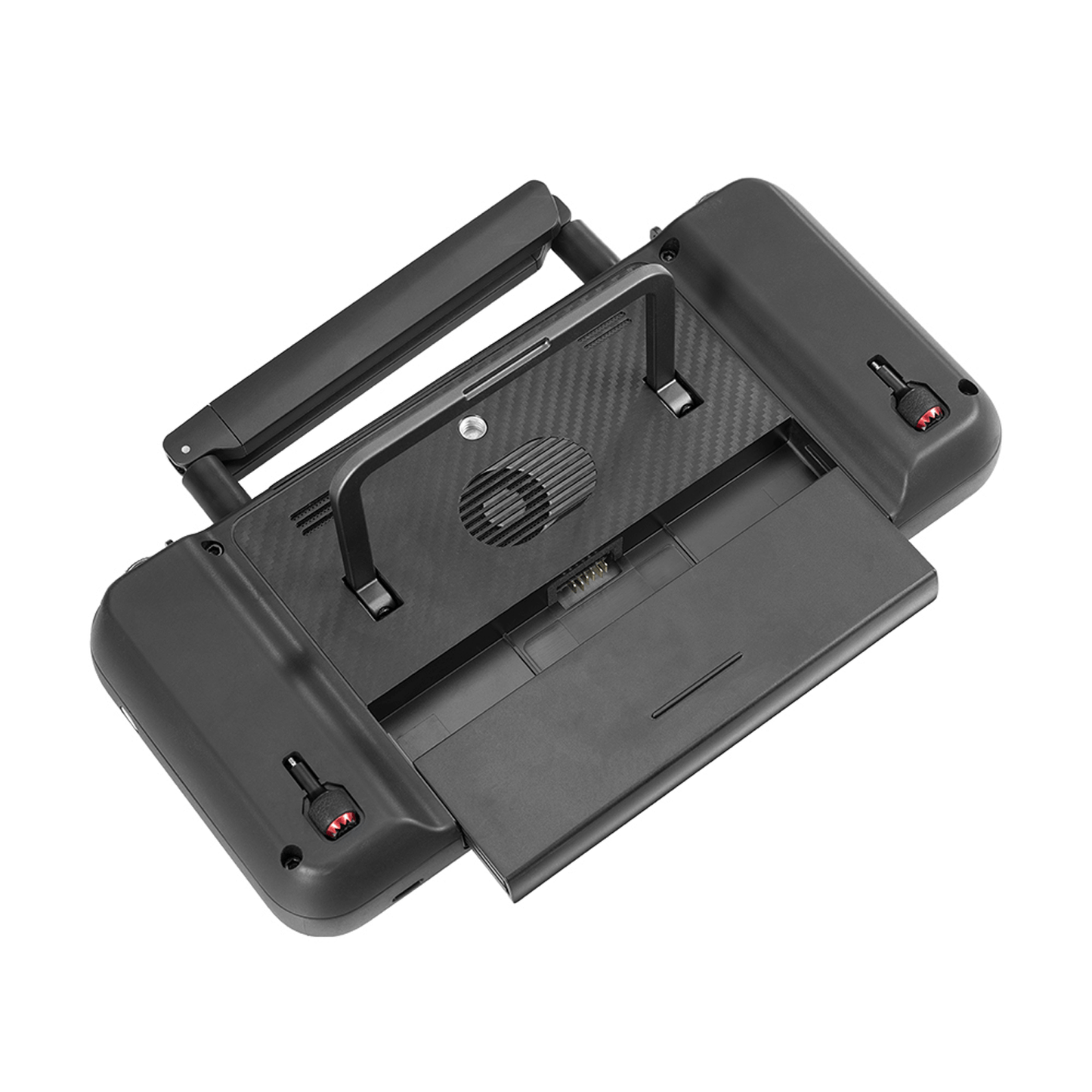

Coming in at 617g, the Smart Controller SE is light enough for all day carrying and removable joysticks are conveniently stowed in the backside for easy access.
-
Multi-Ports

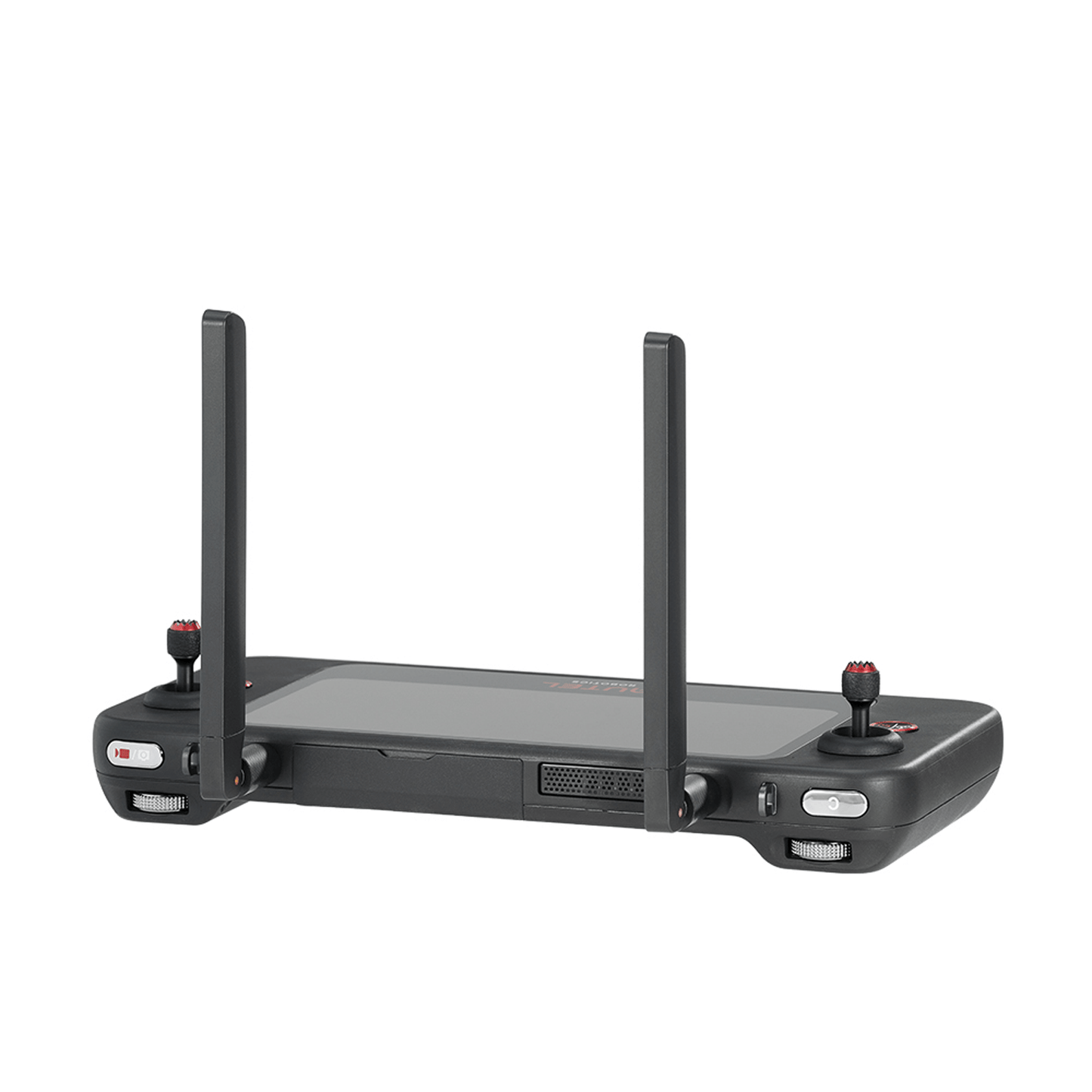

HDMI, quick removable TF card, and USB ports solve all your broadcasting, charging, and transfer needs. And SMA compatible connectors for quick replacements or 3rd party upgrades.
-
Lightweight and Portable
Coming in at 617g, the Smart Controller SE is light enough for all day carrying and removable joysticks are conveniently stowed in the backside for easy access.
-
Multi-Ports
HDMI, quick removable TF card, and USB ports solve all your broadcasting, charging, and transfer needs. And SMA compatible connectors for quick replacements or 3rd party upgrades.
-
-
Image Transmission Wi-Fi Bluetooth Screen Battery Power Adapter General Specifications Image Transmission
Antenna 2 Antennas, 1T2R *Operating Frequency - 902-928MHz（FCC）
- 2.400-2.4835GHz
- 5.725-5.850GHz（Non-Japan）
- 5.650-5.755GHz（Japan Only）
Max Transmission Distance（unobstructed, free of interference） FCC: 15km
CE/SRRC: 8kmShutter Speed Electronic Shutter: 8 ~ 1/8000s Transmitter Power (EIRP) - FCC：≤33dBm
- CE：≤20dBm@2.4G, ≤14dBm@5.8G
- SRRC：≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
Wi-Fi
Protocol Wi-Fi 802.11a/b/g/n/ac, 2x2 MIMO *Operating Frequency 2.400-2.4835GHz
5.725-5.850GHzTransmitter Power (EIRP) - FCC：≤26dBm
- CE：≤20dBm@2.4G, ≤14dBm@5.8G
- SRRC：≤20dBm@2.4G, ≤26dBm@5.8G°
Bluetooth
Protocol Bluetooth 5.0 *Operating Frequency 2.400-2.4835GHz Transmitter Power (EIRP) ≤11dBm - FCC：≤26dBm
- CE：≤20dBm@2.4G, ≤14dBm@5.8G
- SRRC：≤20dBm@2.4G, ≤26dBm@5.8G°
Screen
Resolution 2340×1080 Dimensions 6.4inches Frame Rate 60fps Max. Brightness 800nit Touch Screen 10-point multi-touch Battery
Type Li-ion Rated Capacity 1900mAh Nominal Voltage 7.7V Rated Power 14.63W Operating Time ~2 hours (Max. Brightness)
~3 hours (50% Brightness)Charging Time 90 minutes Charging Temperature 5℃ to 45℃（41℉ to 113℉） Power Adapter
Input 100-240V ~ 50/60HZ 1A Max Output 5V 3A，9V 2A，12V 2.5A Rated Power 30W General Specifications
Internal Storage ROM 128GB + expandable storage via micro-SD card Video Output Port HDMI USB-A Voltage/Current 5V/2A Operating Temperature -10℃ to 40℃ (14℉ to 104℉) Storage Temperature - >3 months: -20℃ to 25℃（-4℉ to 77℉）
- 1-3 months: -20℃ to 45℃（-4℉ to 113℉）
- <1 month: -20℃ to 60℃（-4℉ to 140℉）
Ingress Protection IP43 Dimensions 226.3×137.7×31.5mm (antennas folded)
226.3×215.4×31.5mm (antennas unfolded)Weight 617g Supported Aircrafts - EVO II Pro V3
- EVO II Dual 640T V3
- EVO II RTK Series V3.
- EVO II Enterprise V3
GNSS GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS *The operating frequency band varies according to different countries and models. *We will support more Autel Robotics aircrafts in the future, please visit our official website https://www.autelrobotics.com/ for the latest information.
-

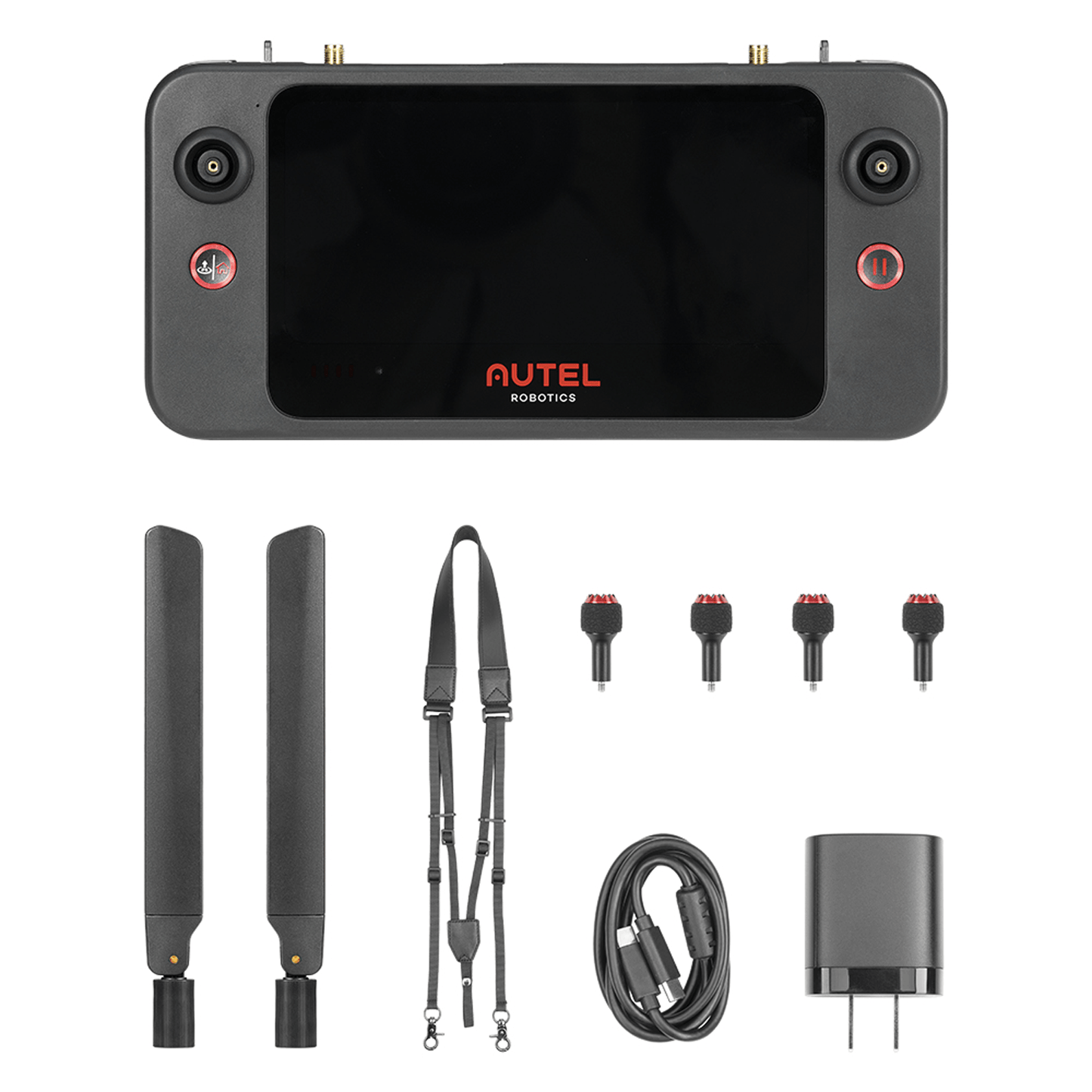

Autel Robotics Smart Controller SE Package List
-
Autel Smart Controller SE Quick Questions & Quick Answers
Q: Is this compatible to used with Autel EVO Nano/Lite Series?Q: Can this output video on the USB-A port to Apple lightning on an iPad?Q: How much internal storage space does the controller have?Q: Does the controller have a speaker and microphone?Q: Can the controller be connected to an HDMI port?Q: Does the product comply with CE/FCC for the max transmission distance?Q: What is the operating temperature of the controller?Q: Which drone models can the controller support?Q: How many communication frequency bands does the controller support?Q: Does the controller support 4G/5G?Q: Can the controller connect to Wi-Fi and Bluetooth?
